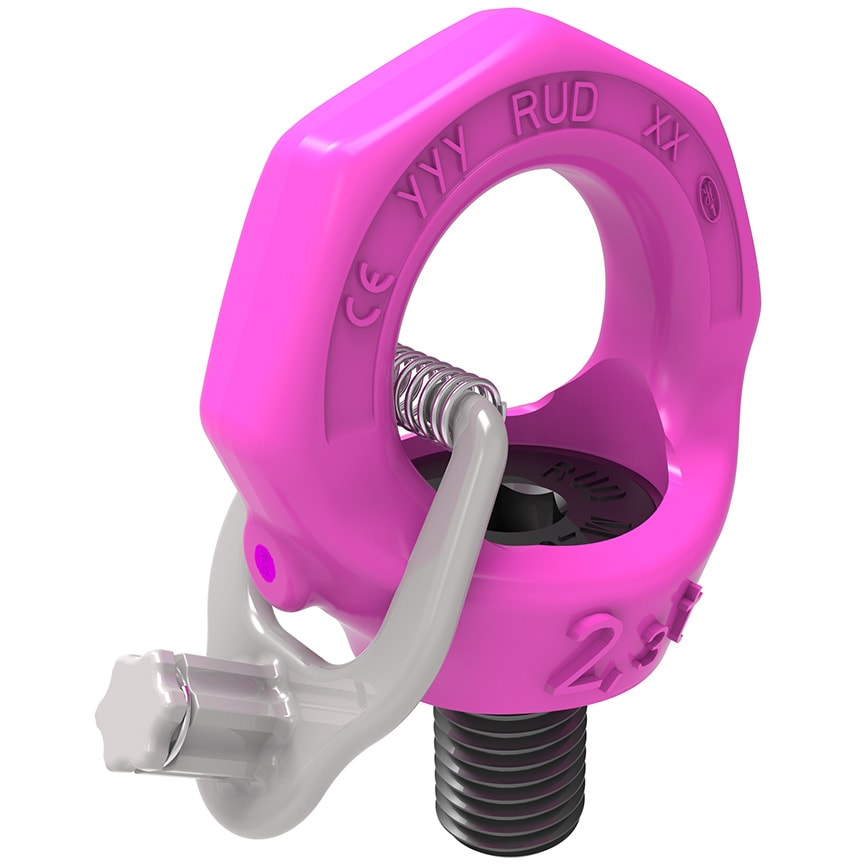

VRS-F STARPOINT, UNC/UN thread

360° adjustable in force direction
Higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Phone
This field is for validation purposes and should be left unchanged.

Product Variants (14)

Vario-Starpoint VRS-F-5/16"-18UNC with star key (7999106)

Technical Information

Product number: 7999106

Technical Downloads

VRS-F - Picture Download File

VRS-F 5/16"-18UNC - DXF 2D CAD File Download File

VRS-F 5/16"-18UNC - IGES 3D CAD File Download File

Vario-Starpoint VRS-F-5/16"-18UNC with star key Download File

Attribute	Value	Value
weight	0.13 kg	0.29 lbs
Nominal WLL	300 kg	660 lbs
B	11 mm	7/16"
T	35 mm	1-3/8"
C	9 mm	11/32"
D	25 mm	63/64"
E	25 mm	63/64"
G	30 mm	1-3/16"
I	16.3 mm	41/64"
K	47 mm	1-7/8"
L	12 mm	15/32"
M	5/16"-18UNC mm	5/16"-18UNC
N	1/4" mm	1/4"

Vario-Starpoint VRS-F-3/8"-16UNC with star key (7104480)

Technical Information

Product number: 7104480

Technical Downloads

VRS-F - Picture Download File

VRS-F-3/8"-16UNC - DXF 2D CAD File Download File

VRS-F-3/8"-16UNC - IGES 3D CAD File Download File

VRS-F-3/8"-16UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-3/8"-16UNC with star key Download File

Attribute	Value	Value
weight	0.12 kg	0.26 lbs
Nominal WLL	400 kg	880 lbs
B	11 mm	7/16"
T	35 mm	1-3/8"
C	9 mm	11/32"
D	25 mm	63/64"
E	25 mm	63/64"
G	30 mm	1-3/16"
I	16.3 mm	41/64"
K	47 mm	1-7/8"
L	15 mm	19/32"
M	3/8"-16UNC mm	3/8"-16UNC
N	1/4" mm	1/4"

Vario-Starpoint VRS-F-7/16"-14UNC with star key (7904195)

Technical Information

Product number: 7904195

Technical Downloads

VRS-F - Picture Download File

VRS-F 7/16"-14UNC - DXF 2D CAD File Download File

VRS-F 7/16"-14UNC - IGES 3D CAD File Download File

VRS-F 7/16"-14UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-7/16"-14UNC with star key Download File

Attribute	Value	Value
weight	0.12 kg	0.26 lbs
Nominal WLL	400 kg	880 lbs
B	11 mm	7/16"
T	35 mm	1-3/8"
C	9 mm	11/32"
D	25 mm	63/64"
E	25 mm	63/64"
G	30 mm	1-3/16"
I	16.3 mm	41/64"
K	47 mm	1-7/8"
L	15 mm	19/32"
M	7/16"-14UNC mm	7/16"-14UNC
N	1/4" mm	1/4"

Vario-Starpoint VRS-F-1/2"-13UNC with star key (7104481)

Technical Information

Product number: 7104481

Technical Downloads

VRS-F - Picture Download File

VRS-F-1/2"-13UNC - DXF 2D CAD File Download File

VRS-F-1/2"-13UNC - IGES 3D CAD File Download File

VRS-F-1/2"-13UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1/2"-13UNC with star key Download File

Attribute	Value	Value
weight	0.22 kg	0.49 lbs
Nominal WLL	750 kg	1650 lbs
B	13 mm	1/2"
T	42 mm	1-21/32"
C	10 mm	3/8"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	34 mm	1-11/32"
I	19.8 mm	25/32"
K	56 mm	2-3/16"
L	19 mm	3/4"
M	1/2"-13UNC mm	1/2"-13UNC
N	5/16" mm	5/16"

Vario-Starpoint VRS-F-5/8"-11UNC with star key (7104482)

Technical Information

Product number: 7104482

Technical Downloads

VRS-F - Picture Download File

VRS-F-5/8"-11UNC - DXF 2D CAD File Download File

VRS-F-5/8"-11UNC - IGES 3D CAD File Download File

VRS-F-5/8"-11UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-5/8"-11UNC with star key Download File

Attribute	Value	Value
weight	0.33 kg	0.73 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	49 mm	1-15/16"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	36 mm	1-27/64"
G	40 mm	1-9/16"
I	23.5 mm	59/64"
K	65 mm	2-9/16"
L	24 mm	15/16"
M	5/8"-11UNC mm	5/8"-11UNC
N	3/8" mm	3/8"

Vario-Starpoint VRS-F-3/4"-10UNC with star key (7104483)

Technical Information

Product number: 7104483

Technical Downloads

VRS-F - Picture Download File

VRS-F-3/4"-10UNC - DXF 2D CAD File Download File

VRS-F-3/4"-10UNC - IGES 3D CAD File Download File

VRS-F-3/4"-10UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-3/4"-10UNC with star key Download File

Attribute	Value	Value
weight	0.54 kg	1.19 lbs
Nominal WLL	2300 kg	5070 lbs
B	17 mm	43/64"
T	58 mm	2-9/32"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	41 mm	1-5/8"
G	50 mm	1-31/32"
I	29.3 mm	1-5/32"
K	76 mm	3"
L	29 mm	1-5/32"
M	3/4"-10UNC mm	3/4"-10UNC
N	1/2" mm	1/2"

Vario-Starpoint VRS-F-7/8"-9UNC with star key (7104484)

Technical Information

Product number: 7104484

Technical Downloads

VRS-F - Picture Download File

VRS-F-7/8"-9UNC - DXF 2D CAD File Download File

VRS-F-7/8"-9UNC - IGES 3D CAD File Download File

VRS-F-7/8"-9UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-7/8"-9UNC with star key Download File

Attribute	Value	Value
weight	0.64 kg	1.41 lbs
Nominal WLL	2300 kg	5070 lbs
B	17 mm	43/64"
T	58 mm	2-9/32"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	41 mm	1-5/8"
G	50 mm	1-31/32"
I	29.3 mm	1-5/32"
K	76 mm	3"
L	33 mm	1-5/16"
M	7/8"-9UNC mm	7/8"-9UNC
N	1/2" mm	1/2"

Vario-Starpoint VRS-F-1"-8UNC with star key (7104485)

Technical Information

Product number: 7104485

Technical Downloads

VRS-F - Picture Download File

VRS-F-1"-8UNC - DXF 2D CAD File Download File

VRS-F-1"-8UNC - IGES 3D CAD File Download File

VRS-F-1"-8UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1"-8UNC with star key Download File

Attribute	Value	Value
weight	0.98 kg	2.16 lbs
Nominal WLL	3200 kg	7050 lbs
B	20 mm	3/4"
T	70 mm	2-3/4"
C	19 mm	3/4"
D	49 mm	1-15/16"
E	51 mm	2"
G	60 mm	2-3/8"
I	35 mm	1-3/8"
K	92 mm	3-5/8"
L	36 mm	1-27/64"
M	1"-8UNC mm	1"-8UNC
N	9/16" mm	9/16"

Vario-Starpoint VRS-F-1 1/8"-8UN with star key (7903386)

Technical Information

Product number: 7903386

Technical Downloads

VRS-F - Picture Download File

VRS-F-1 1/8"-7UNC - DXF 2D CAD File Download File

VRS-F-1 1/8"-7UNC - IGES 3D CAD File Download File

VRS-F-1 1/8"-7UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1 1/8"-8UN with star key Download File

Attribute	Value	Value
weight	1.00 kg	2.20 lbs
Nominal WLL	3200 kg	7050 lbs
B	20 mm	3/4"
T	70 mm	2-3/4"
C	19 mm	3/4"
D	49 mm	1-15/16"
E	51 mm	2"
G	60 mm	2-3/8"
I	35 mm	1-3/8"
K	92 mm	3-5/8"
L	36 mm	1-27/64"
M	1-1/8"-8UN mm	1-1/8"-8UN
N	9/16" mm	9/16"

Vario-Starpoint VRS-F-1 1/8"-7UNC with star key (7903383)

Technical Information

Product number: 7903383

Technical Downloads

VRS-F - Picture Download File

VRS-F-1 1/8"-7UNC - DXF 2D CAD File Download File

VRS-F-1 1/8"-7UNC - IGES 3D CAD File Download File

VRS-F 1-1/8"-7UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1 1/8"-7UNC with star key Download File

Attribute	Value	Value
weight	1.00 kg	2.20 lbs
Nominal WLL	3200 kg	7050 lbs
B	20 mm	3/4"
T	70 mm	2-3/4"
C	19 mm	3/4"
D	49 mm	1-15/16"
E	51 mm	2"
G	60 mm	2-3/8"
I	35 mm	1-3/8"
K	92 mm	3-5/8"
L	36 mm	1-27/64"
M	1-1/8"-7UNC mm	1-1/8"-7UNC
N	9/16" mm	9/16"

Vario-Starpoint VRS-F-1 1/4"-7UNC with star key (7104486)

Technical Information

Product number: 7104486

Technical Downloads

VRS-F - Picture Download File

VRS-F-1 1/4"-7UNC - DXF 2D CAD File Download File

VRS-F-1 1/4"-7UNC - IGES 3D CAD File Download File

VRS-F-1 1/4"-7UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1 1/4"-7UNC with star key Download File

Attribute	Value	Value
weight	1.82 kg	4.01 lbs
Nominal WLL	4500 kg	9920 lbs
B	26 mm	1"
T	87 mm	3-7/16"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	66 mm	2-5/8"
G	75 mm	2-15/16"
I	44 mm	1-3/4"
K	114 mm	4-1/2"
L	48 mm	1-7/8"
M	1 1/4"-7UNC mm	1 1/4"-7UNC
N	3/4" mm	3/4"

Vario-Starpoint VRS-F-1 1/2"-6UNC with star key (7104487)

Technical Information

Product number: 7104487

Technical Downloads

VRS-F - Picture Download File

VRS-F-1 1/2"-6UNC - DXF 2D CAD File Download File

VRS-F-1 1/2"-6UNC - IGES 3D CAD File Download File

VRS-F-1 1/2"-6UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1 1/2"-6UNC with star key Download File

Attribute	Value	Value
weight	3.60 kg	7.94 lbs
Nominal WLL	7000 kg	15430 lbs
B	32 mm	1-1/4"
T	103 mm	4-1/16"
C	29 mm	1-5/32"
D	72 mm	2-27/32"
E	76 mm	3"
G	97 mm	3-13/16"
I	53 mm	2-3/32"
K	135 mm	5-5/16"
L	54 mm	2-1/8"
M	1 1/2"-6UNC mm	1 1/2"-6UNC
N	7/8" mm	7/8"

Vario-Starpoint VRS-F-1 3/4"-5UNC with star key (7104488)

Technical Information

Product number: 7104488

Technical Downloads

VRS-F - Picture Download File

VRS-F-1 3/4"-5UNC - DXF 2D CAD File Download File

VRS-F-1 3/4"-5UNC - IGES 3D CAD File Download File

VRS-F-1 3/4"-5UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-1 3/4"-5UNC with star key Download File

Attribute	Value	Value
weight	4.95 kg	10.91 lbs
Nominal WLL	9000 kg	19480 lbs
B	37 mm	1-7/16"
T	121 mm	4-3/4"
C	33 mm	1-5/16"
D	84 mm	3-5/16"
E	86 mm	3-3/8"
G	111 mm	4-13/32"
I	62 mm	2-7/16"
K	158 mm	6-1/4"
L	63 mm	2-15/32"
M	1 3/4"-5UNC mm	1 3/4"-5UNC
N	1" mm	1"

Vario-Starpoint VRS-F-2"-4.5UNC with star key (7104489)

Technical Information

Product number: 7104489

Technical Downloads

VRS-F - Picture Download File

VRS-F-2"-4.5UNC - DXF 2D CAD File Download File

VRS-F-2"-4.5UNC - IGES 3D CAD File Download File

VRS-F-2"-4.5UNC - STEP 3D CAD File Download File

Vario-Starpoint VRS-F-2"-4.5UNC with star key Download File

Attribute	Value	Value
weight	7.60 kg	16.76 lbs
Nominal WLL	12000 kg	24640 lbs
B	42 mm	1-21/32"
T	138 mm	5-7/16"
C	42 mm	1-21/32"
D	94 mm	3-11/16"
E	100 mm	3-15/16"
G	128 mm	5"
I	70 mm	2-3/4"
K	180 mm	7-1/16"
L	72 mm	2-27/32"
M	2"-4 mm	5UNC
N	1-1/8" mm	1-1/8"
