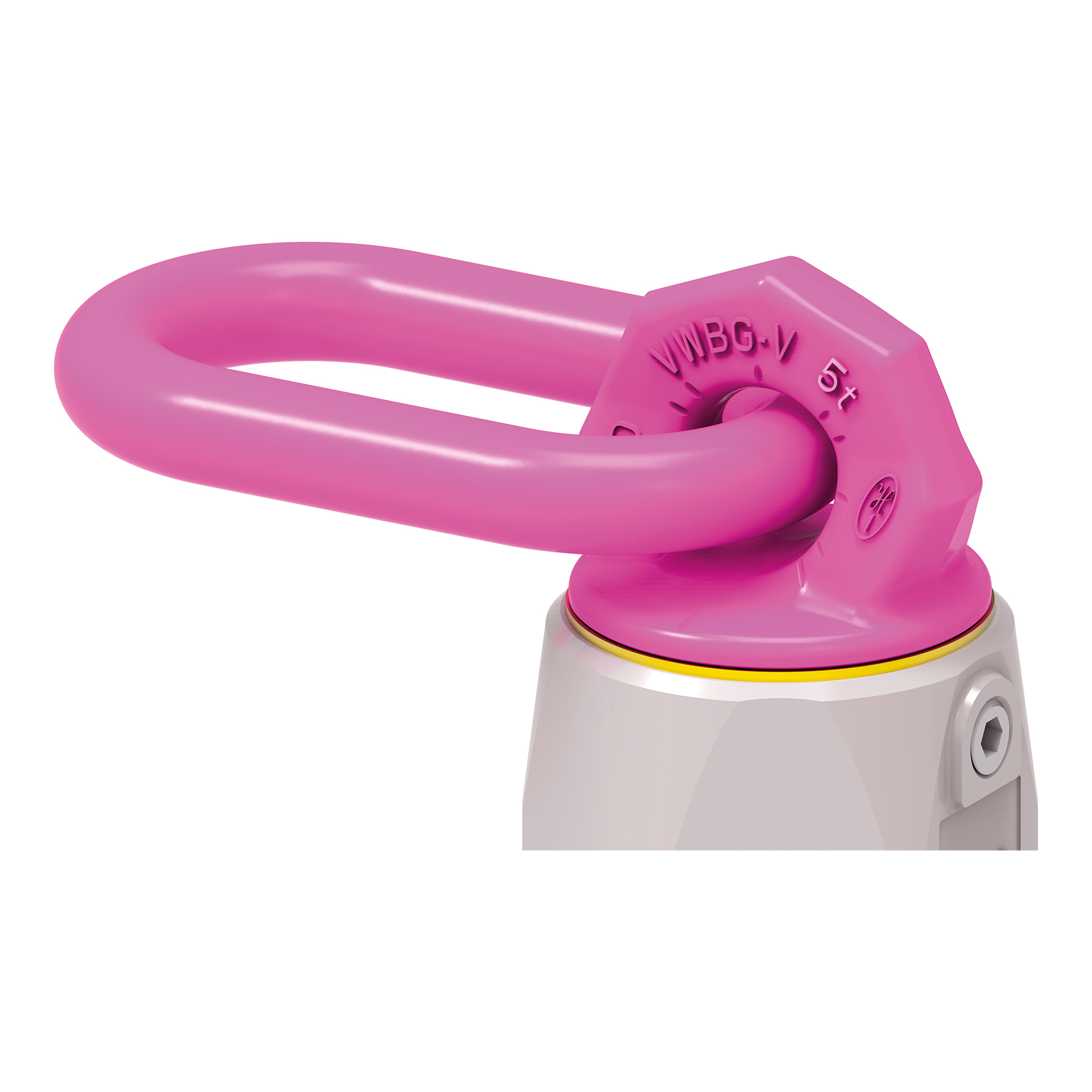

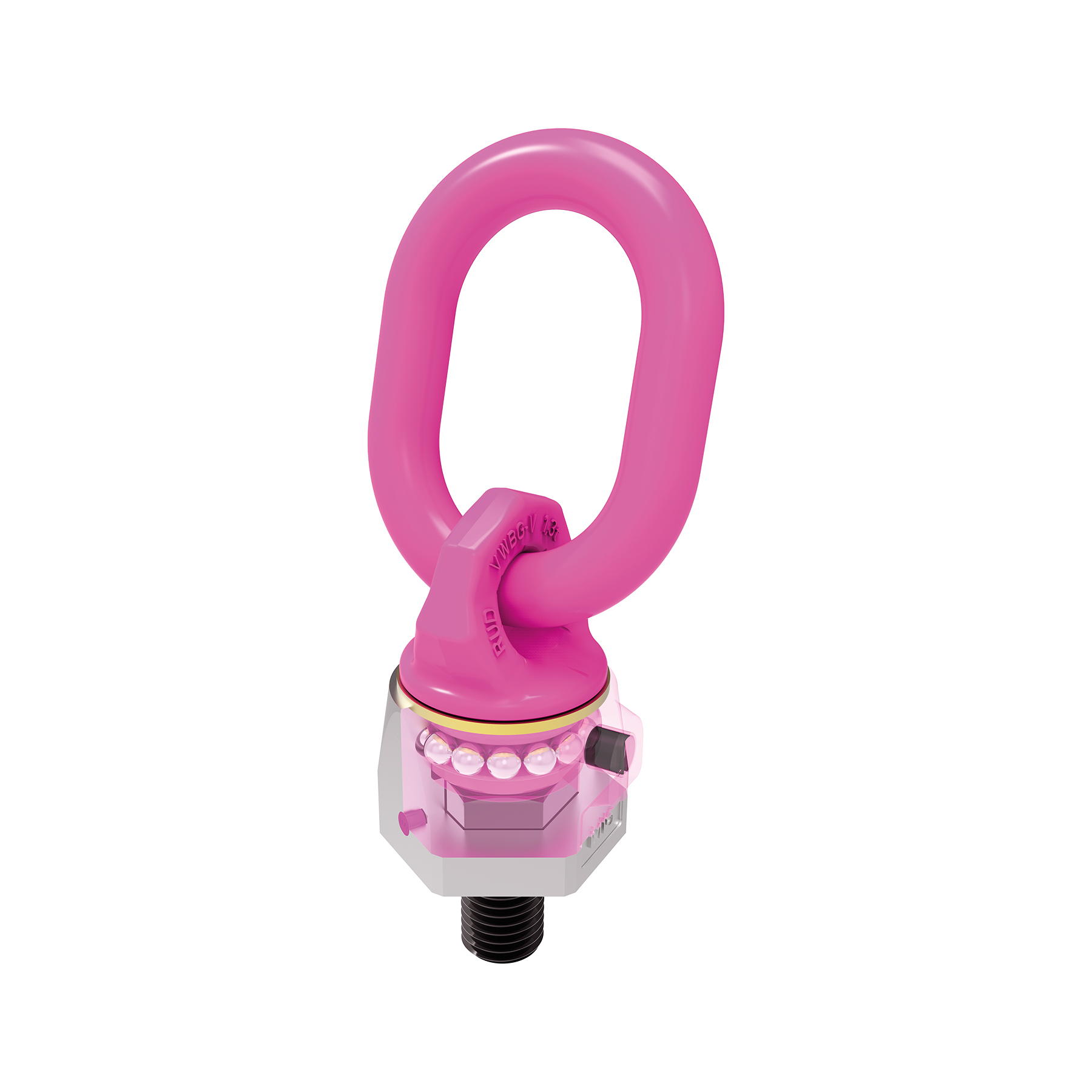

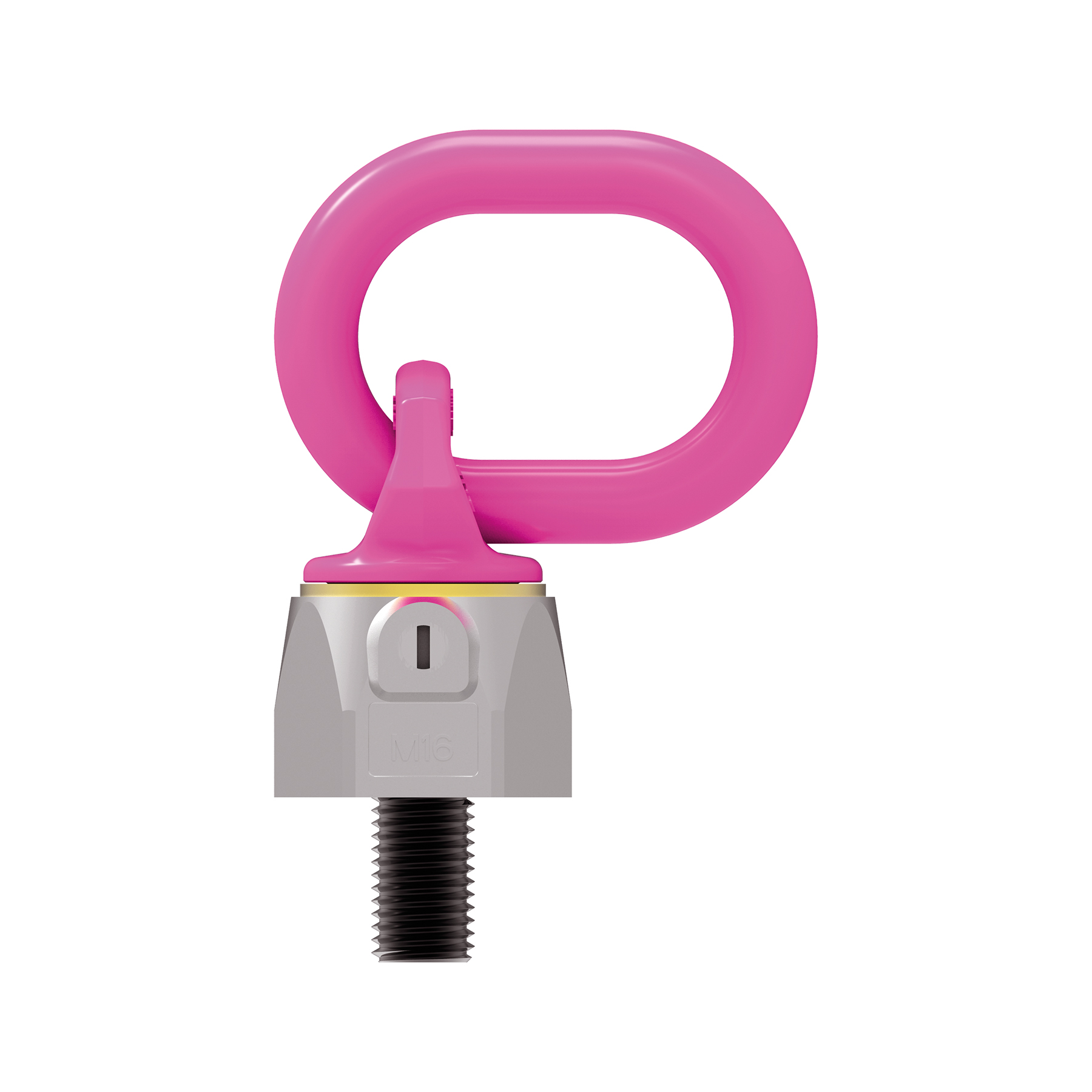

VWBG-V Load ring, metric thread

Suitable for all loads which swivel and tilt
Can be loaded in all directions with a 4:1 design factor

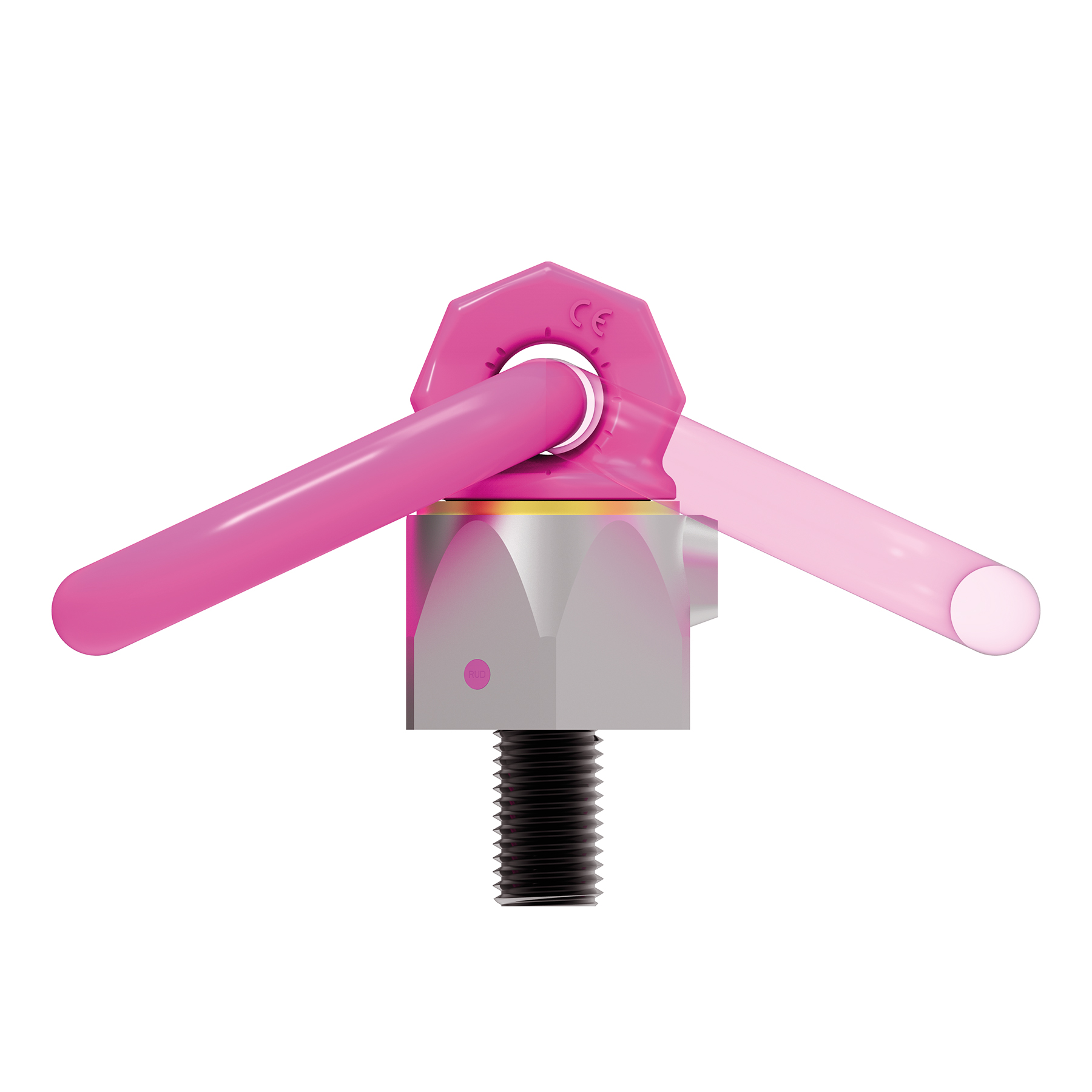

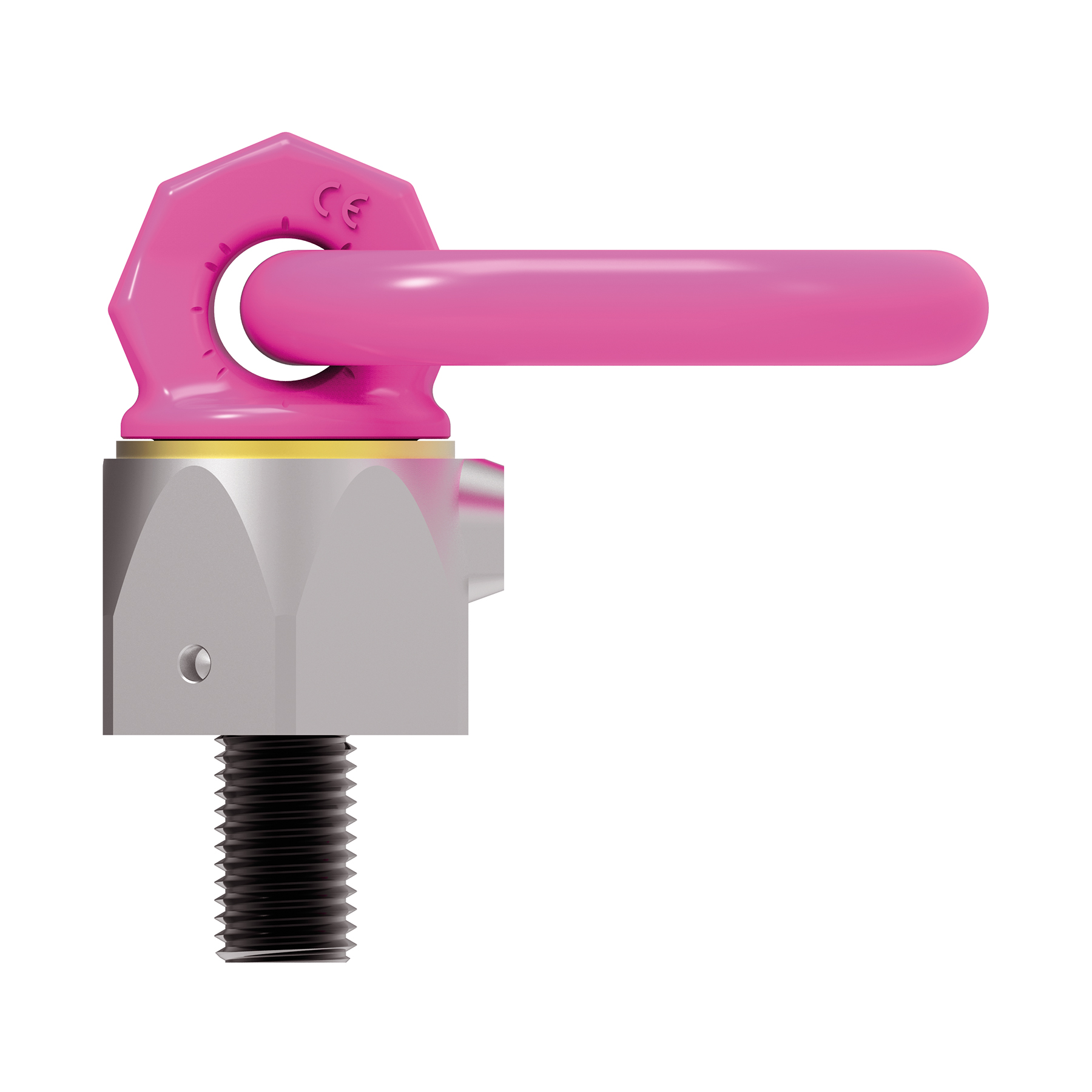

Swiveling under full load is permissible provided the inclination angle is not perpendicular to the screw – in direction
Not suitable for permanent swiveling under full load
Can also be supplied with variable (vario) thread lengths
Easy assembly due to the single threaded tapping
High tensile, inspected suspension ring

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (11)

Lifting Point-Vario VWBG-V 0.3t-M8 (7103720)

Technical Information

Product number: 7103720

Technical Downloads

VWBG-V 0.3-M8 - DXF 2D CAD File Download File

VWBG-V 0.3-M8 - IGES 3D CAD Fil. Download File

VWBG-V 0.3-M8 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 0.3t-M8 Download File

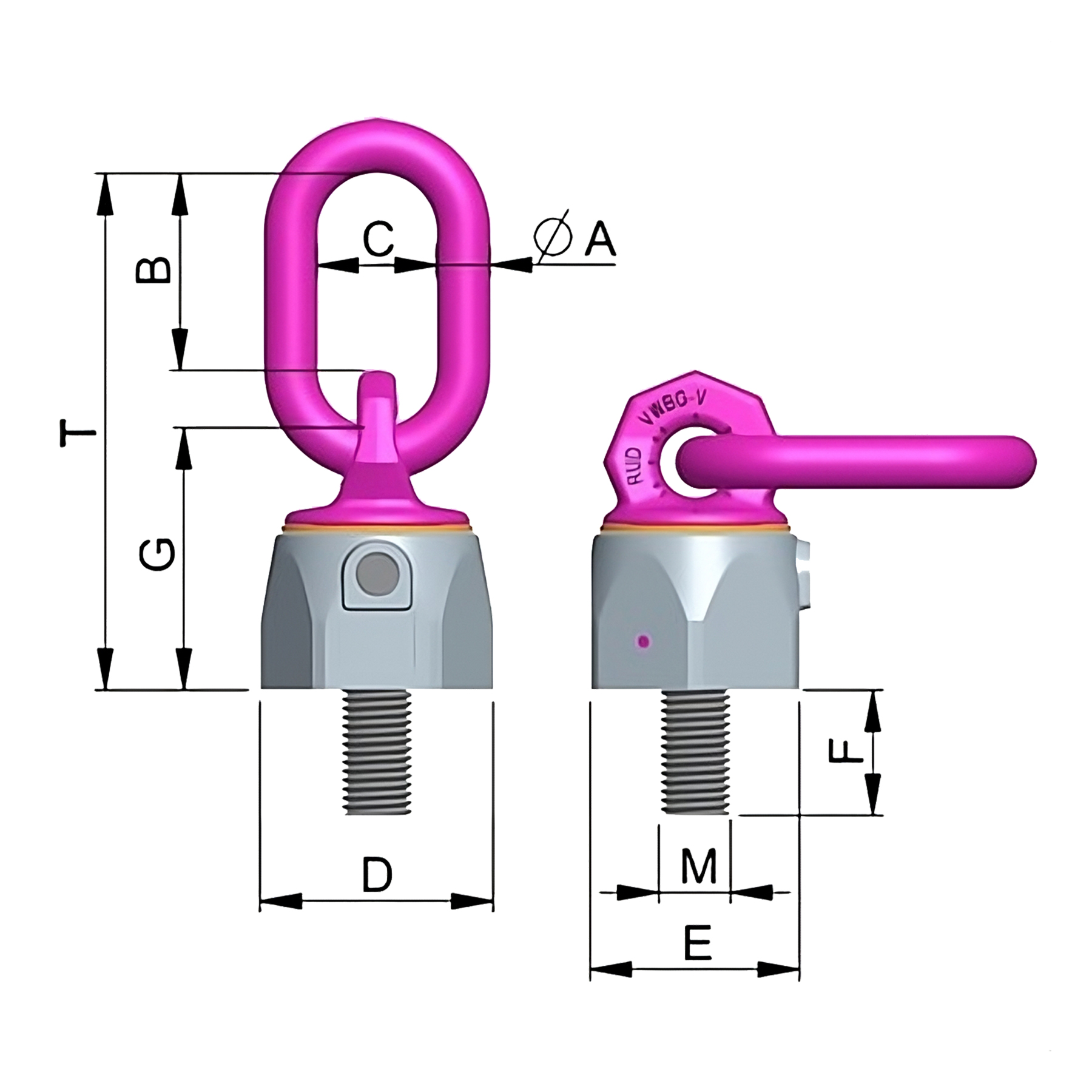

Attribute	Value	Value
weight	0.18 kg	0.40 lbs
Nominal WLL	300 kg	660 lbs
A	8 mm	5/16"
B	31 mm	1-7/32"
T	76 mm	3"
C	29 mm	1-5/32"
D	30 mm	1-3/16"
E	27 mm	1-1/16"
F	13 mm	1/2"
G	36 mm	1-27/64"
M	M8 mm	M8

Lifting Point-Vario VWBG-V 0.45t-M100 (7103715)

Technical Information

Product number: 7103715

Technical Downloads

VWBG-V 0.45-M10 - DXF 2D CAD File Download File

VWBG-V 0.45-M10 - IGES 3D CAD File Download File

VWBG-V 0.45-M10 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 0.45t-M10 Download File

Attribute	Value	Value
weight	0.29 kg	0.64 lbs
Nominal WLL	450 kg	990 lbs
A	8 mm	5/16"
B	31 mm	1-7/32"
T	78 mm	3-1/16"
C	29 mm	1-5/32"
D	33.5 mm	1-27/64"
E	30 mm	1-3/16"
F	17 mm	43/64"
G	38 mm	1-1/2"
M	M10 mm	M10

Lifting Point-Vario VWBG-V 0.6t-M12 (7100180)

Technical Information

Product number: 7100180

Technical Downloads

VWBG-V 0.6-M12 - DXF 2D CAD File Download File

VWBG-V 0.6-M12 - IGES 3D CAD File Download File

VWBG-V 0.6-M12 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 0.6t-M12 Download File

Attribute	Value	Value
weight	0.41 kg	0.90 lbs
Nominal WLL	600 kg	1320 lbs
A	10 mm	3/8"
B	49 mm	1-15/16"
T	107 mm	4-7/32"
C	35 mm	1-3/8"
D	42 mm	1-21/32"
E	36 mm	1-27/64"
F	21 mm	13/16"
G	47 mm	1-7/8"
M	M12 mm	M12

Lifting Point-Vario VWBG-V 1t-M14 (F=21 mm) ( 8600337)

Technical Information

Product number: 8600337

Technical Downloads

VWBG-V 1.0-M14 F=21 - DXF 2D CAD File Download File

VWBG-V 1.0-M14 F=21 - IGES 3D CAD File Download File

VWBG-V 1.0-M14 F=21 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 1t-M14 (F=21 mm) Download File

Attribute	Value	Value
weight	0.63 kg	1.39 lbs
Nominal WLL	1000 kg	2200 lbs
A	13 mm	1/2"
B	46 mm	1-13/16"
T	114 mm	4-1/2"
C	38 mm	1-1/2"
D	48 mm	1-7/8"
E	41 mm	1-5/8"
F	21 mm	13/16"
G	56 mm	2-3/16"
M	M14 mm	M14

Lifting Point-Vario VWBG-V 1.3t-M16 (7100430)

Technical Information

Product number: 7100430

Technical Downloads

VWBG-V 1.3-M16 - DXF 2D CAD File Download File

VWBG-V 1.3-M16 - IGES 3D CAD File Download File

VWBG-V 1.3-M16 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 1.3t-M16 Download File

Attribute	Value	Value
weight	0.69 kg	1.52 lbs
Nominal WLL	1300 kg	2860 lbs
A	13 mm	1/2"
B	46 mm	1-13/16"
T	114 mm	4-1/2"
C	38 mm	1-1/2"
D	48 mm	1-7/8"
E	41 mm	1-5/8"
F	25 mm	63/64"
G	56 mm	2-3/16"
M	M16 mm	M16

Lifting Point-Vario VWBG-V 1.8t-M18 (F=27 mm) (8600338)

Technical Information

Product number: 8600338

Technical Downloads

VWBG-V 1.8-M18 F=27 - DXF 2D CAD File Download File

VWBG-V 1.8-M18 F=27 - IGES 3D CAD File Download File

VWBG-V 1.8-M18 F=27 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 1.8t-M18 (F=27 mm) Download File

Attribute	Value	Value
weight	1.18 kg	2.60 lbs
Nominal WLL	1800 kg	3960 lbs
A	13 mm	1/2"
B	54 mm	2-1/8"
T	137 mm	5-3/8"
C	35 mm	1-3/8"
D	62 mm	2-7/16"
E	55 mm	2-5/32"
F	27 mm	1-1/16"
G	67 mm	2-5/8"
M	M18 mm	M18

Lifting Point-Vario VWBG-V 2t-M20 (7100800)

Technical Information

Product number: 7100800

Technical Downloads

VWBG-V 2.0-M20 - DXF 2D CAD File Download File

VWBG-V 2.0-M20 - IGES 3D CAD File Download File

VWBG-V 2.0-M20 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 2t-M20 Download File

Attribute	Value	Value
weight	1.42 kg	3.13 lbs
Nominal WLL	2000 kg	4400 lbs
A	13 mm	1/2"
B	54 mm	2-1/8"
T	137 mm	5-3/8"
C	35 mm	1-3/8"
D	62 mm	2-7/16"
E	55 mm	2-5/32"
F	33 mm	1-5/16"
G	67 mm	2-5/8"
M	M20 mm	M20

Lifting Point-Vario VWBG-V 2t-M22 (F=33 mm) (8600334)

Technical Information

Product number: 8600334

Technical Downloads

VWBG-V 2.0-M22 F=33 - DXF 2D CAD File Download File

VWBG-V 2.0-M22 F=33 - IGES 3D CAD File Download File

VWBG-V 2.0-M22 F=33 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 2t-M22 (F=33 mm) Download File

Attribute	Value	Value
weight	1.45 kg	3.20 lbs
Nominal WLL	2000 kg	4400 lbs
A	13 mm	1/2"
B	54 mm	2-1/8"
T	137 mm	5-3/8"
C	35 mm	1-3/8"
D	62 mm	2-7/16"
E	55 mm	2-5/32"
F	33 mm	1-5/16"
G	67 mm	2-5/8"
M	M22 mm	M22

Lifting Point-Vario VWBG-V 3.5t-M24 (7100640)

Technical Information

Product number: 7100640

Technical Downloads

VWBG-V 3.5-M24 - DXF 2D CAD File Download File

VWBG-V 3.5-M24 - IGES 3D CAD File Download File

VWBG-V 3.5-M24 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 3.5t-M24 Download File

Attribute	Value	Value
weight	2.63 kg	5.80 lbs
Nominal WLL	3500 kg	7700 lbs
A	18 mm	23/32"
B	66 mm	2-5/8"
T	173 mm	6-13/16"
C	40 mm	1-9/16"
D	81 mm	3-3/16"
E	70 mm	2-3/4"
F	40 mm	1-9/16"
G	88 mm	3-15/32"
M	M24 mm	M24

Lifting Point-Vario VWBG-V 3.5t-M27 (F=41 mm) (8600335)

Technical Information

Product number: 8600335

Technical Downloads

VWBG-V 3.5-M27 F=41 - DXF 2D CAD File Download File

VWBG-V 3.5-M27 F=41 - IGES 3D CAD File Download File

VWBG-V 3.5-M27 F=41 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 3.5t-M27 (F=41 mm) Download File

Attribute	Value	Value
weight	2.65 kg	5.84 lbs
Nominal WLL	3500 kg	7700 lbs
A	18 mm	23/32"
B	66 mm	2-5/8"
T	173 mm	6-13/16"
C	40 mm	1-9/16"
D	81 mm	3-3/16"
E	70 mm	2-3/4"
F	41 mm	1-5/8"
G	88 mm	3-15/32"
M	M27 mm	M27

Lifting Point-Vario VWBG-V 5t-M30 (7100650)

Technical Information

Product number: 7100650

Technical Downloads

VWBG-V 5.0-M30 - DXF 2D CAD File Download File

VWBG-V 5.0-M30 - IGES 3D CAD File Download File

VWBG-V 5.0-M30 - STEP 3D CAD File Download File

Lifting Point-Vario VWBG-V 5t-M30 Download File

Attribute	Value	Value
weight	5.09 kg	11.22 lbs
Nominal WLL	5000 kg	11000 lbs
A	22 mm	7/8"
B	90 mm	3-17/32"
T	221 mm	8-11/16"
C	50 mm	1-31/32"
D	99 mm	3-7/8"
E	85 mm	3-11/32"
F	50 mm	1-31/32"
G	106 mm	4-3/16"
M	M30 mm	M30
