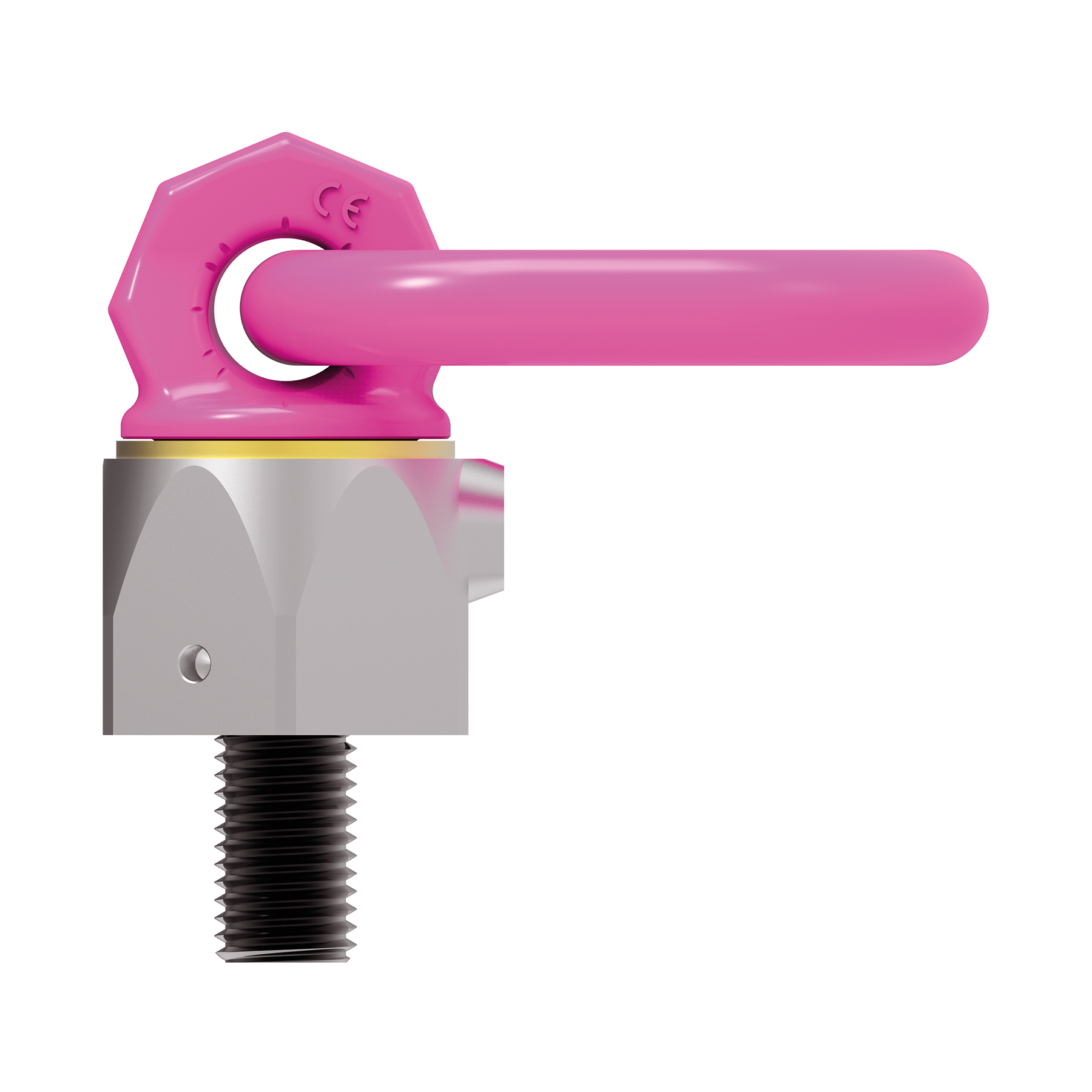

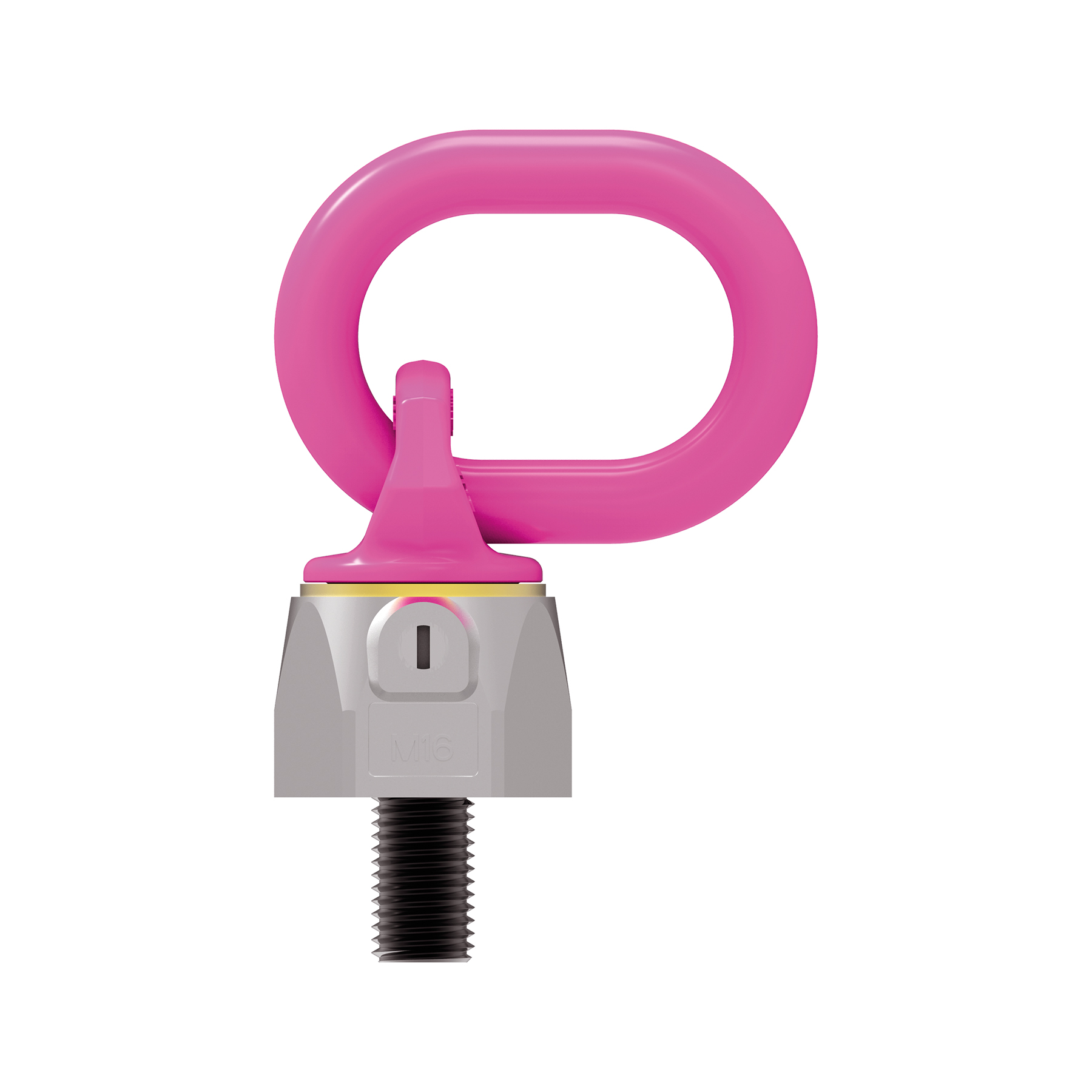

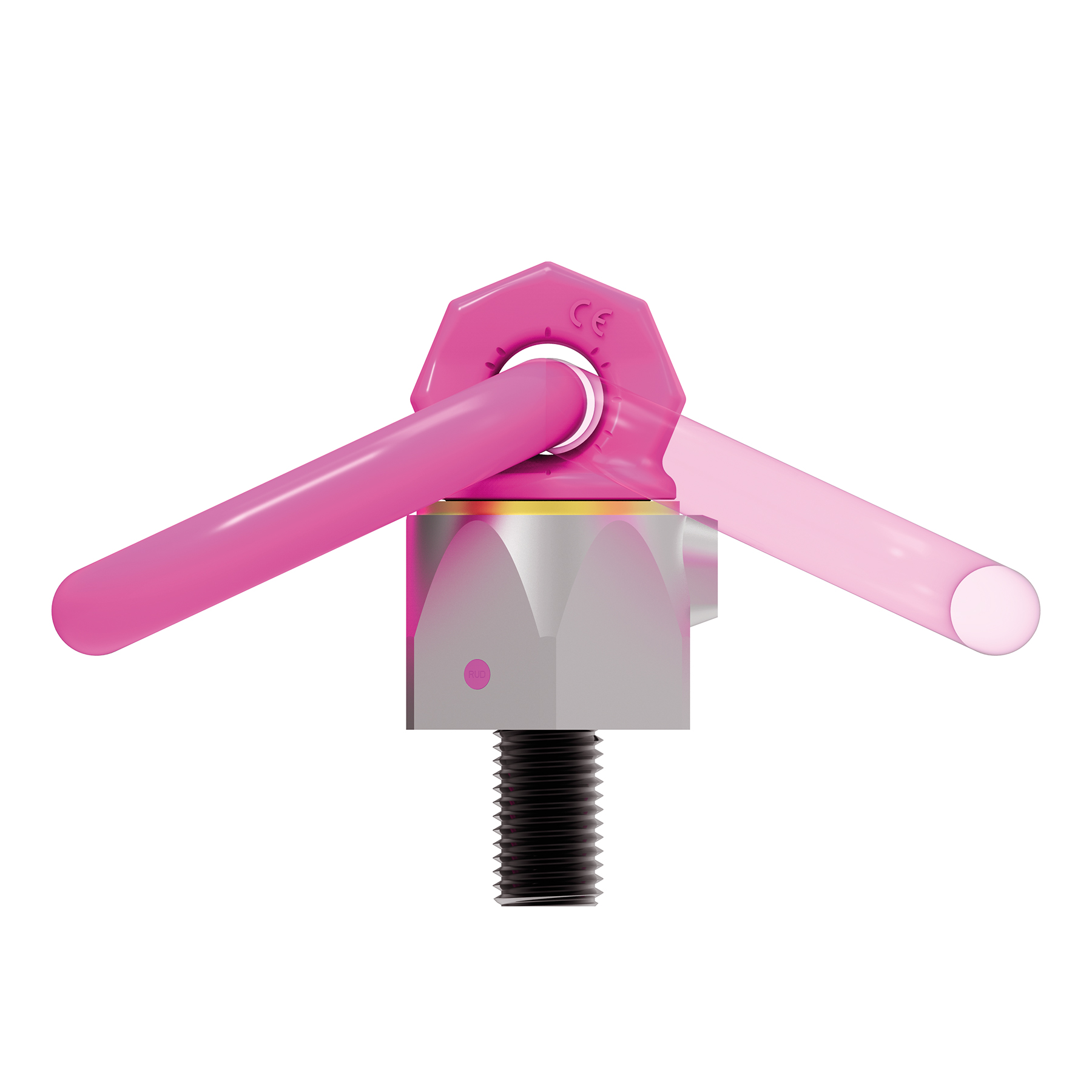

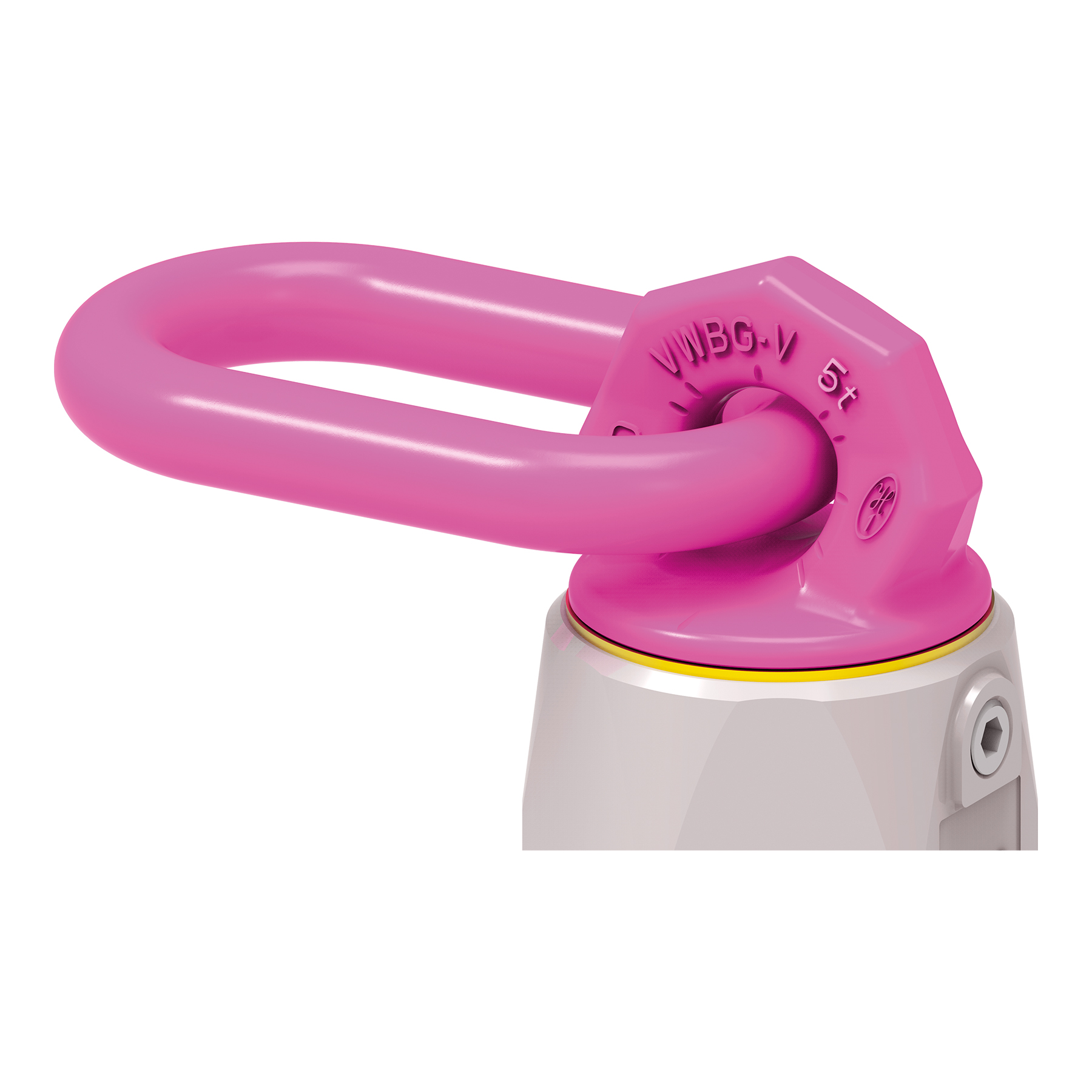

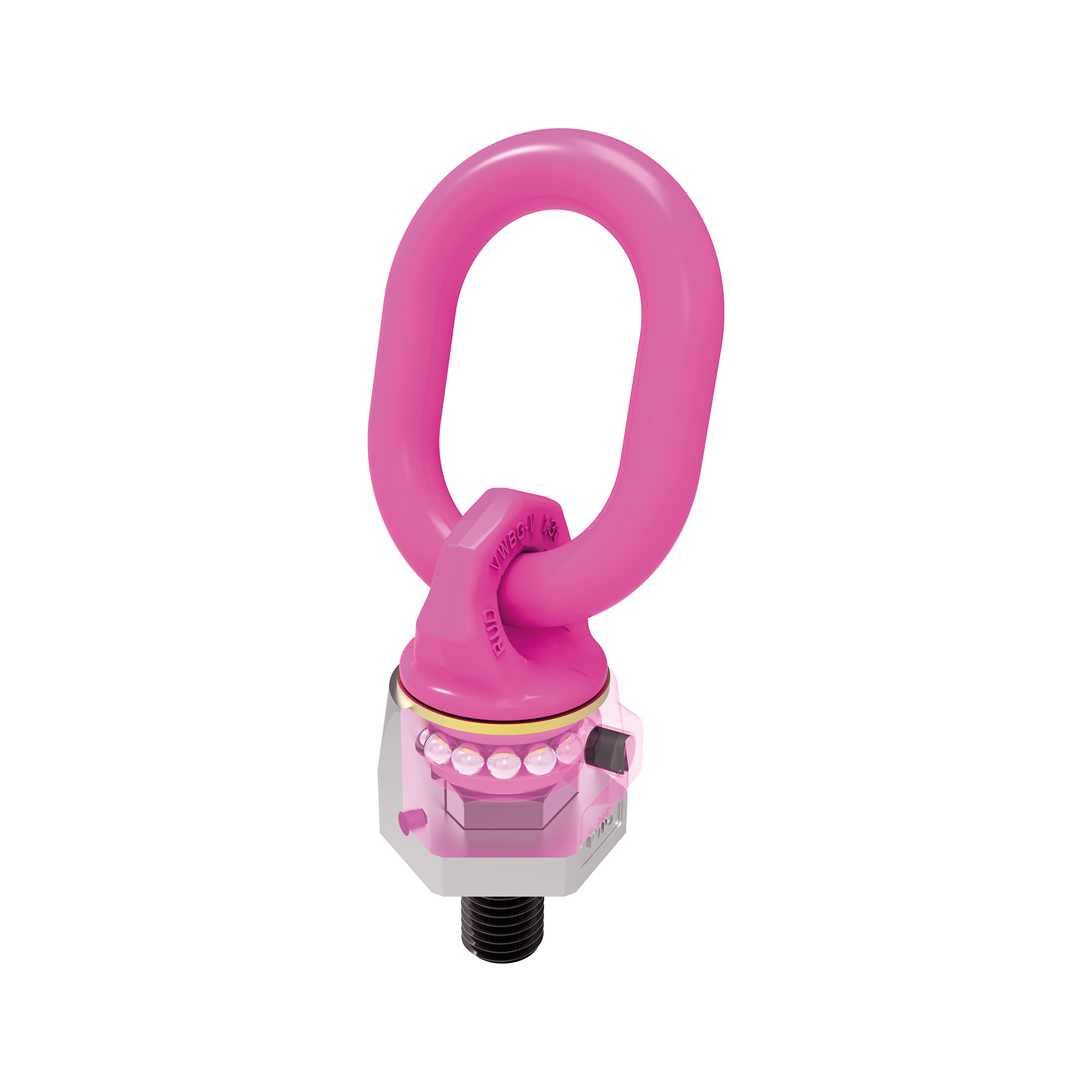

VWBG-V Load ring, UNC thread with variable length

Lifting Point-Vario VWBG-V 0.45-3/8"-16UNC with var. length (8600331)

Technical Information

Product number: 8600331

Technical Downloads

Lifting Point-Vario VWBG-V 0.45-3/8"-16UNC with var. length Download File

Attribute	Value	Value
Nominal WLL	450 kg	990 lbs
T	78 mm	3-1/16"
A	8 mm	5/16"
B	31 mm	1-7/32"
C	29 mm	1-5/32"
D	33.5 mm	1-27/64"
E	30 mm	1-3/16"
F	31-124 mm	31-124
G	38 mm	1-1/2"
M	3/8"-16UNC mm	3/8"-16UNC

Lifting Point-Vario VWBG-V 0.6-1/2"-13UNC with var. length (8600332)

Technical Information

Product number: 8600332

Technical Downloads

Lifting Point-Vario VWBG-V 0.6-1/2"-13UNC with var. length Download File

Attribute	Value	Value
Nominal WLL	600 kg	1320 lbs
T	107 mm	4-7/32"
A	10 mm	3/8"
B	49 mm	1-15/16"
C	35 mm	1-3/8"
D	42 mm	1-21/32"
E	36 mm	1-27/64"
F	40-149 mm	1-9/16" up to 5-7/8"
G	47 mm	1-7/8"
M	1/2"-13UNC mm	1/2"-13UNC

Lifting Point-Vario VWBG-V 1.3t-5/8"-11UNC with var. length (8600333)

Technical Information

Product number: 8600333

Technical Downloads

Lifting Point-Vario VWBG-V 1.3t-5/8"-11UNC with var. length Download File

Attribute	Value	Value
Nominal WLL	1300 kg	2860 lbs
T	114 mm	4-1/2"
A	13 mm	1/2"
B	46 mm	1-13/16"
C	38 mm	1-1/2"
D	48 mm	1-7/8"
E	41 mm	1-5/8"
F	51-180 mm	2" up to 7-1/16"
G	56 mm	2-3/16"
M	5/8"-11UNC mm	5/8"-11UNC

Lifting Point-Vario VWBG-V 2t 3/4"-10UNC with var. length (8600334)

Technical Information

Product number: 8600334

Technical Downloads

Lifting Point-Vario VWBG-V 2t 3/4"-10UNC with var. length Download File

Attribute	Value	Value
Nominal WLL	2000 kg	4400 lbs
T	137 mm	5-3/8"
A	13 mm	1/2"
B	54 mm	2-1/8"
C	35 mm	1-3/8"
D	62 mm	2-7/16"
E	55 mm	2-5/32"
F	56-222 mm	2-3/16" up to 8-3/4"
G	67 mm	2-5/8"
M	3/4"-10UNC mm	3/4"-10UNC

Lifting Point-Vario VWBG-V 3.5-1"-8UNC with var. length (8600335)

Technical Information

Product number: 8600335

Technical Downloads

Lifting Point-Vario VWBG-V 3.5-1"-8UNC with var. length Download File

Attribute	Value	Value
Nominal WLL	3500 kg	7700 lbs
T	173 mm	6-13/16"
A	18 mm	23/32"
B	66 mm	2-5/8"
C	40 mm	1-9/16"
D	81 mm	3-3/16"
E	70 mm	2-3/4"
F	64-246 mm	2-1/2" up to 9-11/16"
G	88 mm	3-15/32"
M	1"-8UNC mm	1"-8UNC

Lifting Point-Vario VWBG-V 5.0-1 1/4"-7UNC with var. length (8600336)

Technical Information

Product number: 8600336

Technical Downloads

Lifting Point-Vario VWBG-V 5.0-1 1/4"-7UNC with var. length Download File

Attribute	Value	Value
Nominal WLL	5000 kg	11000 lbs
T	221 mm	8-11/16"
A	22 mm	7/8"
B	90 mm	3-17/32"
C	50 mm	1-31/32"
D	99 mm	3-7/8"
E	85 mm	3-11/32"
F	77-331 mm	3-1/32" up to 13"
G	106 mm	4-3/16"
M	1 1/4"-7UNC mm	1 1/4"-7UNC

Lifting Point-Vario VWBG-V 5.0-1 1/4"-8UN with var. length (8600336)

Technical Information

Product number: 8600336

Technical Downloads

Lifting Point-Vario VWBG-V 5.0-1 1/4"-8UN with var. length Download File

Attribute	Value	Value
Nominal WLL	5000 kg	11000 lbs
T	221 mm	8-11/16"
A	22 mm	7/8"
B	90 mm	3-17/32"
C	50 mm	1-31/32"
D	99 mm	3-7/8"
E	85 mm	3-11/32"
F	47-91 mm	1-7/8" up to 3-9/16"
G	106 mm	4-3/16"
M	1 1/4"-8UN mm	1 1/4"-8UN
