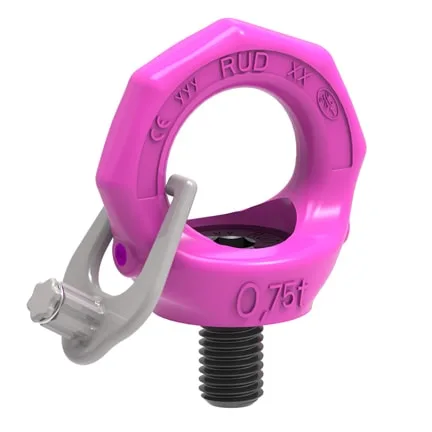

VRS-F/VRS STARPOINT, metric fine thread

Vario-Starpoint VRS-F M8X1 (7904332)

Technical Information

Product number: 7904332

Technical Downloads

Vario-Starpoint VRS-F M8X1 Download File

Attribute	Value	Value
weight	0.12 kg	0.26 lbs
Nominal WLL	300 kg	660 lbs
B	11 mm	7/16"
T	35 mm	1-3/8"
C	9 mm	11/32"
D	25 mm	63/64"
E	25 mm	63/64"
G	30 mm	1-3/16"
I	16,3 mm	41/64"
K	47 mm	1-7/8"
L	12 mm	15/32"
M	M8X1 mm	M8X1
N	6 mm	15/64"

Vario-Starpoint VRS-F M12X1.5 (7992929)

Technical Information

Product number: 7992929

Technical Downloads

Vario-Starpoint VRS-F M12X1.5 Download File

Attribute	Value	Value
weight	0.20 kg	0.44 lbs
Nominal WLL	750 kg	1650 lbs
B	13 mm	1/2"
T	42 mm	1-21/32"
C	10 mm	3/8"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	34 mm	1-11/32"
I	19,8 mm	25/32"
K	56 mm	2-3/16"
L	18 mm	23/32"
M	M12X1,5 mm	M12X1,5
N	8 mm	5/16"

Vario-Starpoint VRS-F M16X1.5 (7902676)

Technical Information

Product number: 7902676

Technical Downloads

Vario-Starpoint VRS-F M16X1.5 Download File

Attribute	Value	Value
weight	0.30 kg	0.66 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	49 mm	1-15/16"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	36 mm	1-27/64"
G	40 mm	1-9/16"
I	23,5 mm	59/64"
K	65 mm	2-9/16"
L	24 mm	15/16"
M	M16X1,5 mm	M16X1,5
N	10 mm	3/8"

Vario-Starpoint VRS-F M20X2 (7992634)

Technical Information

Product number: 7992634

Technical Downloads

Vario-Starpoint VRS-F M20X2 Download File

Attribute	Value	Value
weight	0.50 kg	1.10 lbs
Nominal WLL	2300 kg	5070 lbs
B	17 mm	43/64"
T	58 mm	2-9/32"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	41 mm	1-5/8"
G	50 mm	1-31/32"
I	29,3 mm	1-5/32"
K	76 mm	3"
L	30 mm	1-3/16"
M	M20X2 mm	M20X2
N	12 mm	15/32"

Vario-Starpoint VRS-F M24X2 (7992566)

Technical Information

Product number: 7992566

Technical Downloads

Vario-Starpoint VRS-F M24X2 Download File

Attribute	Value	Value
weight	1.00 kg	2.20 lbs
Nominal WLL	3200 kg	7050 lbs
B	20 mm	3/4"
T	70 mm	2-3/4"
C	19 mm	3/4"
D	49 mm	1-15/16"
E	51 mm	2"
G	60 mm	2-3/8"
I	35 mm	1-3/8"
K	92 mm	3-5/8"
L	36 mm	1-27/64"
M	M24X2 mm	M24X2
N	14 mm	9/16"

Vario-Starpoint VRS-F M30X2 (7991856)

Technical Information

Product number: 7991856

Technical Downloads

Vario-Starpoint VRS-F M30X2 Download File

Attribute	Value	Value
weight	1.70 kg	3.75 lbs
Nominal WLL	4500 kg	9920 lbs
B	26 mm	1"
T	87 mm	3-7/16"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	66 mm	2-5/8"
G	75 mm	2-15/16"
I	44 mm	1-3/4"
K	114 mm	4-1/2"
L	45 mm	1-25/32"
M	M30X2 mm	M30X2
N	17 mm	43/64"

Vario-Starpoint VRS-F M36X3 (7992728)

Technical Information

Product number: 7992728

Technical Downloads

Vario-Starpoint VRS-F M36X3 Download File

Attribute	Value	Value
weight	3.50 kg	7.72 lbs
Nominal WLL	7000 kg	15430 lbs
B	32 mm	1-1/4"
T	103 mm	4-1/16"
C	29 mm	1-5/32"
D	72 mm	2-27/32"
E	76 mm	3"
G	97 mm	3-13/16"
I	53 mm	2-3/32"
K	135 mm	5-5/16"
L	54 mm	2-1/8"
M	M36X3 mm	M36X3
N	22 mm	7/8"
