VWBG Load ring, metric thread

Rotates 360°, pivots 230°
Indicator markings to highlight wear and damage to load ring
Ball bearing

Product Variants (13)

Lifting Point threaded VWBG 6t(7.5t)-M33 ( 8600150)

Technical Information

Product number: 8600150

Technical Downloads

VWBG 6(7.5)t M33 - DXF 2D CAD File Download File

VWBG 6(7.5)t M33 - IGES 3D CAD File Download File

VWBG 6(7.5)t M33 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 6t(7.5t)-M33 Download File

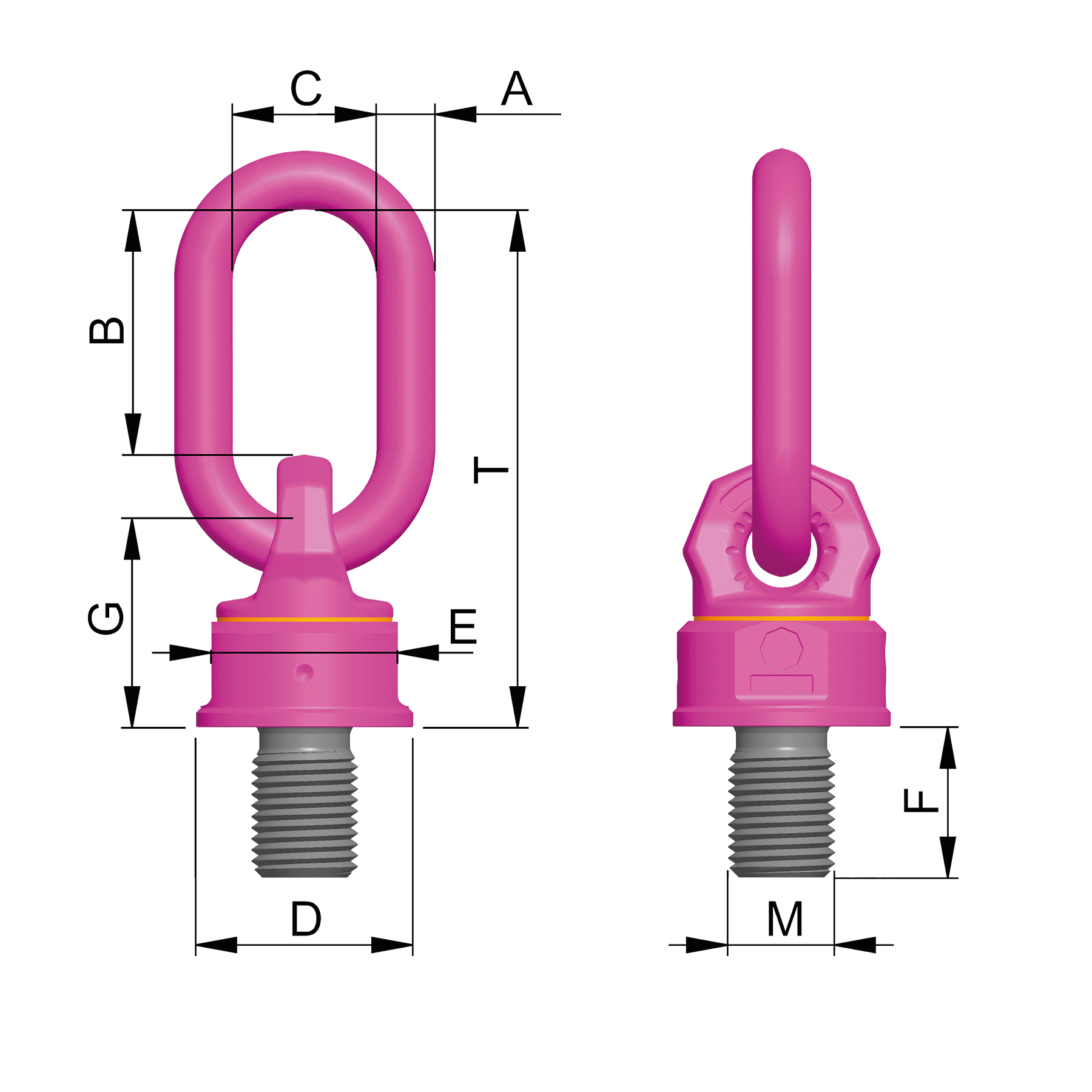

Attribute	Value	Value
weight	4.69 kg	10.34 lbs
Nominal WLL	6000 kg	13200 lbs
A	23 mm	29/32"
B	86 mm	3-3/8"
T	208 mm	8-3/16"
C	50 mm	1-31/32"
D	90 mm	3-17/32"
E	80 mm	3-1/8"
F	50 mm	1-31/32"
G	94 mm	3-11/16"
M	M33 mm	M33

Lifting Point threaded VWBG 8t(10t)-M36 (7999059)

Technical Information

Product number: 7999059

Technical Downloads

VWBG 8(10)t M36 - DXF 2D CAD File Download File

VWBG 8(10)t M36 - STEP 3D CAD File Download File

VWBG 8(10)t M36 - IGES 3D CAD File Download File

Lifting Point threaded VWBG 8t(10t)-M36 Download File

Attribute	Value	Value
weight	4.72 kg	10.41 lbs
Nominal WLL	8000 kg	17600 lbs
A	22 mm	7/8"
B	86 mm	3-3/8"
T	208 mm	8-3/16"
C	50 mm	1-31/32"
D	90 mm	3-17/32"
E	80 mm	3-1/8"
F	54 mm	2-1/8"
G	94 mm	3-11/16"
M	M36 mm	M36

Lifting Point threaded VWBG 12t(13t)-M42 (7999044)

Technical Information

Product number: 7999044

Technical Downloads

VWBG 12(13)t M42 - DXF 2D CAD File Download File

VWBG 12(13)t M42 - STEP 3D CAD File Download File

VWBG 12(13)t M42 - IGES 3D CAD File Download File

Lifting Point threaded VWBG 12t(13t)-M42 Download File

Attribute	Value	Value
weight	6.10 kg	13.45 lbs
Nominal WLL	12000 kg	26400 lbs
A	26 mm	1"
B	111 mm	4-13/32"
T	234 mm	9-7/32
C	65 mm	2-9/16"
D	98 mm	3-27/32"
E	85 mm	3-11/32"
F	63 mm	2-15/32"
G	95 mm	3-3/4"
M	M42 mm	M42

Lifting Point threaded VWBG 12t(15t)-M45 (7900455)

Technical Information

Product number: 7900455

Technical Downloads

VWBG 12(15)t M45 - DXF 2D CAD File Download File

VWBG 12(15)t M45 - IGES 3D CAD File Download File

VWBG 12(15)t M45 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 12t(15t)-M45 Download File

Attribute	Value	Value
weight	6.24 kg	13.76 lbs
Nominal WLL	12000 kg	26400 lbs
A	26 mm	1"
B	111 mm	4-13/32"
T	234 mm	9-7/32"
C	65 mm	2-9/16"
D	98 mm	3-27/32"
E	85 mm	3-11/32"
F	67 mm	2-5/8"
G	95 mm	3-3/4"
M	M45 mm	M45

Lifting Point threaded VWBG 13t(16t)-M48 (7999045)

Technical Information

Product number: 7999045

Technical Downloads

VWBG M48 - DXF 2D CAD File Download File

VWBG M48 - STEP 3D CAD File Download File

VWBG M48 - IGES 3D CAD File Download File

Lifting Point threaded VWBG 13t(16t)-M48 Download File

Attribute	Value	Value
weight	6.37 kg	14.04 lbs
Nominal WLL	13000 kg	28600 lbs
A	26 mm	1"
B	111 mm	4-13/32"
T	234 mm	9-7/32"
C	65 mm	2-9/16"
D	98 mm	3-27/32"
E	85 mm	3-11/32"
F	68 mm	2-11/16"
G	95 mm	3-3/4"
M	M48 mm	M48

Lifting Point threaded VWBG 14t(20t)-M52 (7901081)

Technical Information

Product number: 7901081

Technical Downloads

VWBG M52 - DXF 2D CAD File Download File

VWBG M52 - IGES 3D CAD File Download File

VWBG M52 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 14t(20t)-M52 Download File

Attribute	Value	Value
weight	10.55 kg	23.26 lbs
Nominal WLL	14000 kg	30800 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	78 mm	3-1/16"
G	120 mm	4-3/4"
M	M52 mm	M52

Lifting Point threaded VWBG 16t(22t)-M56 (7999004)

Technical Information

Product number: 7999004

Technical Downloads

VWBG M56 - DXF 2D CAD File Download File

VWBG M56 - STEP 3D CAD File Download File

VWBG M56 - IGES 3D CAD File Download File

Lifting Point threaded VWBG 16t(22t)-M56 Download File

Attribute	Value	Value
weight	10.68 kg	23.55 lbs
Nominal WLL	16000 kg	35200 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	84 mm	3-5/16"
G	120 mm	4-3/4"
M	M56 mm	M56

Lifting Point threaded VWBG 16t(22t)-M60 (8600454)

Technical Information

Product number: 8600454

Technical Downloads

VWBG M60 - DXF 2D CAD File Download File

VWBG M60 - IGES 3D CAD File Download File

VWBG M60 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 16t(22t)-M60 Download File

Attribute	Value	Value
weight	11.37 kg	25.07 lbs
Nominal WLL	16000 kg	35200 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	90 mm	3-17/32"
G	120 mm	4-3/4"
M	M60 mm	M60

Lifting Point threaded VWBG 16t(25t)-M64 (7999043)

Technical Information

Product number: 7999043

Technical Downloads

VWBG M64 - DXF 2D CAD File Download File

VWBG M64 - STEP 3D CAD File Download File

VWBG M64 - IGES 3D CAD File Download File

Lifting Point threaded VWBG 16t(25t)-M64 Download File

Attribute	Value	Value
weight	11.40 kg	25.13 lbs
Nominal WLL	16000 kg	35200 lbs
A	32 mm	1-1/4"
B	119 mm	4-11/16"
T	271 mm	10-21/32"
C	70 mm	2-3/4"
D	120 mm	4-3/4"
E	95 mm	3-3/4"
F	94 mm	3-11/16"
G	120 mm	4-3/4"
M	M64 mm	M64

Lifting Point threaded VWBG 31.5t(40t)-M72 (7900097)

Technical Information

Product number: 7900097

Technical Downloads

VWBG M72x6 - DXF 2D CAD File Download File

VWBG M72x6 - IGES 3D CAD File Download File

VWBG M72x6 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 31.5t(40t)-M72 Download File

Attribute	Value	Value
weight	29.96 kg	66.05 lbs
Nominal WLL	31500 kg	69300 lbs
A	46 mm	1-13/16"
B	130 mm	5-1/8"
T	338 mm	13-5/16"
C	90 mm	3-17/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	108 mm	4-1/4"
G	159 mm	6-1/4"
M	M72 mm	M72

Lifting Point threaded VWBG 35t(48t)-M80 (7900100)

Technical Information

Product number: 7900100

Technical Downloads

VWBG M80x6 - DXF 2D CAD File Download File

VWBG M80x6 - IGES 3D CAD File Download File

VWBG M80x6 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 35t(48t)-M80 Download File

Attribute	Value	Value
weight	31.19 kg	68.76 lbs
Nominal WLL	35000 kg	77000 lbs
A	46 mm	1-13/16"
B	130 mm	5-1/8"
T	338 mm	13-5/16"
C	90 mm	3-17/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	120 mm	4-3/4"
G	159 mm	6-1/4"
M	M80 mm	M80

Lifting Point threaded VWBG 40t(50t)-M90 (7903408)

Technical Information

Product number: 7903408

Technical Downloads

VWBG M90x6 - DXF 2D CAD File Download File

VWBG M90x6 - IGES 3D CAD File Download File

VWBG M90x6 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 40t(50t)-M90 Download File

Attribute	Value	Value
weight	34.39 kg	75.82 lbs
Nominal WLL	40000 kg	88000 lbs
A	46 mm	1-13/16"
B	168 mm	6-5/8"
T	378 mm	14-7/8"
C	110 mm	4-11/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	135 mm	5-5/16"
G	159 mm	6-1/4"
M	M90 mm	M90

Lifting Point threaded VWBG 40t(50t)-M100 (8600458)

Technical Information

Product number: 8600458

Technical Downloads

VWBG M100x6 - DXF 2D CAD File Download File

VWBG M100x6 - IGES 3D CAD File Download File

VWBG M100x6 - STEP 3D CAD File Download File

Lifting Point threaded VWBG 40t(50t)-M100 Download File

Attribute	Value	Value
weight	36.50 kg	80.47 lbs
Nominal WLL	40000 kg	88000 lbs
A	46 mm	1-13/16"
B	168 mm	6-5/8"
T	378 mm	14-7/8"
C	110 mm	4-11/32"
D	170 mm	6-11/16"
E	145 mm	5-11/16"
F	150 mm	5-7/8"
G	159 mm	6-1/4"
M	M100 mm	M100
