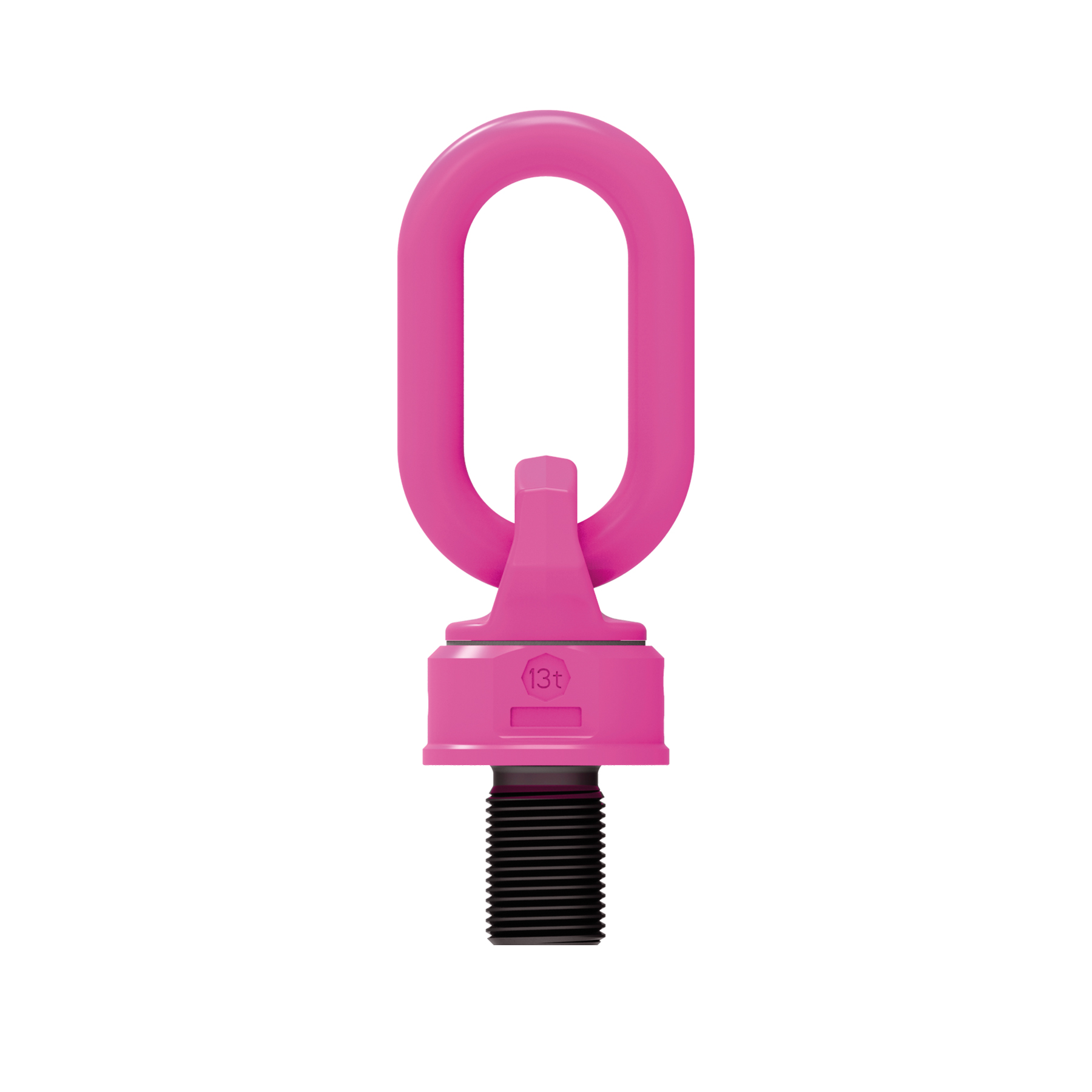

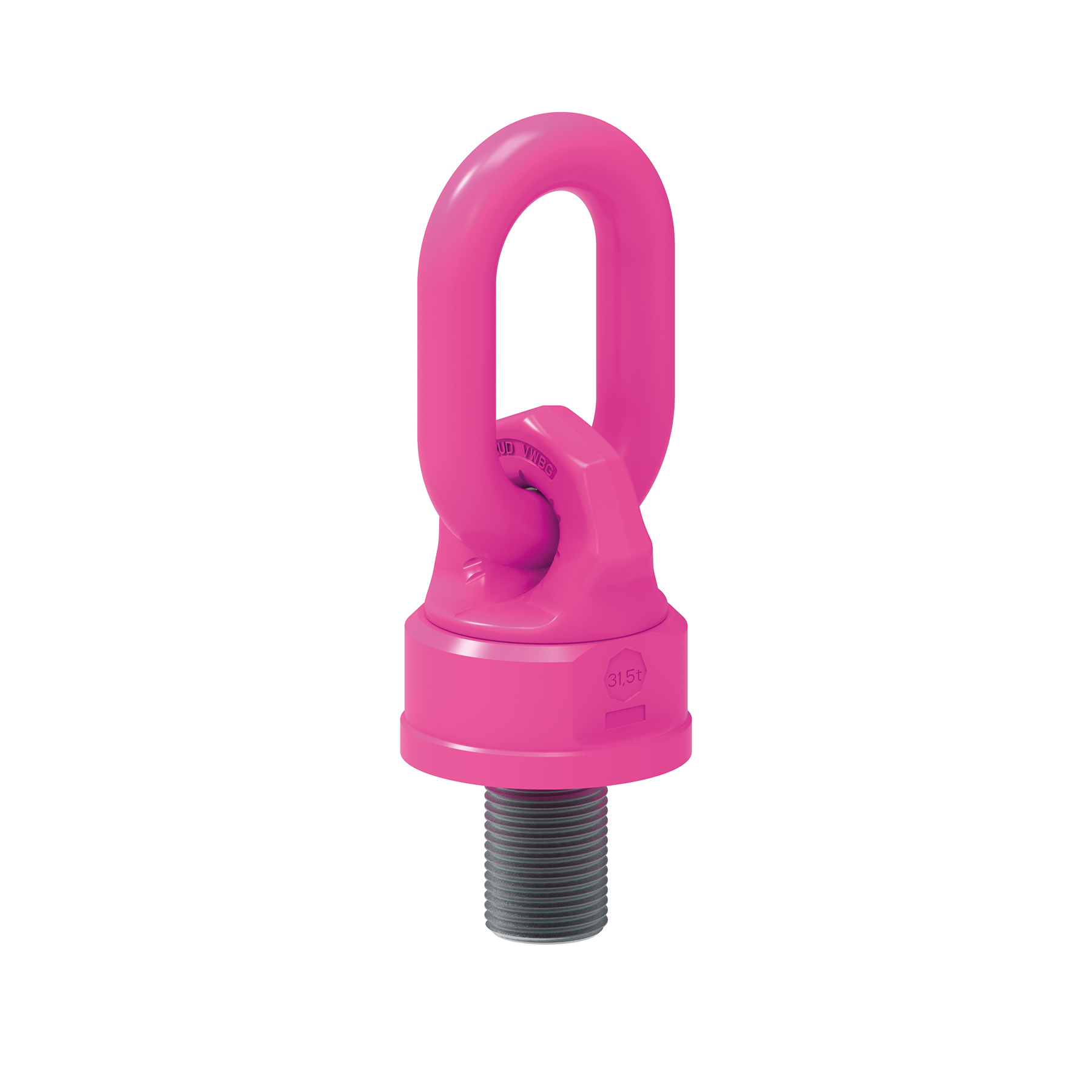

VWBG Load Ring - UNC Thread
Versatile, no matter how you turn it
- Rotates 360° and pivots 230°
- Optical markings for easy identification of replacement

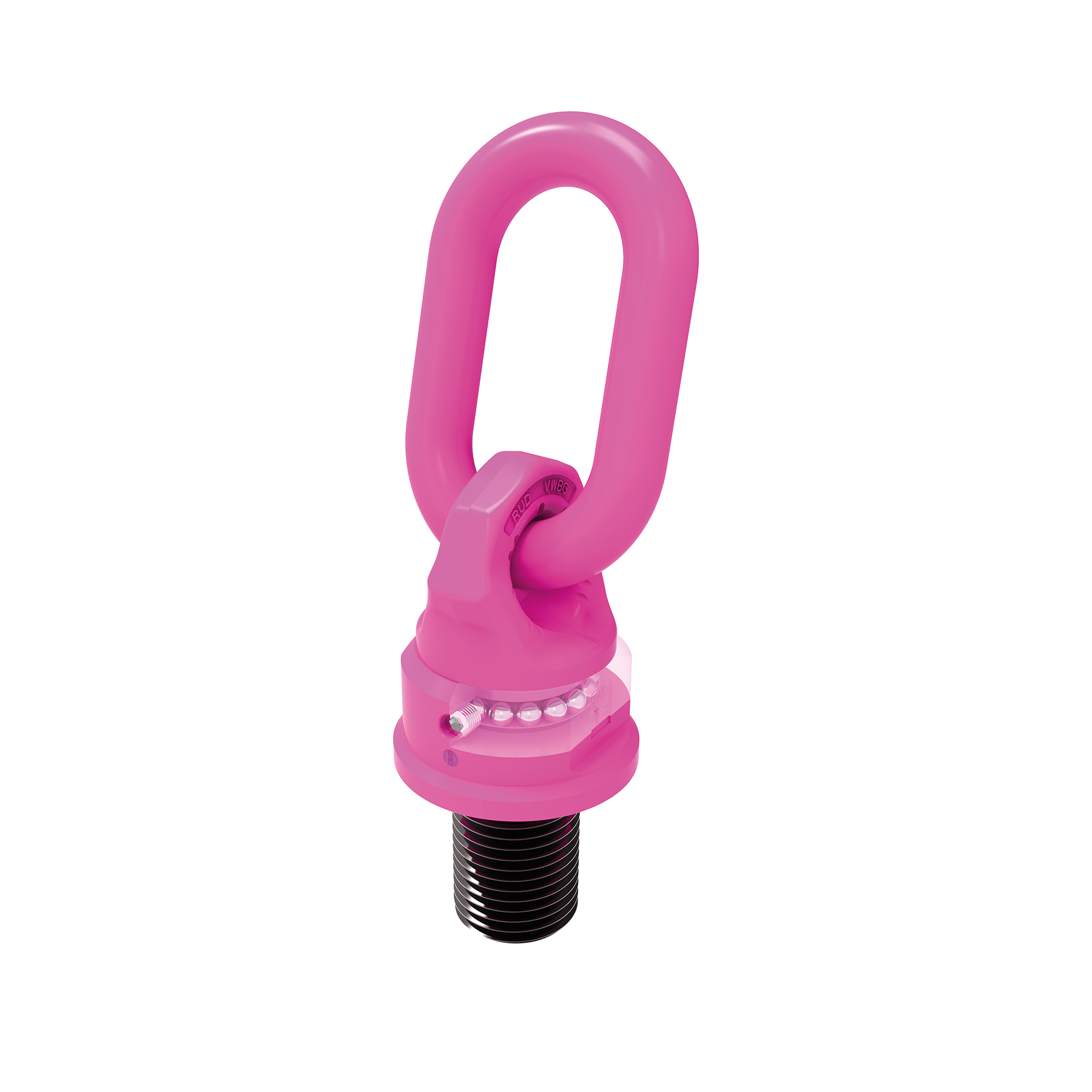

- Ball bearing
- RUD 4:1 safety factor
Product Variants (11)
Lifting Point threaded VWBG 8t (10t) -1 1/2"-6UNC (F=57 mm) (8600451)

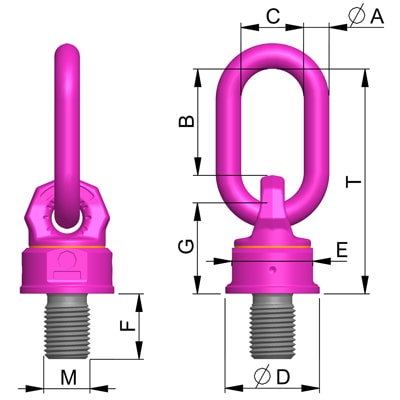

| Attribute | Value | Value |
|---|
| weight | 4.79 kg | 10.56 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 208 mm | 8-3/16" |
| A | 22 mm | 7/8" |
| B | 86 mm | 3-3/8" |
| C | 50 mm | 1-31/32" |
| D | 90 mm | 3-17/32" |
| E | 80 mm | 3-1/8" |
| F | 57 mm | 2-1/4" |
| G | 94 mm | 3-11/16" |
| M | 1 1/2"-6UNC mm | 1 1/2"-6UNC |
Lifting Point threaded VWBG 12t (13t) -1 3/4"-5UNC (F=66 mm) (8600452)
| Attribute | Value | Value |
|---|
| weight | 6.14 kg | 13.54 lbs |
| Nominal WLL | 12000 kg | 26400 lbs |
| T | 235 mm | 9-1/4" |
| A | 26 mm | 1" |
| B | 111 mm | 4-13/32" |
| C | 65 mm | 2-9/16" |
| D | 98 mm | 3-27/32" |
| E | 85 mm | 3-11/32" |
| F | 66 mm | 2-5/8" |
| G | 95 mm | 3-3/4" |
| M | 1 3/4"-5UNC mm | 1 3/4"-5UNC |
Lifting Point threaded VWBG 13t (16t) -2"-4.5UNC (F=76 mm) (8600453)
| Attribute | Value | Value |
|---|
| weight | 6.14 kg | 13.54 lbs |
| Nominal WLL | 13000 kg | 28600 lbs |
| T | 235 mm | 9-1/4" |
| A | 26 mm | 1" |
| B | 111 mm | 4-13/32" |
| C | 65 mm | 2-9/16" |
| D | 98 mm | 3-27/32" |
| E | 85 mm | 3-11/32" |
| F | 76 mm | 3" |
| G | 95 mm | 3-3/4" |
| M | 2"-4.5UNC mm | 2"-4.5UNC |
Lifting Point threaded VWBG 16t (22t) - 2 1/4"-4.5UNC (F=85 mm) (8600454)
| Attribute | Value | Value |
|---|
| weight | 11.00 kg | 24.25 lbs |
| Nominal WLL | 16000 kg | 35200 lbs |
| T | 274 mm | 10-25/32" |
| A | 32 mm | 1-1/4" |
| B | 119 mm | 4-11/16" |
| C | 70 mm | 2-3/4" |
| D | 120 mm | 4-3/4" |
| E | 95 mm | 3-3/4" |
| F | 85 mm | 3-11/32" |
| G | 120 mm | 4-3/4" |
| M | 2 1/2"-4UNC mm | 2 1/2"-4UNC |
Lifting Point threaded VWBG 16t (22t) - 2 1/2"-4UNC (F=95 mm) (8600454)
| Attribute | Value | Value |
|---|
| weight | 11.00 kg | 24.25 lbs |
| Nominal WLL | 16000 kg | 35200 lbs |
| T | 274 mm | 10-25/32" |
| A | 32 mm | 1-1/4" |
| B | 119 mm | 4-11/16" |
| C | 70 mm | 2-3/4" |
| D | 120 mm | 4-3/4" |
| E | 95 mm | 3-3/4" |
| F | 95 mm | 3-3/4" |
| G | 120 mm | 4-3/4" |
| M | 2 1/2"-4UNC mm | 2 1/2"-4UNC |
Lifting Point threaded VWBG 16t (25t) - 2 3/4"-4UNC (F=104 mm) (8600455)
| Attribute | Value | Value |
|---|
| weight | 12.03 kg | 26.52 lbs |
| Nominal WLL | 16000 kg | 35200 lbs |
| T | 274 mm | 10-25/32" |
| A | 32 mm | 1-1/4" |
| B | 119 mm | 4-11/16" |
| C | 70 mm | 2-3/4" |
| D | 120 mm | 4-3/4" |
| E | 95 mm | 3-3/4" |
| F | 104 mm | 4-3/32" |
| G | 120 mm | 4-3/4" |
| M | 2 3/4"-4UNC mm | 2 3/4"-4UNC |
Lifting Point threaded VWBG 31.5t (40t) - 3"-4UNC (F=114 mm) (8600456)
| Attribute | Value | Value |
|---|
| weight | 26.34 kg | 58.07 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| T | 338 mm | 13-5/16" |
| A | 46 mm | 1-13/16" |
| B | 130 mm | 5-1/8" |
| C | 90 mm | 3-17/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 114 mm | 4-1/2" |
| G | 159 mm | 6-1/4" |
| M | 3"-4UNC mm | 3"-4UNC |
Lifting Point threaded VWBG 35t (48t) - 3 1/2"-4UNC (F=133 mm) (8600457)
| Attribute | Value | Value |
|---|
| weight | 28.07 kg | 61.88 lbs |
| Nominal WLL | 35000 kg | 77000 lbs |
| T | 338 mm | 13-5/16" |
| A | 46 mm | 1-13/16" |
| B | 130 mm | 5-1/8" |
| C | 90 mm | 3-17/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 133 mm | 5-15/64" |
| G | 159 mm | 6-1/4" |
| M | 3 1/2"-4UNC mm | 3 1/2"-4UNC |
Lifting Point threaded VWBG 40t (50t) - 4"-4UNC (F=150 mm) (8600458)
| Attribute | Value | Value |
|---|
| weight | 36.70 kg | 80.91 lbs |
| Nominal WLL | 40000 kg | 88000 lbs |
| T | 378 mm | 14-7/8" |
| A | 46 mm | 1-13/16" |
| B | 170 mm | 6-11/16" |
| C | 110 mm | 4-11/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 150 mm | 5-7/8" |
| G | 159 mm | 6-1/4" |
| M | 4"-4UNC mm | 4"-4UNC |
Lifting Point threaded VWBG 40t (50t) - 4 1/2"-4UNC (F=170 mm) (8600458)
| Attribute | Value | Value |
|---|
| weight | 40.60 kg | 89.51 lbs |
| Nominal WLL | 40000 kg | 88000 lbs |
| T | 378 mm | 14-7/8" |
| A | 46 mm | 1-13/16" |
| B | 170 mm | 6-11/16" |
| C | 110 mm | 4-11/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 170 mm | 6-11/16" |
| G | 159 mm | 6-1/4" |
| M | 4 1/2"-4UNC mm | 4 1/2"-4UNC |
Lifting Point threaded VWBG 40t (50t) - 5"-4UNC (F=190 mm) (8600458)
| Attribute | Value | Value |
|---|
| weight | 45.50 kg | 100.31 lbs |
| Nominal WLL | 40000 kg | 88000 lbs |
| T | 378 mm | 14-7/8" |
| A | 46 mm | 1-13/16" |
| B | 170 mm | 6-11/16" |
| C | 110 mm | 4-11/32" |
| D | 170 mm | 6-11/16" |
| E | 145 mm | 5-11/16" |
| F | 190 mm | 7-1/2" |
| G | 159 mm | 6-1/4" |
| M | 5"-4UNC mm | 5"-4UNC |
