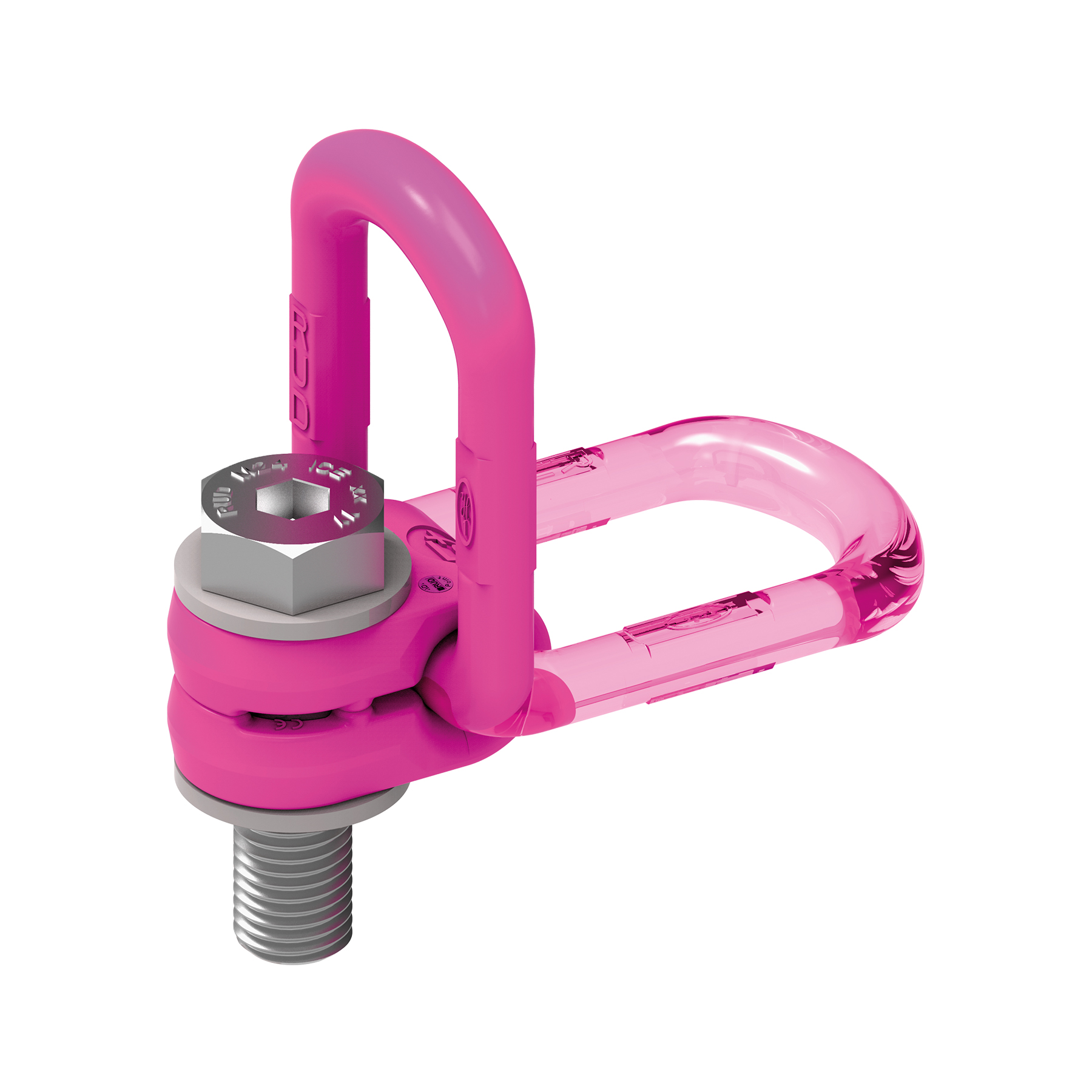

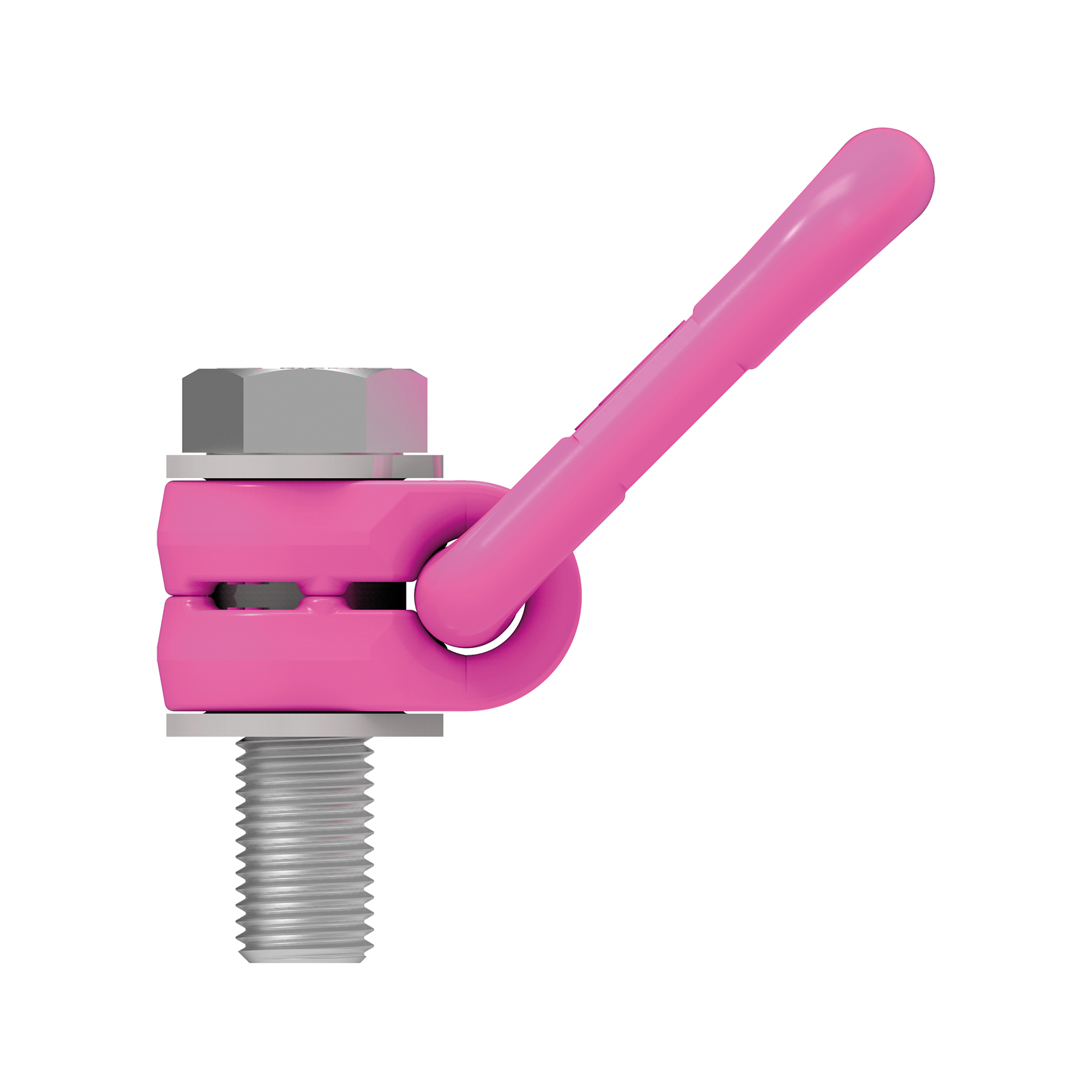

VLBG-Z Load ring, UNC/UN thread

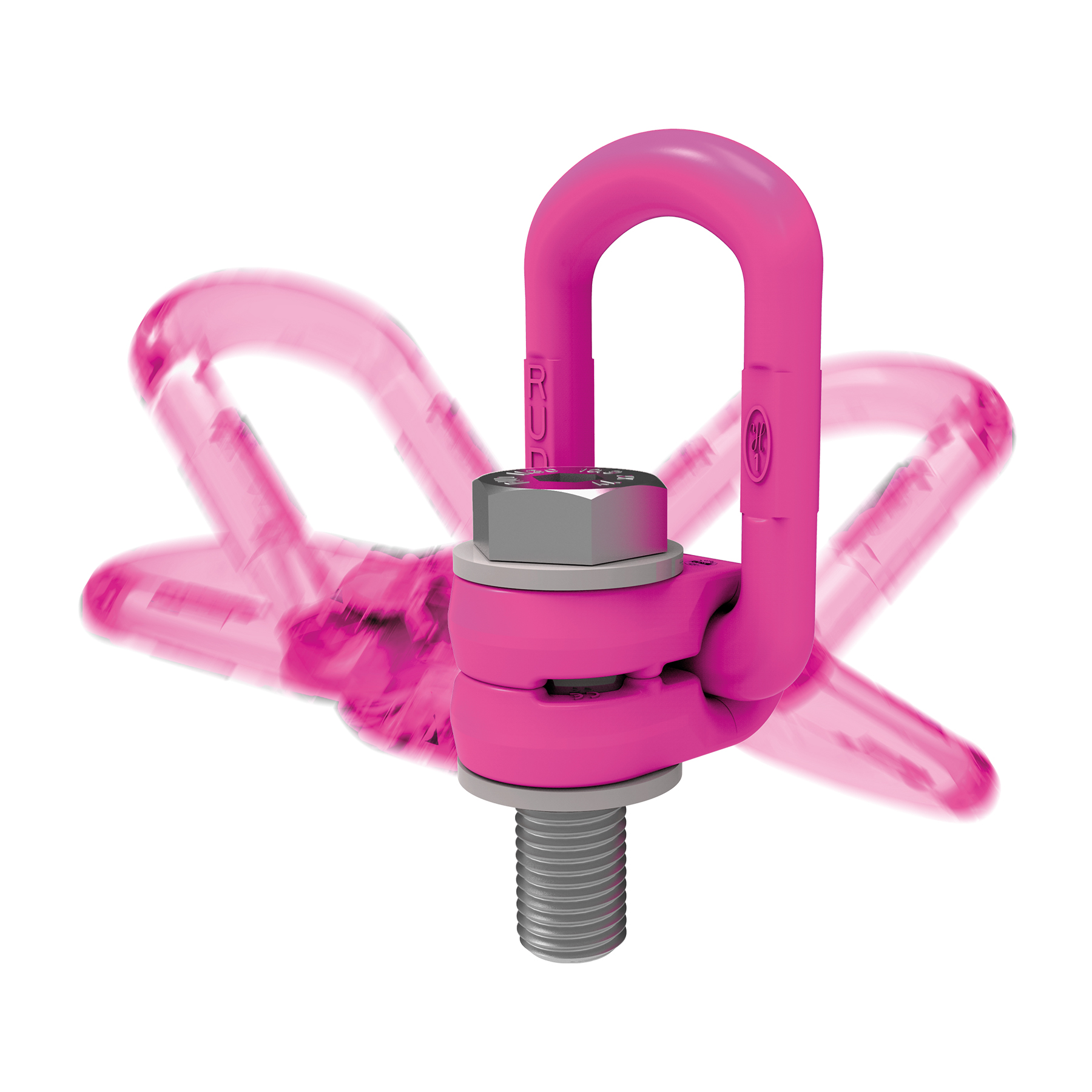

Captive but exchangable RUD-Bolt

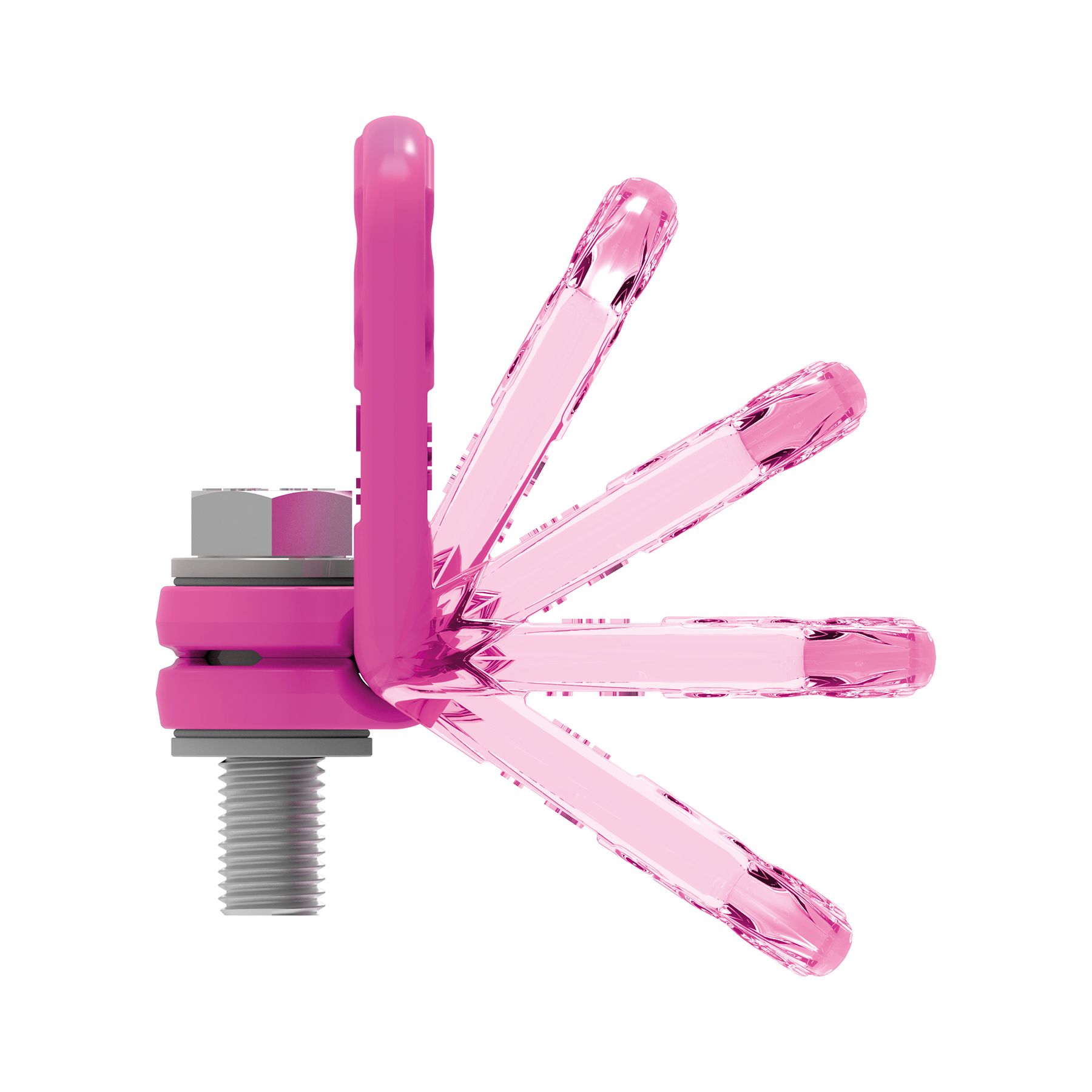

Bracket adjustable in force direction
Comprehensive range of threads

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (10)

Load ring VLBG-Z 0.63t 3/8"-16UNC with bolt (8504256)

Technical Information

Product number: 8504256

Technical Downloads

VLBG-Z 0.63t 3/8"-16UNC - DXF 2D CAD File Download File

VLBG-Z 0.63t 3/8"-16UNC - IGES 3D CAD File Download File

VLBG-Z 0.63t 3/8"-16UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 0.63t 3/8"-16UNC with bolt Download File

Attribute	Value	Value
weight	0.29 kg	0.64 lbs
Nominal WLL	630 kg	1386 lbs
A	30 mm	1-3/16"
B	54 mm	2-1/8"
T	75 mm	2-15/16"
C	34 mm	1-11/32"
D	24 mm	15/16"
E	39 mm	1-9/16"
F	10 mm	3/8"
G	29 mm	1-5/32"
H	16 mm	5/8"
I	75 mm	2-15/16"
K	45 mm	1-25/32"
L	45 mm	1-25/32"
M	3/8"-16UNC mm	3/8"-16UNC
N	32 mm	1-1/4"

Load ring VLBG-Z 1t 1/2"-13UNC with bolt (8502349)

Technical Information

Product number: 8502349

Technical Downloads

VLBG-Z 1t 1/2"-13UNC - DXF 2D CAD File Download File

VLBG-Z 1t 1/2"-13UNC - IGES 3D CAD File Download File

VLBG-Z 1t 1/2"-13UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 1t 1/2"-13UNC with bolt Download File

Attribute	Value	Value
weight	0.36 kg	0.79 lbs
Nominal WLL	1000 kg	2200 lbs
A	32 mm	1-1/4"
B	54 mm	2-1/8"
T	75 mm	2-15/16"
C	34 mm	1-11/32"
D	26 mm	1"
E	38 mm	1-1/2"
F	10 mm	3/8"
G	29 mm	1-5/32"
H	22 mm	7/8"
I	75 mm	2-15/16"
K	45 mm	1-25/32"
L	50 mm	1-31/32"
M	1/2"-13UNC mm	1/2"-13UNC
N	32 mm	1-1/4"

Load ring VLBG-Z 1.5t 5/8"-11UNC with bolt (8502350)

Technical Information

Product number: 8502350

Technical Downloads

VLBG-Z 1.5t 5/8"-11UNC - DXF 2D CAD File Download File

VLBG-Z 1.5t 5/8"-11UNC - IGES 3D CAD File Download File

VLBG-Z 1.5t 5/8"-11UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 1.5t 5/8"-11UNC with bolt Download File

Attribute	Value	Value
weight	0.50 kg	1.10 lbs
Nominal WLL	1500 kg	3300 lbs
A	33 mm	1-5/16"
B	56 mm	2-3/16"
T	85 mm	3-11/32"
C	36 mm	1-27/64"
D	30 mm	1-3/16"
E	39 mm	1-9/16"
F	13.5 mm	17/32"
G	36 mm	1-27/64"
H	24 mm	15/16"
I	86 mm	3-3/8"
K	47 mm	1-7/8"
L	60 mm	2-3/8"
M	5/8"-11UNC mm	5/8"-11UNC
N	38 mm	1-1/2"

Load ring VLBG-Z 2.5t 3/4"-10UNC with bolt (8502351)

Technical Information

Product number: 8502351

Technical Downloads

VLBG-Z 2.5t 3/4"-10UNC - DXF 2D CAD File Download File

VLBG-Z 2.5t 3/4"-10UNC - IGES 3D CAD File Download File

VLBG-Z 2.5t 3/4"-10UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 2.5t 3/4"-10UNC with bolt Download File

Attribute	Value	Value
weight	1.30 kg	2.87 lbs
Nominal WLL	2500 kg	5500 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	110 mm	4-11/32"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	55 mm	2-5/32"
F	16.5 mm	21/32"
G	43 mm	1-11/16"
H	28 mm	1-1/8"
I	113 mm	4-7/16"
K	64 mm	2-1/2"
L	71 mm	2-13/16"
M	3/4"-10UNC mm	3/4"-10UNC
N	48 mm	1-7/8"

Load ring VLBG-Z 2.5t 7/8"-9UNC with bolt (8502352)

Technical Information

Product number: 8502352

Technical Downloads

VLBG-Z 2.5t 7/8"-9UNC - DXF 2D CAD File Download File

VLBG-Z 2.5t 7/8"-9UNC - IGES 3D CAD File Download File

VLBG-Z 2.5t 7/8"-9UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 2.5t 7/8"-9UNC with bolt Download File

Attribute	Value	Value
weight	1.25 kg	2.76 lbs
Nominal WLL	2500 kg	5500 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	110 mm	4-11/32"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	55 mm	2-5/32"
F	16.5 mm	21/32"
G	43 mm	1-11/16"
H	27 mm	1-1/16"
I	113 mm	4-7/16"
K	64 mm	2-1/2"
L	70 mm	2-3/4"
M	7/8"-9UNC mm	7/8"-9UNC
N	48 mm	1-7/8"

Load ring VLBG-Z 4t 1"-8UNC with bolt (8502353)

Technical Information

Product number: 8502353

Technical Downloads

VLBG-Z 4t 1"-8UNC - DXF 2D CAD File Download File

VLBG-Z 4t 1"-8UNC - IGES 3D CAD File Download File

VLBG-Z 4t 1"-8UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 4t 1"-8UNC with bolt Download File

Attribute	Value	Value
weight	1.50 kg	3.31 lbs
Nominal WLL	4000 kg	8800 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	125 mm	4-15/16"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	67 mm	2-5/8"
F	18 mm	23/32"
G	43 mm	1-11/16"
H	41 mm	1-5/8"
I	130 mm	5-1/8"
K	78 mm	3-1/16"
L	84 mm	3-5/16"
M	1"-8UNC mm	1"-8UNC
N	48 mm	1-7/8"

Load ring VLBG-Z 5t 1 1/4"-7UNC with bolt (8503187)

Technical Information

Product number: 8503187

Technical Downloads

VLBG-Z 5t 1-1/4"-7UNC - DXF 2D CAD File Download File

VLBG-Z 5t 1-1/4"-7UNC - IGES 3D CAD File Download File

VLBG-Z 5t 1-1/4"-7UNC - STEP 3D CAD File Download File

Load ring VLBG-Z 5t 1 1/4"-7UNC with bolt Download File

Attribute	Value	Value
weight	3.33 kg	7.34 lbs
Nominal WLL	5000 kg	11000 lbs
A	60 mm	2-3/8"
B	103 mm	4-1/16"
T	147 mm	5-25/32"
C	65 mm	2-9/16"
D	60 mm	2-3/8"
E	64 mm	2-1/2"
F	22.5 mm	7/8"
G	61 mm	2-13/32"
H	41 mm	1-5/8"
I	151 mm	5-15/16"
K	80 mm	3-1/8"
L	102 mm	4"
M	1 1/4"-7UNC mm	1 1/4"-7UNC
N	67 mm	2-5/8"

Load ring VLBG-Z 5t 1 1/4"-8UN with bolt (8502354)

Technical Information

Product number: 8502354

Technical Downloads

VLBG-Z 5t 1-1/4"-8UN - DXF 2D CAD File Download File

VLBG-Z 5t 1-1/4"-8UN - IGES 3D CAD File Download File

VLBG-Z 5t 1-1/4"-8UN - STEP 3D CAD File Download File

Load ring VLBG-Z 5t 1 1/4"-8UN with bolt Download File

Attribute	Value	Value
weight	3.33 kg	7.34 lbs
Nominal WLL	5000 kg	11000 lbs
A	60 mm	2-3/8"
B	103 mm	4-1/16"
T	147 mm	5-25/32"
C	65 mm	2-9/16"
D	60 mm	2-3/8"
E	64 mm	2-1/2"
F	22.5 mm	7/8"
G	61 mm	2-13/32"
H	41 mm	1-5/8"
I	151 mm	5-15/16"
K	80 mm	3-1/8"
L	102 mm	4"
M	1 1/4"-8UN mm	1 1/4"-8UN
N	67 mm	2-5/8"

Load ring VLBG-Z 8t 1 1/2"-6UNC with bolt (8504257)

Technical Information

Product number: 8504257

Technical Downloads

VLBG-Z 8t 1 1/2" - DXF 2D CAD File Download File

VLBG-Z 8t 1 1/2" - IGES 3D CAD File Download File

VLBG-Z 8t 1 1/2" - STEP 3D CAD File Download File

Load ring VLBG-Z 8t 1 1/2"-6UNC with bolt Download File

Attribute	Value	Value
weight	6.14 kg	13.54 lbs
Nominal WLL	8000 kg	17600 lbs
A	77 mm	3"-1/32"
B	122 mm	4-13/16"
T	197 mm	7-3/4"
C	82 mm	3-1/4"
D	70 mm	2-3/4"
E	97 mm	3-13/16"
F	26.5 mm	1-3/64"
G	77 mm	3"-1/32"
H	62 mm	2-7/16"
I	205 mm	8-1/16"
K	110 mm	4-11/32"
L	140 mm	5-1/2"
M	1 1/2"-6UNC mm	1 1/2"-6UNC
N	87 mm	3-7/16"

Load ring VLBG-Z 20t 2"-4 1/2 UNC with bolt (8504258)

Technical Information

Product number: 8504258

Technical Downloads

VLBG-Z 20t 2" - DXF 2D CAD File Download File

VLBG-Z 20t 2" - IGES 3D CAD File Download File

VLBG-Z 20t 2" - STEP 3D CAD File Download File

Load ring VLBG-Z 20t 2"-4 1/2 UNC with bolt Download File

Attribute	Value	Value
weight	11.77 kg	25.95 lbs
Nominal WLL	20000 kg	44000 lbs
A	95 mm	3-3/4"
B	156 mm	6-5/32"
T	222 mm	8-3/4"
C	100 mm	3-15/16"
D	95 mm	3-3/4"
E	105 mm	4-1/8"
F	36 mm	1-27/64"
G	87 mm	3-7/16"
H	69 mm	2-23/32"
I	230 mm	9-1/16"
K	130 mm	5-1/8"
L	156 mm	6-5/32"
M	2"-4 1/2 UNC mm	2"-4 1/2 UNC
N	100 mm	3-15/16"
