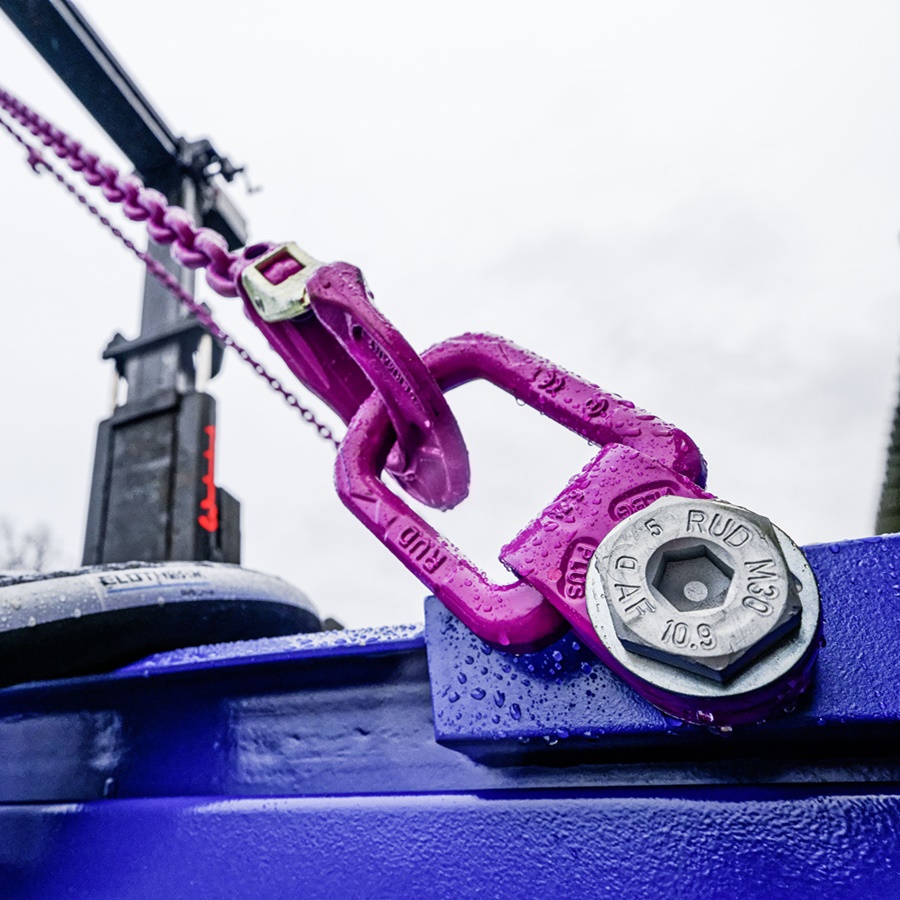

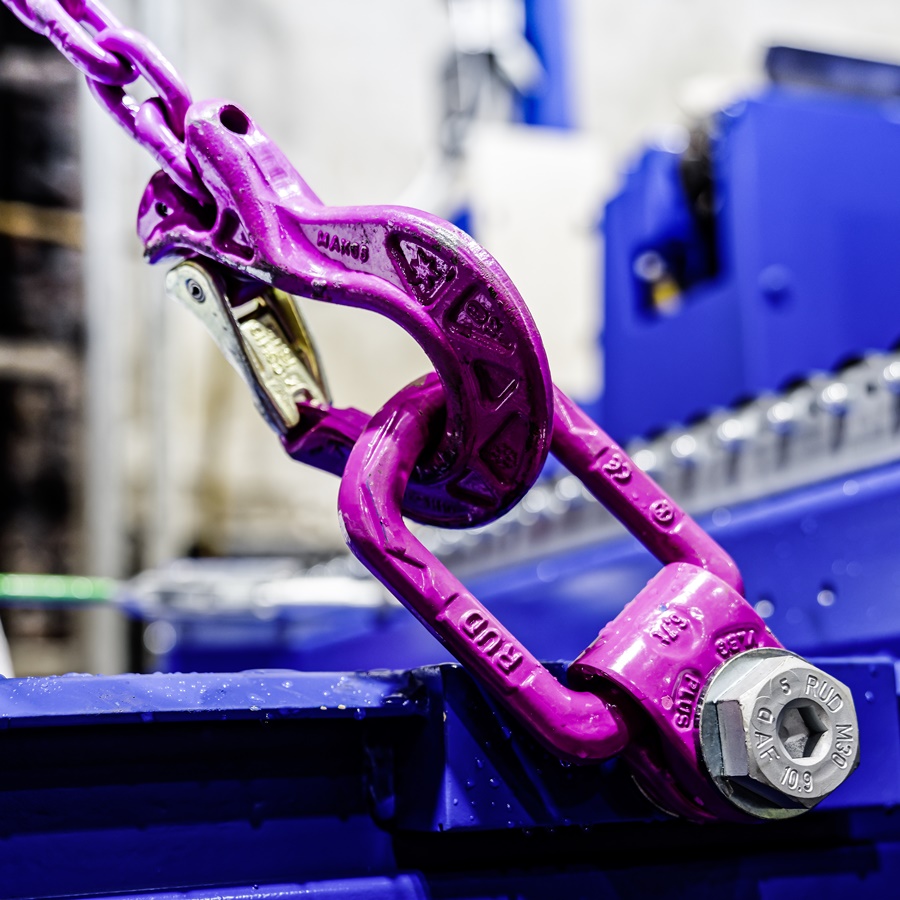

VLBG-PLUS Load Ring - Metric Thread

Tried and tested – Full WLL in all directions

The RUD VLBG-PLUS Load Ring with metric thread has a safety factor of 4:1 and comes fully tested and approved by DGUV. The VLBG-PLUS load ring is Grade 120 and is designed for use in extreme temperatures ranging from -40˚C up to 100˚C and a maximum temperature of 350˚C with a reduced WLL.

  • Up to 45% higher WLL capacity
  • ICE bolt made from patented material
  • Grade 120 for higher wear resistance
  • 360-degree lifting point rotation and 180-degree pivot
  • Optimum WLL with captive but exchangeable ICE-Bolt
  • Comprehensive range of threads
  • RUD 4:1 safety factor



  • Full working load in all directions.
  • Lifiting point is able to rotate 360 degrees. However it is not suitable for turning and rotation under load.
  • Lifitng point has been tested by DGUV (German legal accident insurance) and has the corresponding written approval.
  • Maximum Operation temperature range of the lifting point without reduction of WLL.
  • ECS 19190 122
  • Inspection and documentation made easy! By the RUD-ID-System (equipped with own RFID chip).
  • The lifting point has got a rotation range of XXX° in the suspension link (XXX° being representative for the different values).
  • 4:1 min. safety factor for lifting and 2:1 safety factor for lashing capacity.
  • Lifitng point is available with Variable/various thread lenghts.
  • Lifitng points with this symbol are equipped with the ICE-Bolt.
