VLBG-Z Load Ring - UNF Thread

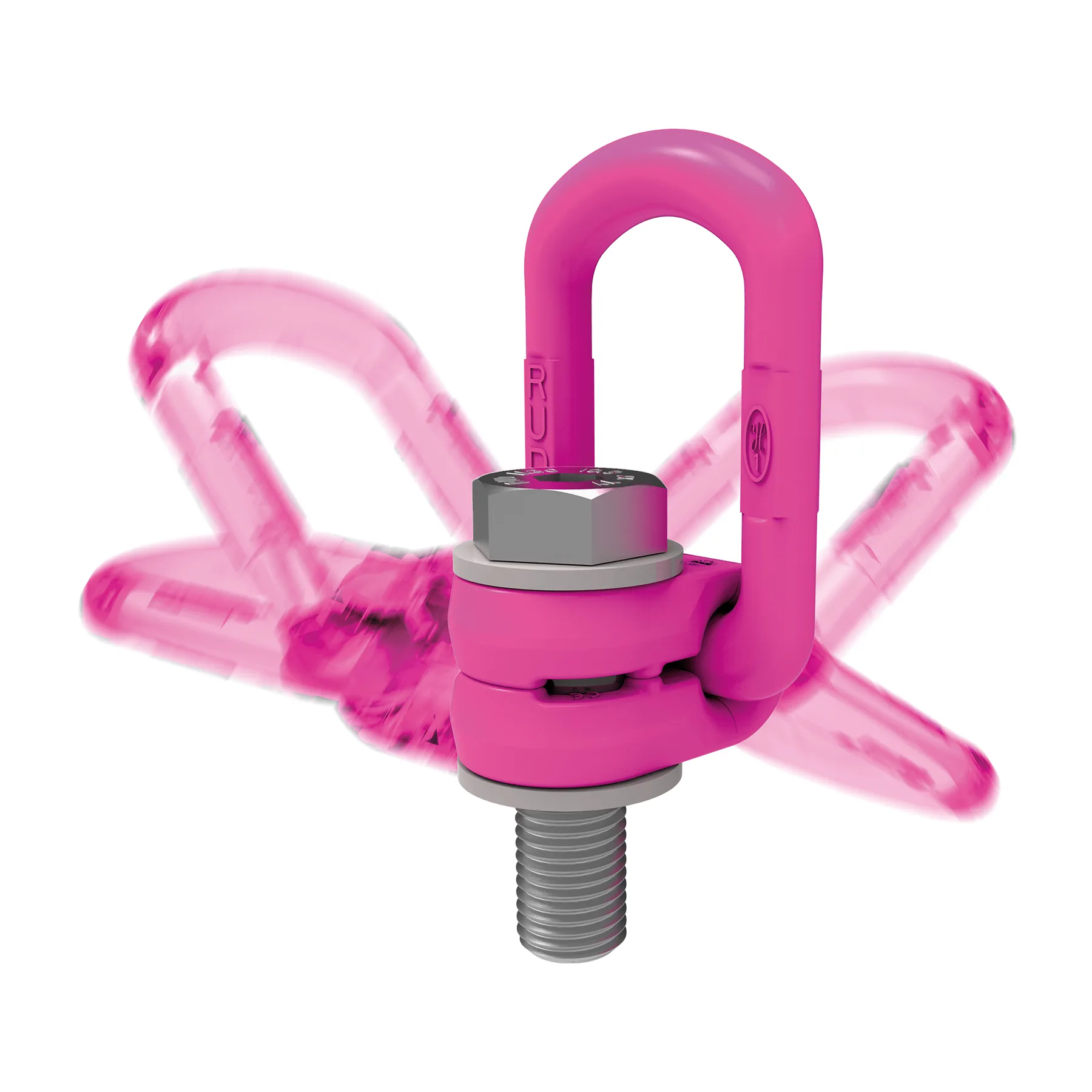

Tried and tested – Full WLL in all directions
- Captive with exchangeable RUD-Bolt

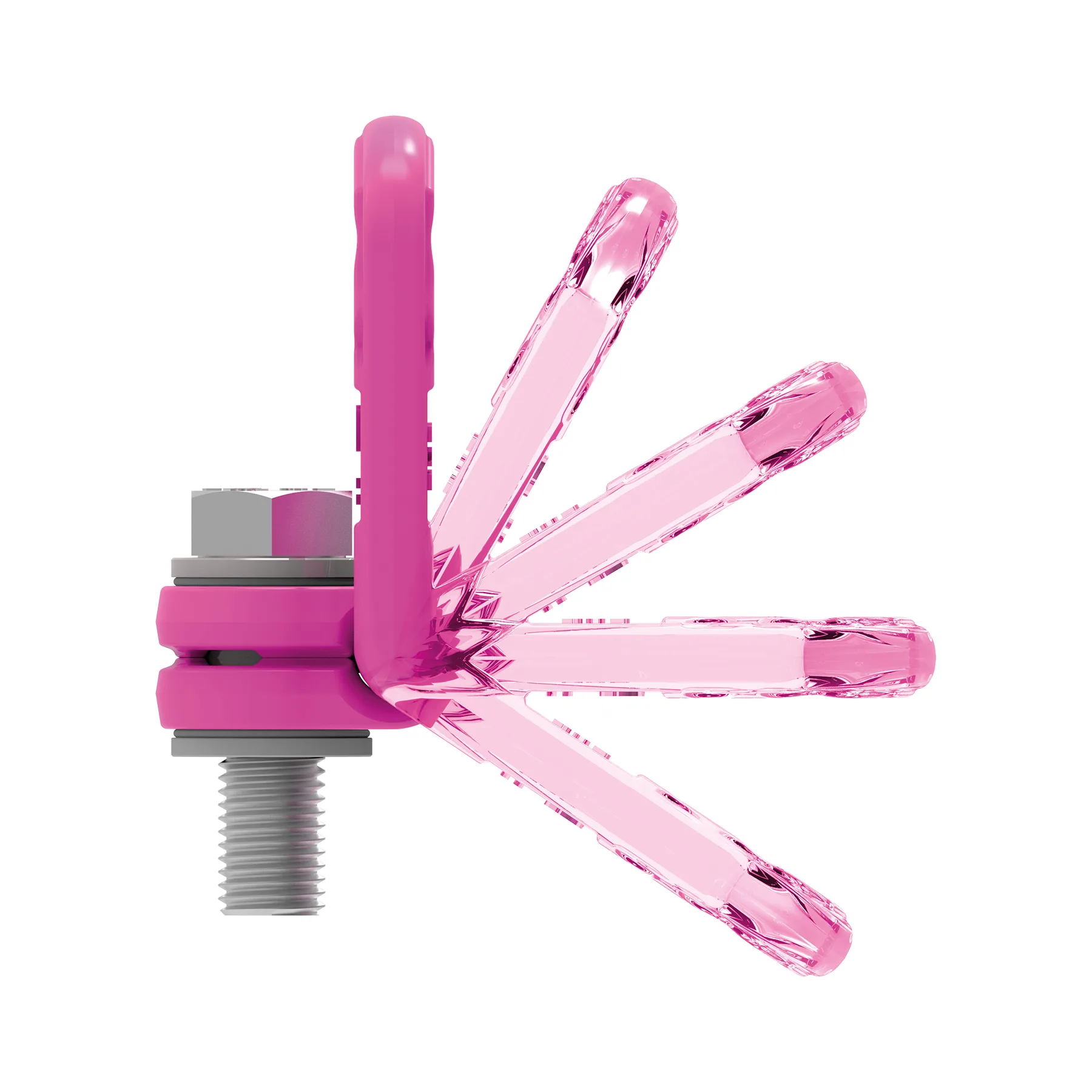

- Bracket adjustable in force direction
- Range of threads
- RUD 4:1 safety factor
Product Variants (1)
Load ring VLBG-Z 1.5t 5/8"-18UNF with bolt (7903942)

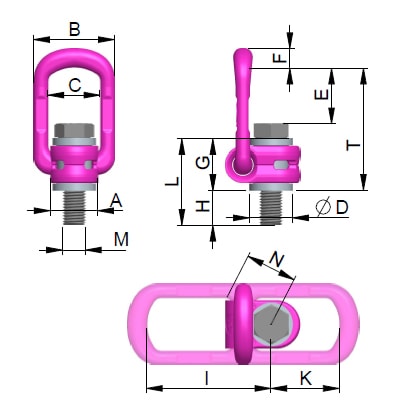

| Attribute | Value | Value |
|---|
| weight | 0.57 kg | 1.26 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 33 mm | 1-5/16" |
| B | 56 mm | 2-3/16" |
| T | 85 mm | 3-11/32" |
| C | 36 mm | 1-27/64" |
| D | 46 mm | 1-13/16" |
| E | 38 mm | 1-1/2" |
| F | 13.5 mm | 17/32" |
| G | 36 mm | 1-27/64" |
| H | 30 mm | 1-3/16" |
| I | 87 mm | 3-7/16" |
| K | 47 mm | 1-7/8" |
| L | 60 mm | 2-3/8" |
| M | 5/8"-18UNF mm | 5/8"-18UNF |
| N | 38 mm | 1-1/2" |
