VLBG-Z Load ring, UNC thread with variable length

Name: VLBG-Z Load ring, UNC thread with variable length
Brand: RUD
SKU: 963
Rating: 5 (1 reviews)

Captive but exchangable RUD-Bolt
Bracket adjustable in force direction
Comprehensive range of threads

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (9)

Load ring VLBG-Z 0.63t 3/8"-16UNC with variable length (8600440)

Technical Information

Product number: 8600440

Technical Downloads

Load ring VLBG-Z 0.63t 3/8"-16UNC with variable length Download File

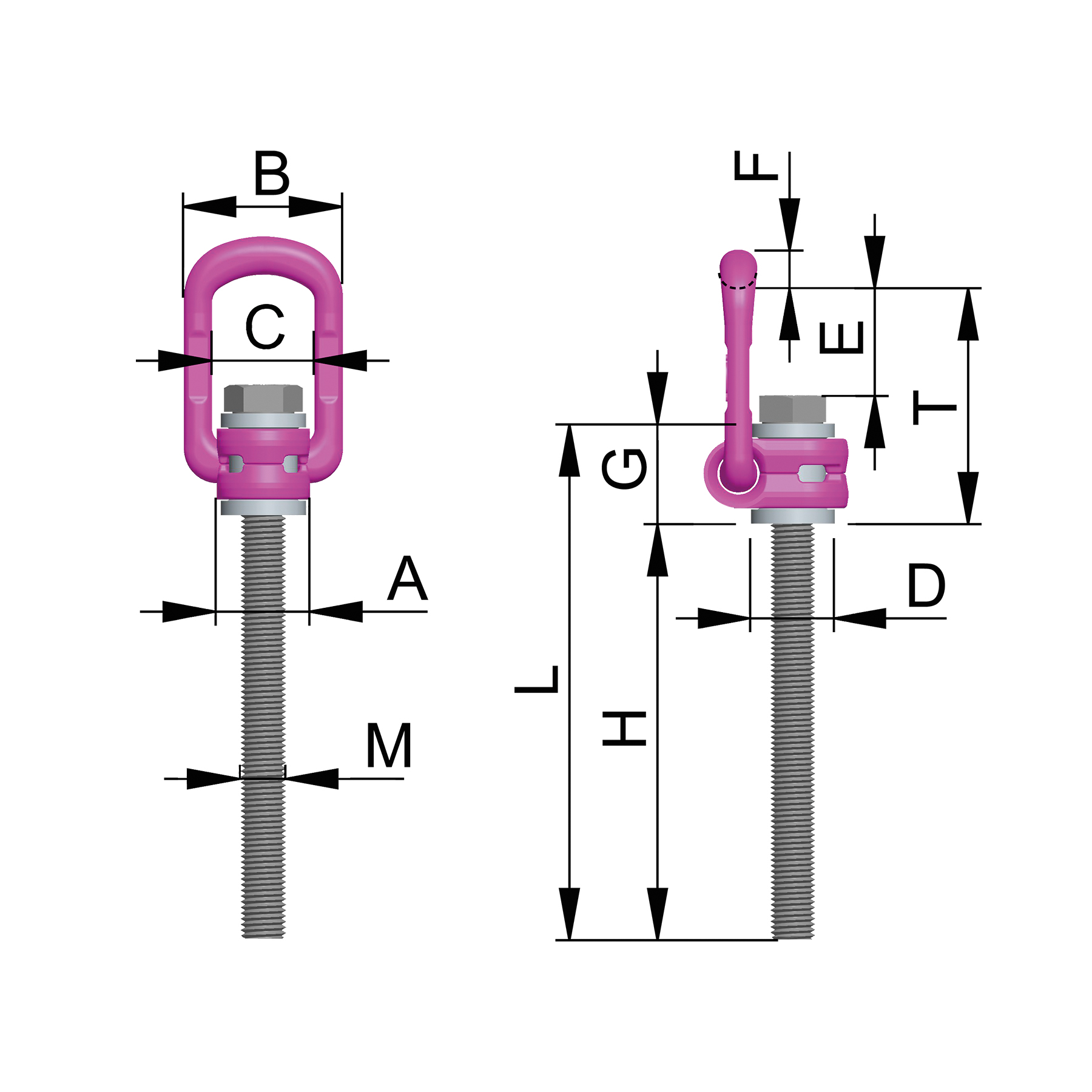

Attribute	Value	Value
Nominal WLL	630 kg	1385 lbs
A	30 mm	1-3/16"
B	54 mm	2-1/8"
T	75 mm	2-15/16"
C	34 mm	1-11/32"
D	24 mm	15/16"
E	39 mm	1-9/16"
F	10 mm	3/8"
G	29 mm	1-5/32"
H	10-98 mm	3/8" up to 3-27/32"
I	75 mm	2-15/16"
K	45 mm	1-25/32"
L	39-127 mm	1-9/16" up to 5"
M	3/8"-16UNC mm	3/8"-16UNC
N	32 mm	1-1/4"

Load ring VLBG-Z 1t 1/2"-13UNC with variable length (8600441)

Technical Information

Product number: 8600441

Technical Downloads

Load ring VLBG-Z 1t 1/2"-13UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	1000 kg	2200 lbs
A	32 mm	1-1/4"
B	54 mm	2-1/8"
T	75 mm	2-15/16"
C	34 mm	1-11/32"
D	26 mm	1"
E	38 mm	1-1/2"
F	10 mm	3/8"
G	29 mm	1-5/32"
H	13-123 mm	13-123
I	75 mm	2-15/16"
K	45 mm	1-25/32"
L	42-152 mm	42-152
M	1/2"-13UNC mm	1/2"-13UNC
N	32 mm	1-1/4"

Load ring VLBG-Z 1.5t 5/8"-11UNC with variable length (8600442)

Technical Information

Product number: 8600442

Technical Downloads

Load ring VLBG-Z 1.5t 5/8"-11UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	1500 kg	3300 lbs
A	33 mm	1-5/16"
B	56 mm	2-3/16"
T	85 mm	3-11/32"
C	36 mm	1-27/64"
D	30 mm	1-3/16"
E	39 mm	1-9/16"
F	13.5 mm	17/32"
G	36 mm	1-27/64"
H	16-148 mm	5/8" up to 5-13/16"
I	86 mm	3-3/8"
K	47 mm	1-7/8"
L	52-184 mm	2-1/16" up to 7-1/4"
M	5/8"-11UNC mm	5/8"-11UNC
N	38 mm	1-1/2"

Load ring VLBG-Z 2.5t 3/4"-10UNC with variable length (8600443)

Technical Information

Product number: 8600443

Technical Downloads

Load ring VLBG-Z 2.5t 3/4"-10UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	2500 kg	5500 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	110 mm	4-11/32"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	55 mm	2-5/32"
F	16.5 mm	21/32"
G	43 mm	1-11/16"
H	19-185 mm	3/4" up to 7-9/32"
I	113 mm	4-7/16"
K	64 mm	2-1/2"
L	62-228 mm	2-7/16" up to 9"
M	3/4"-10UNC mm	3/4"-10UNC
N	48 mm	1-7/8"

Load ring VLBG-Z 2.5t 7/8"-9UNC with variable length (8600444)

Technical Information

Product number: 8600444

Technical Downloads

Load ring VLBG-Z 2.5t 7/8"-9UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	2500 kg	5500 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	110 mm	4-11/32"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	55 mm	2-5/32"
F	16.5 mm	21/32"
G	43 mm	1-11/16"
H	22-211 mm	7/8" up to 8-5/16"
I	113 mm	4-7/16"
K	64 mm	2-1/2"
L	65-254 mm	2-9/16" up to 10"
M	7/8"-9UNC mm	7/8"-9UNC
N	48 mm	1-7/8"

Load ring VLBG-Z 4t 1"-8UNC with variable length (8600445)

Technical Information

Product number: 8600445

Technical Downloads

Load ring VLBG-Z 4t 1"-8UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	4000 kg	8800 lbs
A	50 mm	1-31/32"
B	82 mm	3-1/4"
T	125 mm	4-15/16"
C	54 mm	2-1/8"
D	45 mm	1-25/32"
E	67 mm	2-5/8"
F	18 mm	23/32"
G	43 mm	1-11/16"
H	25-211 mm	1" up to 8-5/16"
I	130 mm	5-1/8"
K	78 mm	3-1/16"
L	68-254 mm	2-11/16" up to 10"
M	1"-8UNC mm	1"-8UNC
N	48 mm	1-7/8"

Load ring VLBG-Z 5t 1 1/4"-7UNC with variable length (8600446)

Technical Information

Product number: 8600446

Technical Downloads

Load ring VLBG-Z 5t 1 1/4"-7UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	5000 kg	11000 lbs
A	60 mm	2-3/8"
B	103 mm	4-1/16"
T	147 mm	5-25/32"
C	65 mm	2-9/16"
D	60 mm	2-3/8"
E	64 mm	2-1/2"
F	22.5 mm	7/8"
G	61 mm	2-13/32"
H	32-278 mm	1-1/4" up to 10-15/16"
I	151 mm	5-15/16"
K	80 mm	3-1/8"
L	93-339 mm	3-21/32" up to 13-11/32"
M	1 1/4"-7UNC mm	1 1/4"-7UNC
N	67 mm	2-5/8"

Load ring VLBG-Z 8t 1 1/2"-6UNC with variable length (8600447)

Technical Information

Product number: 8600447

Technical Downloads

Load ring VLBG-Z 8t 1 1/2"-6UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	8000 kg	17600 lbs
A	77 mm	3"-1/32"
B	122 mm	4-13/16"
T	197 mm	7-3/4"
C	82 mm	3-1/4"
D	100 mm	3-15/16"
E	97 mm	3-13/16"
F	26.5 mm	1-3/64"
G	77 mm	3"-1/32"
H	38-270 mm	1-1/2" up to 10-5/8"
I	205 mm	8-1/16"
K	110 mm	4-11/32"
L	115-347 mm	4-1/2" up to 13-21/32"
M	1 1/2"-6UNC mm	1 1/2"-6UNC
N	87 mm	3-7/16"

Load ring VLBG-Z 20t 2"-4.5UNC with variable length (8600448)

Technical Information

Product number: 8600448

Technical Downloads

Load ring VLBG-Z 20t 2"-4.5UNC with variable length Download File

Attribute	Value	Value
Nominal WLL	20000 kg	44000 lbs
A	95 mm	3-3/4"
B	156 mm	6-5/32"
T	222 mm	8-3/4"
C	100 mm	3-15/16"
D	95 mm	3-3/4"
E	105 mm	4-1/8"
F	36 mm	1-27/64"
G	87 mm	3-7/16"
H	51-302 mm	2" up to 11-7/8"
I	230 mm	9-1/16"
K	130 mm	5-1/8"
L	138-389 mm	5-7/16" up to 15-5/16"
M	2"-4.5UNC mm	2"-4.5UNC
N	100 mm	3-15/16"
