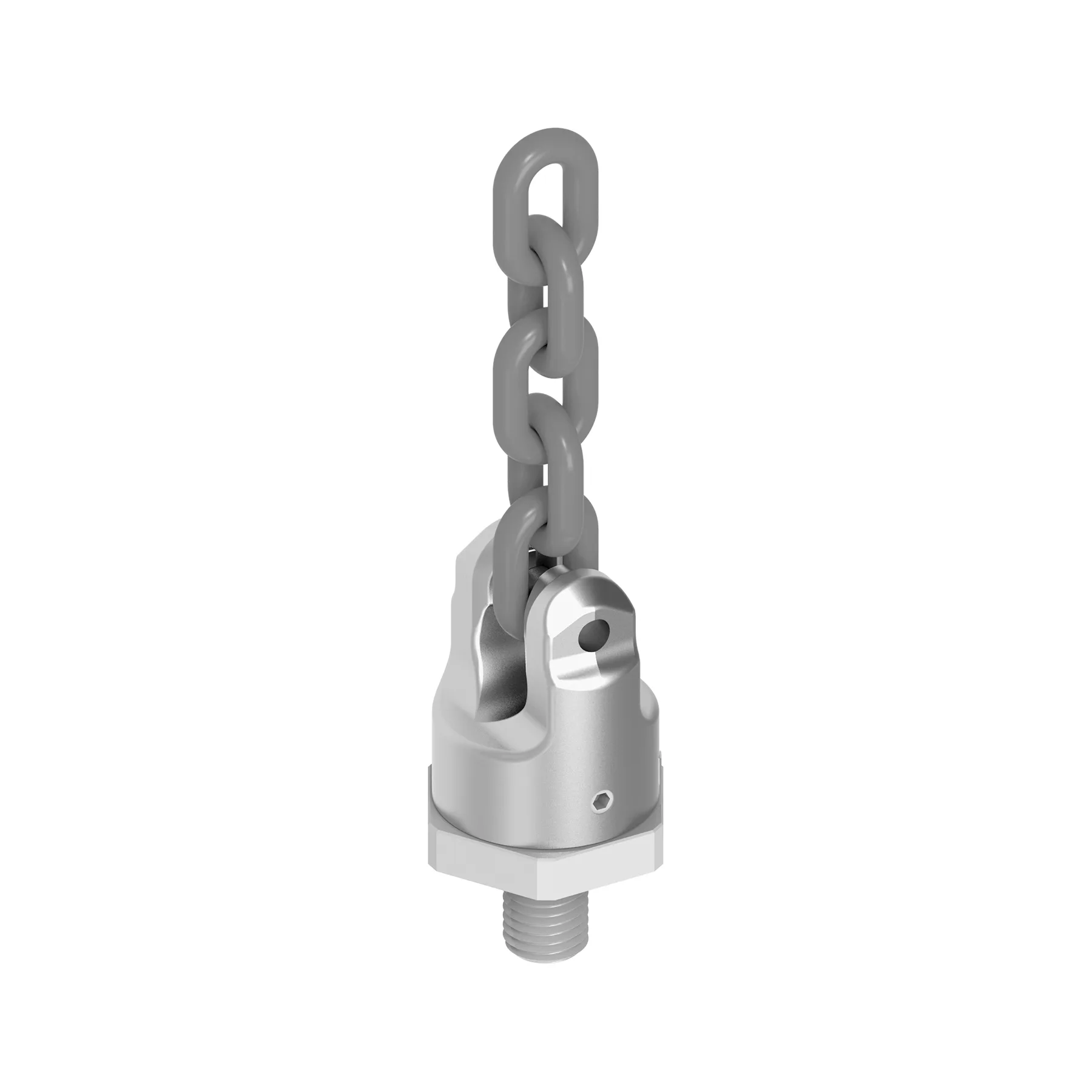

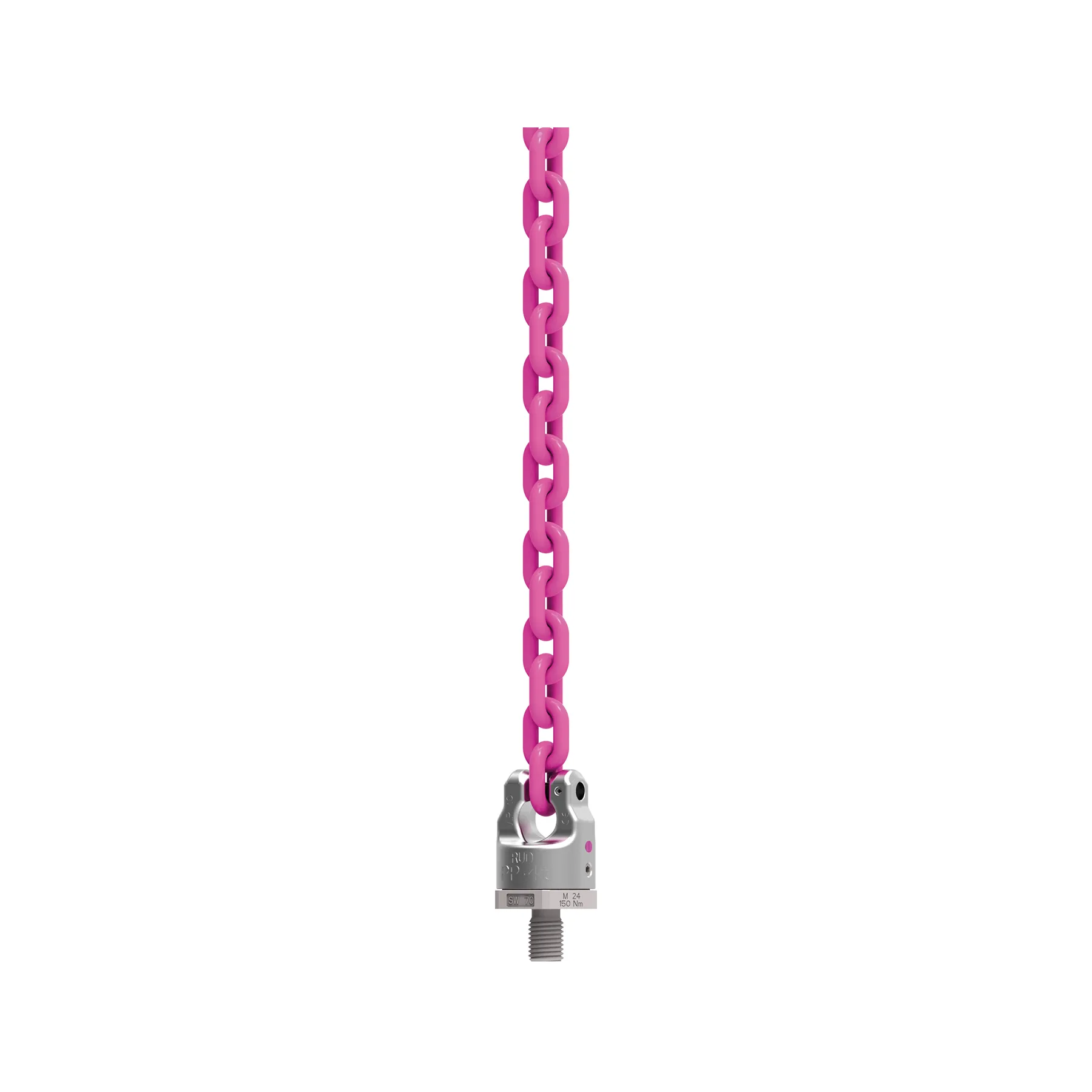

PP-B PowerPoint® - Ring Connection - UNC Thread
- Rotates 360° and pivots 230°
- Universal VIP connection for chain, hook and eye
- Double ball bearing for turning/rotating operations
- RUD 4:1 safety factor
Product Variants (7)
PowerPoint PP-B-0.63t-1/2"-13UNC (7989901)

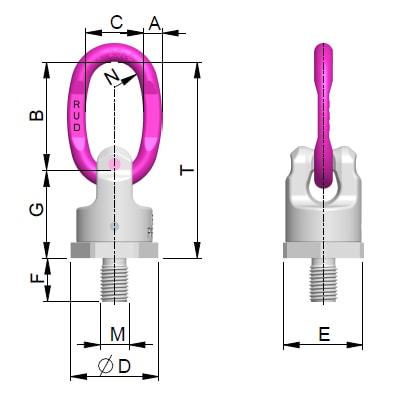

| Attribute | Value | Value |
|---|
| weight | 0.35 kg | 0.77 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 9 mm | 11/32" |
| B | 65 mm | 2-9/16" |
| T | 106 mm | 4-3/16"
|
| C | 35 mm | 1-3/8" |
| D | 40 mm | 1-9/16" |
| E | 36 mm | 1-27/64" |
| F | 18 mm | 23/32" |
| G | 41 mm | 1-5/8" |
| M | 1/2"-13UNC mm | 1/2"-13UNC |
| N | 15 mm | 19/32" |
PowerPoint PP-B-1.5t-5/8"-11UNC (7989902)
| Attribute | Value | Value |
|---|
| weight | 0.50 kg | 1.10 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 11 mm | 7/16" |
| B | 65 mm | 2-9/16" |
| T | 115 mm | 4-1/2"
|
| C | 35 mm | 1-3/8" |
| D | 46 mm | 1-13/16" |
| E | 41 mm | 1-5/8" |
| F | 24 mm | 15/16" |
| G | 50 mm | 1-31/32" |
| M | 5/8"-11UNC mm | 5/8"-11UNC |
| N | 15 mm | 19/32" |
PowerPoint PP-B-2.5t-3/4"-10UNC (7989903)
| Attribute | Value | Value |
|---|
| weight | 1.10 kg | 2.43 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 13 mm | 1/2" |
| B | 75 mm | 2-15/16" |
| T | 135 mm | 5-5/16"
|
| C | 40 mm | 1-9/16" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| G | 61 mm | 2-13/32" |
| M | 3/4"-10UNC mm | 3/4"-10UNC |
| N | 18 mm | 23/32" |
PowerPoint PP-B-2.5t-7/8"-9UNC (7989904)
| Attribute | Value | Value |
|---|
| weight | 1.10 kg | 2.43 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 13 mm | 1/2" |
| B | 75 mm | 2-15/16" |
| T | 135 mm | 5-5/16"
|
| C | 40 mm | 1-9/16" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| G | 61 mm | 2-13/32" |
| M | 7/8"-9UNC mm | 7/8"-9UNC |
| N | 18 mm | 23/32" |
PowerPoint PP-B-4t-1"-8UNC (7989905)
| Attribute | Value | Value |
|---|
| weight | 2.40 kg | 5.29 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 16 mm | 5/8" |
| B | 95 mm | 3-3/4" |
| T | 172 mm | 6-25/32"
|
| C | 45 mm | 1-25/32" |
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| G | 77 mm | 3"-1/32" |
| M | 1"-8UNC mm | 1"-8UNC |
| N | 20 mm | 3/4" |
PowerPoint PP-B-5t-1 1/4"-7UNC (7989906)
| Attribute | Value | Value |
|---|
| weight | 5.20 kg | 11.46 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 21 mm | 13/16" |
| B | 130 mm | 5-1/8" |
| T | 223 mm | |
| C | 60 mm | 2-3/8" |
| D | 95 mm | 3-3/4" |
| E | 85 mm | 3-11/32" |
| F | 45 mm | 1-25/32" |
| G | 93 mm | 3-21/32" |
| M | 1 1/4"-7UNC mm | 1 1/4"-7UNC |
| N | 25 mm | 63/64" |
PowerPoint PP-B-8t-1 1/2"-6UNC (7989907)
| Attribute | Value | Value |
|---|
| weight | 6.30 kg | 13.89 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 24 mm | 15/16" |
| B | 140 mm | 5-1/2" |
| T | 242 mm | 9-7/32"
|
| C | 65 mm | 2-9/16" |
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 54 mm | 2-1/8" |
| G | 102 mm | 4" |
| M | 1 1/2"-6UNC mm | 1 1/2"-6UNC |
| N | 28 mm | 1-1/8" |
