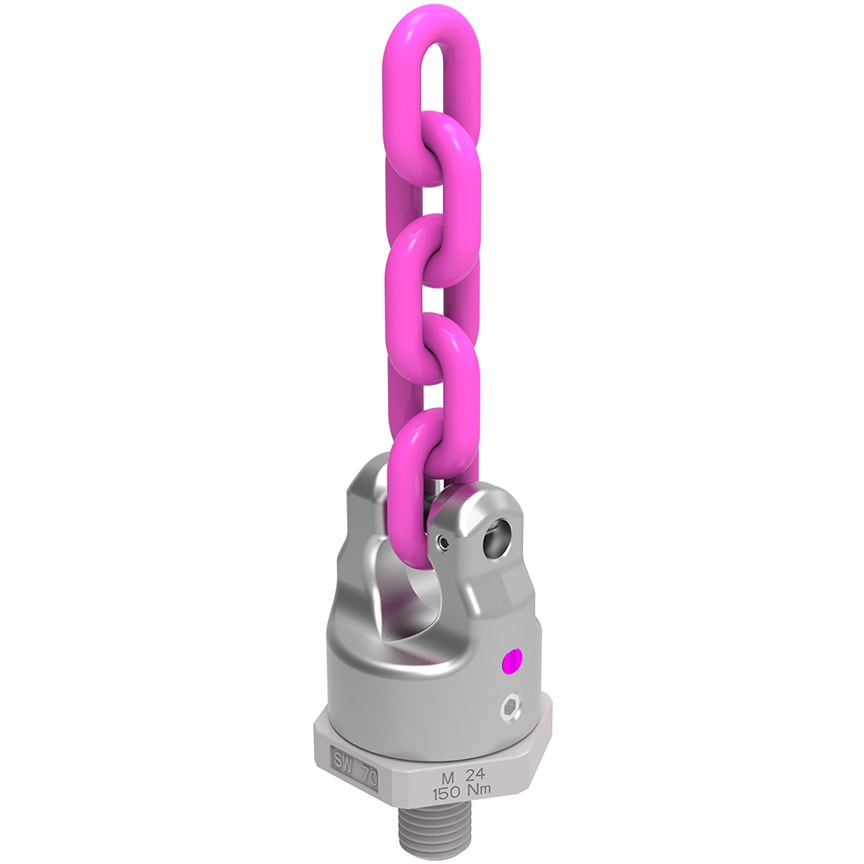

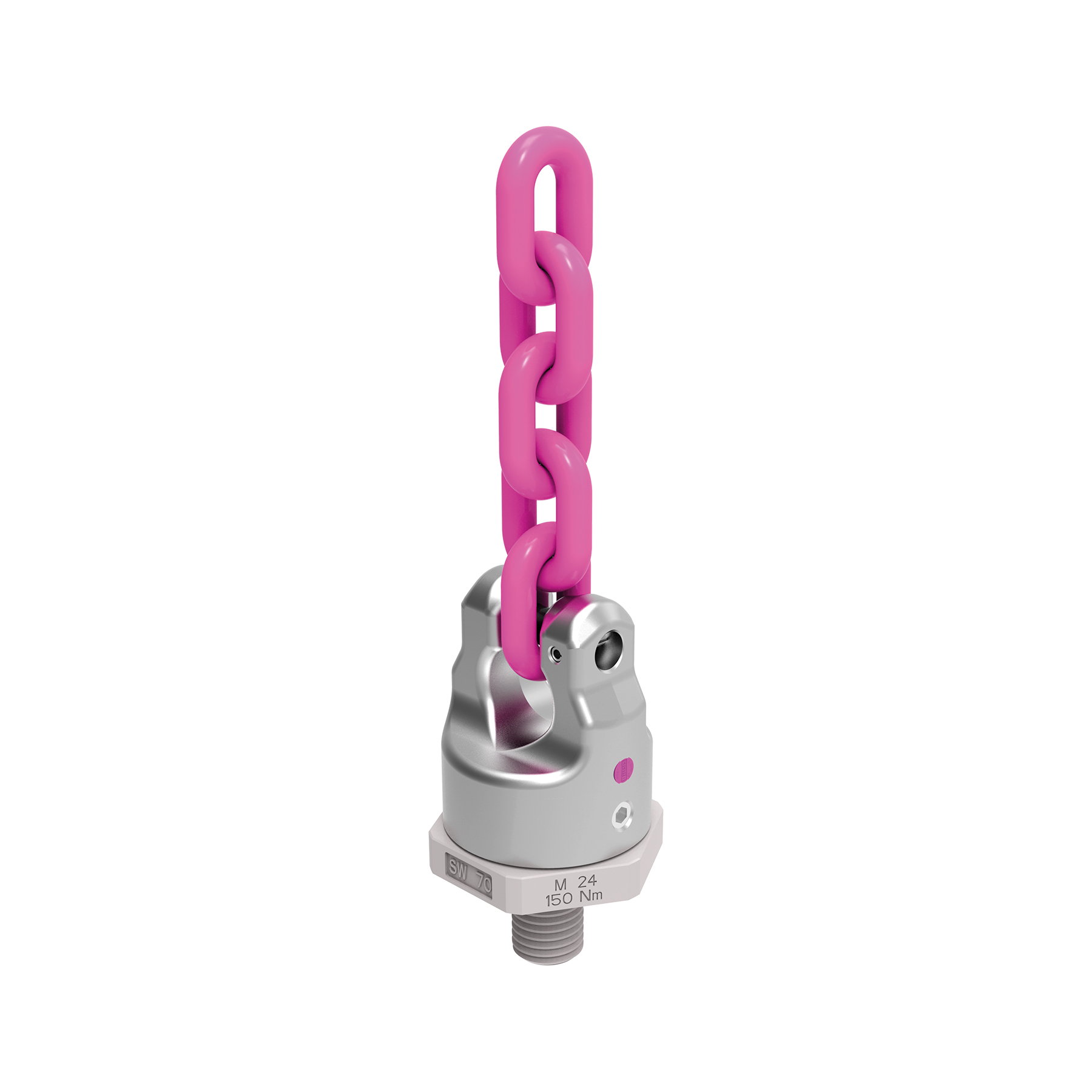

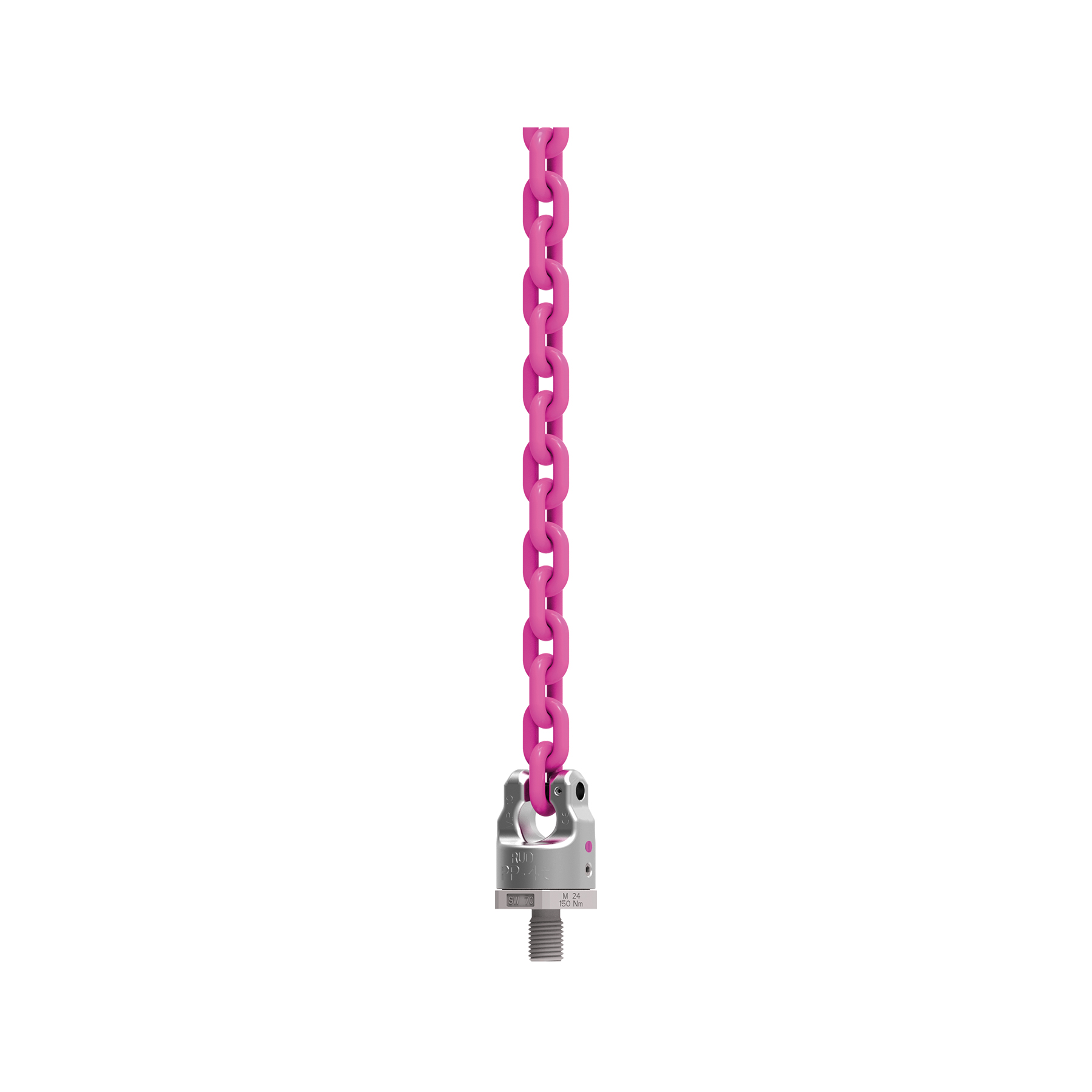

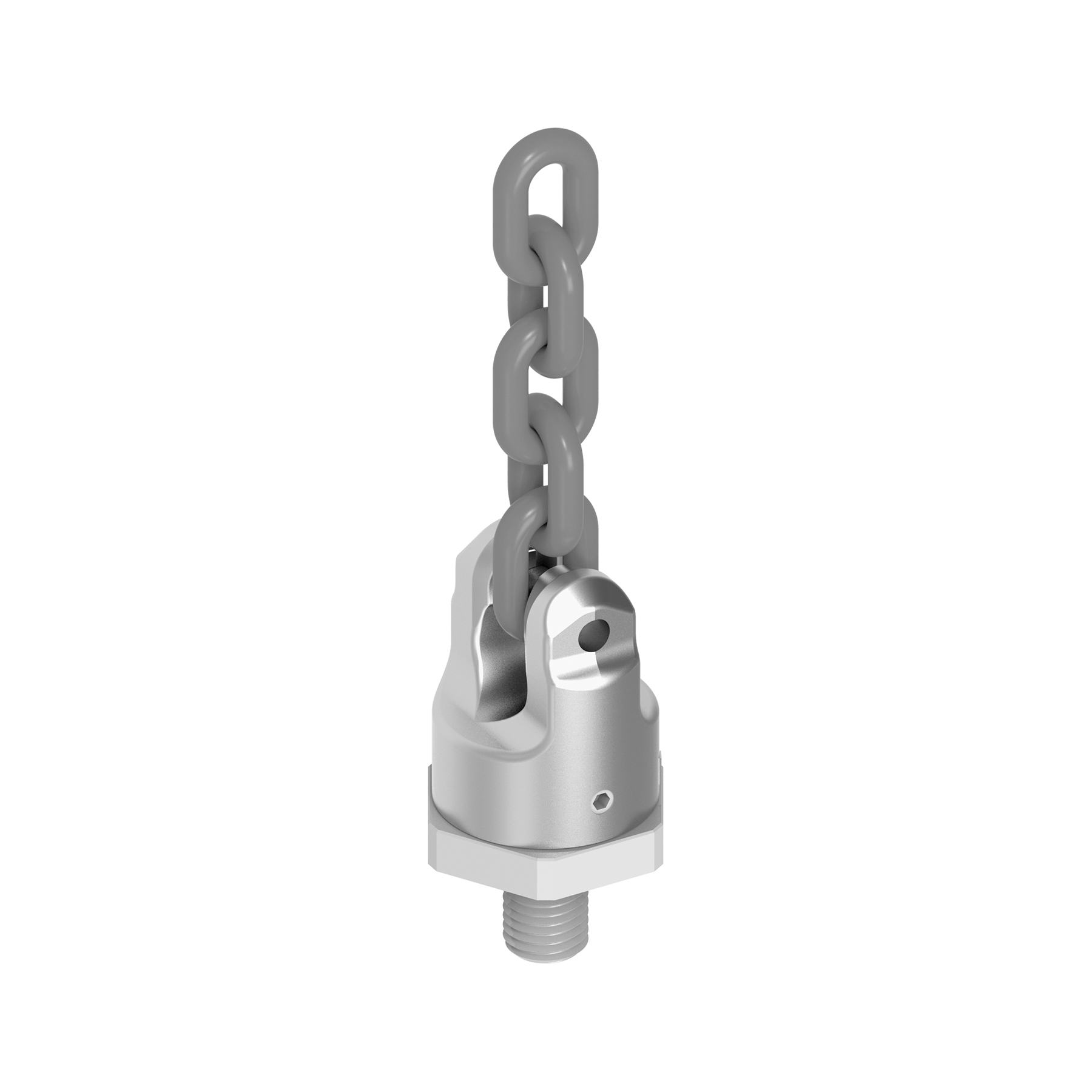

PP-VIP PowerPoint® - VIP Chain Connection - Metric Fine Thread
Easy to rotate and always the right connection
- Rotates 360° and pivots 230°
- Universal VIP connection for chain, hook and eye
- Double ball bearing for turning/rotating operations
- RUD 4:1 safety factor
Product Variants (32)

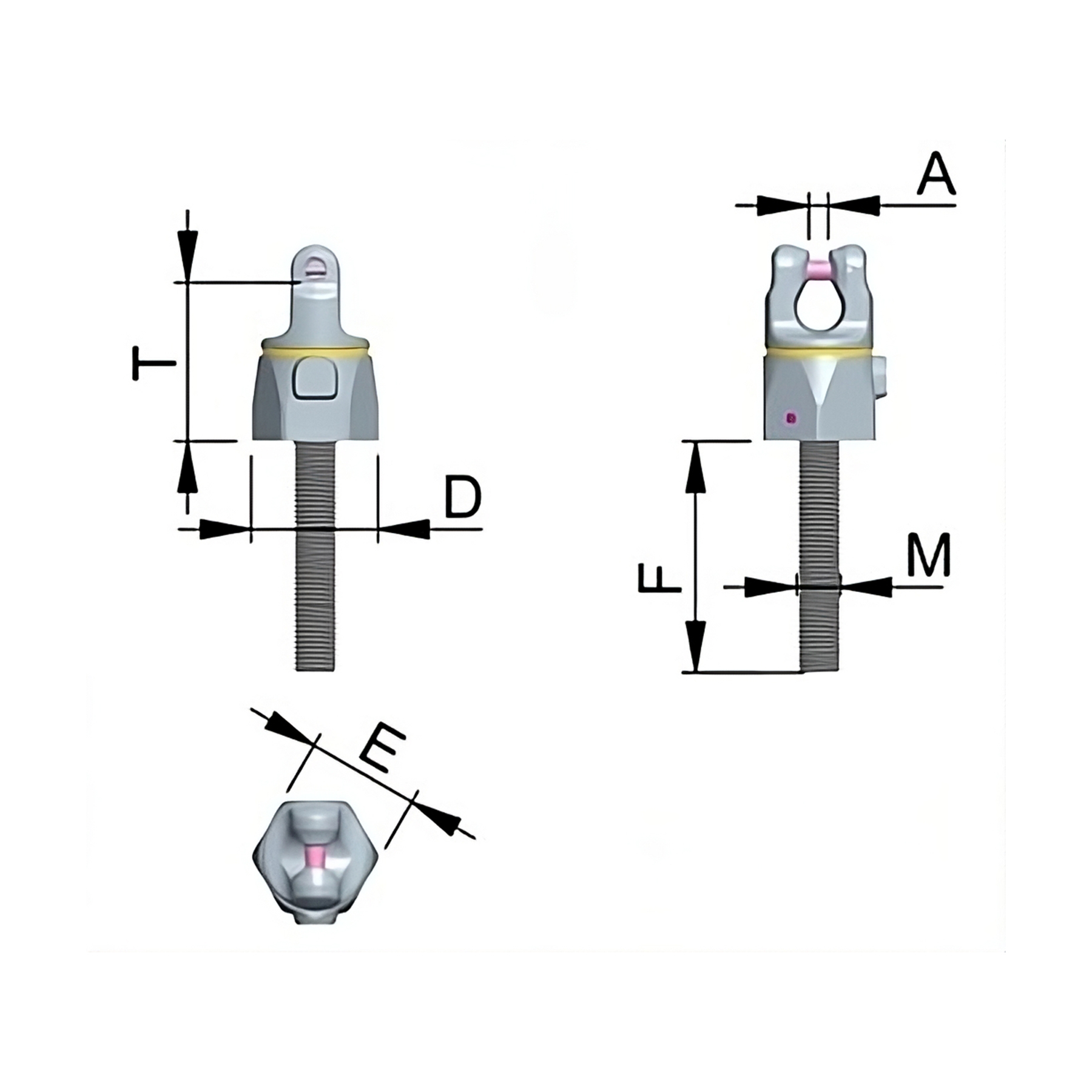

So-PowerPoint PP-VIP-4 0.6t M12x1.5 with variable length (8600320)
| Attribute | Value | Value |
|---|
| Nominal WLL | 600 kg | 1320 lbs |
| A | 4 mm | 5/32" |
| T | 47 mm | 1-7/8"
|
| D | 42 mm | 1-21/32" |
| E | 36 mm | 1-13/32" |
| F | 12-55 mm | 1/2" to 2-5/32" |
| M | M12X1.5 mm | M12x1.5
|
So-PowerPoint PP-VIP-6 1t M14x1.5 with variable length (8600326)
| Attribute | Value | Value |
|---|
| Nominal WLL | 1000 kg | 2200 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32"
|
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 14-65 mm | 9/16" to 2-9/16" |
| M | M14X1.5 mm | M14x1.5
|
So-PowerPoint PP-VIP-6 1.3t M16x1.5 with variable length (8600321)
| Attribute | Value | Value |
|---|
| Nominal WLL | 1300 kg | 2860 lbs |
| A | 6 mm | 15/64" |
| T | 58 mm | 2-9/32"
|
| D | 48 mm | 1-7/8" |
| E | 41 mm | 1-5/8" |
| F | 16-70 mm | 5/8" to 2-3/4" |
| M | M16X1.5 mm | M16x1.5 |
So-PowerPoint PP-VIP-8 2t M20x1.5 with variable length (8600322)
| Attribute | Value | Value |
|---|
| Nominal WLL | 2000 kg | 4400 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32"
|
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 20-89 mm | 13/16" up to 3-1/2" |
| M | M20X1.5 mm | M20X1.5 |
So-PowerPoint PP-VIP-10 3.5t M24x1.5 with variable length (8600323)
| Attribute | Value | Value |
|---|
| weight | 0.00 kg | |
| Nominal WLL | 3500 kg | 7700 lbs |
| A | 10 mm | 13/32" |
| T | 94 mm | 3-11/16"
|
| D | 81 mm | 3-3/16" |
| E | 70 mm | 2-3/4" |
| F | 24-95 mm | 1" to 3-3/4" |
| M | M24X1.5 mm | M24x1.5
|
So-PowerPoint PP-VIP-13 5t M30x2 with variable length (8600324)
| Attribute | Value | Value |
|---|
| weight | 0.00 kg | |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 108 mm | 4-1/4"
|
| D | 99 mm | 3-7/8" |
| E | 85 mm | 3-11/32" |
| F | 30-125 mm | 1-3/16" to 4-15/16" |
| M | M30X2 mm | M30x2 |

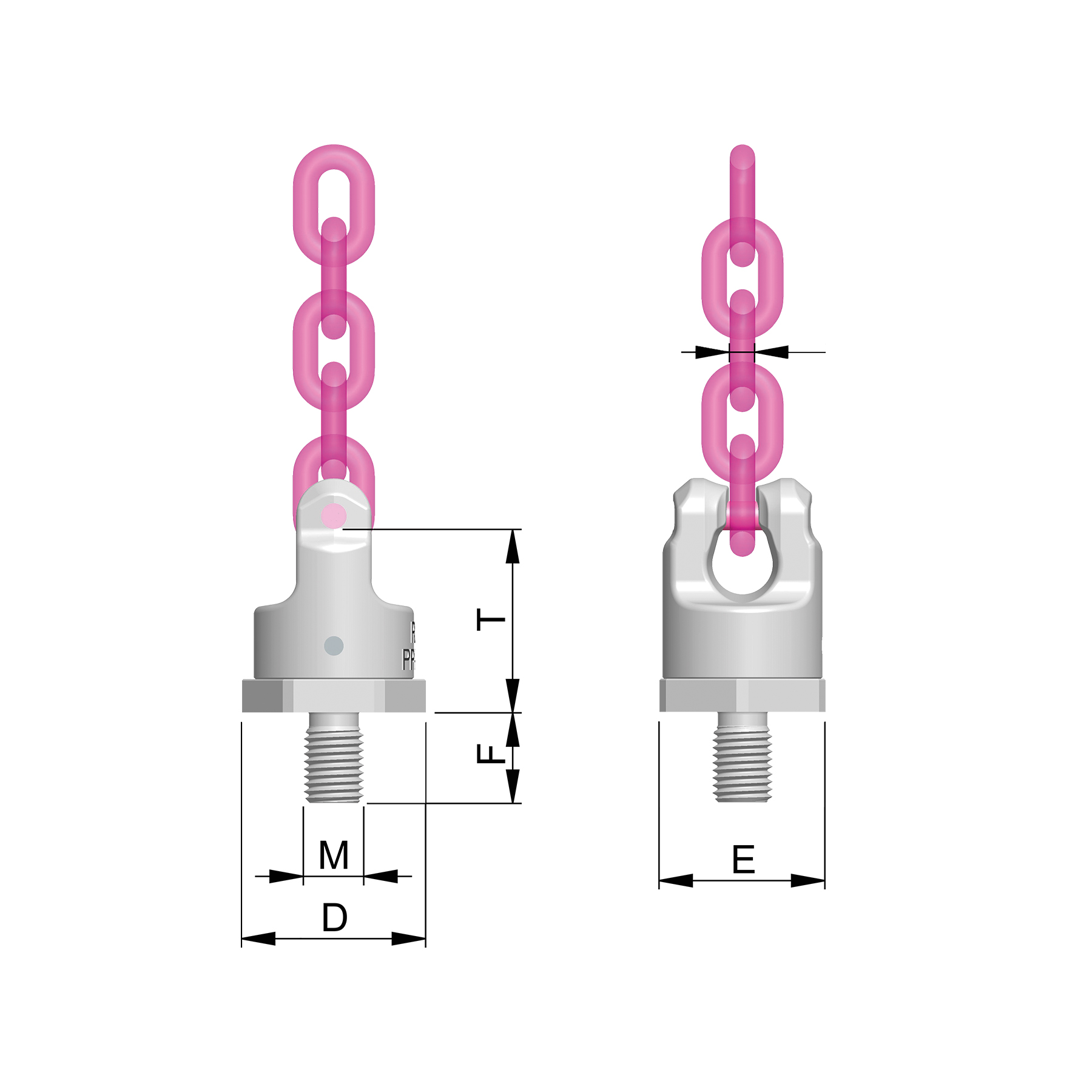

PowerPoint PP-VIP-16 8t M36x2 (8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16"
|
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 36-300 mm | 36-300 |
| M | M36X2 mm | M36X2 |
PowerPoint PP-VIP-16 8t M36x3 (8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16"
|
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 36-300 mm | 36-300 |
| M | M36X3 mm | M36X3 |
PowerPoint PP-VIP-16 8t M39x3 (8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16"
|
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 39-300 mm | 39-300 |
| M | M39X3 mm | M39X3 |
PowerPoint PP-VIP-16 8t M42x3 (8600305)
| Attribute | Value | Value |
|---|
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 100 mm | 3-15/16"
|
| D | 100 mm | 3-15/16" |
| E | 90 mm | 3-17/32" |
| F | 42-300 mm | 42-300 |
| M | M42X3 mm | M42X3 |

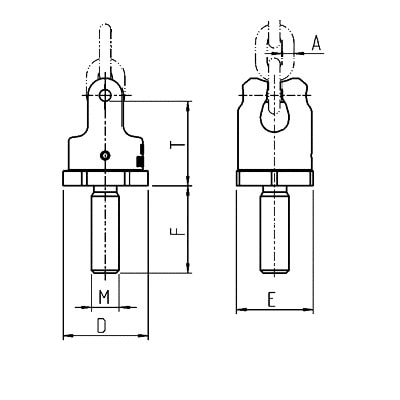

PowerPoint PP-VIP-13 5t M30x3 with max-length F=45 mm (8600575)
| Attribute | Value | Value |
|---|
| weight | 3.50 kg | 7.72 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 93 mm | 3-21/32"
|
| D | 95 mm | 3-3/4" |
| E | 85 mm | 3-11/32" |
| F | 45 mm | 1-25/32" |
| M | M 30X3 mm | M 30X3 |
PowerPoint PP-VIP-13 5t M30x2 with max-length F=45 mm (8600575)
| Attribute | Value | Value |
|---|
| weight | 3.50 kg | 7.72 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 93 mm | 3-21/32"
|
| D | 95 mm | 3-3/4" |
| E | 85 mm | 3-11/32" |
| F | 45 mm | 1-25/32" |
| M | M 30X2 mm | M 30X2 |
PowerPoint PP-VIP-13 5t M30x1.5 with max-length F=45 mm (8600575)
| Attribute | Value | Value |
|---|
| weight | 3.50 kg | 7.72 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 93 mm | 3-21/32"
|
| D | 95 mm | 3-3/4" |
| E | 85 mm | 3-11/32" |
| F | 45 mm | 1-25/32" |
| M | M 30X1.5 mm | M 30X1.5
|
PowerPoint PP-VIP-13 5t M30x1 with max-length F=45 mm (8600575)
| Attribute | Value | Value |
|---|
| weight | 3.50 kg | 7.72 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 93 mm | 3-21/32"
|
| D | 95 mm | 3-3/4" |
| E | 85 mm | 3-11/32" |
| F | 45 mm | 1-25/32" |
| M | M 30X1 mm | M 30X1 |
PowerPoint PP-VIP-10 4t M27x2 with max-length F=36 mm (8600574)
| Attribute | Value | Value |
|---|
| weight | 1.90 kg | 4.19 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77 mm | 3"-1/32"
|
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| M | M 27X2 mm | M 27X2 |
PowerPoint PP-VIP-10 4t M27x1.5 with max-length F=36 mm (8600574)
| Attribute | Value | Value |
|---|
| weight | 1.90 kg | 4.19 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77 mm | 3"-1/32"
|
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| M | M 27X1.5 mm | M 27X1.5
|
PowerPoint PP-VIP-10 4t M27x1 with max-length F=36 mm (8600574)
| Attribute | Value | Value |
|---|
| weight | 1.90 kg | 4.19 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77 mm | 3"-1/32"
|
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| M | M 27X1 mm | M 27X1 |
PowerPoint PP-VIP-10 4t M24x2 with max-length F=36 mm (8600574)
| Attribute | Value | Value |
|---|
| weight | 1.83 kg | 4.03 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77 mm | 3"-1/32"
|
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| M | M 24X2 mm | M 24X2 |
PowerPoint PP-VIP-10 4t M24x1.5 with max-length F=36 mm (8600574)
| Attribute | Value | Value |
|---|
| weight | 1.83 kg | 4.03 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77 mm | 3"-1/32"
|
| D | 78 mm | 3-1/16" |
| E | 70 mm | 2-3/4" |
| F | 36 mm | 1-27/64" |
| M | M 24X1.5 mm | M 24X1.5 |
PowerPoint PP-VIP-10 4t M24x1 with max-length F=36 mm (8600574)
| Attribute | Value | Value |
|---|
| weight | 1.83 kg | |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | |
| T | 77 mm | |
| D | 78 mm | |
| E | 70 mm | |
| F | 36 mm | |
| M | M 24X1 mm | |
PowerPoint PP-VIP-8 2.5t M22x2 with max-length F=30 mm (8600573)
| Attribute | Value | Value |
|---|
| weight | 0.95 kg | 2.09 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32"
|
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| M | M 22X2 mm | M 22X2 |
PowerPoint PP-VIP-8 2.5t M22x1.5 with max-length F=30 mm (8600573)
| Attribute | Value | Value |
|---|
| weight | 0.95 kg | 2.09 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32"
|
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| M | M 22X1 mm | M 22X1.5 |
PowerPoint PP-VIP-8 2.5t M22x1 with max-length F=30 mm (8600573)
| Attribute | Value | Value |
|---|
| weight | 0.95 kg | |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | |
| T | 61 mm | |
| D | 61 mm | |
| E | 55 mm | |
| F | 30 mm | |
| M | M 22X1 mm | |
PowerPoint PP-VIP-8 2.5t M20x2 with max-length F=30 mm (8600573)
| Attribute | Value | Value |
|---|
| weight | 0.93 kg | 2.05 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32" |
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| M | M 20X2 mm | M 20X2 |
PowerPoint PP-VIP-8 2.5t M20x1.5 with max-length F=30 mm (8600573)
| Attribute | Value | Value |
|---|
| weight | 0.93 kg | 2.05 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32"
|
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| M | M 20X1.5 mm | M 20X1.5 |
PowerPoint PP-VIP-8 2.5t M20x1 with max-length F=30 mm (8600573)
| Attribute | Value | Value |
|---|
| weight | 0.93 kg | 2.05 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61 mm | 2-13/32"
|
| D | 61 mm | 2-13/32" |
| E | 55 mm | 2-5/32" |
| F | 30 mm | 1-3/16" |
| M | M 20X1 mm | M 20X1 |
PowerPoint PP-VIP-6 1.5t M16x1.5 with max-length F=24 mm (8600275)
| Attribute | Value | Value |
|---|
| weight | 0.42 kg | 0.93 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 6 mm | 15/64" |
| T | 50 mm | 1-31/32"
|
| D | 46 mm | 1-13/16" |
| E | 41 mm | 1-5/8" |
| F | 24 mm | 15/16" |
| M | M 16X1.5 mm | M 16X1.5 |
PowerPoint PP-VIP-6 1.5t M16x1 with max-length F=24 mm (8600572)
| Attribute | Value | Value |
|---|
| weight | 0.42 kg | 0.93 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 6 mm | 15/64" |
| T | 50 mm | 1-31/32"
|
| D | 46 mm | 1-13/16" |
| E | 41 mm | 1-5/8" |
| F | 24 mm | 15/16" |
| M | M 16X1 mm | M 16X1 |
PowerPoint PP-VIP-4 0.63t M12x1.5 with max-length F=18 mm (8600571)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.53 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 4 mm | 5/32" |
| T | 41 mm | 1-5/8"
|
| D | 40 mm | 1-9/16" |
| E | 36 mm | 1-27/64" |
| F | 18 mm | 23/32" |
| M | M12X1.5 mm | M12X1.5 |
PowerPoint PP-VIP-4 0.63t M12x1.25 with max-length F=18 mm (8600571)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.53 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 4 mm | 5/32" |
| T | 41 mm | 1-5/8"
|
| D | 40 mm | 1-9/16" |
| E | 36 mm | 1-27/64" |
| F | 18 mm | 23/32" |
| M | M12X1.25 mm | M12X1.25
|
PowerPoint PP-VIP-4 0.63t M12x1 with max-length F=18 mm (8600571)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.53 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 4 mm | 5/32" |
| T | 41 mm | 1-5/8"
|
| D | 40 mm | 1-9/16" |
| E | 36 mm | 1-27/64" |
| F | 18 mm | 23/32" |
| M | M12X1 mm | M12X1
|
PowerPoint PP-VIP-4 0.63t M12x0.75 with max-length F=18 mm (8600571)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.53 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 4 mm | 5/32" |
| T | 41 mm | 1-5/8"
|
| D | 40 mm | 1-9/16" |
| E | 36 mm | 1-27/64" |
| F | 18 mm | 23/32" |
| M | M 12X0.75 mm | M 12X0.75
|
