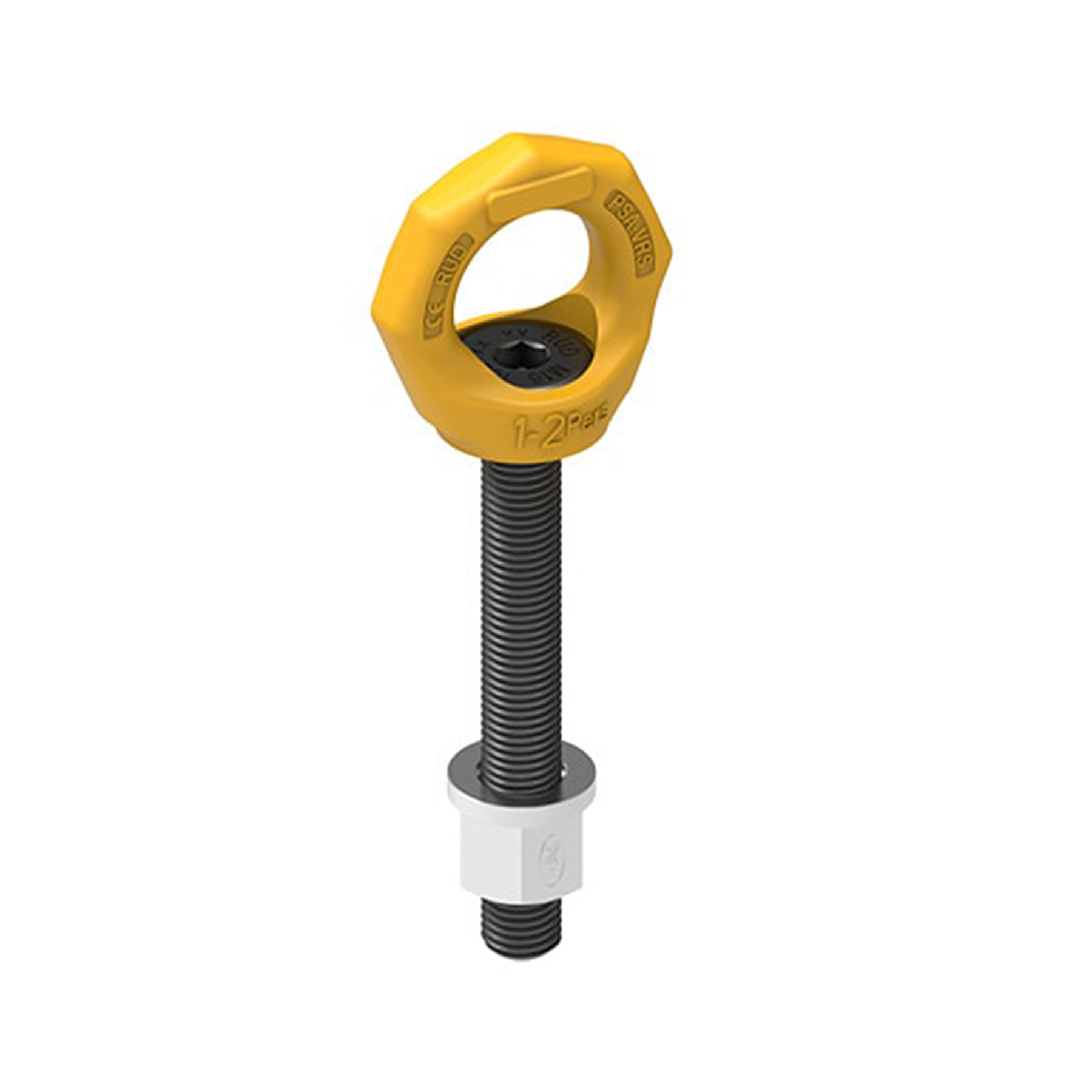

PSA-STARPOINT UNC thread

Rotates 360°
Tested and certified by faculty PSA of DGUV
Non removable special bolt

Product Variants (3)

PSA-STARPOINT PSA-VRS 1/2"-13UNC (7997103)

Technical Information

Product number: 7997103

Technical Downloads

PSA-VRS-1/2"-13UNC - DXF 2D CAD File Download File

PSA-VRS-1/2"-13UNC - IGES 3D CAD File Download File

PSA-VRS-1/2"-13UNC - STEP 3D CAD File Download File

PSA-STARPOINT PSA-VRS 1/2"-13UNC Download File

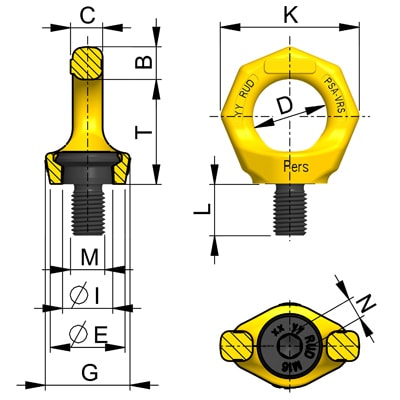

Attribute	Value	Value
weight	0.20 kg	0.44 lbs
B	14 mm	9/16"
T	42 mm	1-21/32"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	34 mm	1-11/32"
I	20 mm	3/4"
K	56 mm	2-3/16"
L	18 mm	23/32"
M	1/2"-13UNC mm	1/2"-13UNC
N	5/16" mm	5/16"

PSA-STARPOINT PSA-VRS 5/8"-11UNC (7998659)

Technical Information

Product number: 7998659

Technical Downloads

PSA-VRS-5/8" - DXF 2D CAD File Download File

PSA-VRS-5/8" - STEP 3D CAD File Download File

PSA-VRS-5/8" - IGES 3D CAD File Download File

PSA-STARPOINT PSA-VRS 5/8"-11UNC Download File

Attribute	Value	Value
weight	0.32 kg	0.71 lbs
B	16 mm	5/8"
T	50 mm	1-31/32"
C	15 mm	19/32"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
G	40 mm	1-9/16"
I	24 mm	15/16"
K	65 mm	2-9/16"
L	24 mm	15/16"
M	5/8"-11UNC mm	5/8"-11UNC
N	3/8" mm	3/8"

PSA-STARPOINT PSA-VRS 3/4"-10UNC (7903367)

Technical Information

Product number: 7903367

Technical Downloads

PSA-STARPOINT PSA-VRS 3/4"-10UNC Download File

Attribute	Value	Value
weight	0.56 kg	1.23 lbs
B	19 mm	3/4"
T	57 mm	2-1/4"
C	17 mm	43/64"
D	40 mm	1-9/16"
E	43 mm	1-11/16"
G	54 mm	2-1/8"
I	30 mm	1-1/8"
K	74 mm	2-29/32"
L	30 mm	1-3/16"
M	3/4"-10UNC mm	3/4"-10UNC
N	1/2" mm	1/2"
