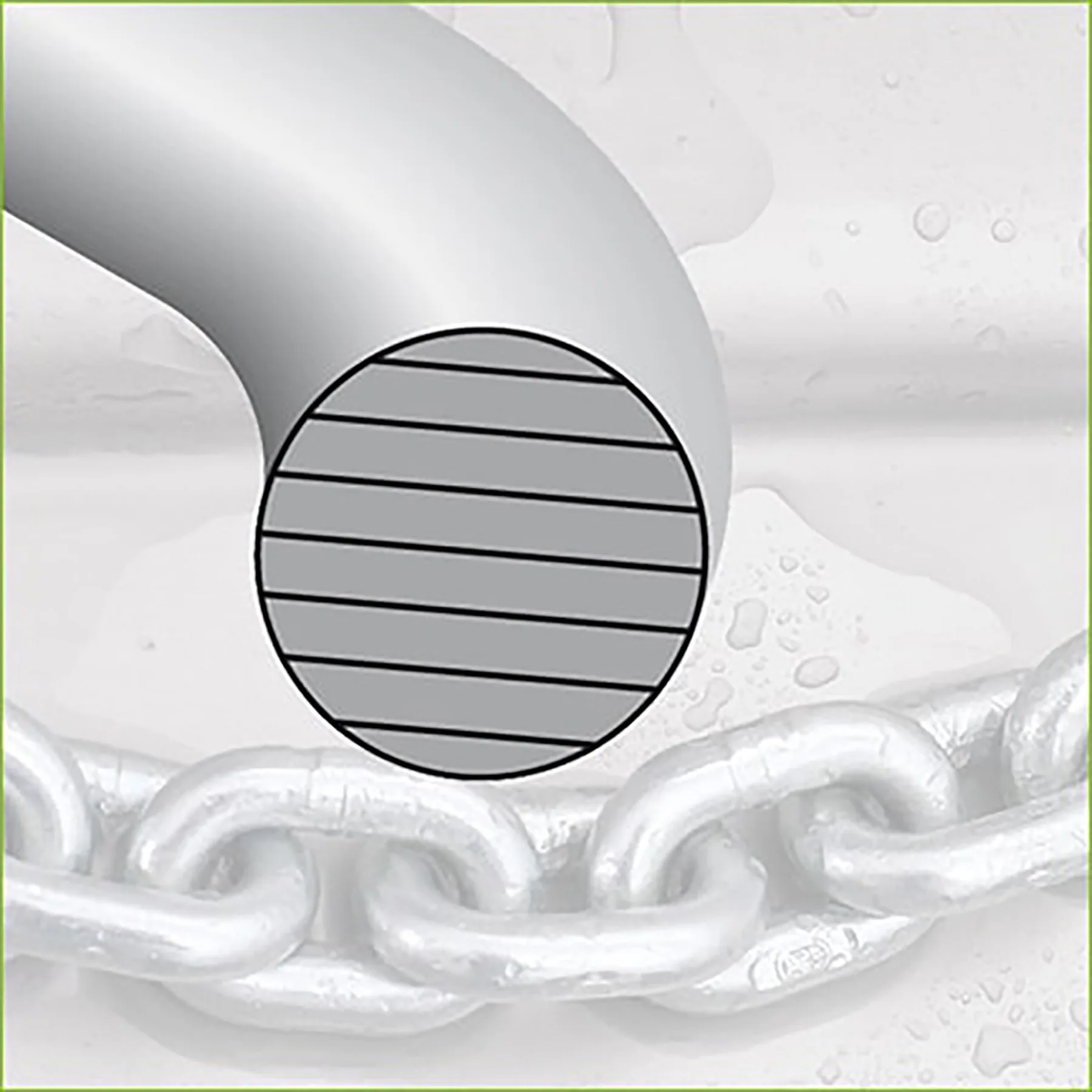

Type VH - Quenched & Tempered

Type VH Chains are suitable for manual hoists used in Heavy Duty Applications.

Product Variants (12)

4 x 12

Technical Information

Attribute	Value
Manufacturing proof force	15.7 kN
Breaking force	25.1 kN
Weight	0.35 kg
	630 kg
Dimension d x t in mm	4 x 12
surface matt blue Mat.-Nr.:	7905884
surface Corrud-DT Mat.-Nr.:	7905885

5 x 15

Technical Information

Attribute	Value
Dimension d x t in mm	5 x 15
Manufacturing proof force	24.5 kN
Breaking force	39.3 kN
surface matt blue Mat.-Nr.:	7900678
surface Corrud-DT Mat.-Nr.:	7901399
Weight	0.54 kg
	1.000 kg

5.6 x 17

6 x 18

6.3 x 19.1

Technical Information

Attribute	Value
Dimension d x t in mm	6.3 x 19.1
Manufacturing proof force	39 kN
Breaking force	62.3 kN
surface matt blue Mat.-Nr.:	7900646
surface Corrud-DT Mat.-Nr.:	7901401
Weight	0.86 kg
	1.600 kg

7.1 x 21

Technical Information

Attribute	Value
Dimension d x t in mm	7.1 x 21
Manufacturing proof force	49.5 kN
Breaking force	79.2 kN
surface matt blue Mat.-Nr.:	7901086
surface Corrud-DT Mat.-Nr.:	7901402
Weight	1.1 kg
	2.000 kg

7.1 x 21.2

Technical Information

Attribute	Value
Dimension d x t in mm	7.1 x 21.2
Manufacturing proof force	49.5 kN
Breaking force	79.2 kN
surface matt blue Mat.-Nr.:	7900647
surface Corrud-DT Mat.-Nr.:	7901407
Weight	1.1 kg
	2.000 kg

8 x 24

Technical Information

Attribute	Value
Dimension d x t in mm	8 x 24
Manufacturing proof force	62.8 kN
Breaking force	101 kN
surface matt blue Mat.-Nr.:	7900679
surface Corrud-DT Mat.-Nr.:	7901403
Weight	1.4 kg
	2.500 kg

9 x 27

Technical Information

Attribute	Value
Dimension d x t in mm	9 x 27
Manufacturing proof force	79.5 kN
Breaking force	127 kN
surface matt blue Mat.-Nr.:	7900680
surface Corrud-DT Mat.-Nr.:	7901404
Weight	1.8 kg
	3.150 kg

10 x 30

Technical Information

Attribute	Value
Dimension d x t in mm	10 x 30
Manufacturing proof force	98.2 kN
Breaking force	157 kN
surface matt blue Mat.-Nr.:	7900925
surface Corrud-DT Mat.-Nr.:	7901405
Weight	2.2 kg
	4.000 kg

10 x 30.2

Technical Information

Attribute	Value
Dimension d x t in mm	10 x 30,2
Manufacturing proof force	98.2 kN
Breaking force	157 kN
surface matt blue Mat.-Nr.:	7901061
surface Corrud-DT Mat.-Nr.:	7901406
Weight	2.2 kg
	4.000 kg

13 x 36

Technical Information

Attribute	Value
Dimension d x t in mm	13 x 36
Manufacturing proof force	165.9 kN
Breaking force	265.5 kN
surface matt blue Mat.-Nr.:	7905267
surface Corrud-DT Mat.-Nr.:
Weight	3.8 kg
	6.750 kg
