Rust and Acid Resistant Quality

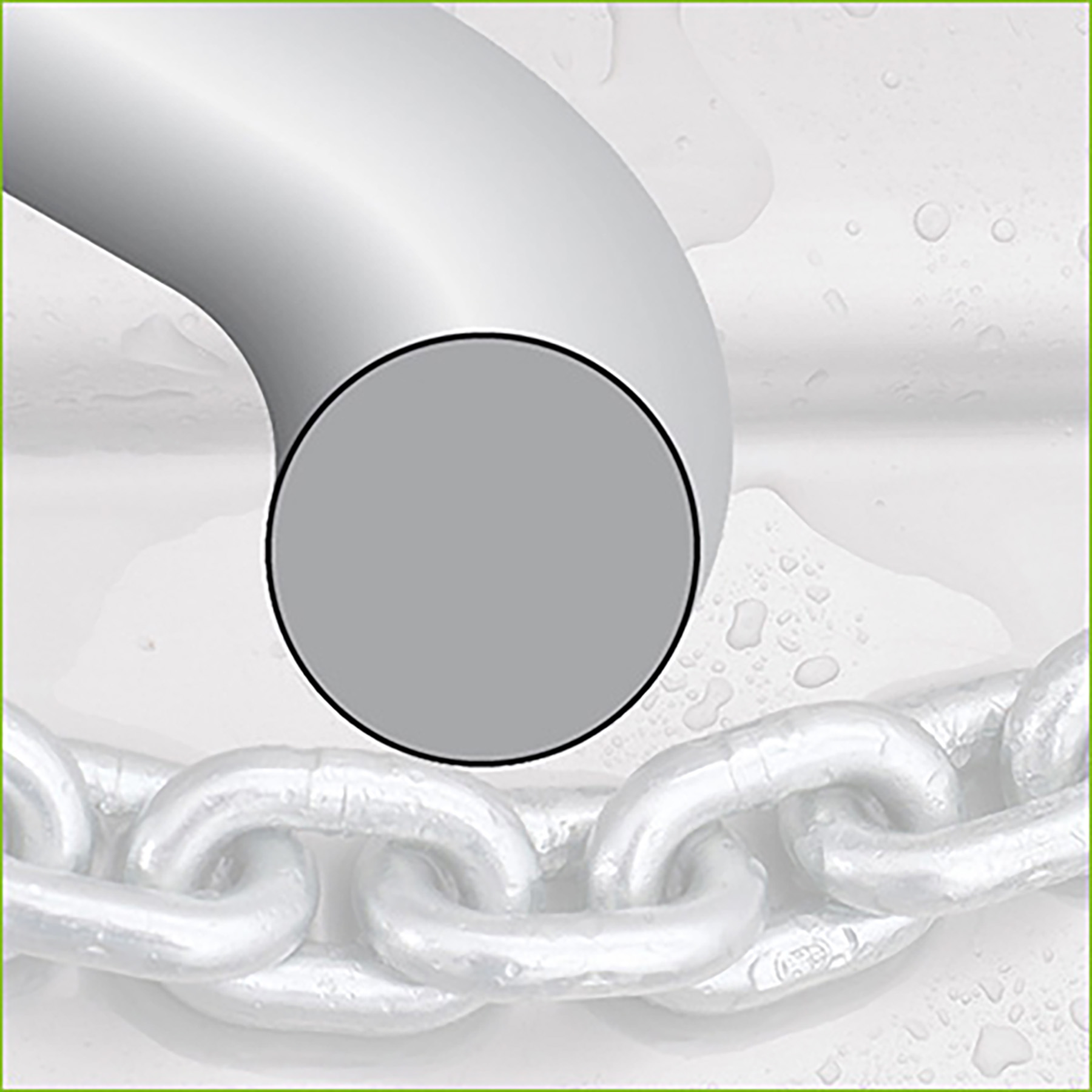

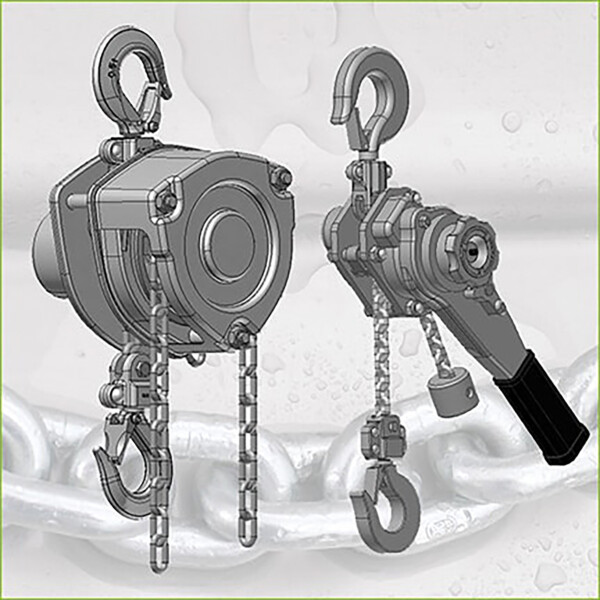

Suitable for both Manual and Motor Driven Hoist applications, providing excellent wear resistance and long service life.
Product Variants (10)
4 x 12
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 10 kN |
| Breaking force | 16 kN |
| Weight | 0.35 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 400 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 320 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 280 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 250 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 230 kg |
| Dimension d x t in mm | 4 x 12 |
| S |
5 x 15
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 10 kN |
| Breaking force | 16 kN |
| Weight | 0.54 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 630 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 500 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 440 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 400 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 360 kg |
| Dimension d x t in mm | 5 x 15 |
| S |
6 x 18
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 22.4 kN |
| Breaking force | 36 kN |
| Weight | 0.78 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 900 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 720 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 630 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 570 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 510 kg |
| Dimension d x t in mm | 6 x 18 |
| S |
6.3 x 19.1
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 25 kN |
| Breaking force | 40 kN |
| Weight | 0.86 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 1.010 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 790 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 700 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 635 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 570 kg |
| Dimension d x t in mm | 6,3 x 19.1 |
| S |
7 x 21
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 32 kN |
| Breaking force | 50 kN |
| Weight | 1.1 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 1.250 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 1.000 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 860 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 780 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 700 kg |
| Dimension d x t in mm | 7 x 21 |
| S |
9 x 27
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 40 kN |
| Breaking force | 63 kN |
| Weight | 1.8 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 1.600 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 1.250 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 1.160 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 1.000 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 900 kg |
| Dimension d x t in mm | 9 x 27 |
| P |
10 x 28
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 50 kN |
| Breaking force | 80 kN |
| Weight | 2.2 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 2.000 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 1.600 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 1.440 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 1.250 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 1.120 kg |
| Dimension d x t in mm | 10 x 28 |
| P |
11.3 x 31
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 63 kN |
| Breaking force | 100 kN |
| Weight | 2.85 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 2.500 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 2.000 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 1.800 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 1.600 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 1.400 kg |
| Dimension d x t in mm | 11.3 x 31 |
| P |
13 x 36
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 85 kN |
| Breaking force | 132 kN |
| Weight | 3.8 kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 3.350 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 2.650 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 2.430 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 2.100 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 1.890 kg |
| Dimension d x t in mm | 13 x 36 |
| P |
16 x 45
Technical Information
| Attribute | Value |
|---|---|
| Manufacturing proof force | 125 kN |
| Breaking force | 200 kN |
| Weight | 5.7kg |
| Hand (1Dm) nominal stress <=Ø7=160 N/mm², >=Ø8=125 N/mm², SF=4 | 5.000 kg |
| M3 (1Bm) nominal stress <=Ø7=125 N/mm², >=Ø8=100 N/mm², SF=5 | 4.000 kg |
| M4 (1Am) nominal stress <=Ø7=110 N/mm², >=Ø8=90 N/mm², SF=5,7 | 3.680 kg |
| M5 (2m) nominal stress <=Ø7=100 N/mm², >=Ø8=80 N/mm², SF=6,4 | 3.270 kg |
| M6 (3m) Nominal Stress <=Ø7=90 N/mm², >=Ø8=70 N/mm², SF=7,1 | 2.860 kg |
| Dimension d x t in mm | 16 x 45 |
| P |
