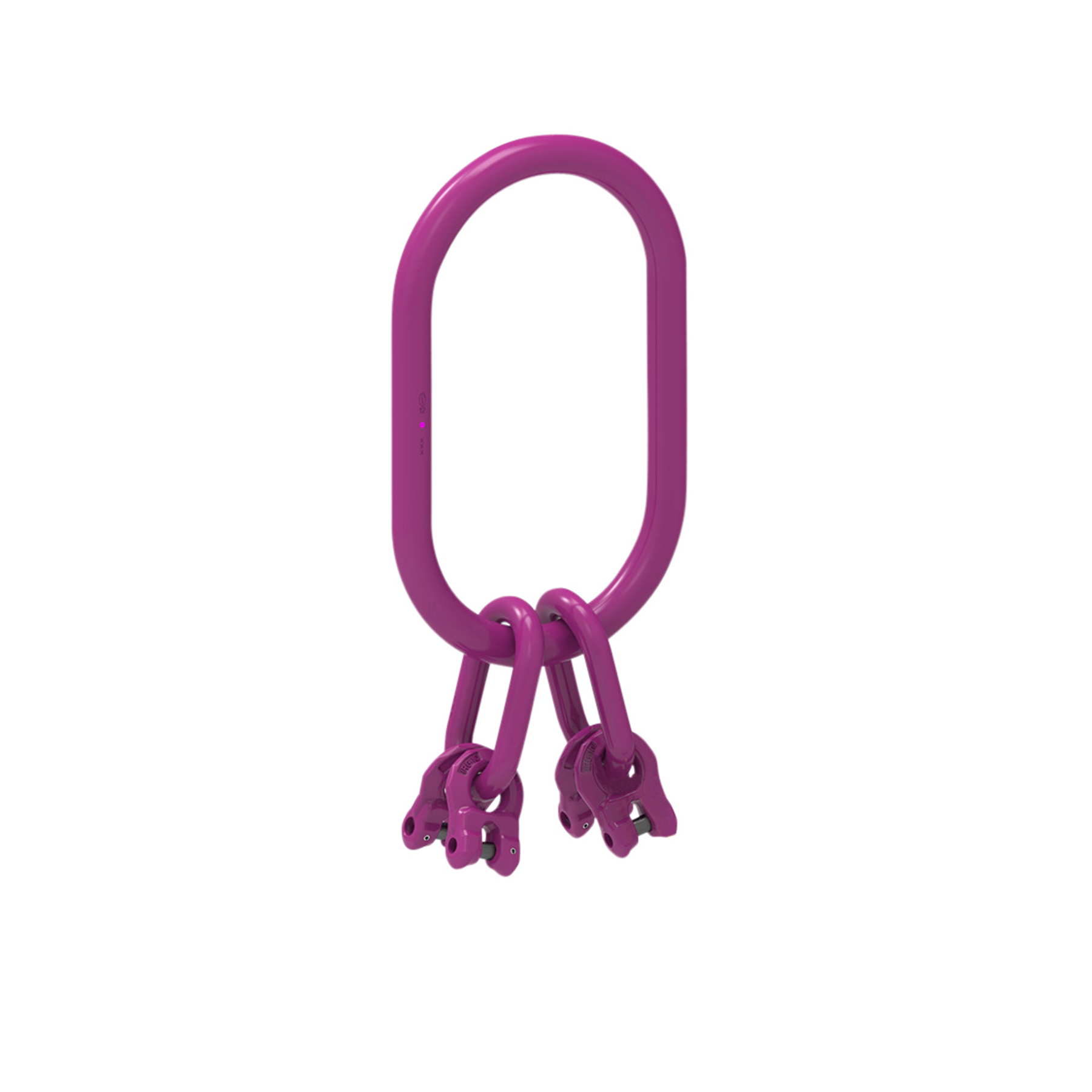

ICE 4-Leg ISAK Master Link with IRG Connectors

ICE 4-Leg ISAK Master Link complete with IRG Connectors
Ensures that only the correct chain diameter and number of legs can be connected
Comes preassembled with ICE load and retaining pins
Delivered complete with a flexible, 4-leg identification tag with integrated testing gauge
Manufactured according to DIN EN 1677-4
ICE-Master link is marked by RUD-ID-TAG® (RFID chip) and with the clear identification number distinguished

Surface: ICE-Pink powder coated

Product Variants (11)

ICE Special Master Link ISAK-RG 4-6/140 (7903206)

Technical Information

Product number: 7903206

Technical Downloads

ISAK-RG 4-6/140 - DXF 2D CAD File Download File

ISAK-RG 4-6/140 - IGES 3D CAD File Download File

ISAK-RG 4-6/140 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-6/140 Download File

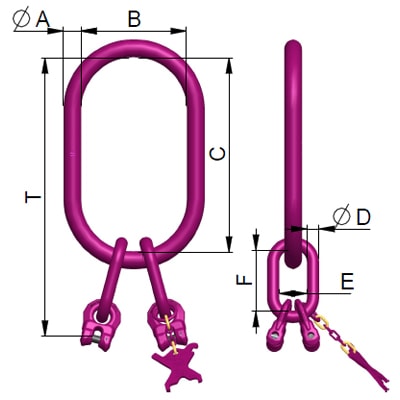

Attribute	Value	Value
weight	3.24 kg	7.14 lbs
Nominal WLL	3750 kg	8250 lbs
T	365 mm	14-3/8"
A	22 mm	7/8"
B	140 mm	5-1/2"
C	260 mm	10-1/4"
D	13 mm	1/2"
E	34 mm	1-11/32"
F	70 mm	2-3/4"

ICE Special Master Link ISAK-RG 4-8/140 (7903207)

Technical Information

Product number: 7903207

Technical Downloads

ISAK-RG 4-8/140 - DXF 2D CAD File Download File

ISAK-RG 4-8/140 - IGES 3D CAD File Download File

ISAK-RG 4-8/140 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-8/140 Download File

Attribute	Value	Value
weight	5.47 kg	12.06 lbs
Nominal WLL	6300 kg	13860 lbs
T	389 mm	15-5/16"
A	26 mm	1"
B	140 mm	5-1/2"
C	260 mm	10-1/4"
D	18 mm	11/16"
E	40 mm	1-9/16"
F	85 mm	3-11/32"

ICE Special Master Link ISAK-RG 4-10/140 (7903208)

Technical Information

Product number: 7903208

Technical Downloads

ISAK-RG 4-10/140 - DXF 2D CAD File Download File

ISAK-RG 4-10/140 - IGES 3D CAD File Download File

ISAK-RG 4-10/140 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-10/140 Download File

Attribute	Value	Value
weight	9.70 kg	21.38 lbs
Nominal WLL	10600 kg	23320 lbs
T	429 mm	16-7/8"
A	32 mm	1-1/4"
B	140 mm	5-1/2"
C	260 mm	10-1/4"
D	22 mm	7/8"
E	50 mm	1-31/32"
F	115 mm	4-1/2"

ICE Special Master Link ISAK-RG 4-6/190 (7903209)

Technical Information

Product number: 7903209

Technical Downloads

ISAK-RG 4-6/190 - DXF 2D CAD File Download File

ISAK-RG 4-6/190 - IGES 3D CAD File Download File

ISAK-RG 4-6/190 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-6/190 Download File

Attribute	Value	Value
weight	5.34 kg	11.77 lbs
Nominal WLL	3750 kg	8250 lbs
T	455 mm	17-15/16"
A	26 mm	1"
B	190 mm	7-1/2"
C	350 mm	13-3/4"
D	13 mm	1/2"
E	34 mm	1-11/32"
F	70 mm	2-3/4"

ICE Special Master Link ISAK-RG 4-8/190 (7903210)

Technical Information

Product number: 7903210

Technical Downloads

ISAK-RG 4-8/190 - DXF 2D CAD File Download File

ISAK-RG 4-8/190 - IGES 3D CAD File Download File

ISAK-RG 4-8/190 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-8/190 Download File

Attribute	Value	Value
weight	9.14 kg	20.15 lbs
Nominal WLL	6300 kg	13860 lbs
T	479 mm	18-7/8"
A	32 mm	1-1/4"
B	190 mm	7-1/2"
C	350 mm	13-3/4"
D	18 mm	11/16"
E	40 mm	1-9/16"
F	85 mm	3-11/32"

ICE Special Master Link ISAK-RG 4-10/190 (7903211)

Technical Information

Product number: 7903211

Technical Downloads

ISAK-RG 4-10/ - DXF 2D CAD File Download File

ISAK-RG 4-10/190 - IGES 3D CAD File Download File

ISAK-RG 4-10/190 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-10/190 Download File

Attribute	Value	Value
weight	13.16 kg	29.01 lbs
Nominal WLL	10600 kg	23320 lbs
T	519 mm	20-7/16"
A	36 mm	1-27/64"
B	190 mm	7-1/2"
C	350 mm	13-3/4"
D	22 mm	7/8"
E	50 mm	1-31/32"
F	115 mm	4-1/2"

ICE Special Master Link ISAK-RG 4-13/190 (7903212)

Technical Information

Product number: 7903212

Technical Downloads

ISAK-RG 4-13/190 - DXF 2D CAD File Download File

ISAK-RG 4-13/190 - IGES 3D CAD File Download File

ISAK-RG 4-13/190 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-13/190 Download File

Attribute	Value	Value
weight	19.14 kg	42.20 lbs
Nominal WLL	17000 kg	37400 lbs
A	40 mm	1-9/16"
B	190 mm	7-1/2"
T	557 mm	21-15/16"
C	350 mm	13-3/4"
D	26 mm	1"
E	65 mm	2-9/16"
F	140 mm	5-1/2"

ICE Special Master Link ISAK-RG 4-8/250 (7903213)

Technical Information

Product number: 7903213

Technical Downloads

ISAK-RG 4-8/250 - DXF 2D CAD File Download File

ISAK-RG 4-8/250 - IGES 3D CAD File Download File

ISAK-RG 4-8/250 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-8/250 Download File

Attribute	Value	Value
weight	13.45 kg	29.65 lbs
Nominal WLL	6300 kg	13860 lbs
T	589 mm	23-3/16"
A	36 mm	1-27/64"
B	250 mm	9-13/16"
C	460 mm	18-1/8"
D	18 mm	11/16"
E	40 mm	1-9/16"
F	85 mm	3-11/32"

ICE Special Master Link ISAK-RG 4-10/250 (7903214)

Technical Information

Product number: 7903214

Technical Downloads

ISAK-RG 4-10/250 - DXF 2D CAD File Download File

ISAK-RG 4-10/250 - IGES 3D CAD File Download File

ISAK-RG 4-10/250 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-10/250 Download File

Attribute	Value	Value
weight	15.60 kg	34.39 lbs
Nominal WLL	10600 kg	23320 lbs
T	629 mm	24-25/32"
A	36 mm	1-27/64"
B	250 mm	9-13/16"
C	460 mm	18-1/8"
D	22 mm	7/8"
E	50 mm	1-31/32"
F	115 mm	4-1/2"

ICE Special Master Link ISAK-RG 4-13/250 (7903215)

Technical Information

Product number: 7903215

Technical Downloads

ISAK-RG 4-13/250 - DXF 2D CAD File Download File

ISAK-RG 4-13/250 - IGES 3D CAD File Download File

ISAK-RG 4-13/250 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-13/250 Download File

Attribute	Value	Value
weight	22.12 kg	48.77 lbs
Nominal WLL	17000 kg	37400 lbs
A	40 mm	1-9/16"
B	250 mm	9-13/16"
T	667 mm	26-1/4"
C	460 mm	18-1/8"
D	26 mm	1"
E	65 mm	2-9/16"
F	140 mm	5-1/2"

ICE Special Master Link ISAK-RG 4-16/250 (7903216)

Technical Information

Product number: 7903216

Technical Downloads

ISAK-RG 4-16/250 - DXF 2D CAD File Download File

ISAK-RG 4-16/250 - IGES 3D CAD File Download File

ISAK-RG 4-16/250 - STEP 3D CAD File Download File

ICE Special Master Link ISAK-RG 4-16/250 Download File

Attribute	Value	Value
weight	32.98 kg	72.71 lbs
Nominal WLL	26500 kg	58300 lbs
T	713 mm	28-1/16"
A	47 mm	1-7/8"
B	250 mm	9-13/16"
C	460 mm	18-1/8"
D	32 mm	1-1/4"
E	75 mm	2-15/16"
F	170 mm	6-11/16"
