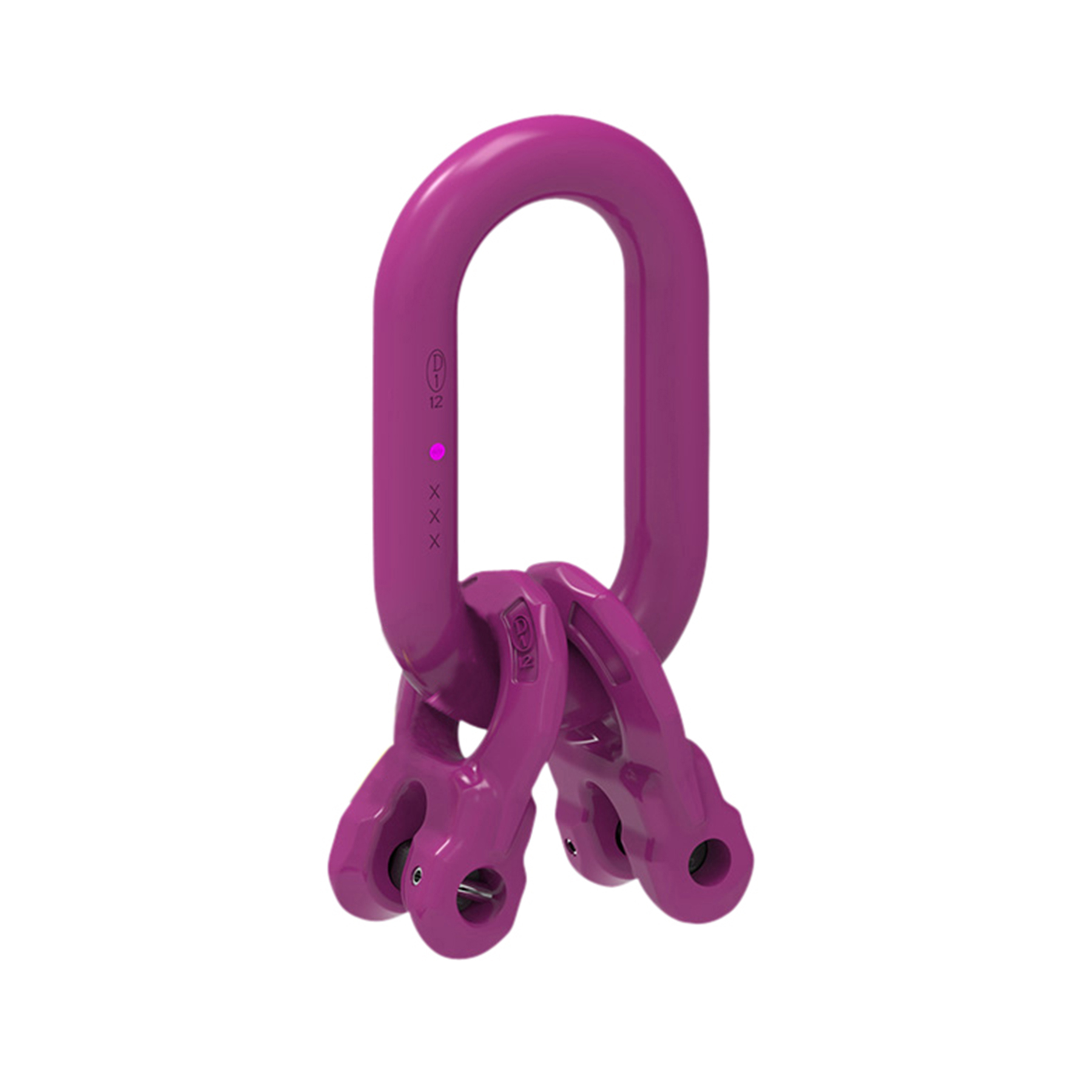

ICE 2-Leg IBK Master Link with IBK Connectors
- ICE 2-Leg IBK Master Link complete with IBK Connectors
- Ensures only the correct chain diameter and number of strands can be connected
- Complete identification tag with an integrated chain testing gauge
- ICE load and retaining pins are preassembled
- Comes with a flexible, 2-Leg identification tag and integrated testing gauge
- Manufactured according to DIN EN 1677-4
- Fitted with RUD-ID-TAG® (RFID chip) and marked with a clear identification number
Product Variants (5)
ICE Special Master Link for 2 Strands IBK-RG 2-6 (7903075)

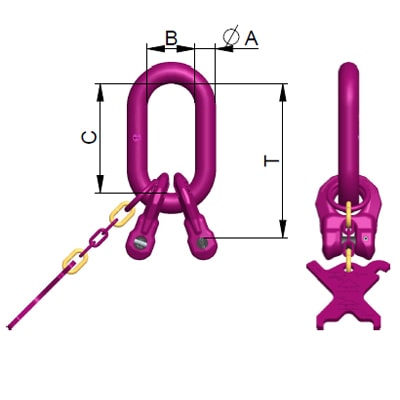

| Attribute | Value | Value |
|---|
| weight | 0.68 kg | 1.50 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 13.5 mm | 17/32" |
| B | 34 mm | 1-11/32" |
| T | 105 mm | 4-1/8" |
| C | 70 mm | 2-3/4" |
ICE Special Master Link for 2 Strands IBK-RG 2-8 (7903076)
| Attribute | Value | Value |
|---|
| weight | 1.56 kg | 3.44 lbs |
| Nominal WLL | 4250 kg | 9350 lbs |
| A | 18 mm | 11/16" |
| B | 40 mm | 1-9/16" |
| T | 129 mm | 5-1/16" |
| C | 85 mm | 3-11/32" |
ICE Special Master Link for 2 Strands IBK-RG 2-10 (7903077)
| Attribute | Value | Value |
|---|
| weight | 2.14 kg | 4.72 lbs |
| Nominal WLL | 7100 kg | 15620 lbs |
| A | 22 mm | 7/8" |
| B | 50 mm | 1-31/32" |
| T | 169 mm | 6-21/32" |
| C | 115 mm | 4-1/2" |
ICE Special Master Link for 2 Strands IBK-RG 2-13 (7903078)
| Attribute | Value | Value |
|---|
| weight | 5.10 kg | 11.24 lbs |
| Nominal WLL | 11200 kg | 24640 lbs |
| A | 26 mm | 1" |
| B | 65 mm | 2-9/16" |
| T | 207 mm | 8-5/32" |
| C | 140 mm | 5-1/2" |
ICE Special Master Link for 2 Strands IBK-RG 2-16 (7903079)
| Attribute | Value | Value |
|---|
| weight | 9.05 kg | 19.95 lbs |
| Nominal WLL | 17000 kg | 37400 lbs |
| A | 32 mm | 1-1/4" |
| B | 75 mm | 2-15/16" |
| T | 253 mm | 9-31/32" |
| C | 170 mm | 6-11/16" |
