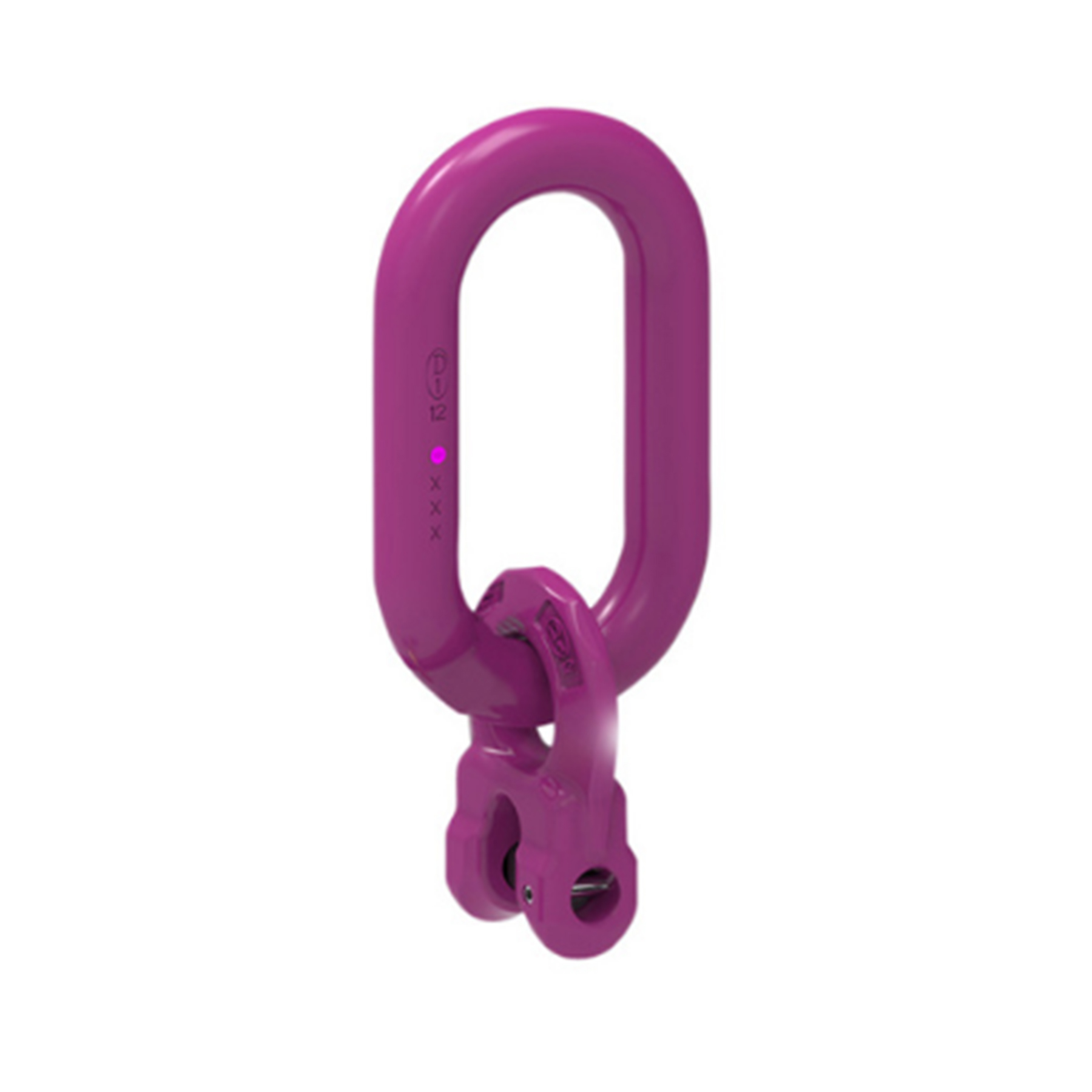

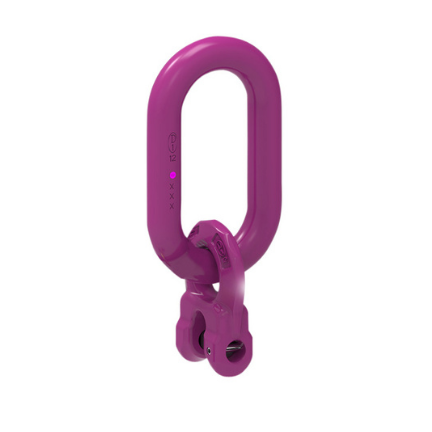

ICE 1-Leg IBK Master Link with IRG Connector
- ICE 1-Leg IBK Master Link complete with IRG Connector
- Ensures only the correct chain diameter and number of strands can be connected

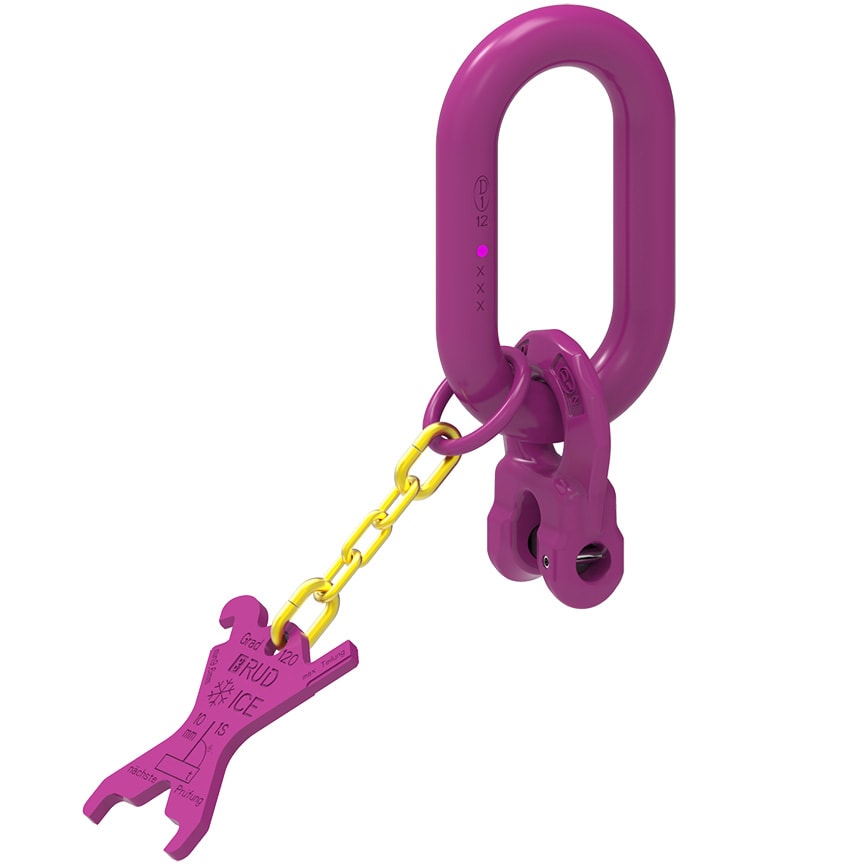

- Complete identification tag with an integrated chain testing gauge
- Pre-assembled connecting bolt and tensioning sleeve
- Manufactured in compliance with EN 1677-4
- Fitted with RUD-ID-TAG® (RFID chip) and marked with a clear identification number
Product Variants (5)
ICE Special Master Link Single Strand IBK-RG 1-6 (7903041)

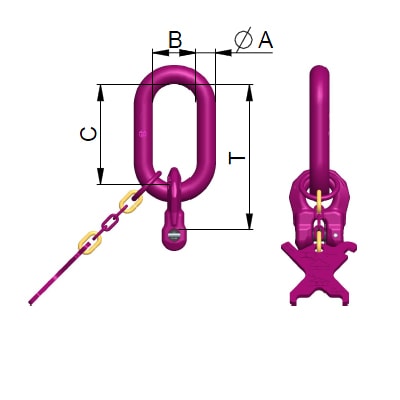

Attribute | Value | Value |
---|
weight | 0.43 kg | 0.95 lbs |
Nominal WLL | 1800 kg | 3960 lbs |
A | 13.5 mm | 17/32" |
B | 34 mm | 1-11/32" |
T | 105 mm | 4-1/8" |
C | 70 mm | 2-3/4" |
ICE Special Master Link Single Strand IBK-RG 1-8 (7903042)
Attribute | Value | Value |
---|
weight | 0.92 kg | 2.03 lbs |
Nominal WLL | 3000 kg | 6600 lbs |
T | 129 mm | 5-1/16" |
A | 18 mm | 11/16" |
B | 40 mm | 1-9/16" |
C | 85 mm | 3-11/32" |
ICE Special Master Link Single Strand IBK-RG 1-10 (7903043)
Attribute | Value | Value |
---|
weight | 1.77 kg | 3.90 lbs |
Nominal WLL | 5000 kg | 11000 lbs |
T | 169 mm | 6-21/32" |
A | 22 mm | 7/8" |
B | 50 mm | 1-31/32" |
C | 115 mm | 4-1/2" |
ICE Special Master Link Single Strand IBK-RG 1-13 (7903044)
Attribute | Value | Value |
---|
weight | 3.05 kg | 6.72 lbs |
Nominal WLL | 8000 kg | 17600 lbs |
T | 207 mm | 8-5/32" |
A | 26 mm | 1" |
B | 65 mm | 2-9/16" |
C | 140 mm | 5-1/2" |
ICE Special Master Link Single Strand IBK-RG 1-16 (7903045)
Attribute | Value | Value |
---|
weight | 5.53 kg | 12.19 lbs |
Nominal WLL | 12500 kg | 27500 lbs |
T | 253 mm | 9-31/32" |
A | 32 mm | 1-1/4" |
B | 75 mm | 2-15/16" |
C | 170 mm | 6-11/16" |
