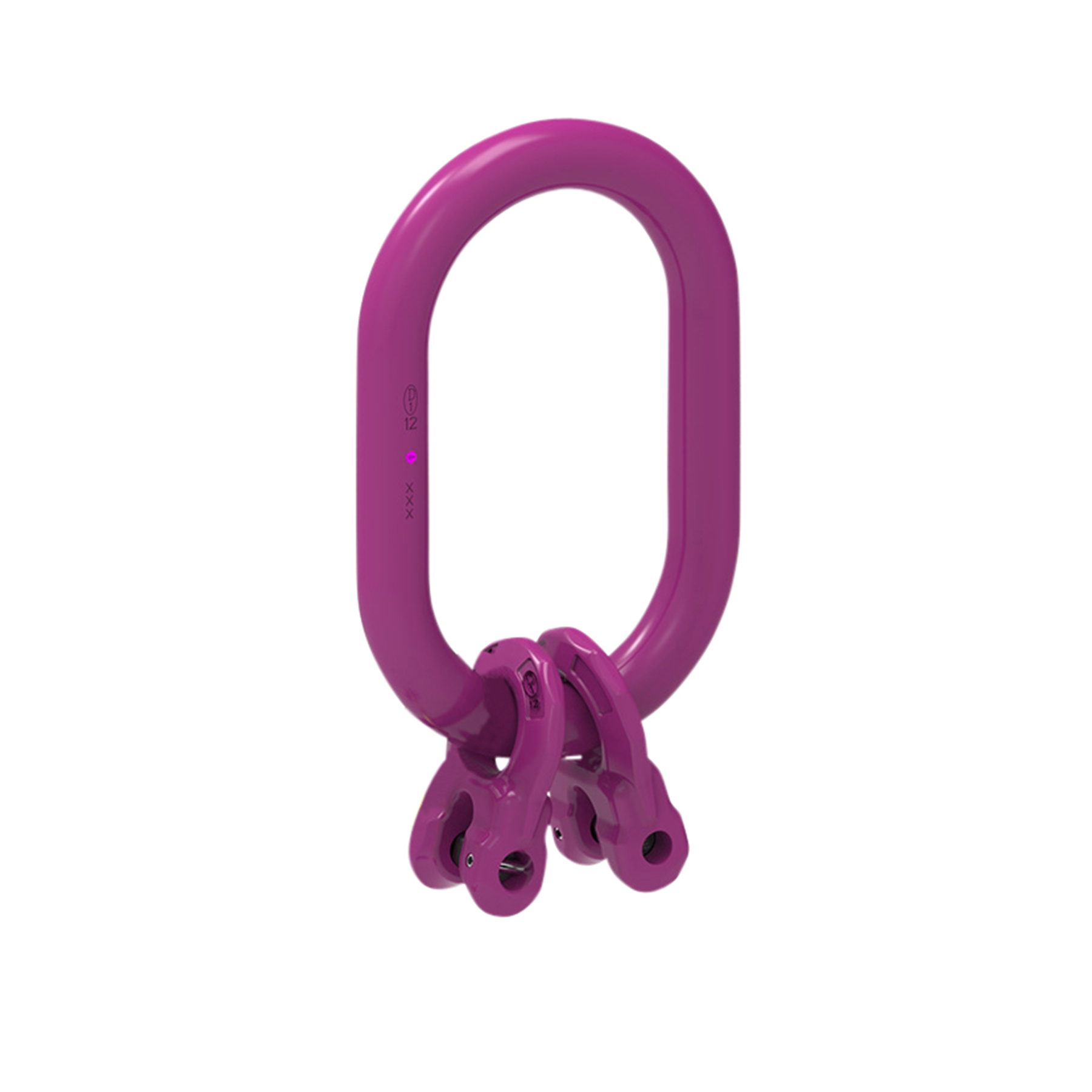

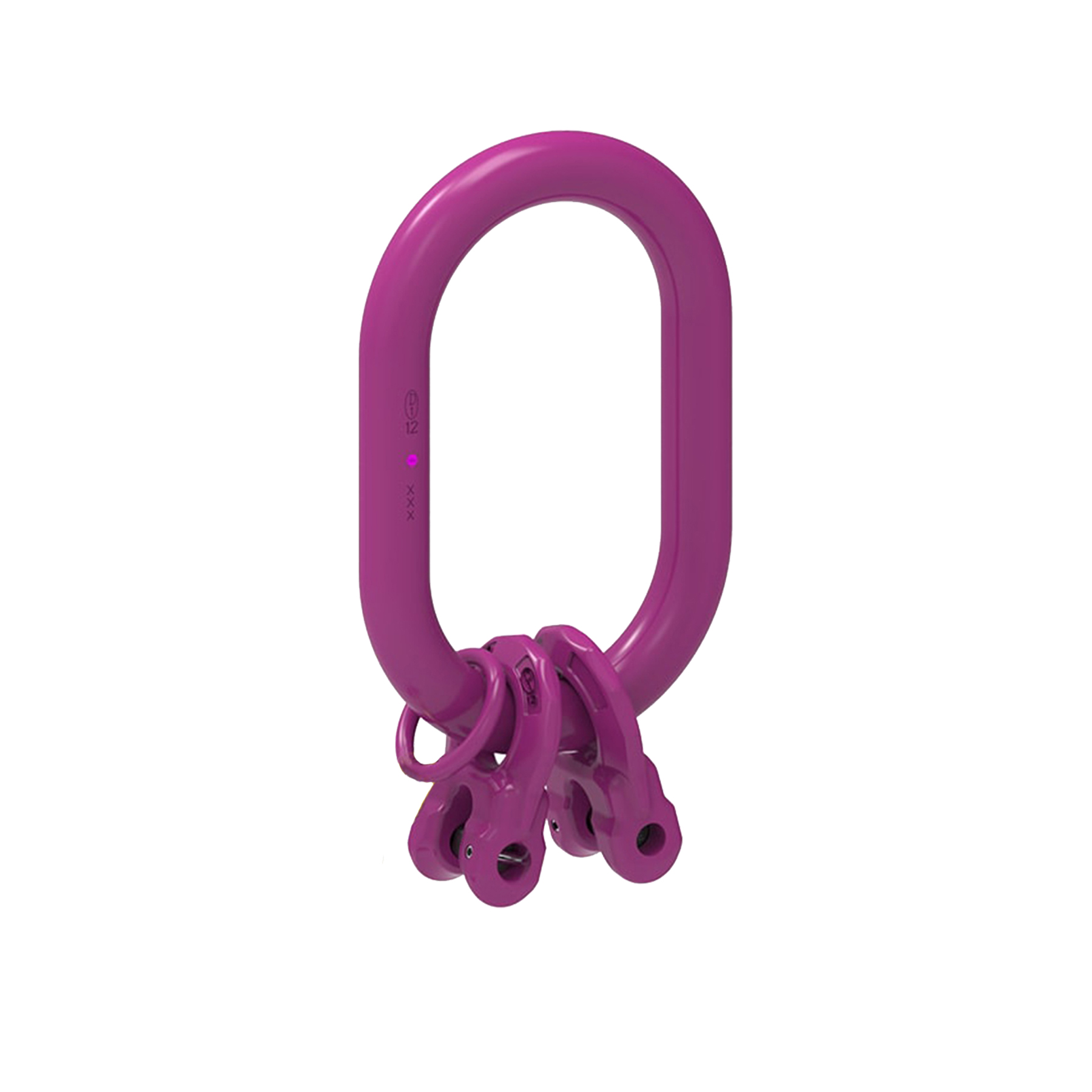

ICE 2-Leg IAK Master Link with IRG Connectors
- ICE 2-Leg IAK Master Link complete with IRG Connectors
- Ensures only the correct chain diameter and number of strands can be connected
- Complete identification tag with an integrated chain testing gauge
- ICE load and retaining pins are preassembled

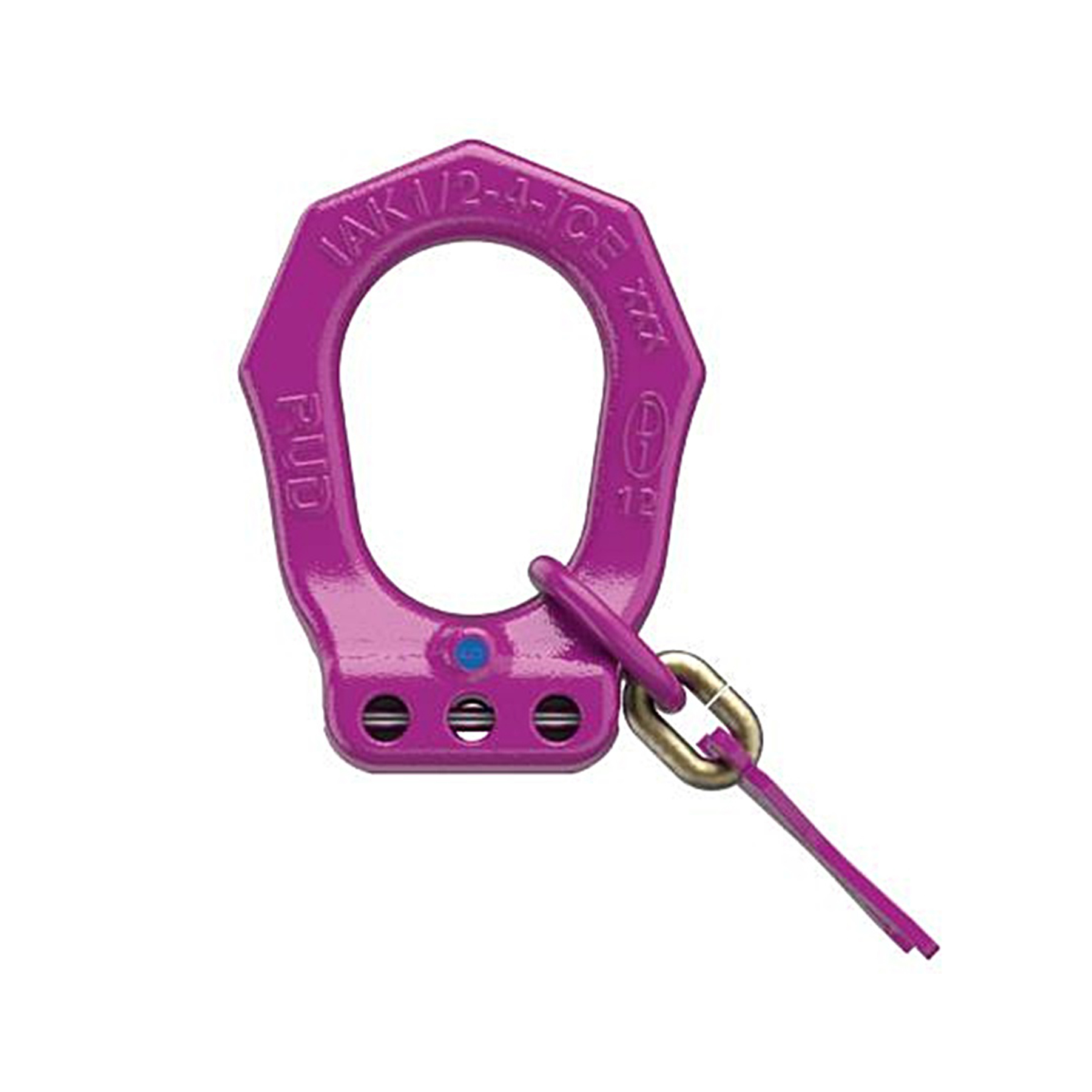

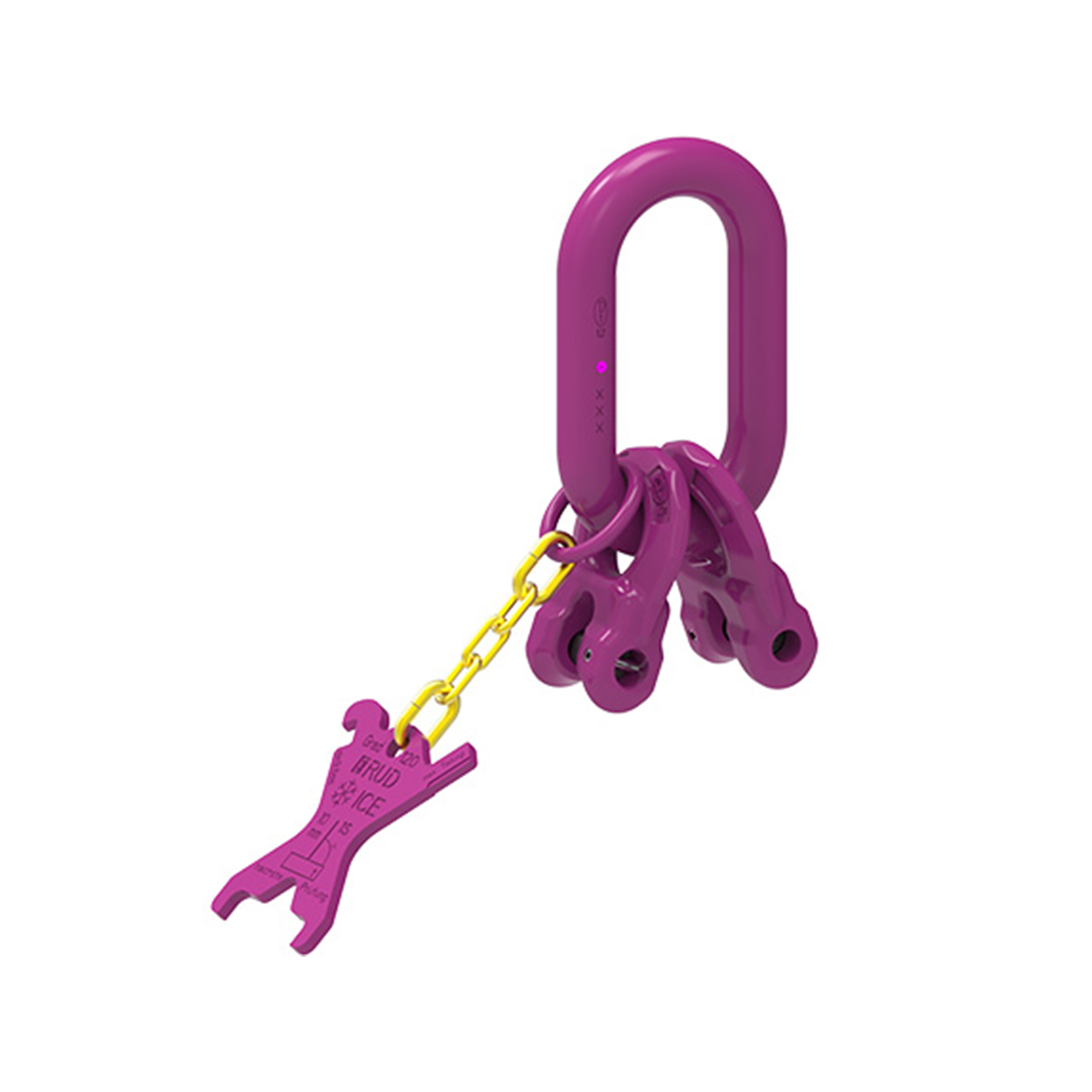

- Comes with a flexible, 2-Leg identification tag and integrated testing gauge
- Manufactured according to DIN EN 1677-4
- Fitted with RUD-ID-TAG® (RFID chip) and marked with a clear identification number
Product Variants (6)
ICE Master Link for 2 strands IAK 1/2-4 (7905031)

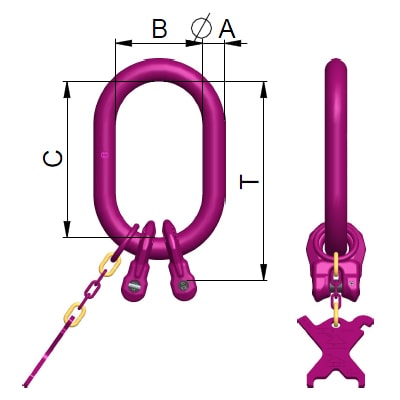

| Attribute | Value | Value |
|---|
| weight | 0.20 kg | 0.44 lbs |
| Nominal WLL | 1120 kg | 2464 lbs |
| T | 58 mm | 2-9/32" |
| A | 13 mm | 1/2" |
| B | 34 mm | 1-11/32" |
| C | 38 mm | 1-1/2" |
| D | 22.5 mm | 7/8" |
| E | 8 mm | 5/16" |
ICE Master Link 2-Leg IAK-RG 2-6 (7903051)
| Attribute | Value | Value |
|---|
| weight | 0.99 kg | 2.18 lbs |
| Nominal WLL | 3100 kg | 5500 lbs |
| T | 171 mm | 6-3/4" |
| A | 16 mm | 5/8" |
| B | 75 mm | 2-15/16" |
| C | 135 mm | 5-5/16" |
ICE Master Link 2-Leg IAK-RG 2-8 (7903052)
| Attribute | Value | Value |
|---|
| weight | 2.12 kg | 4.67 lbs |
| Nominal WLL | 5200 kg | 11465 lbs |
| T | 203 mm | 8" |
| A | 22 mm | 7/8" |
| B | 90 mm | 3-17/32" |
| C | 160 mm | 6-13/32" |
ICE Master Link 2-Leg IAK-RG 2-10 (7903053)
| Attribute | Value | Value |
|---|
| weight | 3.53 kg | 7.78 lbs |
| Nominal WLL | 8700 kg | 19180 lbs |
| A | 26 mm | 1" |
| B | 100 mm | 3-15/16" |
| T | 233 mm | 9-3/16" |
| C | 180 mm | 7-1/16" |
ICE Master Link 2-Leg IAK-RG 2-13 (7903054)
| Attribute | Value | Value |
|---|
| weight | 6.29 kg | 13.87 lbs |
| Nominal WLL | 13800 kg | 30425 lbs |
| A | 32 mm | 1-1/4" |
| B | 110 mm | 4-11/32" |
| T | 267 mm | 10-1/2" |
| C | 200 mm | 7-7/8" |
ICE Master Link 2-Leg IAK-RG 2-16 (7903055)
| Attribute | Value | Value |
|---|
| weight | 11.26 kg | 24.82 lbs |
| Nominal WLL | 21600 kg | 47620 lbs |
| A | 36 mm | 1-27/64" |
| B | 180 mm | 7-1/16" |
| T | 423 mm | 16-5/8" |
| C | 340 mm | 13-3/8" |
