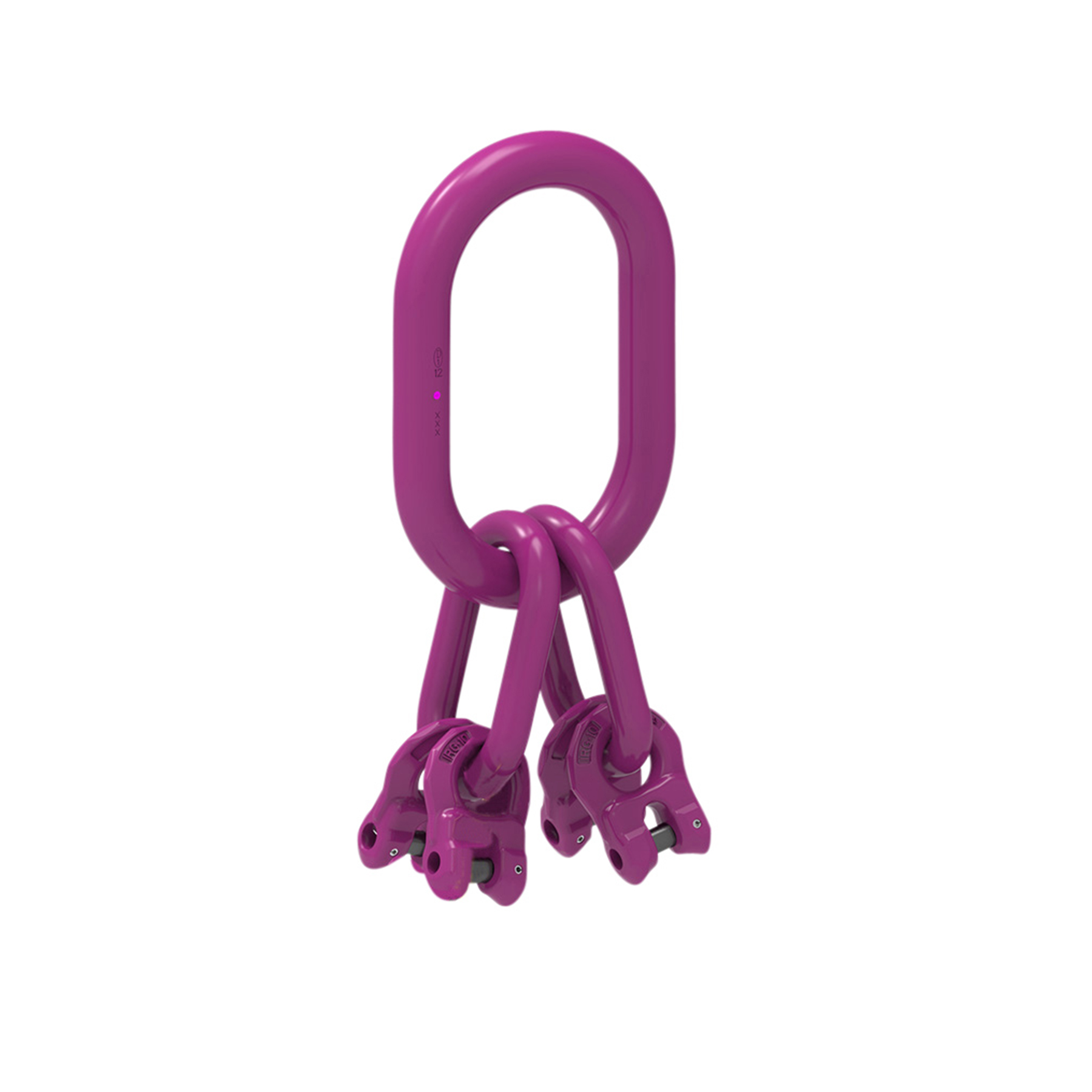

ICE 4-Leg IAK Master Link with IRG Connectors

ICE 4-Leg IAK Master Link complete with IRG connectors
Ensures that only the correct chain diameter and number of legs can be connected
Comes preassembled with ICE load and retaining pins
Delivered complete with a flexible, 4-leg identification tag and integrated testing gauge
Manufactured according to DIN EN 1677-4
ICE-Master link is marked by RUD-ID-TAG® (RFID chip) and with a clear identification number

Surface: ICE-Pink powder coated

Product Variants (6)

ICE Master Link IAK 4-4 (7905033)

Technical Information

Product number: 7905033

Technical Downloads

IAK 4-4 - DXF 2D CAD File Download File

IAK 4-4 - IGES 3D CAD File Download File

IAK 4-4 - STEP 3D CAD File Download File

ICE Master Link IAK 4-4 Download File

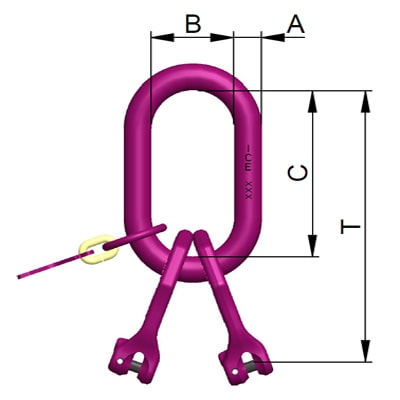

Attribute	Value	Value
weight	0.53 kg	1.17 lbs
Nominal WLL	1700 kg	3740 lbs
T	108 mm	4-1/4"
A	10 mm	3/8"
B	35 mm	1-3/8"
C	60 mm	2-3/8"

ICE Master Link 4-Leg IAK-RG 4-6 (7903085)

Technical Information

Product number: 7903085

Technical Downloads

IAK-RG 4-6 - DXF 2D CAD File Download File

IAK-RG 4-6 - IGES 3D CAD File Download File

IAK-RG 4-6 - STEP 3D CAD File Download File

ICE Master Link 4-Leg IAK-RG 4-6 Download File

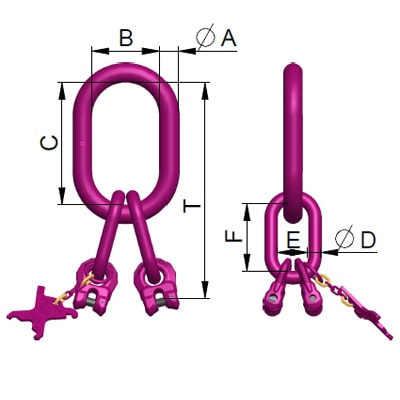

Attribute	Value	Value
weight	2.04 kg	4.50 lbs
Nominal WLL	3100 kg	5500 lbs
T	265 mm	10-7/16"
A	18 mm	11/16"
B	90 mm	3-17/32"
C	160 mm	6-13/32"
D	13 mm	1/2"
E	34 mm	1-11/32"
F	70 mm	2-3/4"

ICE Master Link 4-Leg IAK-RG 4-8 (7903086)

Technical Information

Product number: 7903086

Technical Downloads

IAK-RG 4-8 - DXF 2D CAD File Download File

IAK-RG 4-8 - IGES 3D CAD File Download File

IAK-RG 4-8 - STEP 3D CAD File Download File

ICE Master Link 4-Leg IAK-RG 4-8 Download File

Attribute	Value	Value
weight	4.59 kg	10.12 lbs
Nominal WLL	5200 kg	11465 lbs
T	309 mm	12-5/32"
A	26 mm	1"
B	100 mm	3-15/16"
C	180 mm	7-1/16"
D	18 mm	11/16"
E	40 mm	1-9/16"
F	85 mm	3-11/32"

ICE Master Link 4-Leg IAK-RG 4-10 (7903087)

Technical Information

Product number: 7903087

Technical Downloads

IAK-RG 4-10 - DXF 2D CAD File Download File

IAK-RG 4-10 - IGES 3D CAD File Download File

IAK-RG 4-10 - STEP 3D CAD File Download File

ICE Master Link 4-Leg IAK-RG 4-10 Download File

Attribute	Value	Value
weight	8.37 kg	18.45 lbs
Nominal WLL	8700 kg	19180 lbs
T	369 mm	14-1/2"
A	32 mm	1-1/4"
B	110 mm	4-11/32"
C	200 mm	7-7/8"
D	22 mm	7/8"
E	50 mm	1-31/32"
F	115 mm	4-1/2"

ICE Master Link 4-Leg IAK-RG 4-13 (7903088)

Technical Information

Product number: 7903088

Technical Downloads

IAK-RG 4-13 - DXF 2D CAD File Download File

IAK-RG 4-13 - IGES 3D CAD File Download File

IAK-RG 4-13 - STEP 3D CAD File Download File

ICE Master Link 4-Leg IAK-RG 4-13 Download File

Attribute	Value	Value
weight	14.44 kg	31.83 lbs
Nominal WLL	13800 kg	30425 lbs
T	467 mm	18-3/8"
A	36 mm	1-27/64"
B	140 mm	5-1/2"
C	260 mm	10-1/4"
D	26 mm	1"
E	65 mm	2-9/16"
F	140 mm	5-1/2"

ICE Master Link 4-Leg IAK-RG 4-16 (7903089)

Technical Information

Product number: 7903089

Technical Downloads

IAK-RG 4-16 - DXF 2D CAD File Download File

IAK-RG 4-16 - IGES 3D CAD File Download File

IAK-RG 4-16 - STEP 3D CAD File Download File

ICE Master Link 4-Leg IAK-RG 4-16 Download File

Attribute	Value	Value
weight	28.87 kg	63.65 lbs
Nominal WLL	21600 kg	47620 lbs
T	603 mm	23-3/4"
A	46 mm	1-13/16"
B	190 mm	7-1/2"
C	350 mm	13-3/4"
D	32 mm	1-1/4"
E	75 mm	2-15/16"
F	170 mm	6-11/16"
