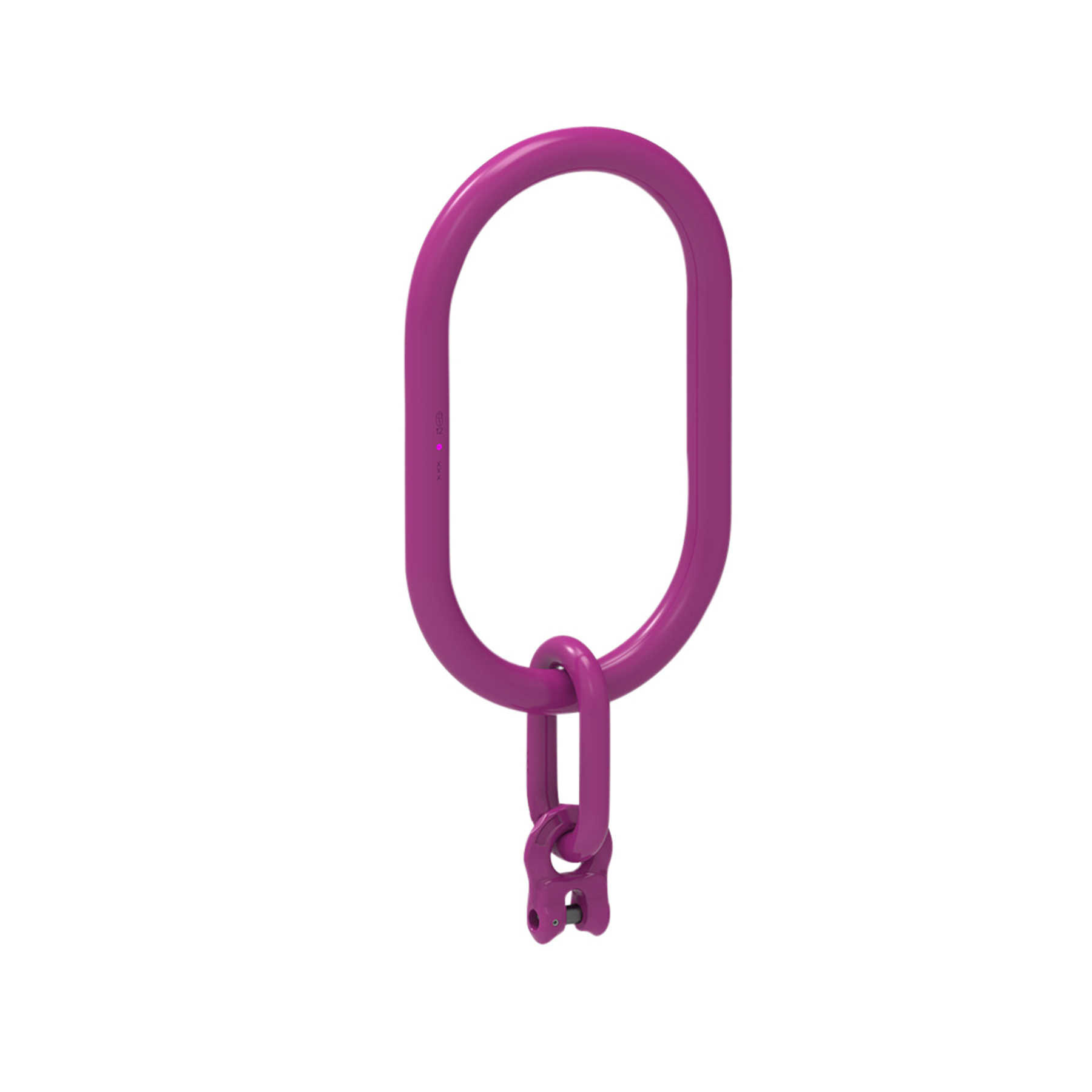

ICE 1-Leg ISAK Master Link with IRG Connector
- ICE 1-Leg ISAK Master Link complete with IRG Connector
- Ensures only the correct chain diameter and number of strands can be connected
- Complete identification tag with an integrated chain testing gauge
- Pre-assembled connecting bolt and tensioning sleeve
- Manufactured in compliance with EN 1677-4
- Fitted with RUD-ID-TAG® (RFID chip) and marked with a clear identification number
Product Variants (12)
ICE Special Master Link One Strand ISAK-RG 1-6/140 (7903182)

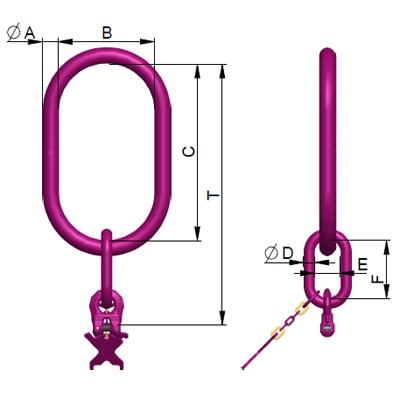

| Attribute | Value | Value |
|---|
| weight | 2.29 kg | 5.05 lbs |
| Nominal WLL | 1800 kg | 3960 lbs |
| T | 365 mm | 14-3/8" |
| A | 18 mm | 11/16" |
| B | 140 mm | 5-1/2" |
| C | 260 mm | 10-1/4" |
| D | 13 mm | 1/2" |
| E | 34 mm | 1-11/32" |
| F | 70 mm | 2-3/4" |
ICE Special Master Link One Strand ISAK-RG 1-8/140 (7903183)
| Attribute | Value | Value |
|---|
| weight | 3.94 kg | 8.69 lbs |
| Nominal WLL | 3000 kg | 6600 lbs |
| T | 389 mm | 15-5/16" |
| A | 22 mm | 7/8" |
| B | 140 mm | 5-1/2" |
| C | 260 mm | 10-1/4" |
| D | 18 mm | 11/16" |
| E | 40 mm | 1-9/16" |
| F | 85 mm | 3-11/32" |
ICE Special Master Link One Strand ISAK-RG 1-10/140 (7903184)
| Attribute | Value | Value |
|---|
| weight | 6.34 kg | 13.98 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 429 mm | 16-7/8" |
| A | 26 mm | 1" |
| B | 140 mm | 5-1/2" |
| C | 260 mm | 10-1/4" |
| D | 22 mm | 7/8" |
| E | 50 mm | 1-31/32" |
| F | 115 mm | 4-1/2" |
ICE Special Master Link One Strand ISAK-RG 1-13/140 (7903185)
| Attribute | Value | Value |
|---|
| weight | 9.44 kg | 20.81 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 467 mm | 18-3/8" |
| A | 32 mm | 1-1/4" |
| B | 140 mm | 5-1/2" |
| C | 260 mm | 10-1/4" |
| D | 26 mm | 1" |
| E | 65 mm | 2-9/16" |
| F | 140 mm | 5-1/2" |
ICE Special Master Link One Strand ISAK-RG 1-6/190 (7903186)
| Attribute | Value | Value |
|---|
| weight | 3.82 kg | 8.42 lbs |
| Nominal WLL | 1800 kg | 3960 lbs |
| T | 455 mm | 17-15/16" |
| A | 22 mm | 7/8" |
| B | 190 mm | 7-1/2" |
| C | 350 mm | 13-3/4" |
| D | 13 mm | 1/2" |
| E | 34 mm | 1-11/32" |
| F | 70 mm | 2-3/4" |
ICE Special Master Link One Strand ISAK-RG 1-8/190 (7903187)
| Attribute | Value | Value |
|---|
| weight | 6.03 kg | 13.29 lbs |
| Nominal WLL | 3000 kg | 6600 lbs |
| T | 479 mm | 18-7/8" |
| A | 26 mm | 1" |
| B | 190 mm | 7-1/2" |
| C | 350 mm | 13-3/4" |
| D | 18 mm | 11/16" |
| E | 40 mm | 1-9/16" |
| F | 85 mm | 3-11/32" |
ICE Special Master Link One Strand ISAK-RG 1-10/190 (7903188)
| Attribute | Value | Value |
|---|
| weight | 10.02 kg | 22.09 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 519 mm | 20-7/16" |
| A | 32 mm | 1-1/4" |
| B | 190 mm | 7-1/2" |
| C | 350 mm | 13-3/4" |
| D | 22 mm | 7/8" |
| E | 50 mm | 1-31/32" |
| F | 115 mm | 4-1/2" |
ICE Special Master Link One Strand ISAK-RG 1-13/190 (7903189)
| Attribute | Value | Value |
|---|
| weight | 13.90 kg | 30.64 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 557 mm | 21-15/16" |
| A | 36 mm | 1-27/64" |
| B | 190 mm | 7-1/2" |
| C | 350 mm | 13-3/4" |
| D | 26 mm | 1" |
| E | 65 mm | 2-9/16" |
| F | 140 mm | 5-1/2" |
ICE Special Master Link One Strand ISAK-RG 1-8/250 (7903190)
| Attribute | Value | Value |
|---|
| weight | 12.86 kg | 28.35 lbs |
| Nominal WLL | 3000 kg | 6600 lbs |
| T | 589 mm | 23-3/16" |
| A | 36 mm | 1-27/64" |
| B | 250 mm | 9-13/16" |
| C | 460 mm | 18-1/8" |
| D | 18 mm | 11/16" |
| E | 40 mm | 1-9/16" |
| F | 85 mm | 3-11/32" |
ICE Special Master Link One Strand ISAK-RG 1-10/250 (7903191)
| Attribute | Value | Value |
|---|
| weight | 14.32 kg | 31.57 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 629 mm | 24-25/32" |
| A | 36 mm | 1-27/64" |
| B | 250 mm | 9-13/16" |
| C | 460 mm | 18-1/8" |
| D | 22 mm | 7/8" |
| E | 50 mm | 1-31/32" |
| F | 115 mm | 4-1/2" |
ICE Special Master Link One Strand ISAK-RG 1-13/250 (7903192)
| Attribute | Value | Value |
|---|
| weight | 16.33 kg | 36.00 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 667 mm | 26-1/4" |
| A | 36 mm | 1-27/64" |
| B | 250 mm | 9-13/16" |
| C | 460 mm | 18-1/8" |
| D | 26 mm | 1" |
| E | 65 mm | 2-9/16" |
| F | 140 mm | 5-1/2" |
ICE Special Master Link One Strand ISAK-RG 1-16/250 (7903193)
| Attribute | Value | Value |
|---|
| weight | 23.14 kg | 51.01 lbs |
| Nominal WLL | 12500 kg | 27500 lbs |
| T | 713 mm | 28-1/16" |
| A | 40 mm | 1-9/16" |
| B | 250 mm | 9-13/16" |
| C | 460 mm | 18-1/8" |
| D | 32 mm | 1-1/4" |
| E | 75 mm | 2-15/16" |
| F | 170 mm | 6-11/16" |
