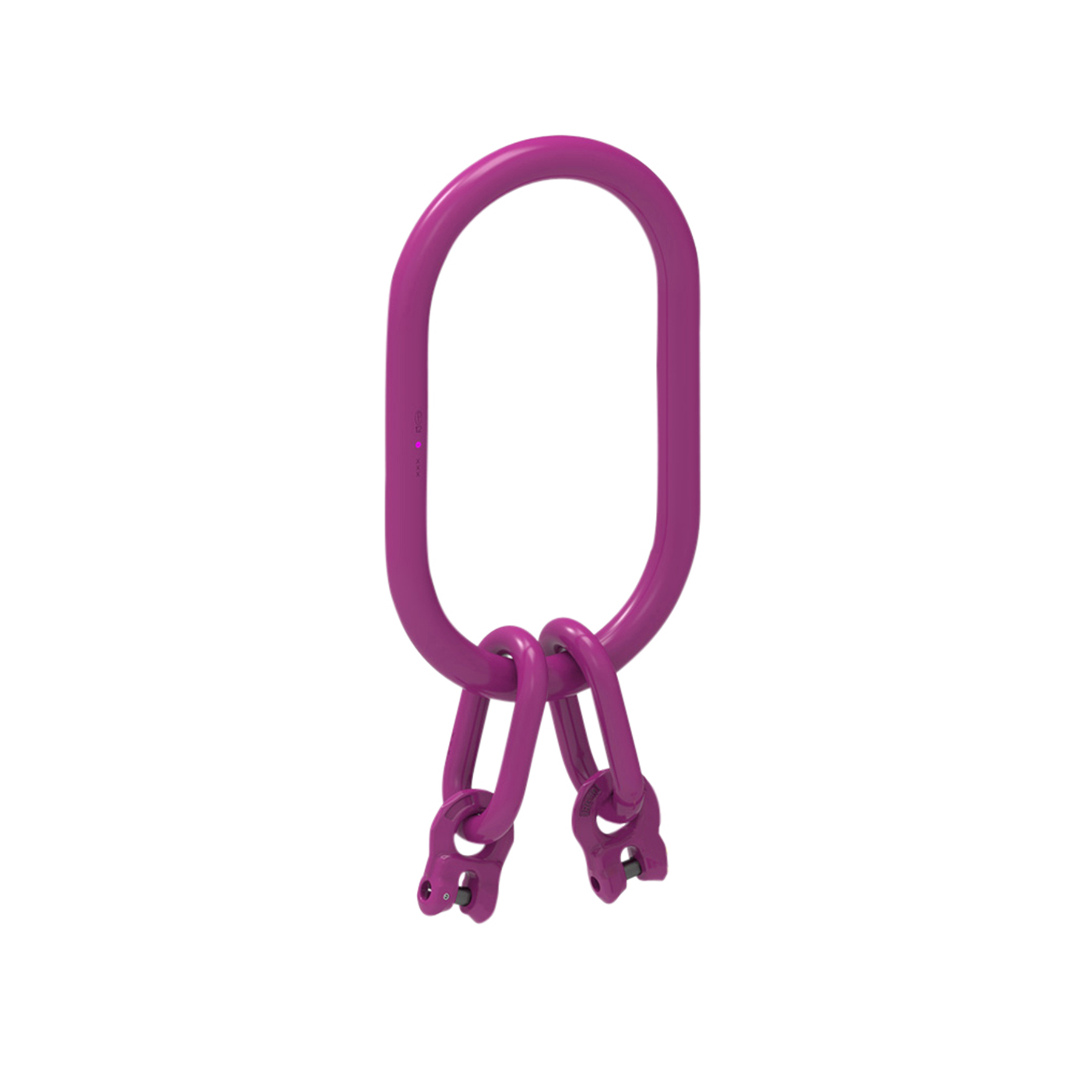

ICE 2-Leg ISAK Master Link with IRG Connectors
- ICE 2-Leg ISAK Master Link complete with IRG Connectors
- Ensures only the correct chain diameter and number of strands can be connected
- Complete identification tag with an integrated chain testing gauge
- ICE load and retaining pins are preassembled
- Comes with a flexible, 2-Leg identification tag and integrated testing gauge
- Manufactured according to DIN EN 1677-4
- Fitted with RUD-ID-TAG® (RFID chip) and marked with a clear identification number
Product Variants (12)
ICE Special Master Link ISAK-RG 2-6/140 (7903194)

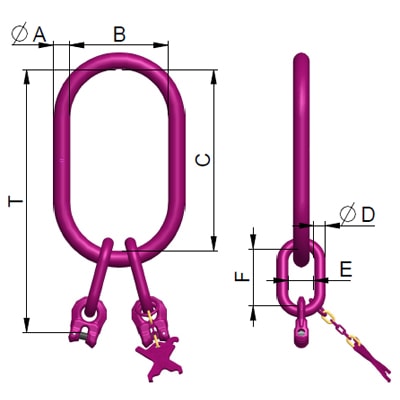

| Attribute | Value | Value |
|---|
| weight | 2.36 kg | 5.20 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 18 mm | 11/16" |
| B | 140 mm | 5-1/2" |
| T | 365 mm | 14-3/8" |
| C | 260 mm | 10-1/4" |
| D | 13 mm | 1/2" |
| E | 34 mm | 1-11/32" |
| F | 70 mm | 2-3/4" |
ICE Special Master Link ISAK-RG 2-8/140 (7903195)
| Attribute | Value | Value |
|---|
| weight | 4.03 kg | 8.88 lbs |
| Nominal WLL | 4250 kg | 9350 lbs |
| A | 22 mm | 7/8" |
| B | 140 mm | 5-1/2" |
| T | 389 mm | 15-5/16" |
| C | 260 mm | 10-1/4" |
| D | 18 mm | 11/16" |
| E | 40 mm | 1-9/16" |
| F | 85 mm | 3-11/32" |
ICE Special Master Link ISAK-RG 2-10/140 (7903196)
| Attribute | Value | Value |
|---|
| weight | 6.63 kg | 14.62 lbs |
| Nominal WLL | 7100 kg | 15620 lbs |
| A | 26 mm | 1" |
| B | 140 mm | 5-1/2" |
| T | 429 mm | 16-7/8" |
| C | 260 mm | 10-1/4" |
| D | 22 mm | 7/8" |
| E | 50 mm | 1-31/32" |
| F | 115 mm | 4-1/2" |
ICE Special Master Link ISAK-RG 2-13/140 (7903197)
| Attribute | Value | Value |
|---|
| weight | 10.47 kg | 23.08 lbs |
| Nominal WLL | 11200 kg | 24640 lbs |
| A | 32 mm | 1-1/4" |
| B | 140 mm | 5-1/2" |
| T | 467 mm | 18-3/8" |
| C | 260 mm | 10-1/4" |
| D | 26 mm | 1" |
| E | 65 mm | 2-9/16" |
| F | 140 mm | 5-1/2" |
ICE Special Master Link ISAK-RG 2-6/190 (7903198)
| Attribute | Value | Value |
|---|
| weight | 3.89 kg | 8.58 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 22 mm | 7/8" |
| B | 190 mm | 7-1/2" |
| T | 455 mm | 17-15/16" |
| C | 350 mm | 13-3/4" |
| D | 13 mm | 1/2" |
| E | 34 mm | 1-11/32" |
| F | 70 mm | 2-3/4" |
ICE Special Master Link ISAK-RG 2-8/190 (7903199)
| Attribute | Value | Value |
|---|
| weight | 6.13 kg | 13.51 lbs |
| Nominal WLL | 4250 kg | 9350 lbs |
| A | 26 mm | 1" |
| B | 190 mm | 7-1/2" |
| T | 479 mm | 18-7/8" |
| C | 350 mm | 13-3/4" |
| D | 18 mm | 11/16" |
| E | 40 mm | 1-9/16" |
| F | 85 mm | 3-11/32" |
ICE Special Master Link ISAK-RG 2-10/190 (7903200)
| Attribute | Value | Value |
|---|
| weight | 10.30 kg | 22.71 lbs |
| Nominal WLL | 7100 kg | 15620 lbs |
| A | 32 mm | 1-1/4" |
| B | 190 mm | 7-1/2" |
| T | 519 mm | 20-7/16" |
| C | 350 mm | 13-3/4" |
| D | 22 mm | 7/8" |
| E | 50 mm | 1-31/32" |
| F | 115 mm | 4-1/2" |
ICE Special Master Link ISAK-RG 2-13/190 (7903201)
| Attribute | Value | Value |
|---|
| weight | 14.93 kg | 32.92 lbs |
| Nominal WLL | 11200 kg | 24640 lbs |
| A | 36 mm | 1-27/64" |
| B | 190 mm | 7-1/2" |
| T | 557 mm | 21-15/16" |
| C | 350 mm | 13-3/4" |
| D | 26 mm | 1" |
| E | 65 mm | 2-9/16" |
| F | 140 mm | 5-1/2" |
ICE Special Master Link ISAK-RG 2-8/250 (7903202)
| Attribute | Value | Value |
|---|
| weight | 12.95 kg | 28.55 lbs |
| Nominal WLL | 4250 kg | 9350 lbs |
| A | 36 mm | 1-27/64" |
| B | 250 mm | 9-13/16" |
| T | 589 mm | 23-3/16" |
| C | 460 mm | 18-1/8" |
| D | 18 mm | 11/16" |
| E | 40 mm | 1-9/16" |
| F | 85 mm | 3-11/32" |
ICE Special Master Link ISAK-RG 2-10/250 (7903203)
| Attribute | Value | Value |
|---|
| weight | 14.61 kg | 32.21 lbs |
| Nominal WLL | 7100 kg | 15620 lbs |
| A | 36 mm | 1-27/64" |
| B | 250 mm | 9-13/16" |
| T | 629 mm | 24-25/32" |
| C | 460 mm | 18-1/8" |
| D | 22 mm | 7/8" |
| E | 50 mm | 1-31/32" |
| F | 115 mm | 4-1/2" |
ICE Special Master Link ISAK-RG 2-13/250 (7903204)
| Attribute | Value | Value |
|---|
| weight | 17.37 kg | 38.29 lbs |
| Nominal WLL | 11200 kg | 24640 lbs |
| A | 36 mm | 1-27/64" |
| B | 250 mm | 9-13/16" |
| T | 667 mm | 26-1/4" |
| C | 460 mm | 18-1/8" |
| D | 26 mm | 1" |
| E | 65 mm | 2-9/16" |
| F | 140 mm | 5-1/2" |
ICE Special Master Link ISAK-RG 2-16/250 (7903205)
| Attribute | Value | Value |
|---|
| weight | 25.16 kg | 55.47 lbs |
| Nominal WLL | 17000 kg | 37400 lbs |
| A | 40 mm | 1-9/16" |
| B | 250 mm | 9-13/16" |
| T | 713 mm | 28-1/16" |
| C | 460 mm | 18-1/8" |
| D | 32 mm | 1-1/4" |
| E | 75 mm | 2-15/16" |
| F | 170 mm | 6-11/16" |
