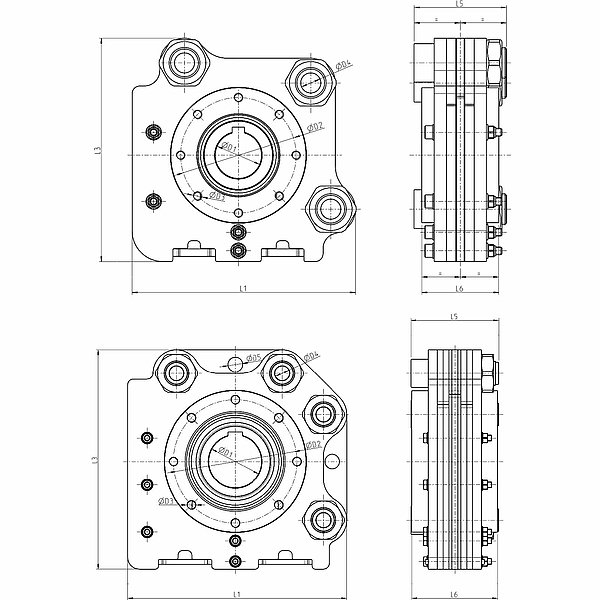

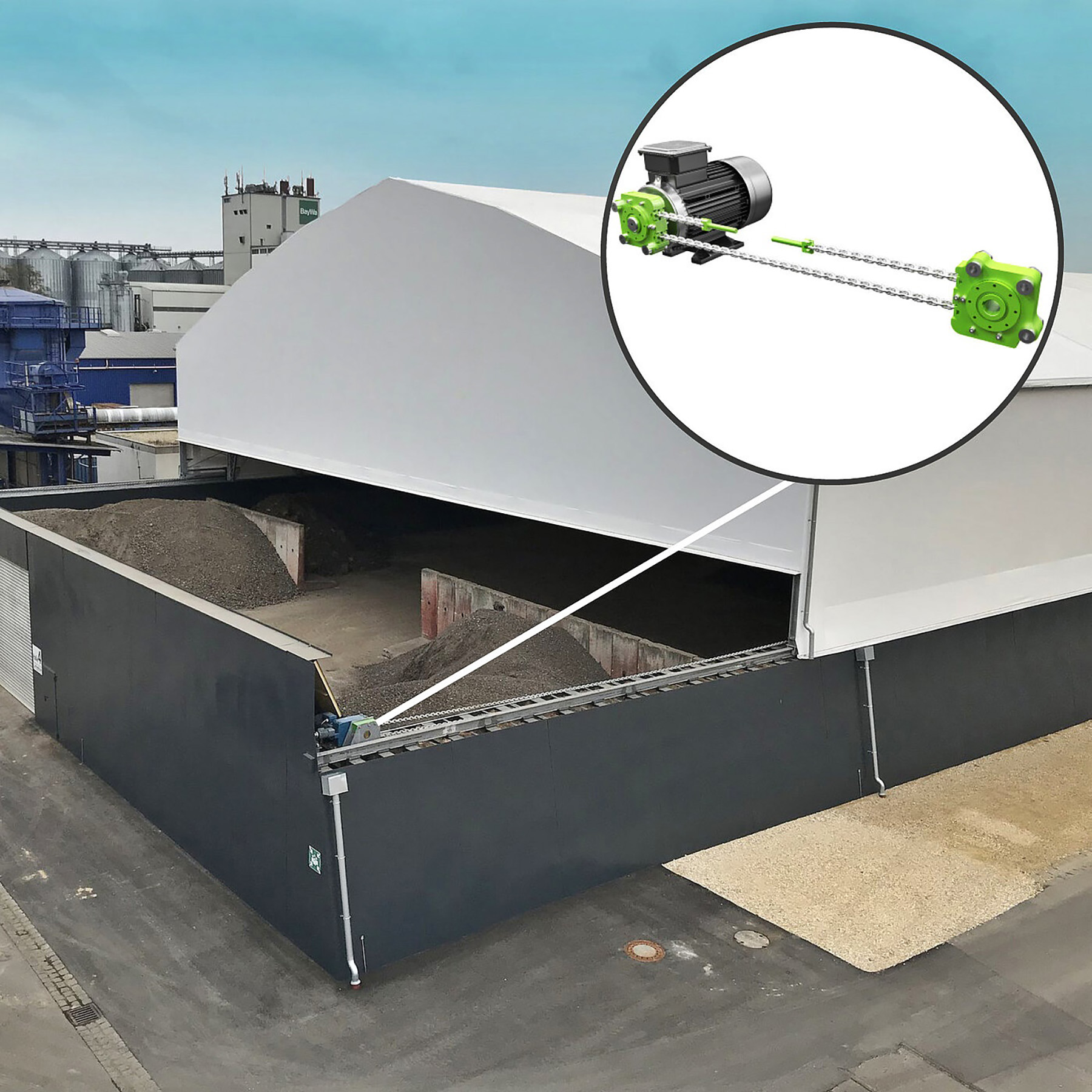

Pi-Gamma Drive

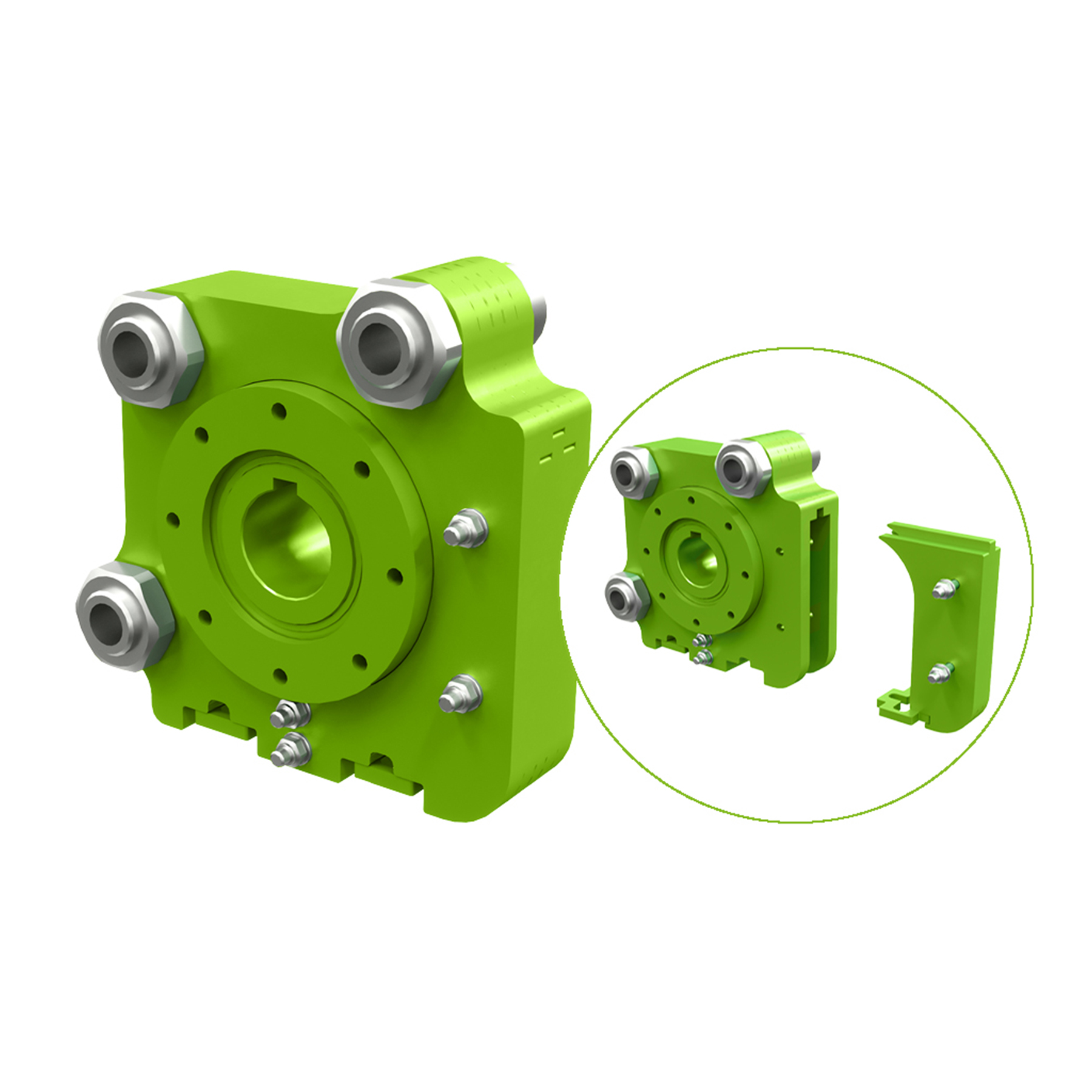

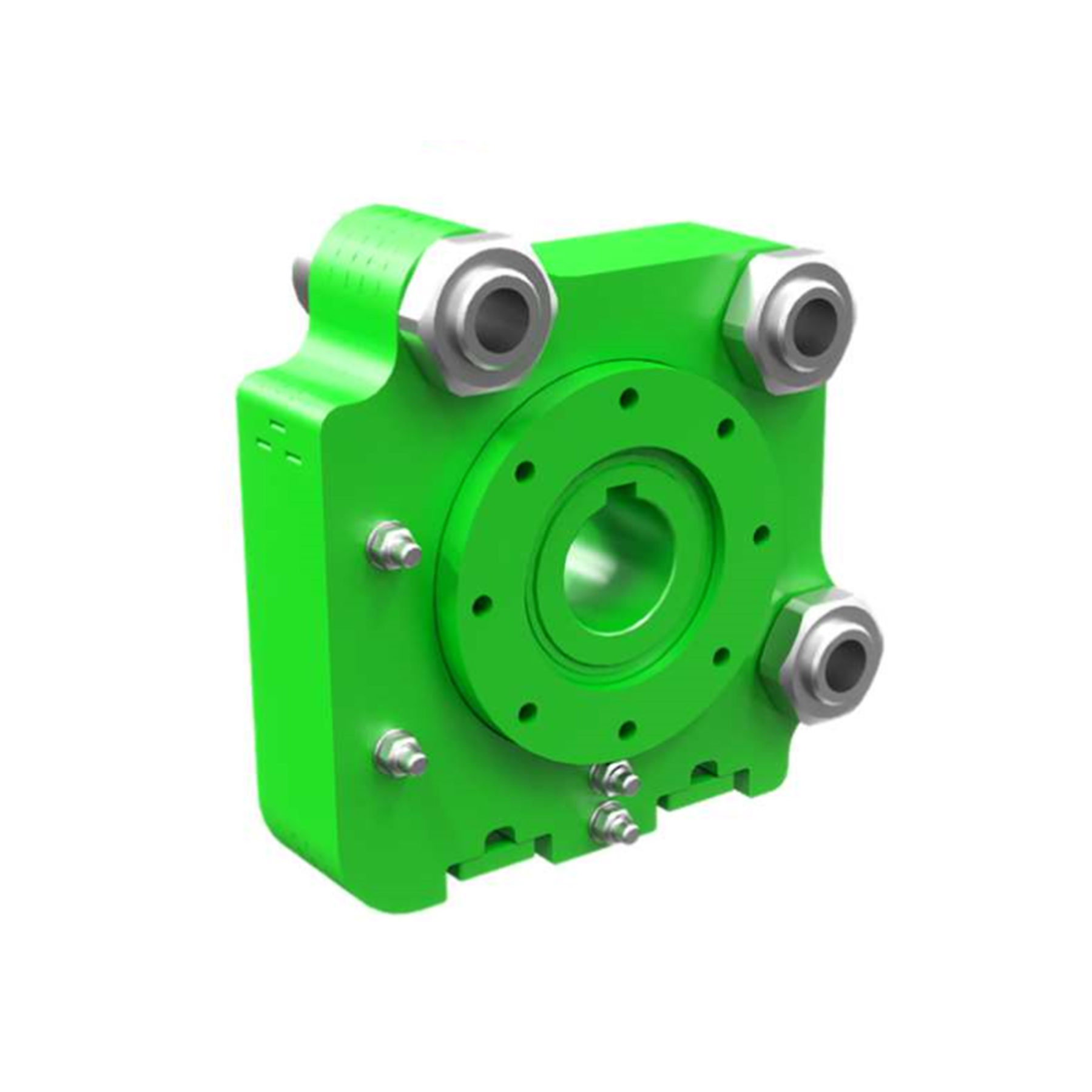

Pi drive principle:

• Versatile module for drive and idler application
• Integrated roller bearings
• Drive shaft free of additional forces
• No shaft required when used as idler module
• Integrated chain guide and stripper
• Available for all chain sizes on request

System applications for TECDOS Pi/Gamma:

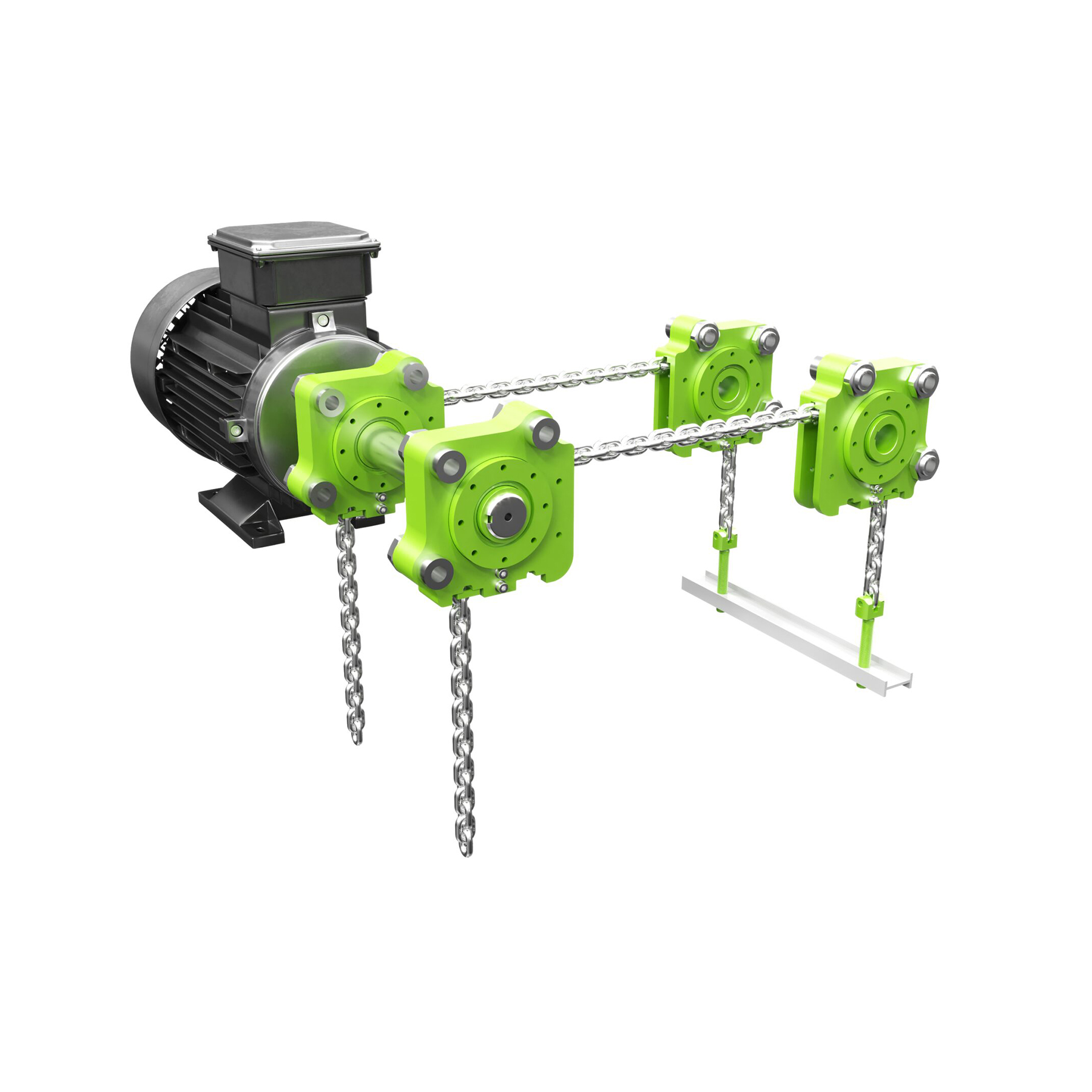

• Vertical Pi drive with two stand and two parallel drives

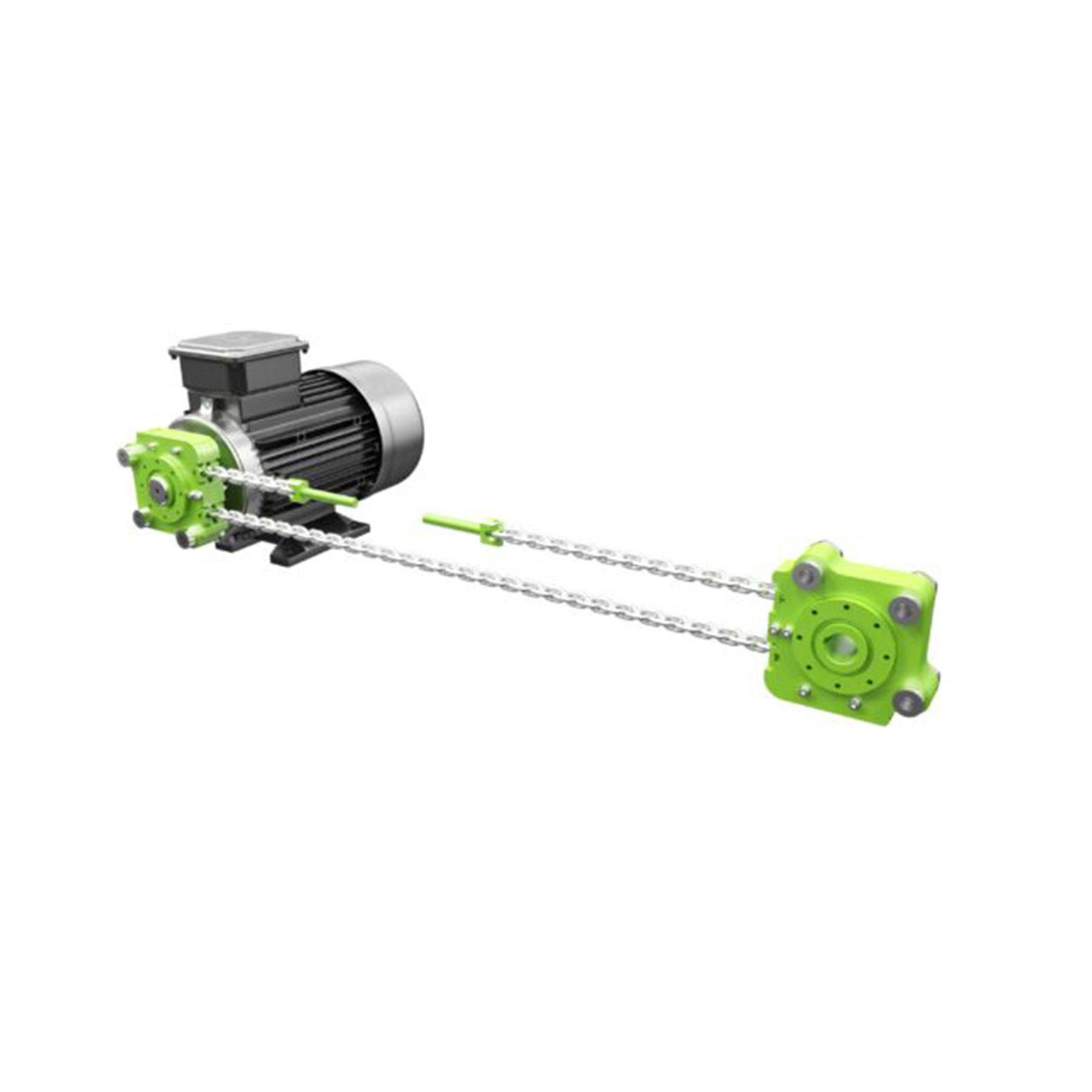

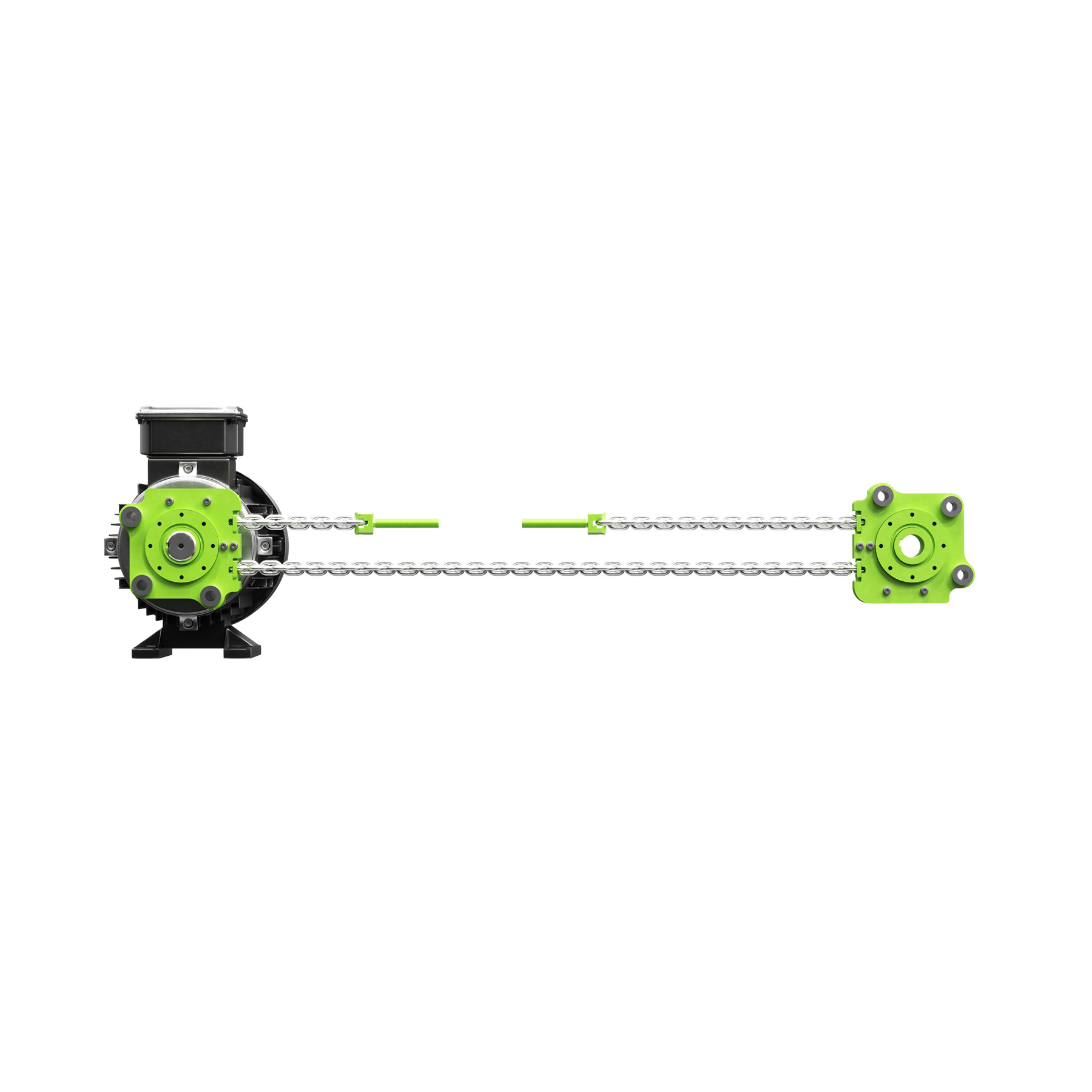

• Horizontal head drive two stand with two parallel Pi drives

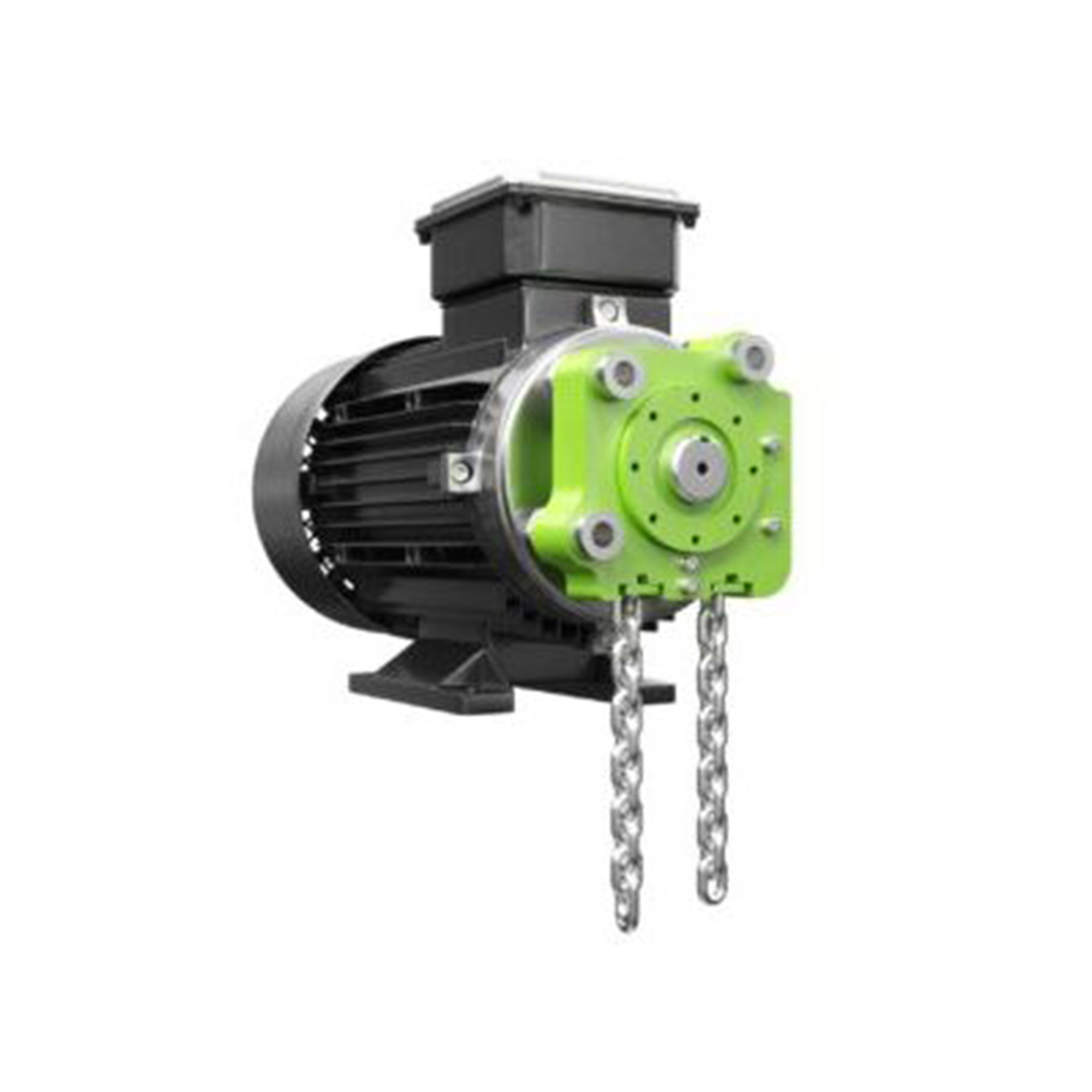

• Vertical Gamma drive two stand with a single drive

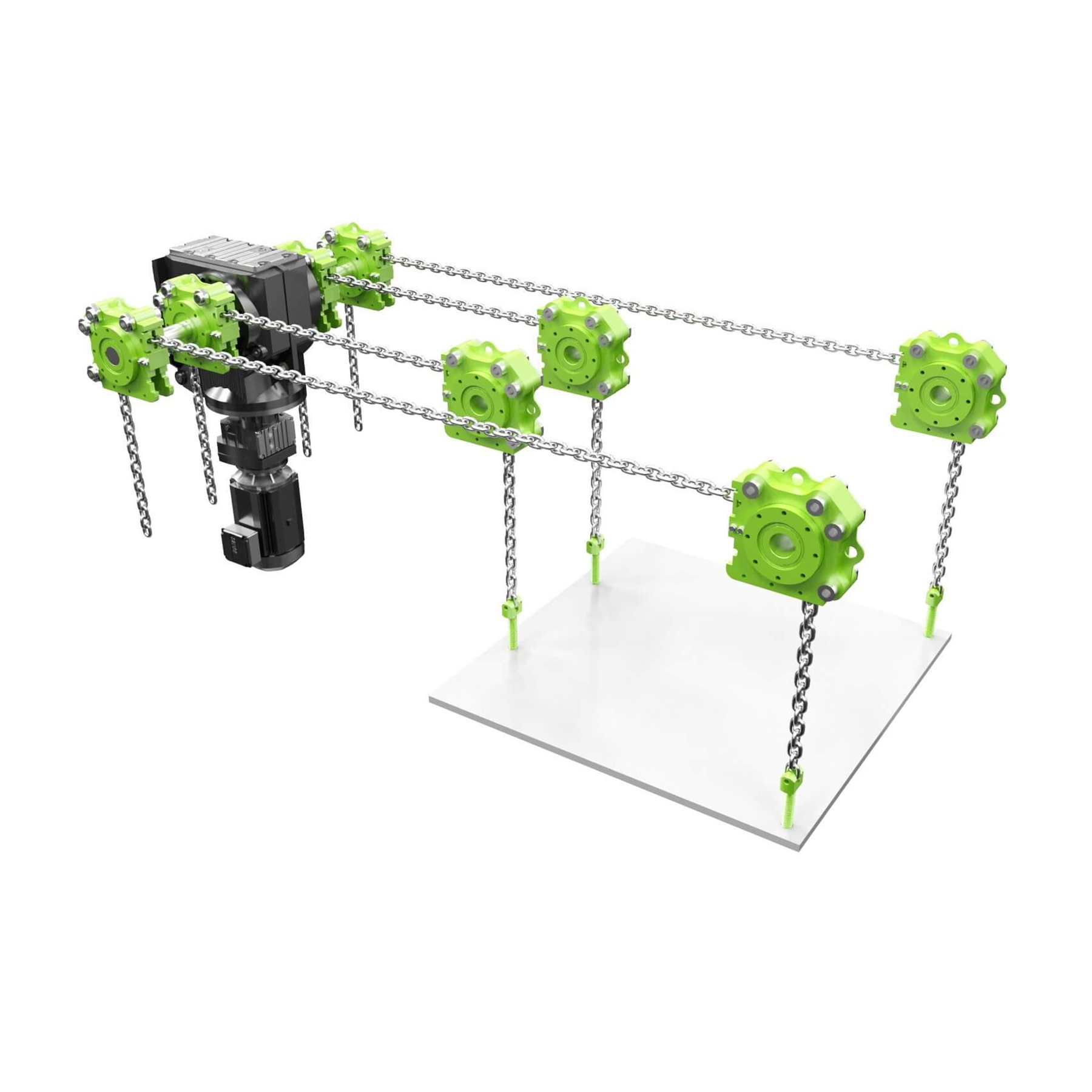

• Also with 3 and 4 chains

3 and 4 chair strand options available with drive depending on application
