RBG 3 - Load ring for bolting - RUD Chains Australia

RBG 3 – Load ring for bolting

The relief lugs protect the securing bolt against bending and/or schearing loads
Forged ring acc. to EN 1677-1, quality grade 80, electromagnetic crack detected and coloured red

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (1)

Eye Plate for bolting RBG-3 (51817)

Technical Information

Product number: 51817

Technical Downloads

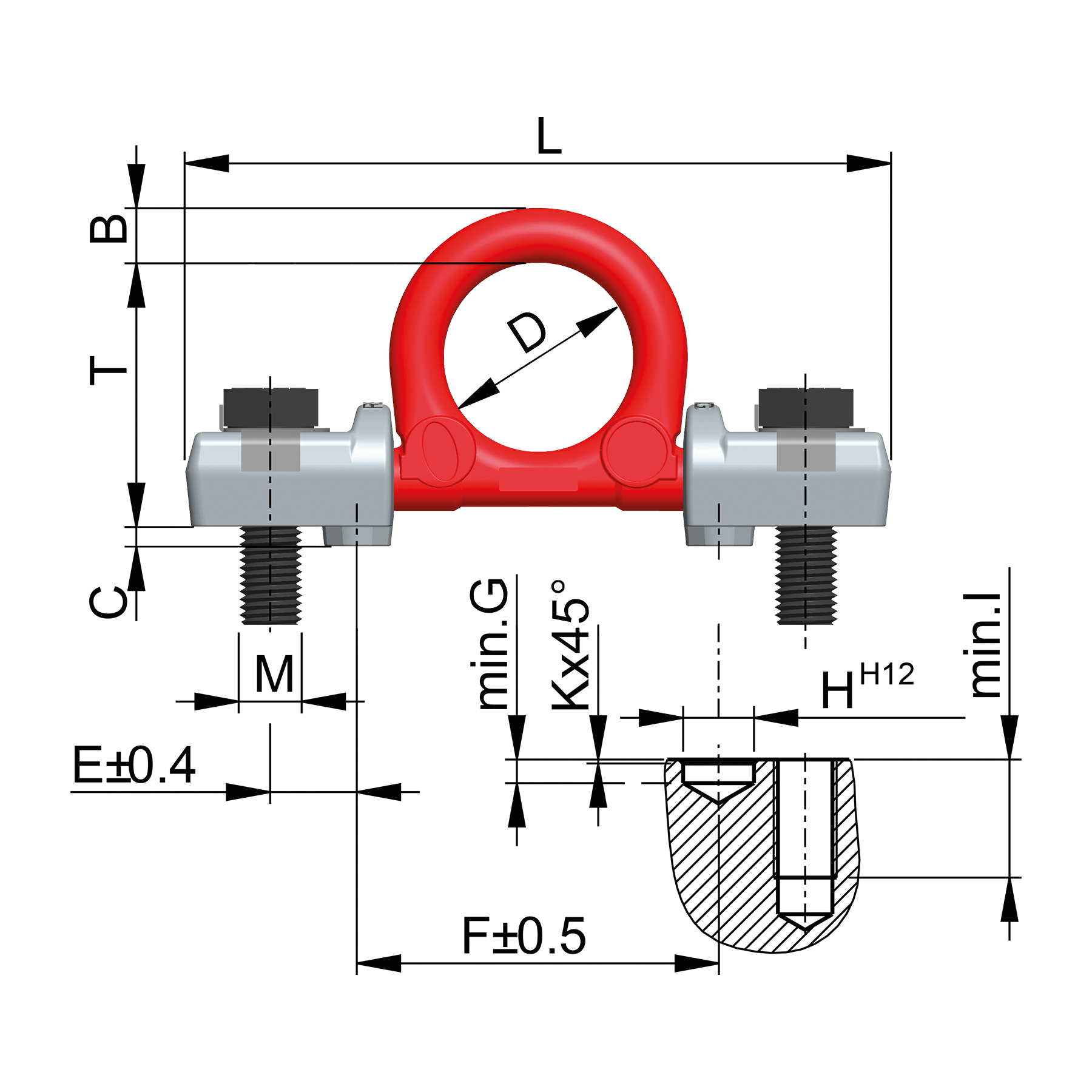

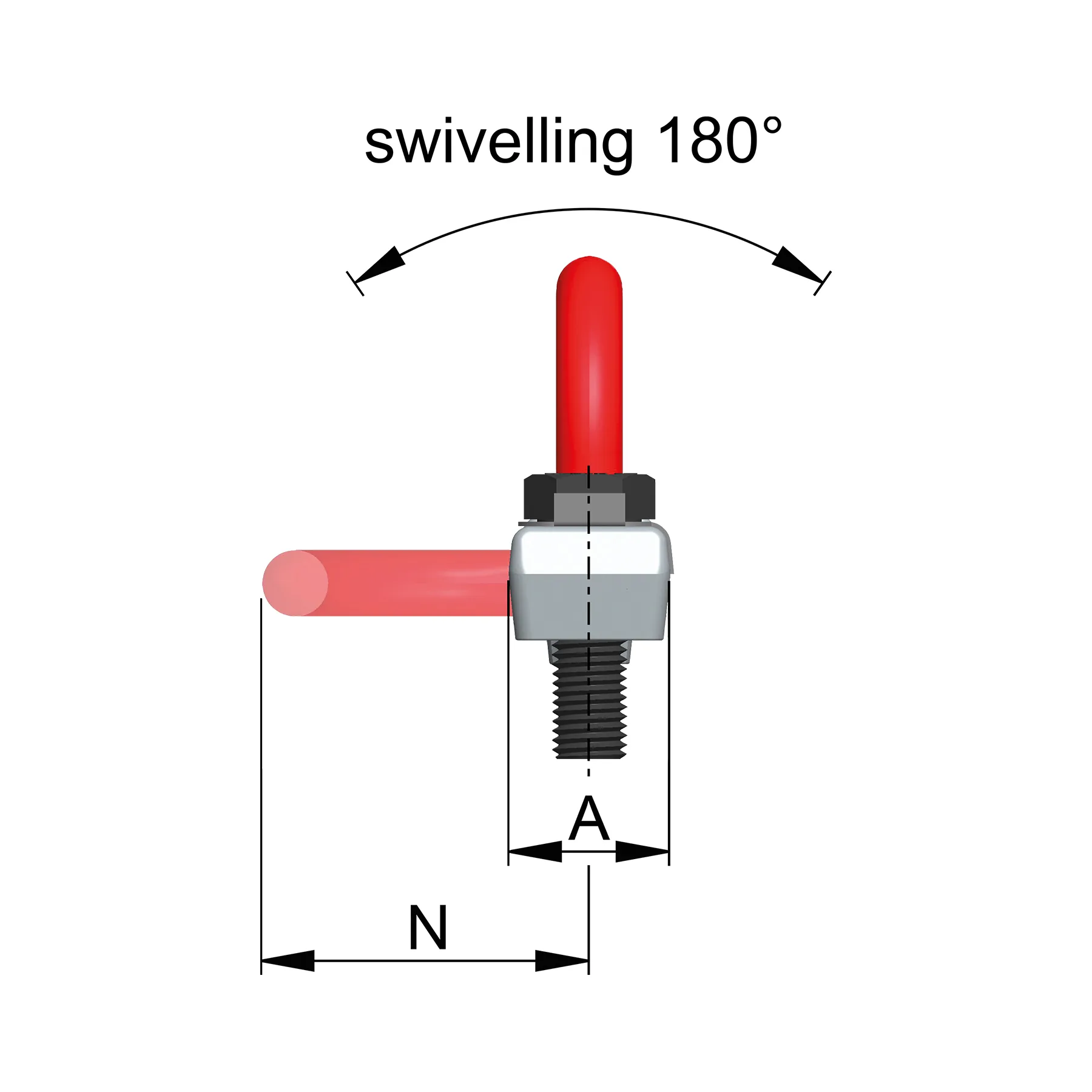

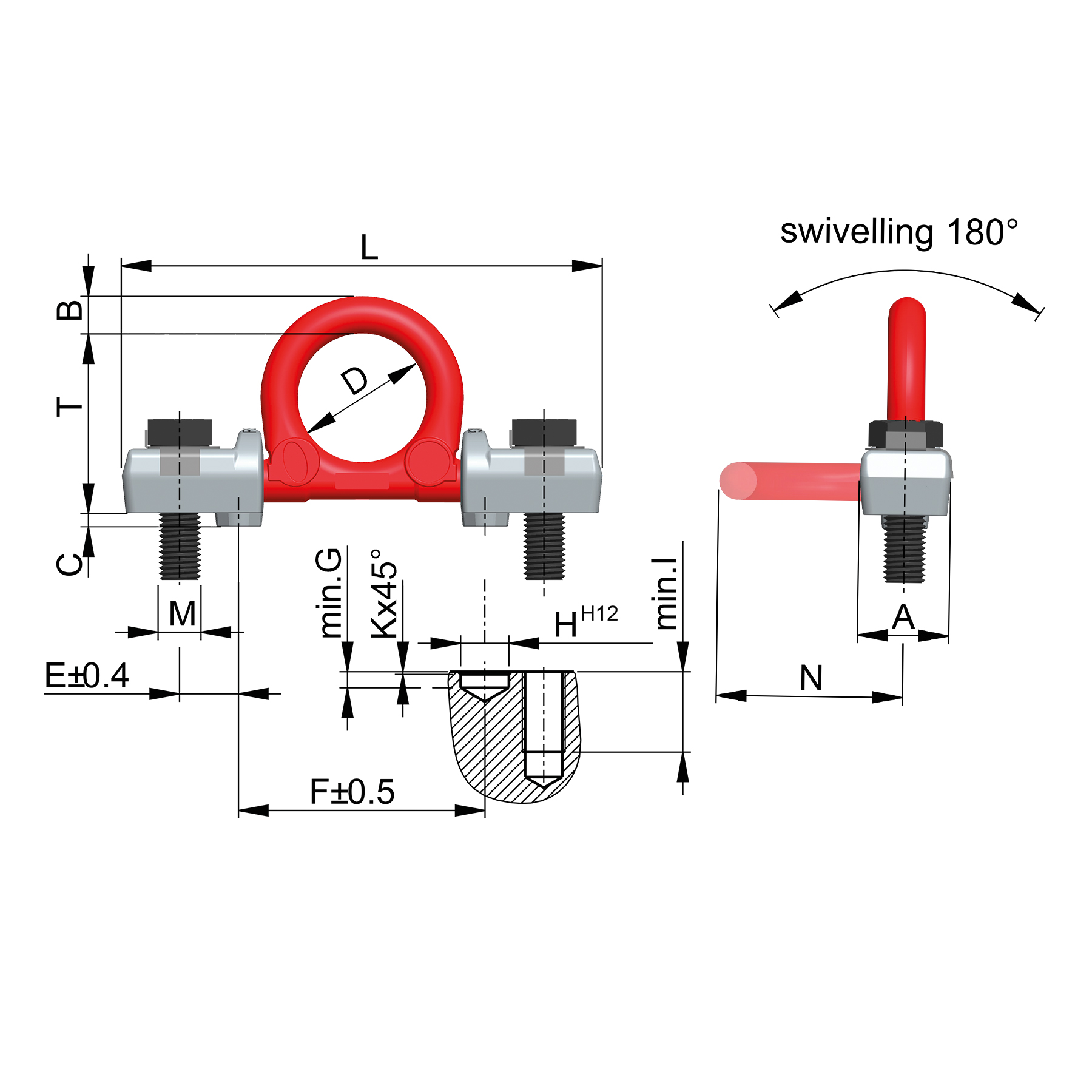

RBG-3 - DXF 2D CAD File Download File

RBG-3 - IGES 3D CAD File Download File

RBG-3 - STEP 3D CAD File Download File

Eye Plate for bolting RBG-3 Download File

Attribute	Value	Value
weight	1.07 kg	2.36 lbs
Nominal WLL	3000 kg	6600 lbs
T	67 mm	2-5/8"
A	34 mm	1-11/32"
B	16 mm	5/8"
C	5 mm	13/64"
D	48 mm	1-7/8"
E	22 mm	7/8"
F	92 mm	3-5/8"
G	6 mm	15/64"
H	18 mm	23/32"
I	30 mm	1-3/16"
K	1 mm	3/64"
L	178 mm	7"
M	M16 mm	M16
N	71 mm	2-13/16"

ENQUIRE ABOUT THIS PRODUCT
