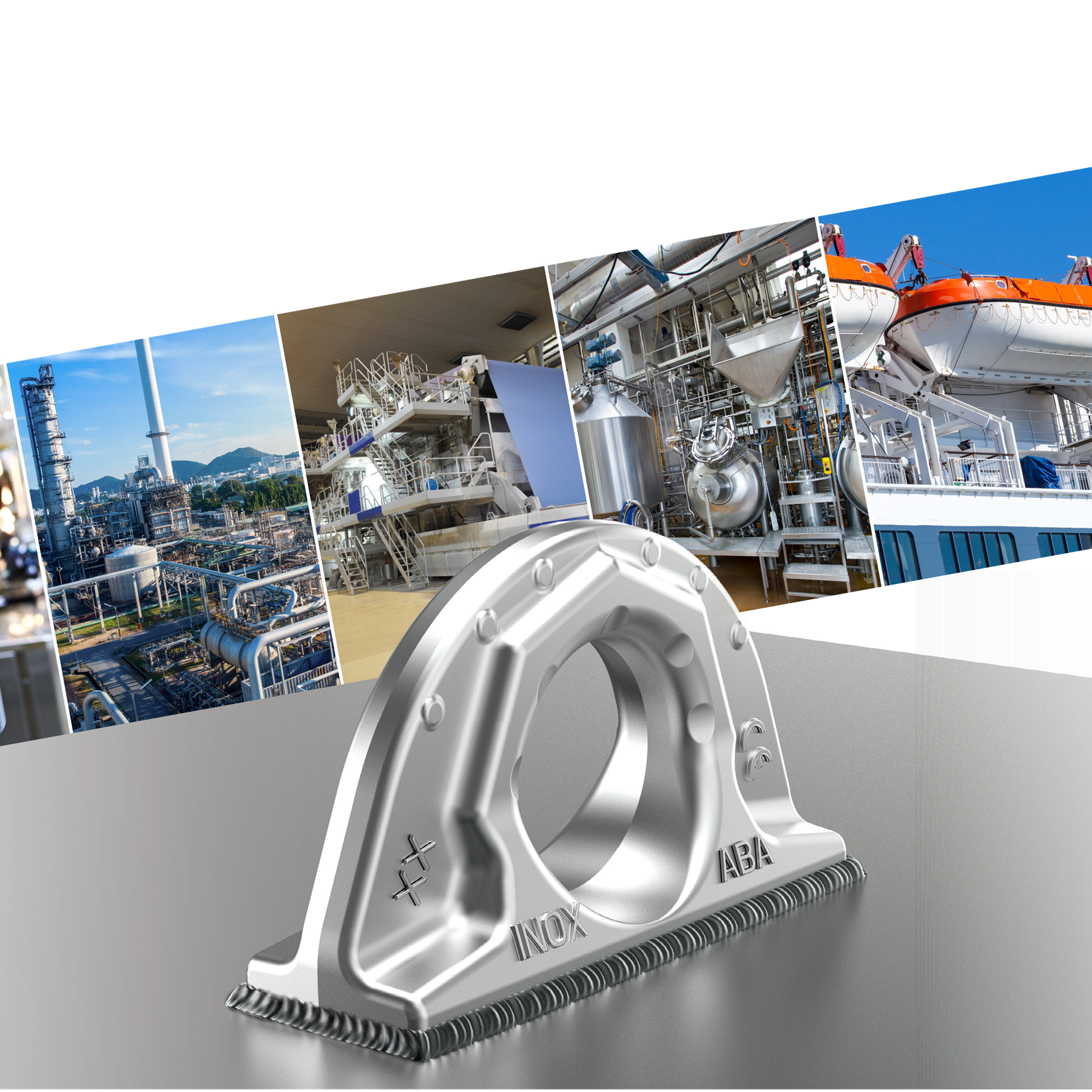

INOX-ABA - Weld-on Steel Lifting Point
Forged from Duplex Steel 1.4462
- Full WLL in any direction with 4:1 design factor
- Manufactured in Germany from Duplex Stainless Steel 1.4462
- Clear marking of the WLL
- Patented wear markings on the inside and outside
- Closed and circumferential fillet weld
- Temperature Range -40ºC to 250ºC no reduction in WLL
Product Variants (3)
INOX-ABA 0.8t - Stainless Steel Lifting Point for Welding (7912396)

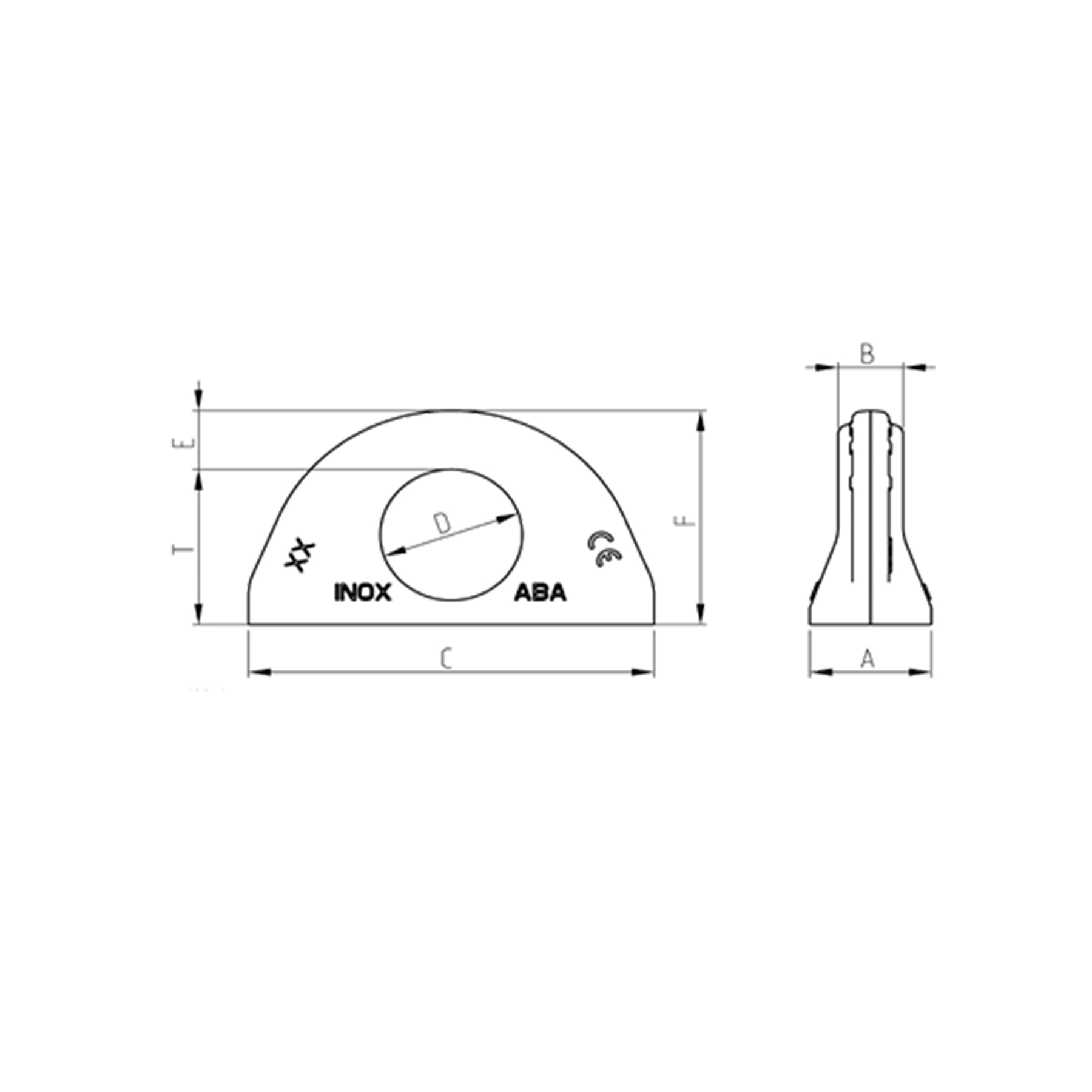

| Attribute | Value | Value |
|---|
| weight | 0.20 kg | 0.44 lbs |
| Nominal WLL | 800 kg | 1760 lbs |
| A | 22 mm | 7/8" |
| B | 12 mm | 15/32" |
| T | 38 mm | 1-1/2" |
| C | 70 mm | 2-3/4" |
| D | 32 mm | 1-1/4" |
| E | 12 mm | 15/32" |
| F | 50 mm | 1-31/32" |
INOX-ABA 1.6t - Stainless Steel Lifting Point for Welding (7912397)
| Attribute | Value | Value |
|---|
| weight | 0.45 kg | 0.99 lbs |
| Nominal WLL | 1600 kg | 3520 lbs |
| A | 30 mm | 1-3/16" |
| B | 16 mm | 5/8" |
| T | 41.5 mm | 1-21/32" |
| C | 100 mm | 3-15/16" |
| D | 35 mm | 1-3/8" |
| E | 16 mm | 5/8" |
| F | 57 mm | 2-1/4" |
INOX-ABA 2.7t - Stainless Steel Lifting Point for Welding (7912398)
| Attribute | Value | Value |
|---|
| weight | 1.1 kg | 2.42 lbs |
| Nominal WLL | 2700 kg | 5950 lbs |
| A | 41 mm | 1-5/8" |
| B | 23 mm | 29/32" |
| T | 59 mm | 2-15/16" |
| C | 137 mm | 5-3/8" |
| D | 50 mm | 1-31/32" |
| E | 21 mm | 13/16" |
| F | 80 mm | 3-1/8" |
