VRS STARPOINT Pipe thread ISO 228-1

360° adjustable in force direction

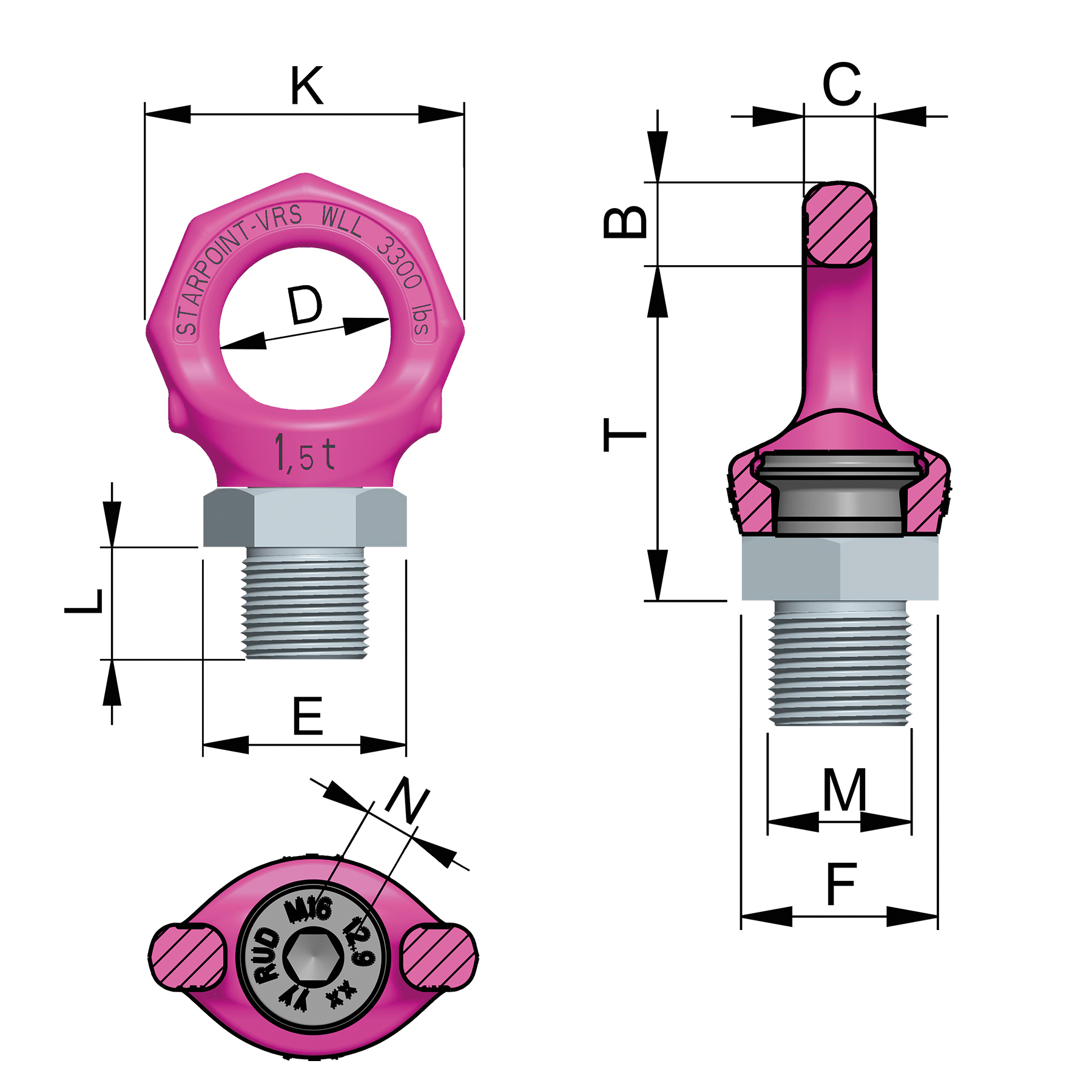

Vario-Starpoint VRS with adapter to pipe thread DIN ISO 228-1
Higher WLL than the DIN 580 eye bolt
Star shaped design, a clear distinction from the DIN 580 eye bolt

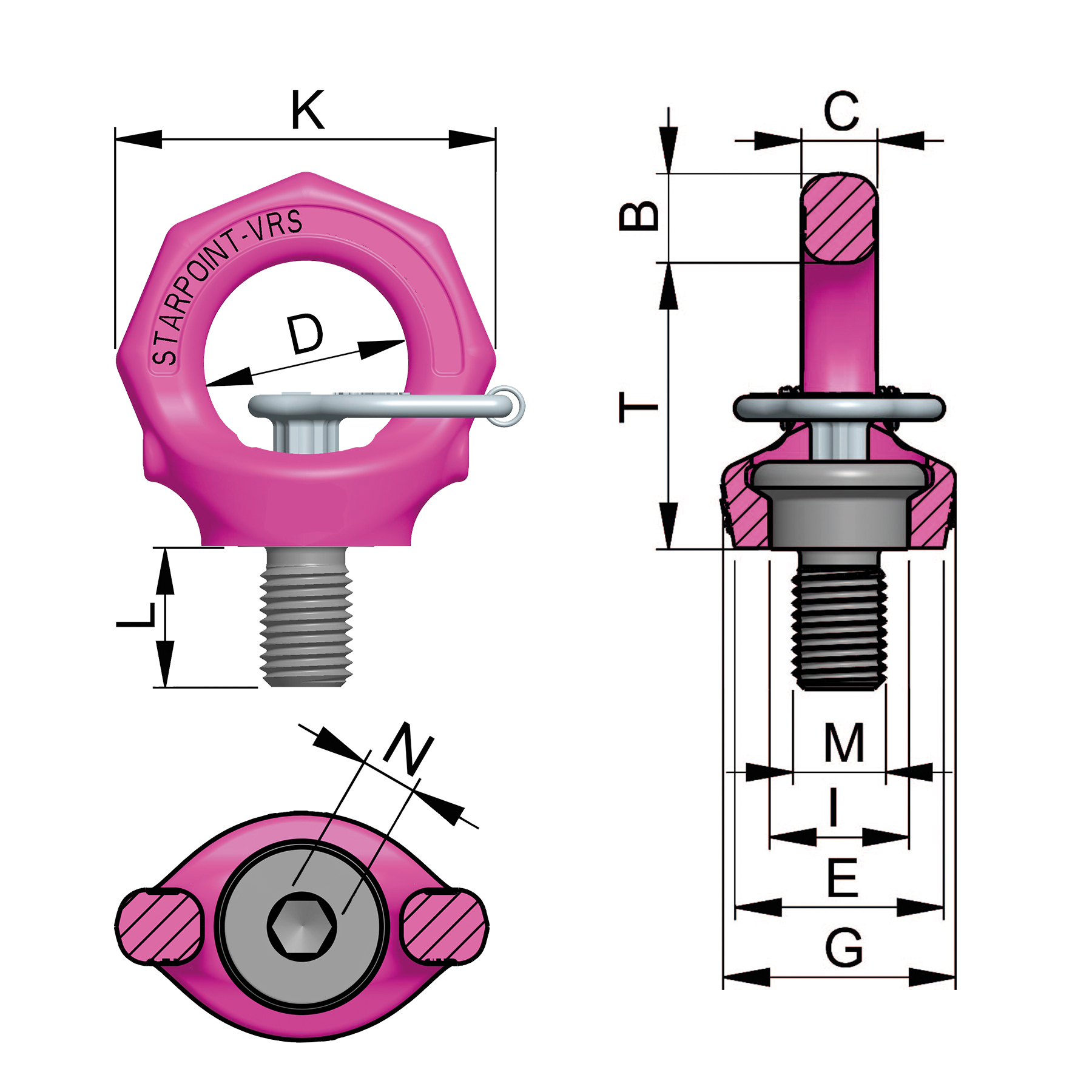

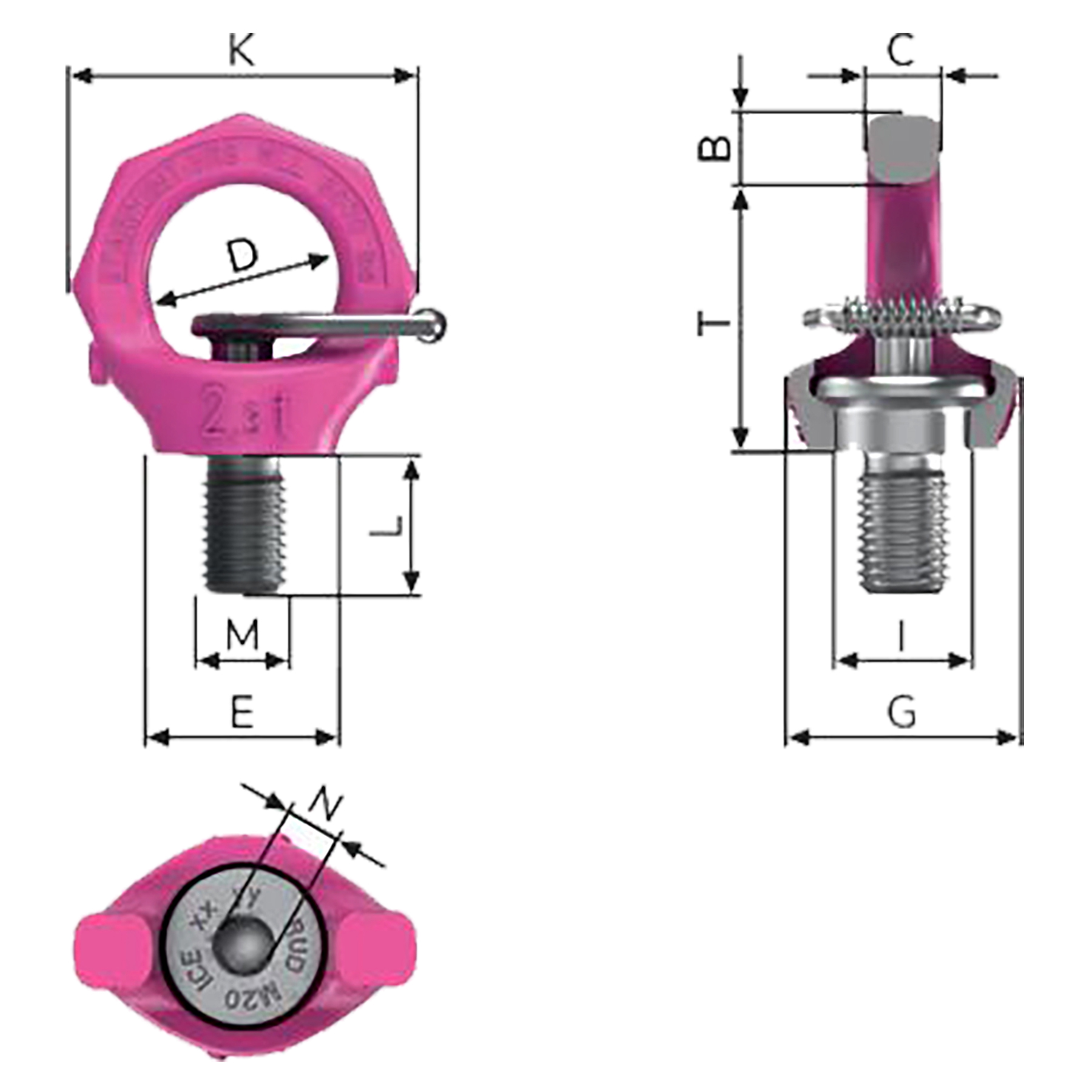

Easy-Fit-Key for easy assembly and disassembly available (see type VRS-F)
Color: fluorescent pink powder coating.

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (8)

STARPOINT VRS - G1/4" - 0.75t (7999269)

Technical Information

Product number: 7999269

Technical Downloads

VRS - Picture Download File

STARPOINT VRS - G1/4" - 0.75t Download File

Attribute	Value	Value
weight	0.19 kg	0.42 lbs
Nominal WLL	750 kg	1650 lbs
B	13 mm	1/2"
T	42 mm	1-21/32"
C	10 mm	3/8"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	38 mm	1-1/2"
I	19.8 mm	25/32"
K	56 mm	2-3/16"
L	18 mm	23/32"
M	G 1/4" mm	G 1/4"
N	8 mm	5/16"

STARPOINT VRS - G1/2" - 0.75t (7998682)

Technical Information

Product number: 7998682

Technical Downloads

VRS-Adapter - Picture Download File

VRS-G 1/2" - DXF 2D CAD File Download File

VRS-G 1/2" - IGES 3D CAD File Download File

VRS-G 1/2" - STEP 3D CAD File Download File

STARPOINT VRS - G1/2" - 0.75t Download File

Attribute	Value	Value
weight	0.29 kg	0.64 lbs
Nominal WLL	750 kg	1650 lbs
B	13 mm	1/2"
T	52 mm	2-1/16"
C	10 mm	3/8"
D	30 mm	1-3/16"
E	35 mm	1-3/8"
F	30 mm	1-3/16"
I	30 mm	1-3/16"
K	56 mm	2-3/16"
L	20 mm	3/4"
M	G 1/2" mm	G 1/2"
N	8 mm	5/16"

STARPOINT VRS - G3/4" - 1.5t (7998880)

Technical Information

Product number: 7998880

Technical Downloads

VRS-Adapter - Picture Download File

STARPOINT VRS - G3/4" - 1.5t Download File

Attribute	Value	Value
weight	0.53 kg	1.17 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	61 mm	2-13/32"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	42 mm	1-21/32"
F	36 mm	1-27/64"
I	36 mm	1-27/64"
K	65 mm	2-9/16"
L	23 mm	29/32"
M	G 3/4" mm	G 3/4"
N	10 mm	3/8"

STARPOINT VRS - G1" - 1.5t (7999163)

Technical Information

Product number: 7999163

Technical Downloads

VRS-Adapter - Picture Download File

STARPOINT VRS - G1" - 1.5t Download File

Attribute	Value	Value
weight	0.50 kg	1.10 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	61 mm	2-13/32"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	47 mm	1-7/8"
F	41 mm	1-5/8"
I	41 mm	1-5/8"
K	65 mm	2-9/16"
L	32 mm	1-1/4"
M	G 1" mm	G 1"
N	10 mm	3/8"

STARPOINT VRS - G1-1/4" - 1.5t (7903732)

Technical Information

Product number: 7903732

Technical Downloads

VRS-Adapter - Picture Download File

STARPOINT VRS - G1-1/4" - 1.5t Download File

Attribute	Value	Value
weight	0.92 kg	2.03 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	64 mm	2-1/2"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	58 mm	2-9/32"
F	50 mm	1-31/32"
I	50 mm	1-31/32"
K	65 mm	2-9/16"
L	40 mm	1-9/16"
M	G 1-1/4" mm	G 1-1/4"
N	10 mm	3/8"

STARPOINT VRS - G2" - 1.5t (7999164)

Technical Information

Product number: 7999164

Technical Downloads

VRS-Adapter - Picture Download File

STARPOINT VRS - G2" - 1.5t Download File

Attribute	Value	Value
weight	1.50 kg	3.31 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	64 mm	2-1/2"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	81 mm	3-3/16"
F	70 mm	2-3/4"
I	70 mm	2-3/4"
K	65 mm	2-9/16"
L	45 mm	1-25/32"
M	G 2" mm	G 2"
N	10 mm	3/8"

STARPOINT VRS - G2" - 2.3t (7900433)

Technical Information

Product number: 7900433

Technical Downloads

VRS-Adapter - Picture Download File

STARPOINT VRS - G2" - 2.3t Download File

Attribute	Value	Value
weight	1.89 kg	4.17 lbs
Nominal WLL	2300 kg	5060 lbs
B	17 mm	43/64"
T	73 mm	2-7/8"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	81 mm	3-3/16"
F	70 mm	2-3/4"
I	70 mm	2-3/4"
K	76 mm	3"
L	45 mm	1-25/32"
M	G 2" mm	G 2"
N	12 mm	15/32"

STARPOINT VRS - G3" - 1.5t (7905324)

Technical Information

Product number: 7905324

Technical Downloads

VRS-Adapter - Picture Download File

STARPOINT VRS - G3" - 1.5t Download File

Attribute	Value	Value
weight	3.30 kg	7.28 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	64 mm	2-1/2"
C	13 mm	1/2"
D	35 mm	1-3/8"
E	115 mm	4-1/2"
F	100 mm	3-15/16"
I	70 mm	2-3/4"
K	65 mm	2-9/16"
L	45 mm	1-25/32"
M	G 3" mm	G 3"
N	10 mm	3/8"
