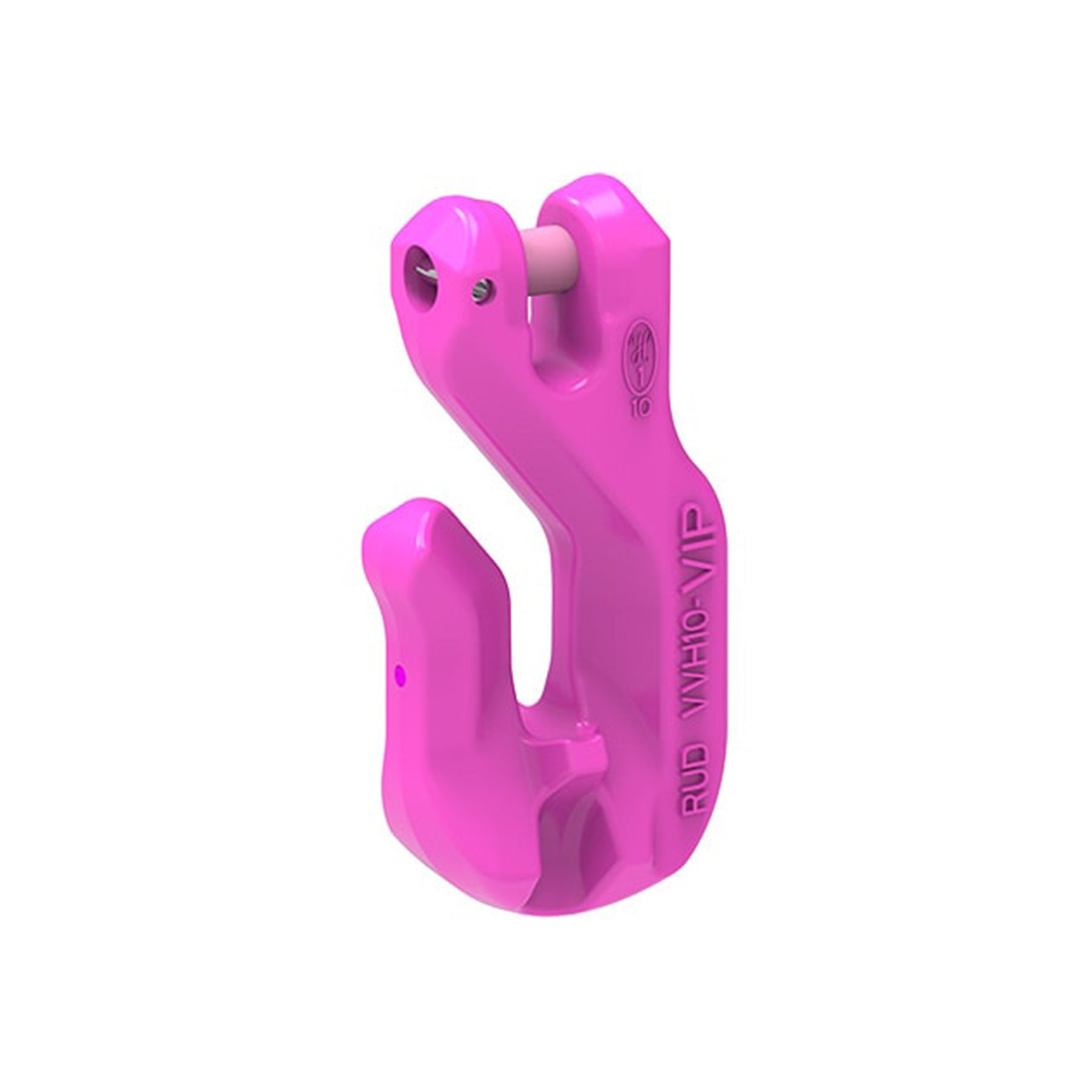

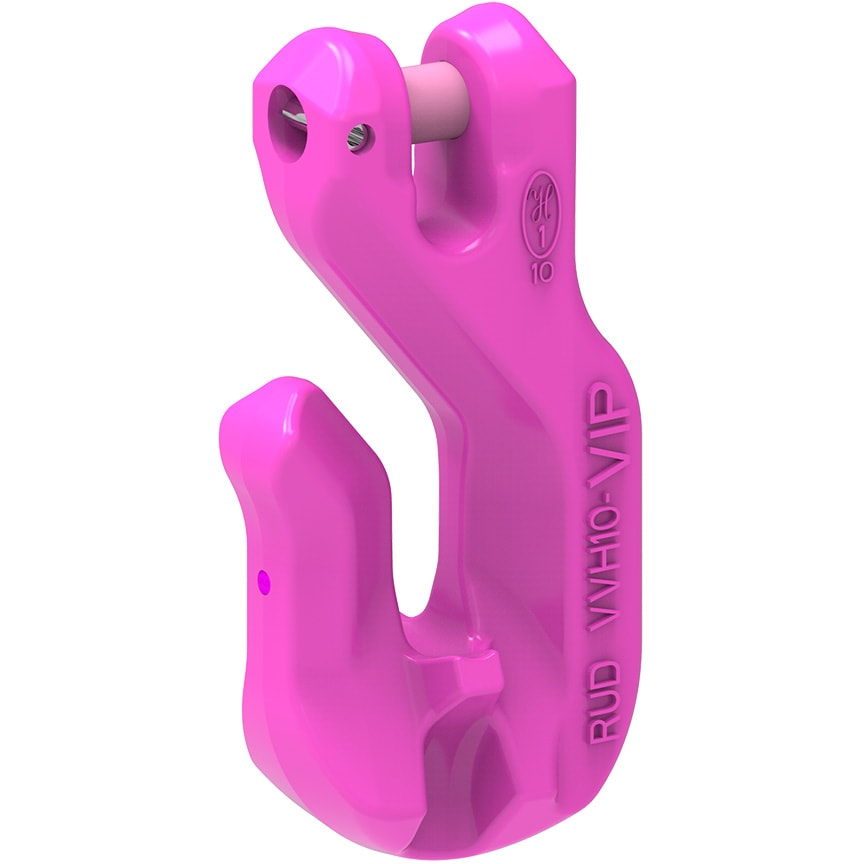

VIP VVH Shortening Hook
- Manufactured in compliance with DIN 5692
- No reduction of VIP-WLL due to ideal fitting of the chain at the hook bottom through calibrated tooth lugs
- The thickened hook tip prevents accidents such as improper hanging of the chain
- The inclined insertion opening prevents the chain from falling out
- Comes with pre-assembled connecting bolt and tensioning sleeve
Product Variants (7)
VIP-Grab-hook VVH 6 (7988658)

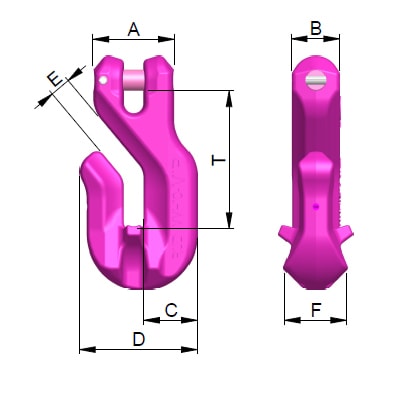

| Attribute | Value | Value |
|---|
| weight | 0.27 kg | 0.60 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 34 mm | 1-11/32" |
| B | 18 mm | 23/32" |
| T | 53 mm | 2-3/32"
|
| C | 20 mm | 3/4" |
| D | 44 mm | 1-3/4" |
| E | 7.5 mm | 11/32"
|
| F | 23 mm | 29/32" |
VIP-Grab-hook VVH 8 (7987319)
| Attribute | Value | Value |
|---|
| weight | 0.45 kg | 0.77 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 38 mm | 1-1/2" |
| B | 22 mm | 7/8" |
| T | 64 mm | 2-1/2"
|
| C | 25 mm | 63/64" |
| D | 54 mm | 2-1/8" |
| E | 9.5 mm | 3/8"
|
| F | 33 mm | 1-5/16" |
VIP-Grab-hook VVH 10 (7987320)
| Attribute | Value | Value |
|---|
| weight | 1.03 kg | 1.76 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 47 mm | 1-7/8" |
| B | 28 mm | 1-1/8" |
| T | 80 mm | 3-1/8"
|
| C | 31 mm | 1-7/32" |
| D | 68 mm | 2-11/16" |
| E | 12 mm | 15/32" |
| F | 42 mm | 1-21/32" |
VIP-Grab-hook VVH 13 (7987321)
| Attribute | Value | Value |
|---|
| weight | 2.15 kg | 4.85 lbs |
| Nominal WLL | 6700 kg | 15000 lbs |
| A | 60 mm | 2-3/8" |
| B | 36 mm | 1-27/64" |
| T | 103 mm | 4-1/16"
|
| C | 40 mm | 1-9/16" |
| D | 87 mm | 3-7/16" |
| E | 15 mm | 19/32" |
| F | 47 mm | 1-7/8" |
VIP-Grab-hook VVH 16 (7988669)
| Attribute | Value | Value |
|---|
| weight | 4.06 kg | 7.72 lbs |
| Nominal WLL | 10000 kg | 22000 lbs |
| A | 75 mm | 2-15/16" |
| B | 45 mm | 1-25/32" |
| T | 125 mm | 4-15/16"
|
| C | 50 mm | 1-31/32" |
| D | 108 mm | 4-1/4" |
| E | 18.5 mm | 23/32"
|
| F | 57 mm | 2-1/4" |
VIP-Grab-hook VVH 22 (8503631)
| Attribute | Value | Value |
|---|
| weight | 11.00 kg | 24.25 lbs |
| Nominal WLL | 20000 kg | 44000 lbs |
| A | 102 mm | 4" |
| B | 62 mm | 2-7/16" |
| T | 179 mm | 7-1/32"
|
| C | 69 mm | 2-23/32" |
| D | 151 mm | 5-15/16" |
| E | 26 mm | 1" |
| F | 83 mm | 3-1/4" |
VIP-Grab-hook VVH 20 (8503630)
| Attribute | Value | Value |
|---|
| weight | 8.40 kg | 18.52 lbs |
| Nominal WLL | 16000 kg | 35300 lbs |
| A | 92 mm | 3-5/8" |
| B | 58 mm | 2-9/32" |
| T | 162 mm | 3-3/8"
|
| C | 63 mm | 2-15/32" |
| D | 138 mm | 5-7/16" |
| E | 24 mm | 15/16" |
| F | 76 mm | 3" |
