VIP Spare Part Set for Cobra Hook

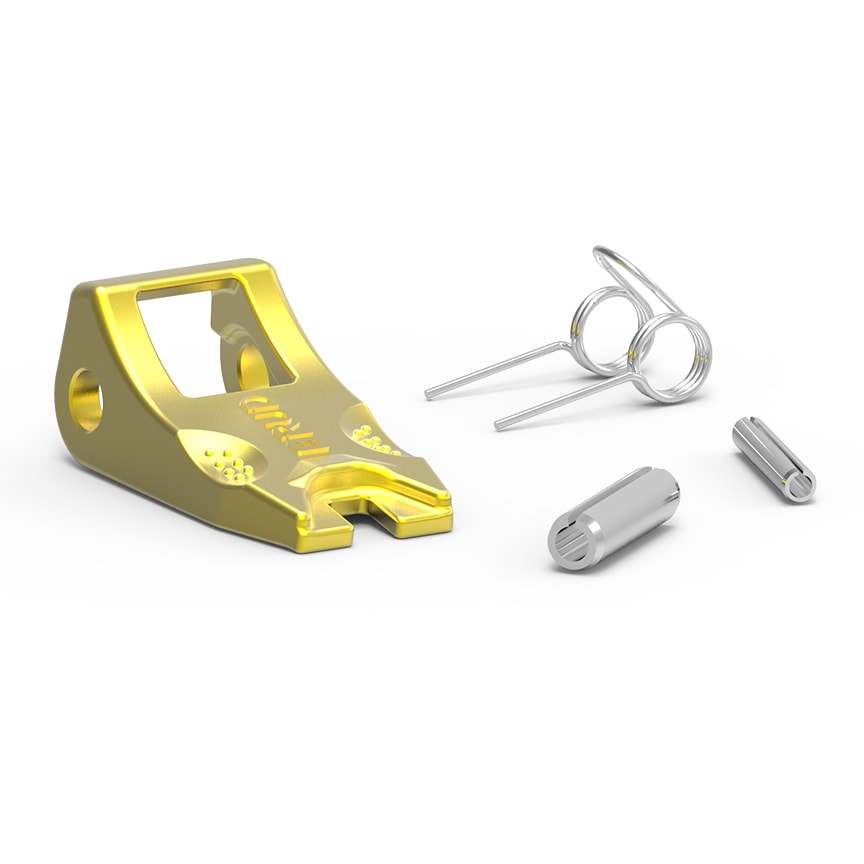

- Includes a forged safety latch, a triple coiled corrosion protected double leg spring and a tensioning sleeve
- Only whole sets can be supplied
- Springs are available only in box quantity
- Can easily be assembled and disassembled using a hammer and a drift punch
Product Variants (15)
Securing set for ISH-4, VMH-4 and VCÖH 4 (7987901)
Attribute | Value | Value |
---|
weight | 0.03 kg | 0.07 lbs |
A | 36.0 mm | 1-27/64" |
B | 17.0 mm | 43/64" |
Securing set for VCGH and VCÖH 6 (7100299)
Attribute | Value | Value |
---|
weight | 0.05 kg | 0.11 lbs |
A | 48.0 mm | 1-7/8" |
B | 22.0 mm | 7/8" |
Securing set for VCGH and VCÖH 8 (7100300)
Attribute | Value | Value |
---|
weight | 0.09 kg | 0.20 lbs |
A | 60.0 mm | 2-3/8" |
B | 26.0 mm | 1" |
Securing set for VCGH and VCÖH 10 (7100301)
Attribute | Value | Value |
---|
weight | 0.12 kg | 0.26 lbs |
A | 66.0 mm | 2-5/8" |
B | 33.0 mm | 1-5/16" |
Securing set for VCGH and VCÖH 13 (7100302)
Attribute | Value | Value |
---|
weight | 0.17 kg | 0.37 lbs |
A | 77.0 mm | 3"-1/32" |
B | 38.0 mm | 1-1/2" |
Securing set for VCGH and VCÖH 16 (7100303)
Attribute | Value | Value |
---|
weight | 0.33 kg | 0.73 lbs |
A | 92.0 mm | 3-5/8" |
B | 50.0 mm | 1-31/32" |
Securing set for VCGH 20 (7101604)
Attribute | Value | Value |
---|
weight | 0.58 kg | 1.28 lbs |
A | 118.0 mm | 4-5/8" |
B | 60.0 mm | 2-3/8" |
Securing set for VCGH 22 (7101604)
Attribute | Value | Value |
---|
weight | 0.58 kg | 1.28 lbs |
A | 118.0 mm | 4-5/8" |
B | 60.0 mm | 2-3/8" |
Securing set for VCGH 28 (7900640)
Attribute | Value | Value |
---|
weight | 1.60 kg | 3.53 lbs |
A | 165 mm | 6-1/2" |
B | 90 mm | 3-17/32" |

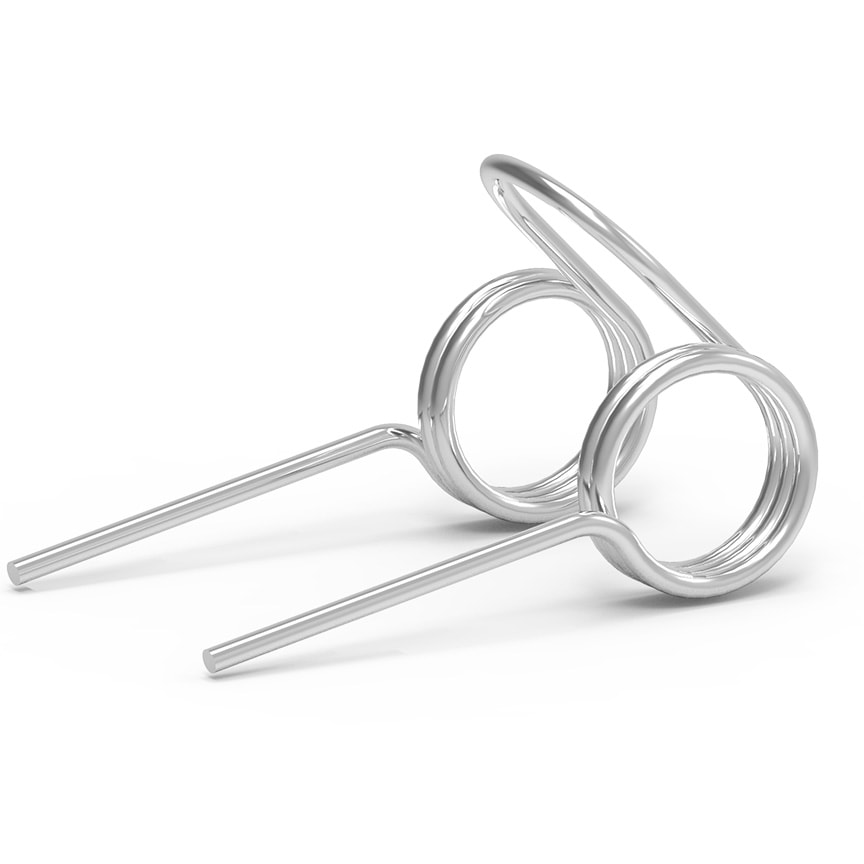

50 pieces spring for VCGH 6 and VCÖH 6 (8500980)
Attribute | Value | Value |
---|
weight | 0.25 kg | 0.55 lbs |
50 pieces spring for VCGH 8 and VCÖH 8 (8500981)
Attribute | Value | Value |
---|
weight | 0.25 kg | 0.55 lbs |
50 pieces spring for VCGH 10 and VCÖH 10 (8500982)
Attribute | Value | Value |
---|
weight | 0.3 kg | 0.66 lbs |
20 pieces spring for VCGH 13 and VCÖH 13 (8500983)
Attribute | Value | Value |
---|
weight | 0.08 kg | 0.18 lbs |
10 pieces spring for VCGH 16 and VCÖH 16 (8503231)
Attribute | Value | Value |
---|
weight | 0.06 kg | 0.13 lbs |
10 pieces spring for VCGH 20 and 22 (8503232)
Attribute | Value | Value |
---|
weight | 0.09 kg | 0.20 lbs |
