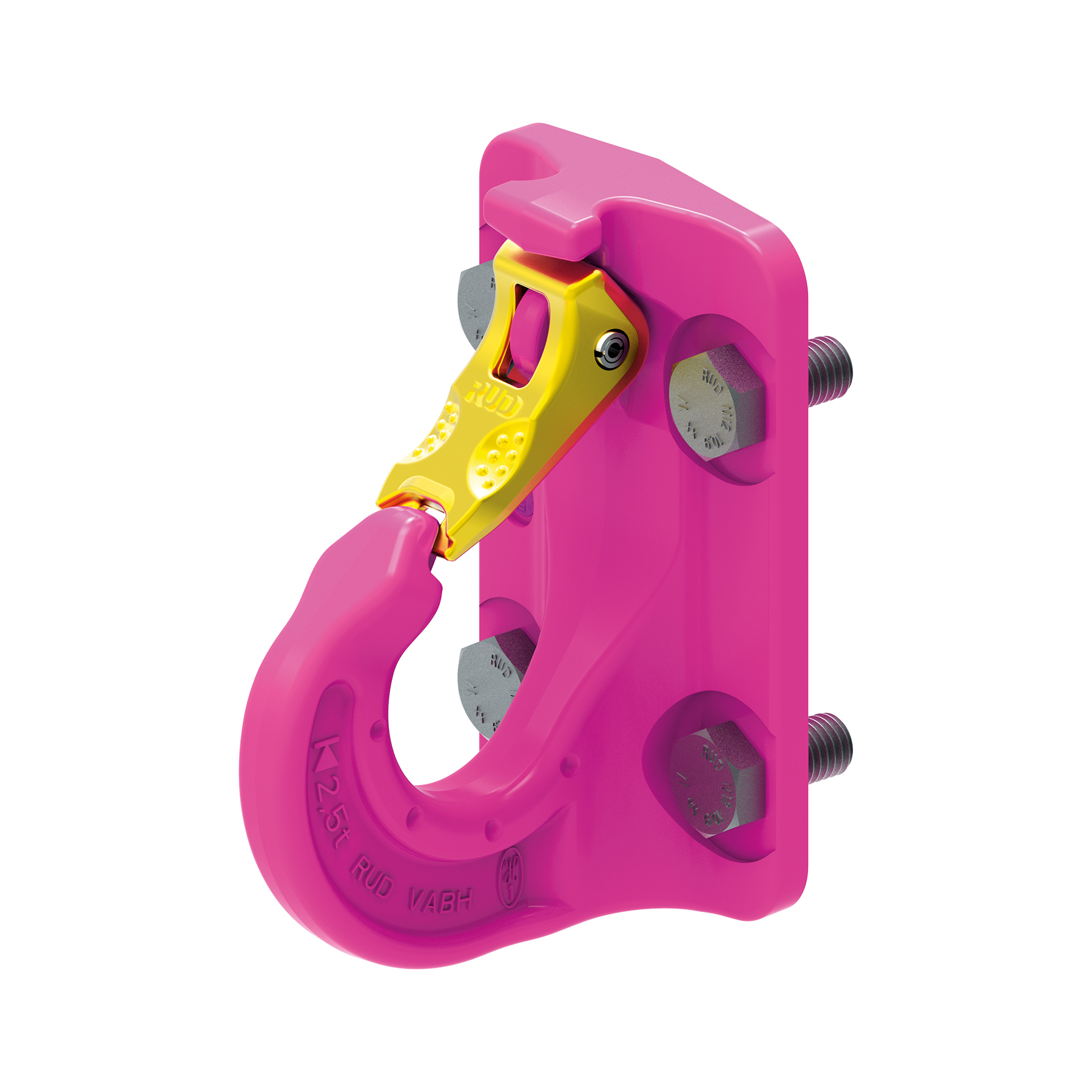

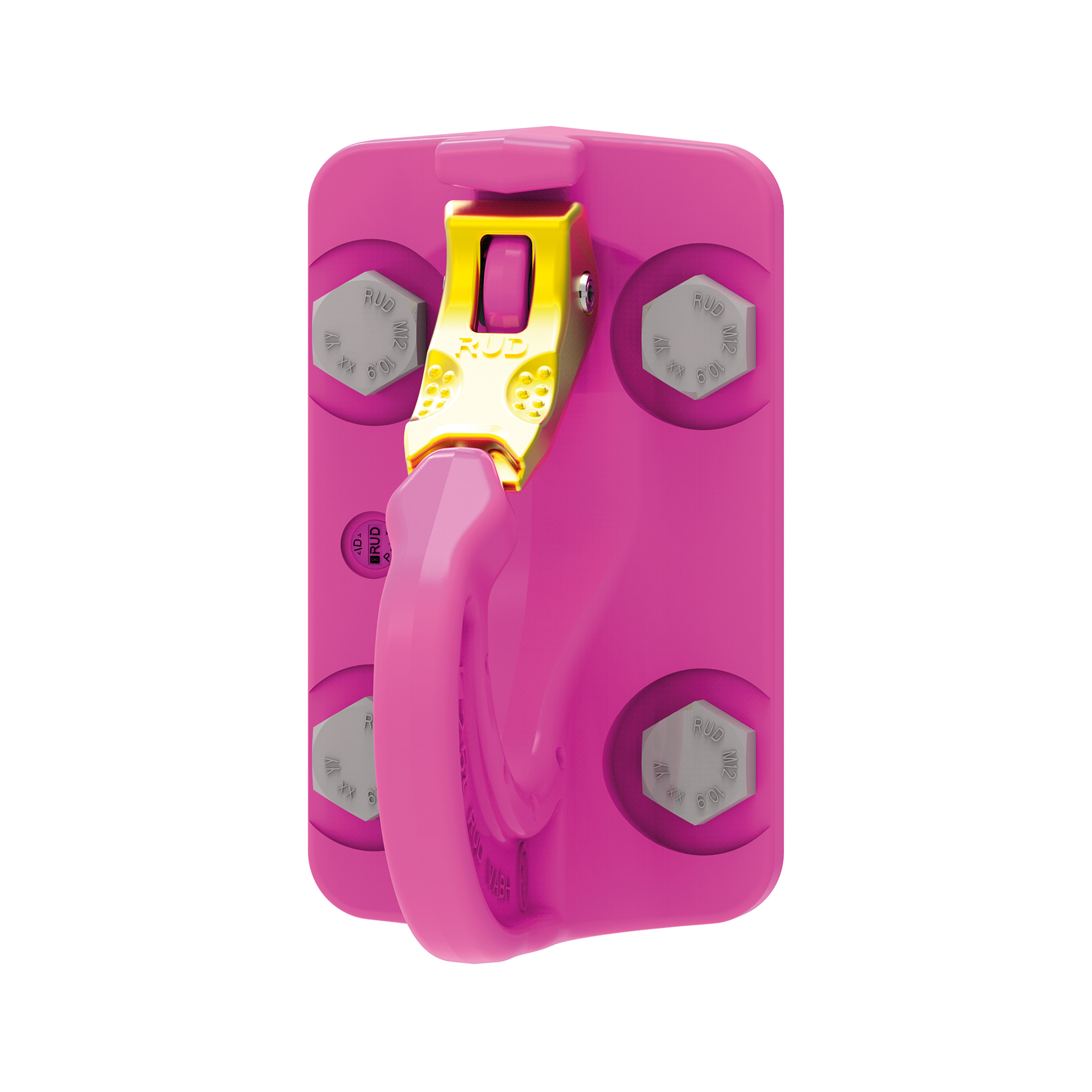

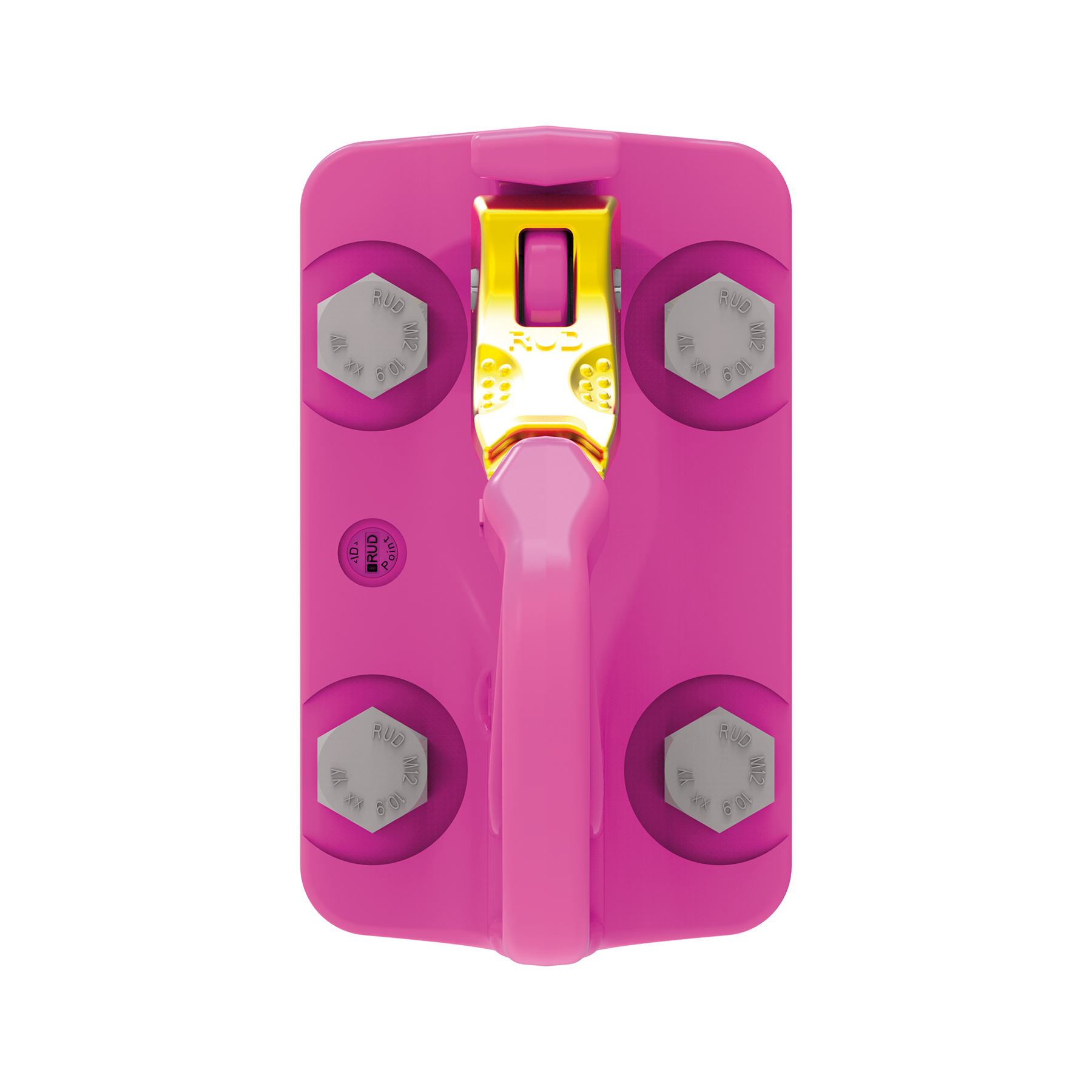

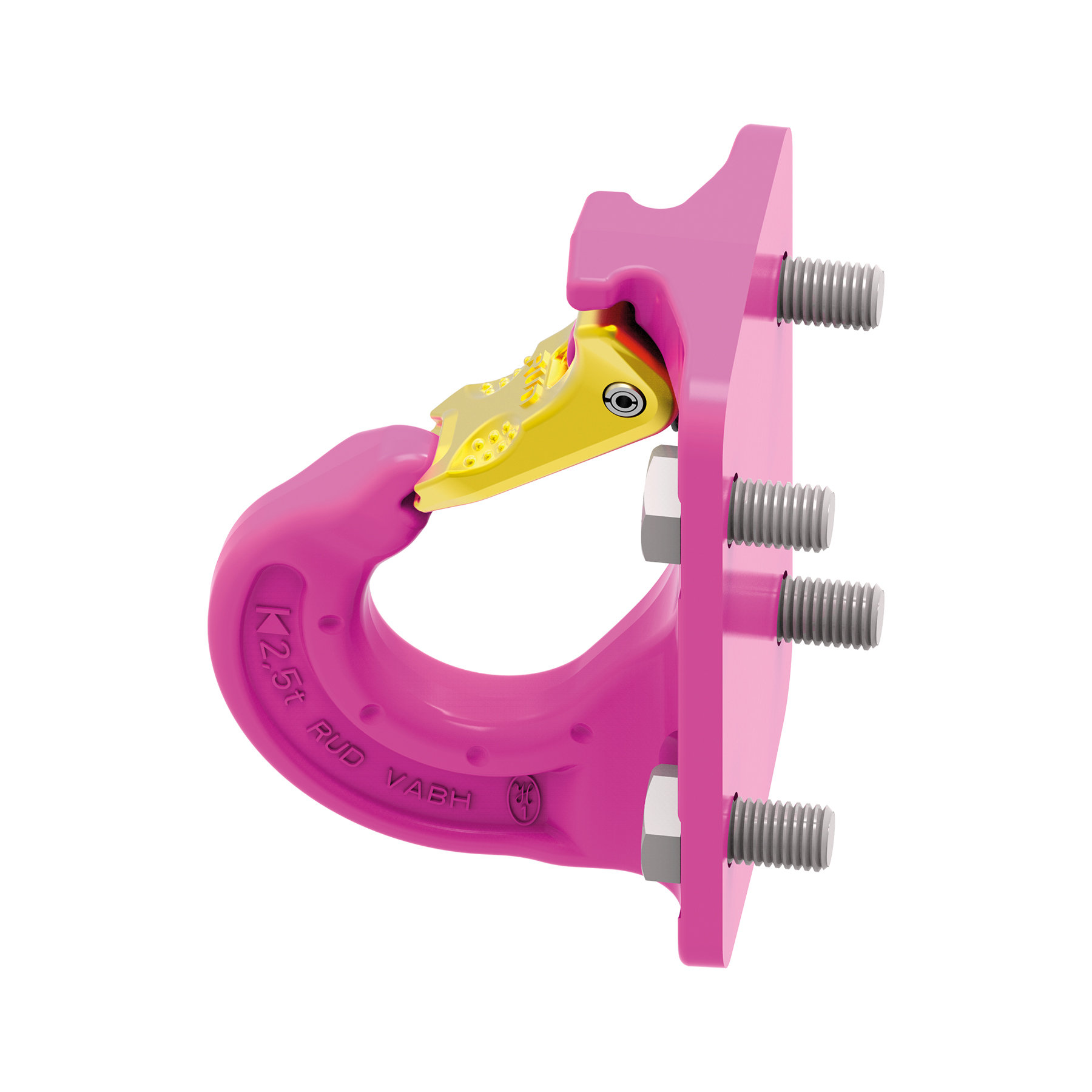

VABH-B Excavator Hook

The threaded hook for all lifting means

Suitable for lifting points on cross bars and beams
For wire rope slings and round slings

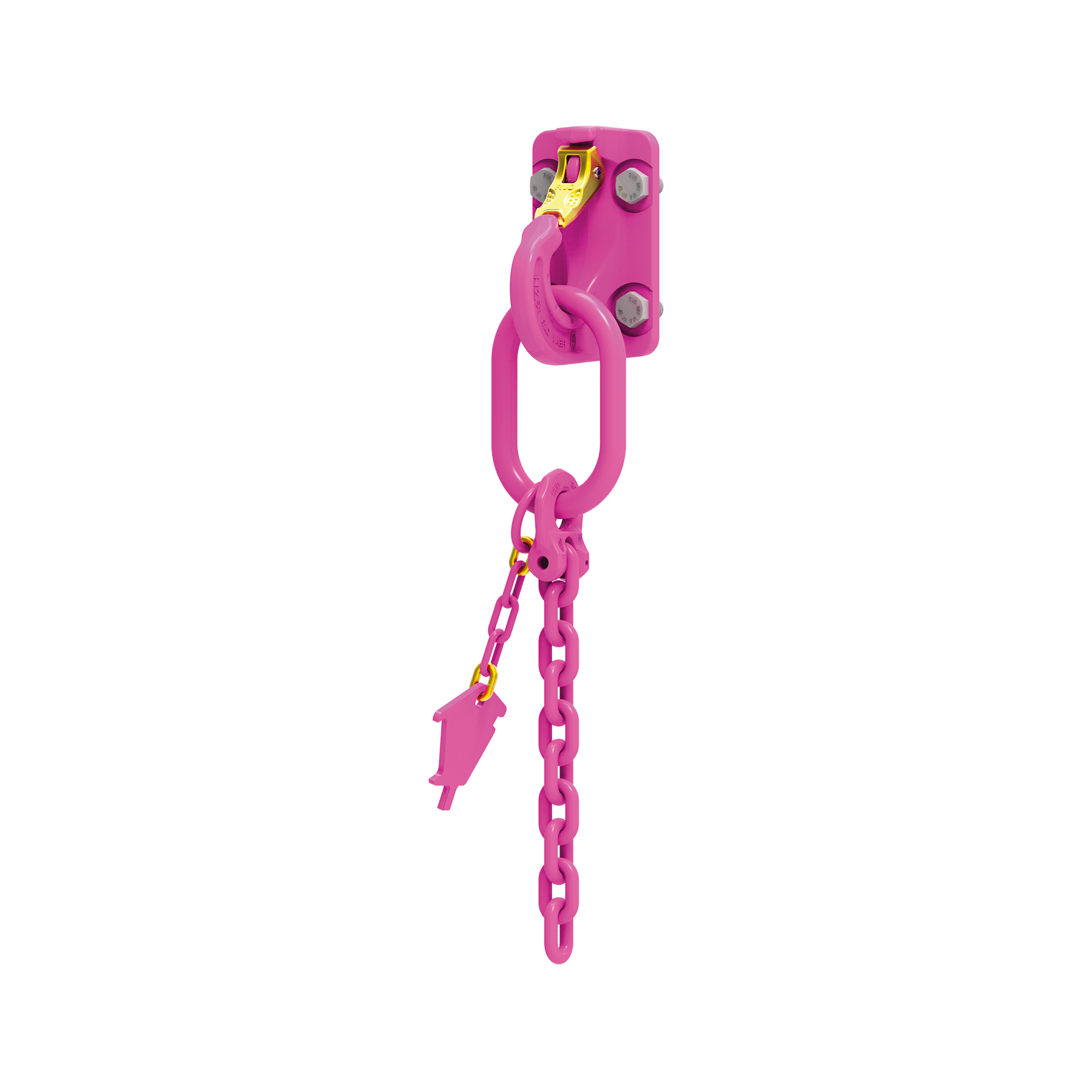

Suitable for lifting means with loop or oval suspension ring
RUD 4:1 safety factor

Product Variants (4)

Excavator hook VABH-B 1.5t (7991205)

Technical Information

Product number: 7991205

Technical Downloads

VABH-B 1.5t - DXF 2D CAD File Download File

VABH-B 1.5t - IGES 3D CAD File Download File

VABH-B 1.5t - STEP 3D CAD File Download File

Excavator hook VABH-B 1.5t Download File

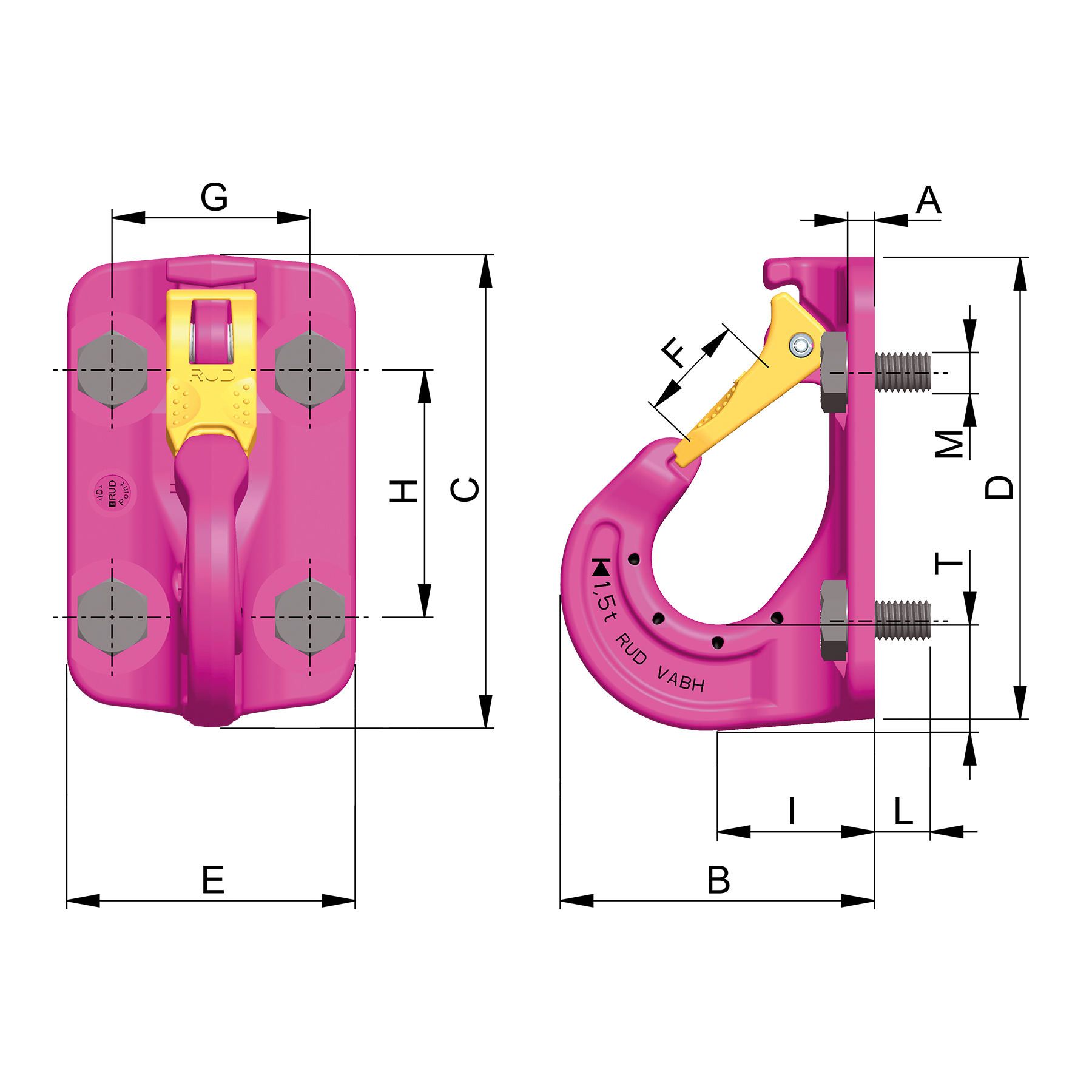

Attribute	Value	Value
weight	0.78 kg	1.72 lbs
Nominal WLL	1500 kg	3300 lbs
T	26 mm	1"
A	6.5 mm	5/16"
B	76 mm	3"
C	115 mm	4-1/2"
D	111 mm	4-13/32"
E	70 mm	2-3/4"
F	26 mm	1"
G	48 mm	1-7/8"
H	60 mm	2-3/8"
I	38 mm	1-1/2"
L	13.5 mm	17/32"
M	M10 mm	M10

Excavator hook VABH-B 2.5t (7991206)

Technical Information

Product number: 7991206

Technical Downloads

VABH-B 2.5t - DXF 2D CAD File Download File

VABH-B 2.5t - IGES 3D CAD File Download File

VABH-B 2.5t - STEP 3D CAD File Download File

Excavator hook VABH-B 2.5t Download File

Attribute	Value	Value
weight	1.73 kg	3.81 lbs
Nominal WLL	2500 kg	5500 lbs
T	33 mm	1-5/16"
A	7.5 mm	11/32"
B	98 mm	3-27/32"
C	148 mm	5-13/16"
D	143 mm	5-5/8"
E	85 mm	3-11/32"
F	31.5 mm	1-3/16"
G	60 mm	2-3/8"
H	75 mm	2-15/16"
I	49 mm	1-15/16"
L	18 mm	23/32"
M	M12 mm	M12

Excavator hook VABH-B 4t (7991207)

Technical Information

Product number: 7991207

Technical Downloads

VABH-B 4t - DXF 2D CAD File Download File

VABH-B 4t - IGES 3D CAD File Download File

VABH-B 4t - STEP 3D CAD File Download File

Excavator hook VABH-B 4t Download File

Attribute	Value	Value
weight	3.00 kg	6.61 lbs
Nominal WLL	4000 kg	8800 lbs
T	40 mm	1-9/16"
A	11 mm	7/16"
B	119 mm	4-11/16"
C	168 mm	6-5/8"
D	164 mm	6-15/32"
E	104 mm	4-3/32"
F	35 mm	1-3/8"
G	70 mm	2-3/4"
H	90 mm	3-17/32"
I	59 mm	2-15/16"
L	25 mm	63/64"
M	M16 mm	M16

Excavator hook VABH-B 6.7t (8502238)

Technical Information

Product number: 8502238

Technical Downloads

VABH-B 6.7t - DXF 2D CAD File Download File

VABH-B 6.7t - IGES 3D CAD File Download File

VABH-B 6.7t - STEP 3D CAD File Download File

Excavator hook VABH-B 6.7t Download File

Attribute	Value	Value
weight	5.58 kg	12.30 lbs
Nominal WLL	6700 kg	15000 lbs
T	51 mm	2"
A	13 mm	1/2"
B	147 mm	5-25/32"
C	205 mm	8-1/16"
D	200 mm	7-7/8"
E	120 mm	4-3/4"
F	40 mm	1-9/16"
G	85 mm	3-11/32"
H	110 mm	4-11/32"
I	70 mm	2-3/4"
L	28 mm	1-1/8"
M	M20 mm	M20
