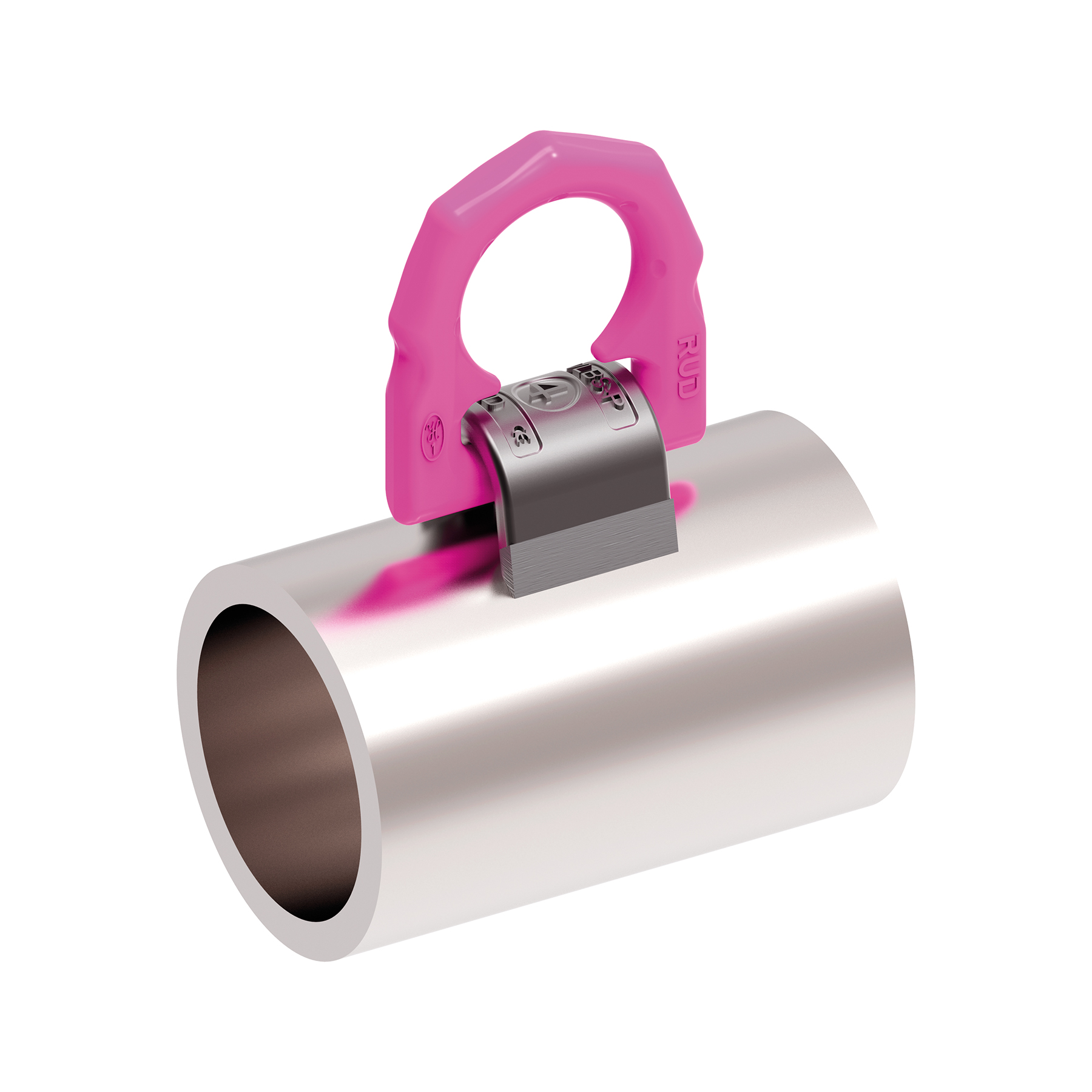

VLBS-P Load Ring for Welding - For Pipes

The compact welding solution

Suspension ring pivots 180°
Suspension ring & weld-on-block of the VLBS-U are undetachable
Suspension ring can be angled into position (VLBS-U)
The VLBS-P must only be welded on curved interfaces such as pipes/tubes with an outside diameter of Ø 82mm up to Ø 220mm, or an outside radius of R41 up to R110
RUD 4:1 safety factor

Product Variants (1)

VLBS-P 4t Load Ring for Welding - Pipes (7995472)

Technical Information

Product number: 7995472

Technical Downloads

VLBS-P 4t - DXF 2D CAD File Download File

VLBS-P 4t - IGES 3D CAD File Download File

VLBS-P 4t - STEP 3D CAD File Download File

VLBS-P 4t - Load Ring for Welding - Pipes Download File

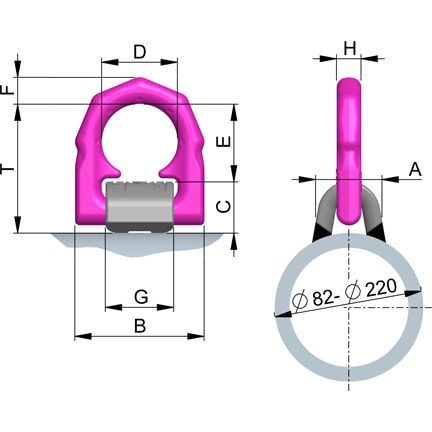

Attribute	Value	Value
weight	0.76 kg	1.68 lbs
Nominal WLL	4000 kg	8800 lbs
T	87 mm	3-7/16"
A	45 mm	1-25/32"
B	87 mm	3-7/16"
C	35 mm	1-3/8"
D	51 mm	2"
E	52 mm	2-1/16"
F	18 mm	23/32"
G	46 mm	1-13/16"
H	16.5 mm	21/32"
