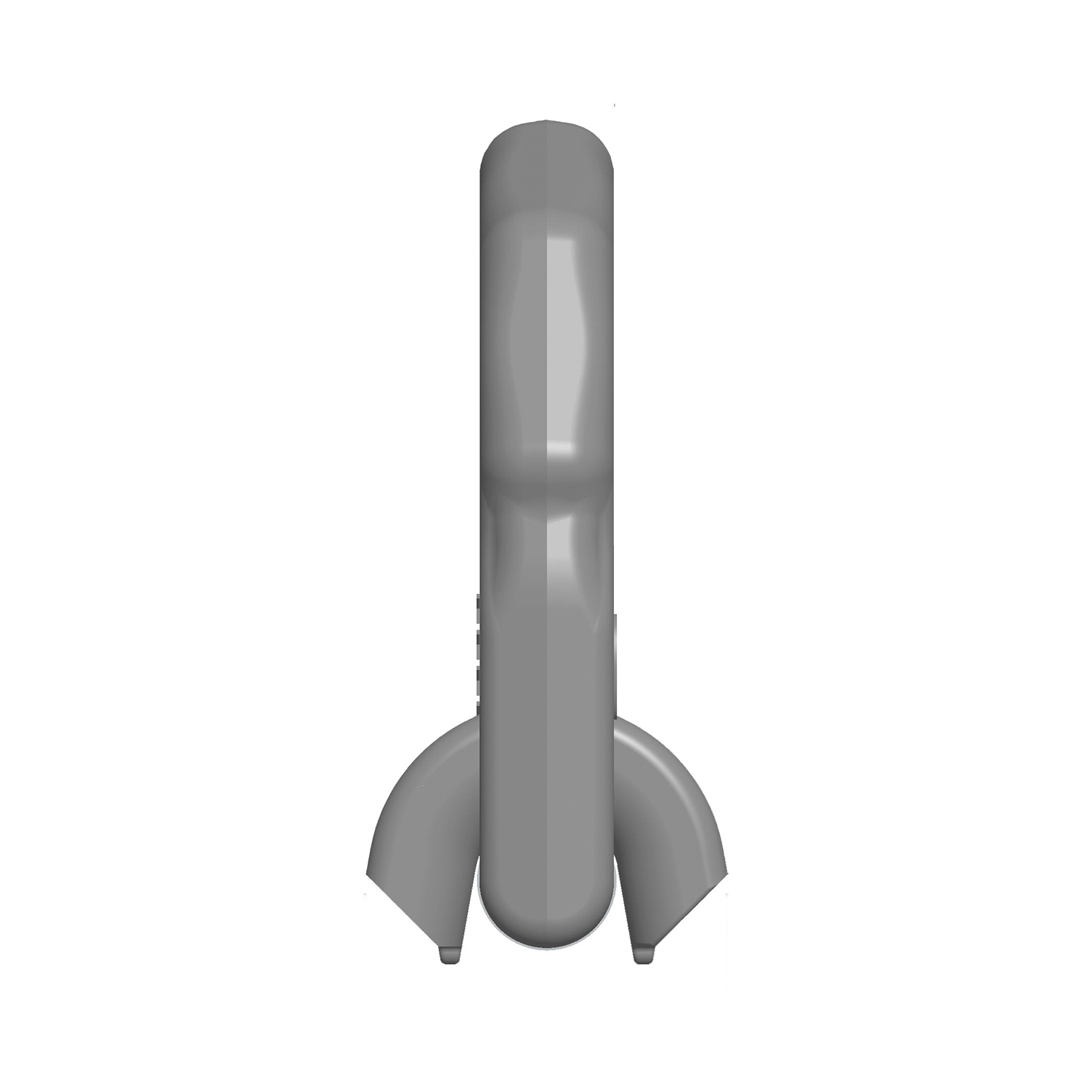

VLBS-U-LT – Load ring for welding, especially for low temperature

Suspension ring pivots 180°
Suspension ring & weld-on-block of the VLBS-U are undetachable
Suspension ring can be angled into position (VLBS-U)
Impact energy ≥ 27 Joule at -45°C [-45°F] (can be attested with a 3.1 test certificate)

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (4)

VLBS-U-LT 2.5t - Load ring welded for low temperature -45°C (7903522)

Technical Information

Product number: 7903522

Technical Downloads

VLBS-U-LT 2.5t - DXF 2D CAD File Download File

VLBS-U-LT 2.5t - IGES 3D CAD File Download File

VLBS-U-LT 2.5t - STEP 3D CAD File Download File

VLBS-U-LT 2.5t - Load ring welded for low temperature -45°C Download File

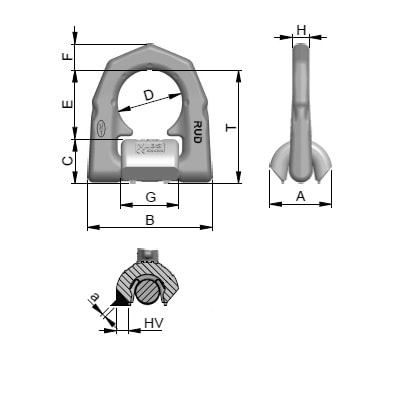

Attribute	Value	Value
weight	0.48 kg	1.06 lbs
Nominal WLL	2500 kg	5500 lbs
T	75 mm	2-15/16"
A	36 mm	1-27/64"
B	77 mm	3"-1/32"
C	27 mm	1-1/16"
D	45 mm	1-25/32"
E	48 mm	1-7/8"
F	16 mm	5/8"
G	40 mm	1-9/16"
H	14 mm	9/16"

VLBS-U-LT 4t - Load ring welded for low temperature -45°C (7903400)

Technical Information

Product number: 7903400

Technical Downloads

VLBS-U-LT 4t - DXF 2D CAD File Download File

VLBS-U-LT 4t - IGES 3D CAD File Download File

VLBS-U-LT 4t - STEP 3D CAD File Download File

VLBS-U-LT 4t - Load ring welded for low temperature -45°C Download File

Attribute	Value	Value
weight	0.76 kg	1.68 lbs
Nominal WLL	4000 kg	8800 lbs
T	83 mm	3-1/4"
A	42 mm	1-21/32"
B	87 mm	3-7/16"
C	31 mm	1-7/32"
D	51 mm	2"
E	52 mm	2-1/16"
F	18 mm	23/32"
G	46 mm	1-13/16"
H	16 mm	5/8"

VLBS-U-LT 6.7t - Load ring welded for low temperature -45°C (7903684)

Technical Information

Product number: 7903684

Technical Downloads

VLBS-U-LT 6.7t - DXF 2D CAD File Download File

VLBS-U-LT 6.7t - IGES 3D CAD File Download File

VLBS-U-LT 6.7t - STEP 3D CAD File Download File

VLBS-U-LT 6.7t - Load ring welded for low temperature -45°C Download File

Attribute	Value	Value
weight	1.93 kg	4.25 lbs
Nominal WLL	6700 kg	15000 lbs
A	61 mm	2-13/32"
B	115 mm	4-1/2"
T	117 mm	4-5/8"
C	44 mm	1-3/4"
D	67 mm	2-5/8"
E	73 mm	2-7/8"
F	24 mm	15/16"
G	60 mm	2-3/8"
H	22.5 mm	7/8"

VLBS-U-LT 10t - Load ring welded for low temperature -45°C (7903135)

Technical Information

Product number: 7903135

Technical Downloads

VLBS-U-LT 10t - DXF 2D CAD File Download File

VLBS-U-LT 10t - IGES 3D CAD File Download File

VLBS-U-LT 10t - STEP 3D CAD File Download File

VLBS-U-LT 10t - Load ring welded for low temperature -45°C Download File

Attribute	Value	Value
weight	2.76 kg	6.08 lbs
Nominal WLL	10000 kg	22000 lbs
T	126 mm	5"
A	75 mm	2-15/16"
B	129 mm	5-1/16"
C	55 mm	2-5/32"
D	67 mm	2-5/8"
E	71 mm	2-13/16"
F	26.5 mm	1-3/64"
G	60 mm	2-3/8"
H	26.5 mm	1-3/64"
