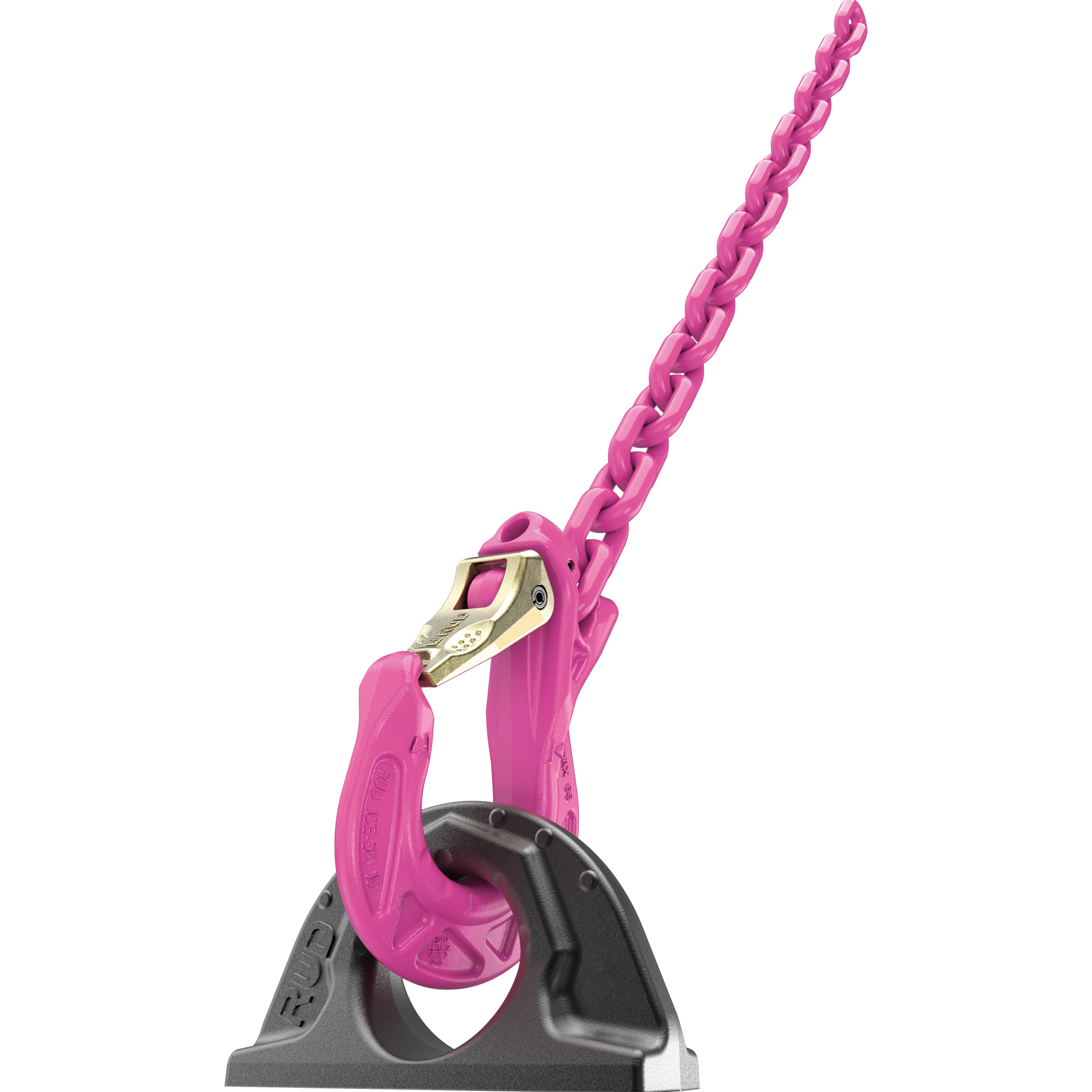

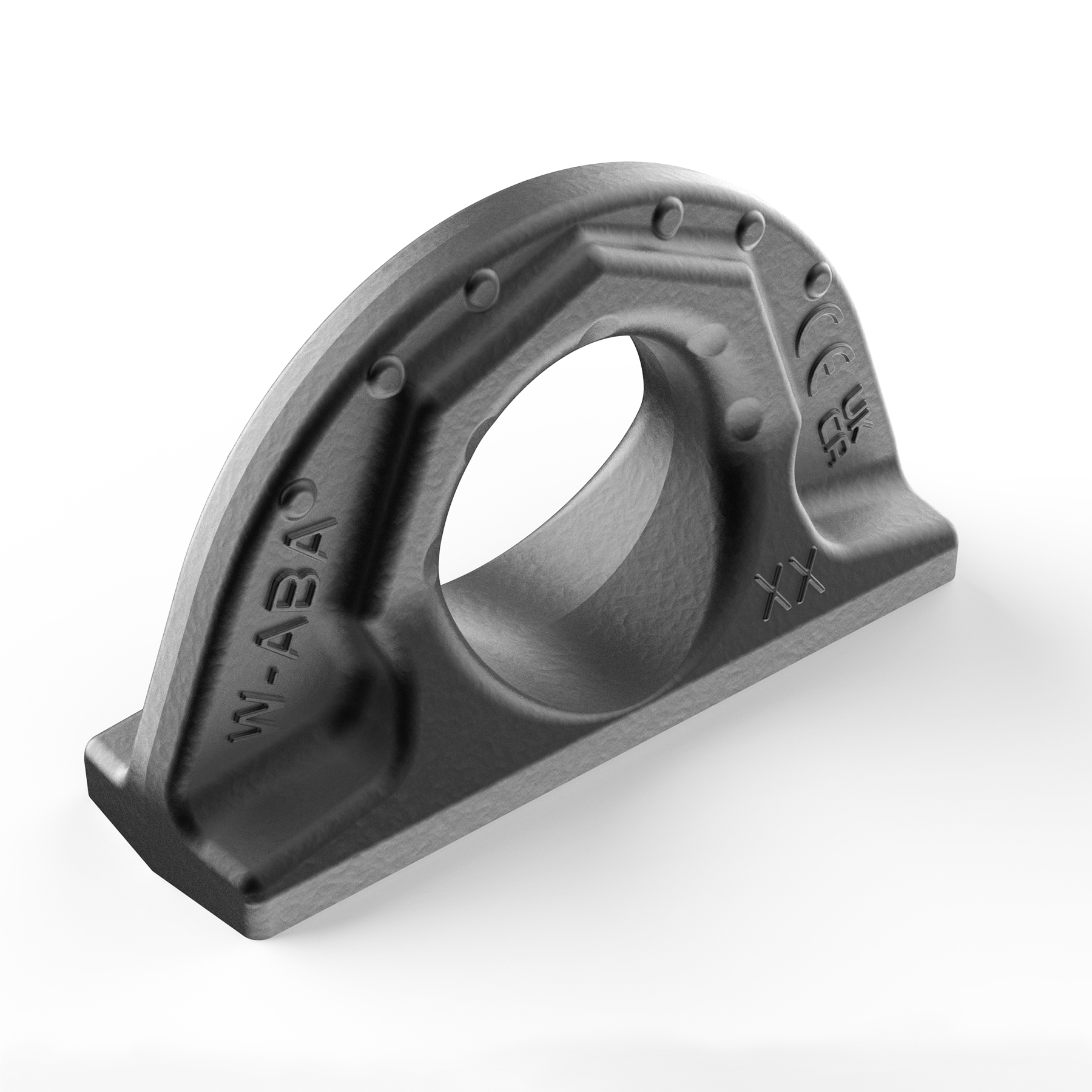

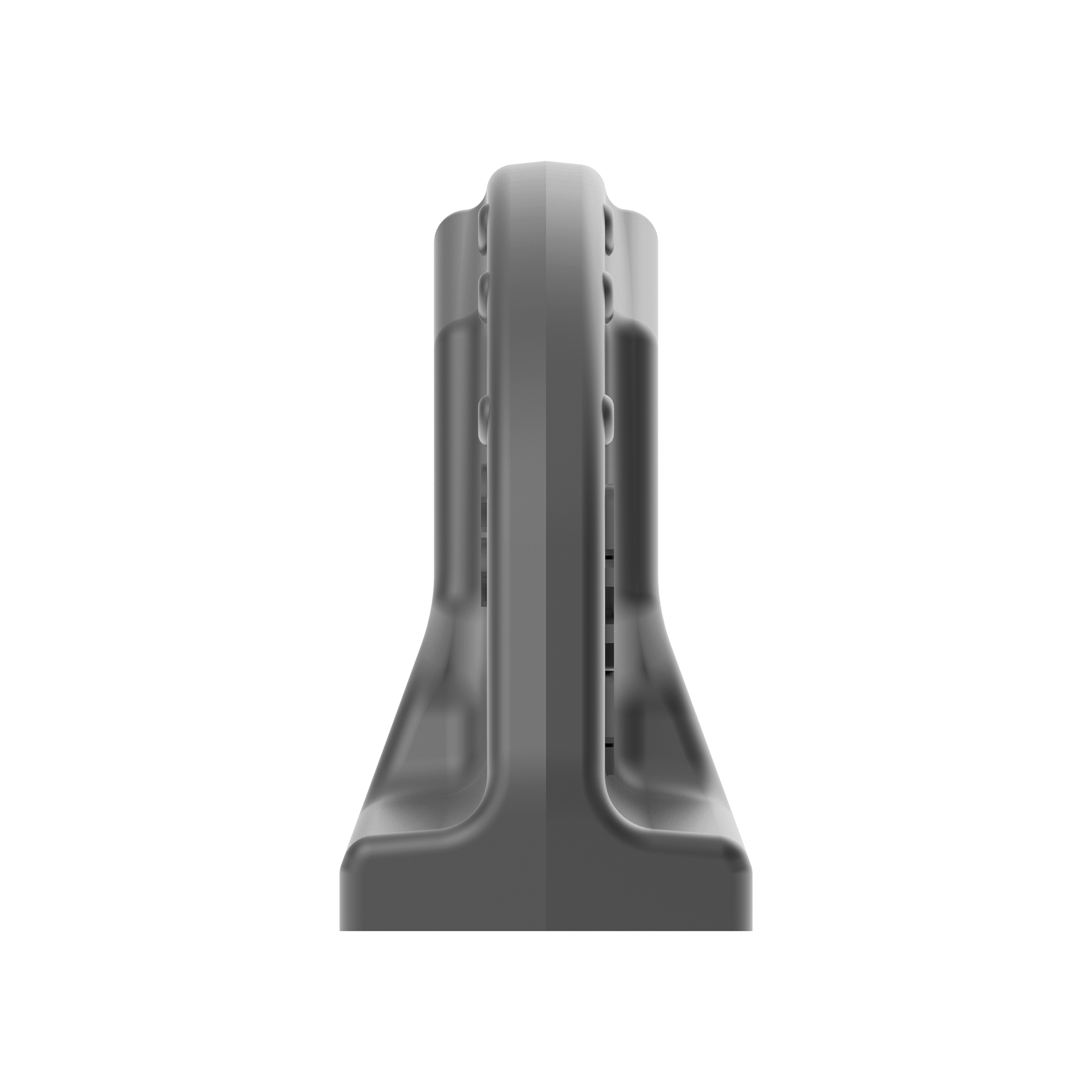

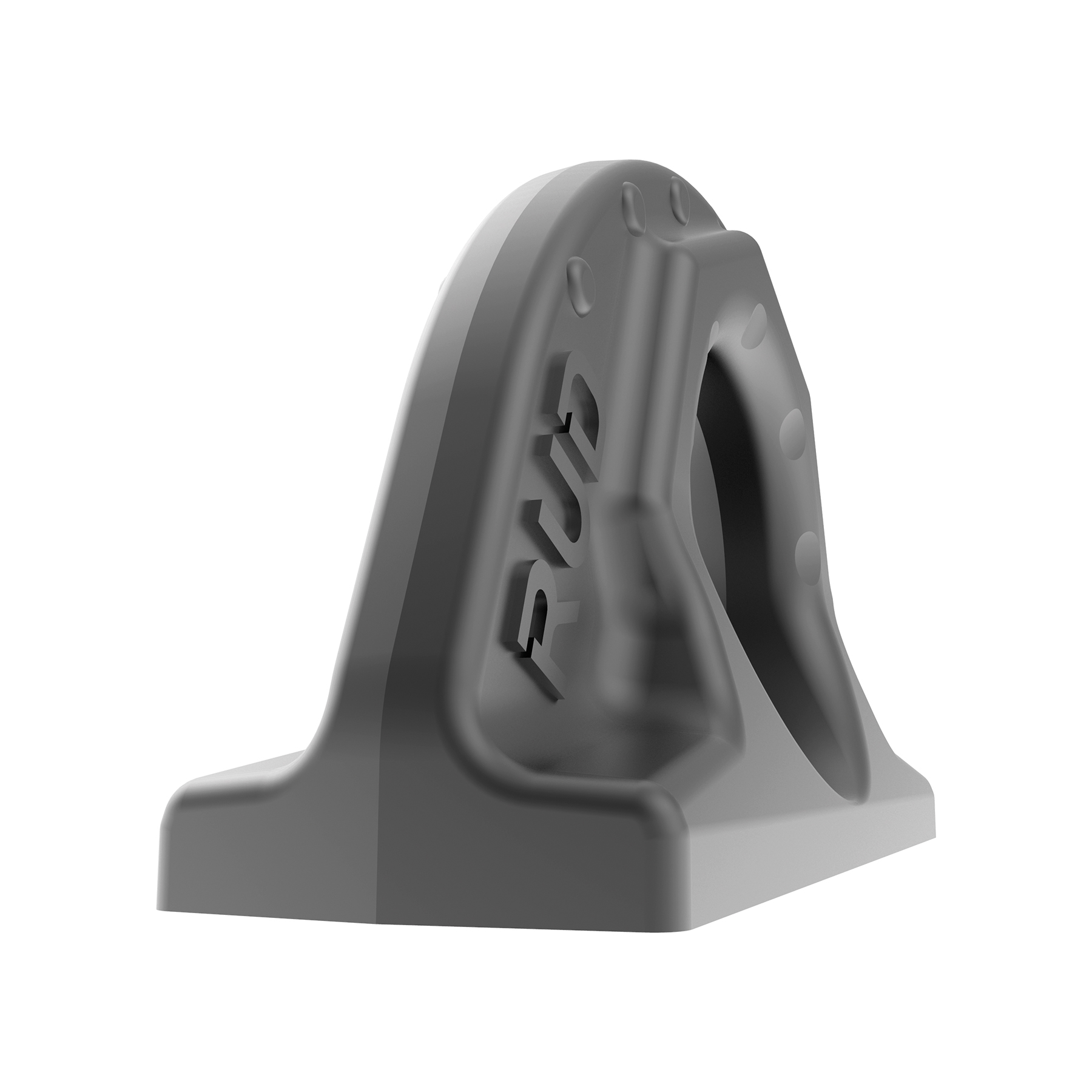

ABA Lifting point for welding

ABA 0.8t - lifting point for welding, loadable from any direction (7907698)

Technical Information

Product number: 7907698

Technical Downloads

ABA 0.8t - DXF 2D CAD File Download File

ABA 0.8t - STEP 3D CAD File Download File

ABA 0.8t - IGES 3D CAD File Download File

ABA 0.8t - lifting point for welding, loadable from any direction Download File

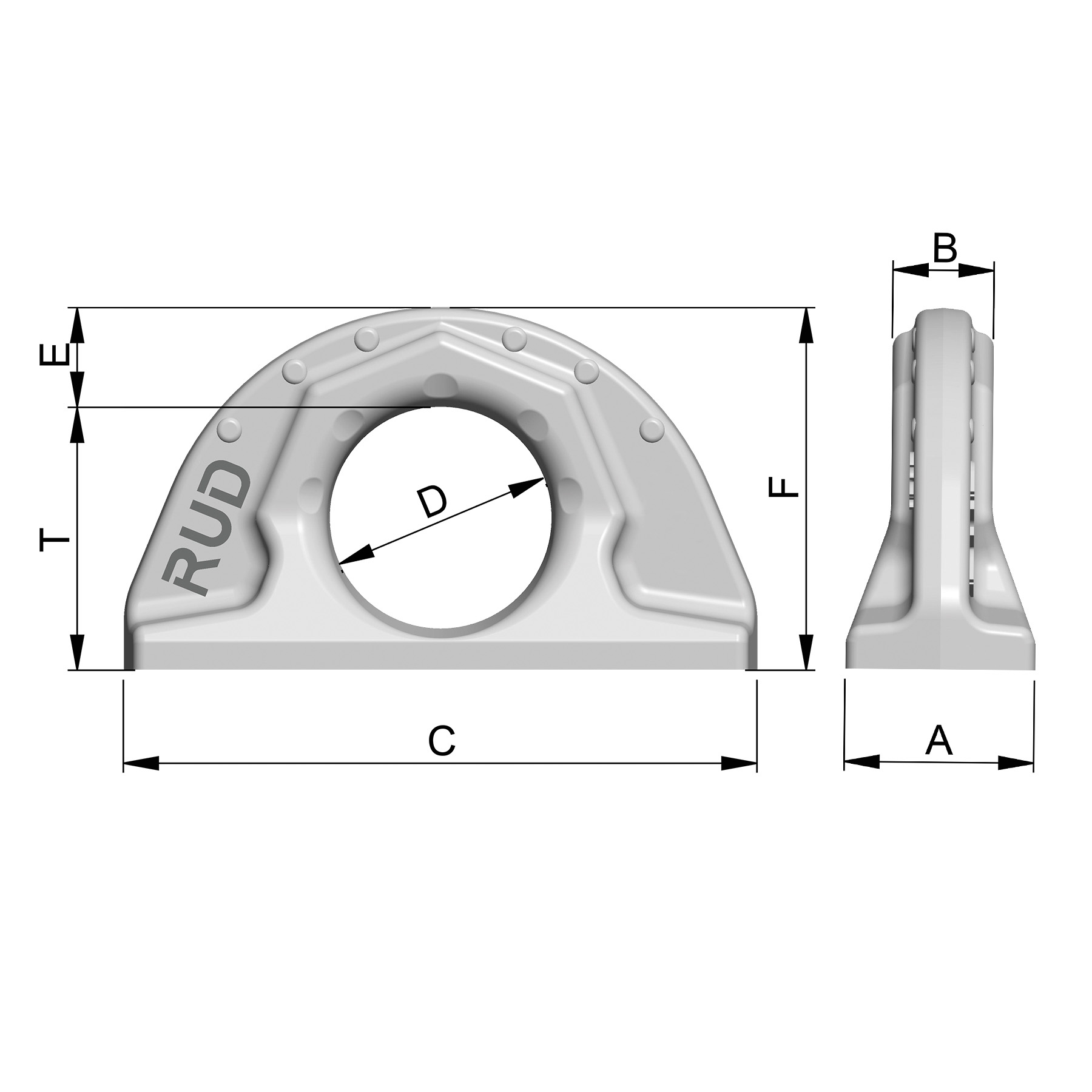

Attribute	Value	Value
weight	0.20 kg	0.44 lbs
Nominal WLL	800 kg	1760 lbs
A	22 mm	7/8"
B	12 mm	15/32"
T	38 mm	1-1/2"
C	70 mm	2-3/4"
D	32 mm	1-1/4"
E	12 mm	15/32"
F	50 mm	1-31/32"

ABA 1.6t - lifting point for welding, loadable from any direction (7900352)

Technical Information

Product number: 7900352

Technical Downloads

ABA 1.6t - IGES 3D CAD File Download File

ABA 1.6t - STEP 3D CAD File Download File

ABA 1.6t - DXF 2D CAD File Download File

ABA 1.6t - lifting point for welding, loadable from any direction Download File

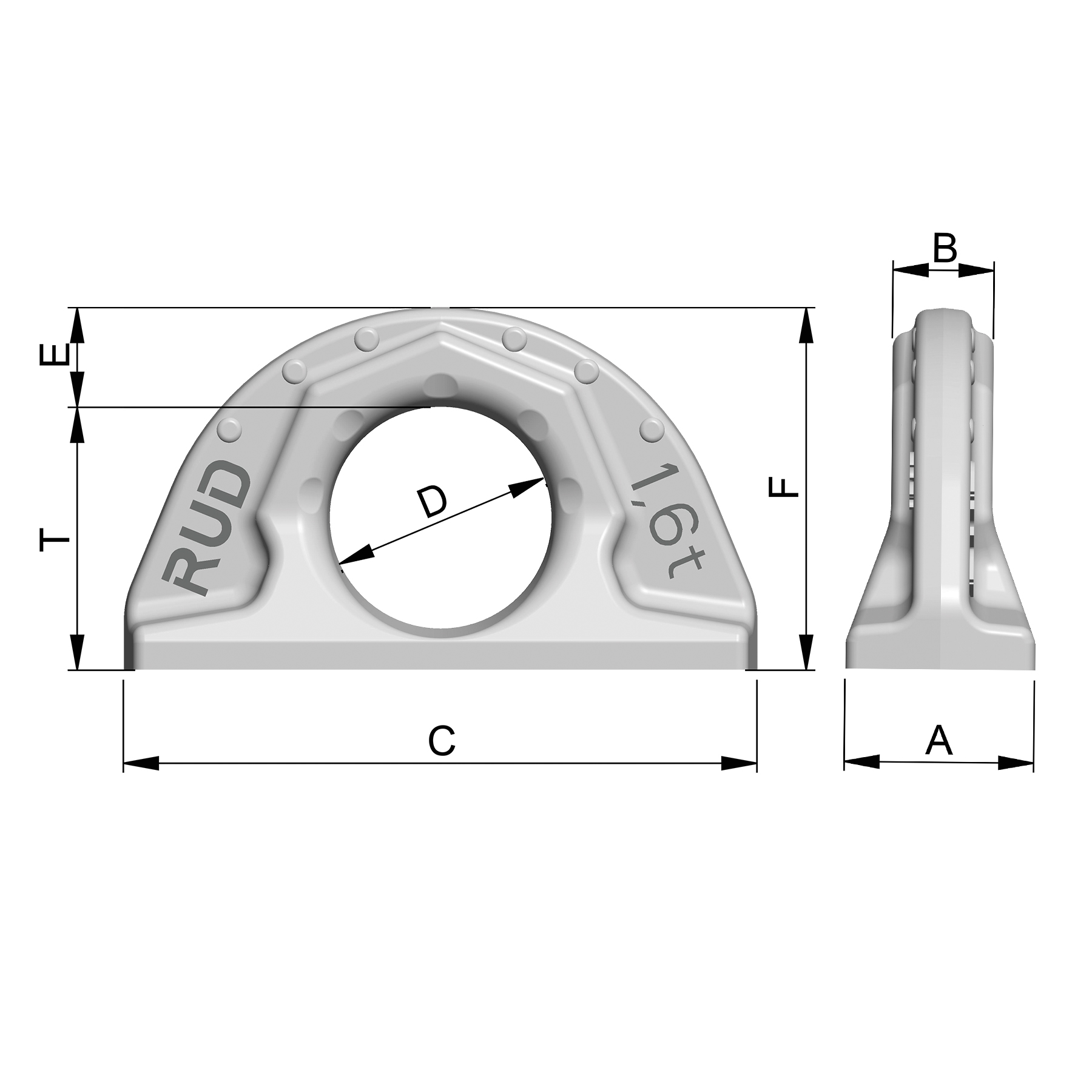

Attribute	Value	Value
weight	0.45 kg	0.99 lbs
Nominal WLL	1600 kg	3520 lbs
A	30 mm	1-3/16"
B	16 mm	5/8"
T	42 mm	1-21/32"
C	100 mm	3-15/16"
D	35 mm	1-3/8"
E	16 mm	5/8"
F	57 mm	2-1/4"

ABA 3.2t - lifting point for welding, loadable from any direction (7900353)

Technical Information

Product number: 7900353

Technical Downloads

ABA 3.2t - IGES 3D CAD File Download File

ABA 3.2t - STEP 3D CAD File Download File

ABA 3.2t - DXF 2D CAD File Download File

ABA 3.2t - lifting point for welding, loadable from any direction Download File

Attribute	Value	Value
weight	1.15 kg	2.54 lbs
Nominal WLL	3200 kg	7050 lbs
A	41 mm	1-5/8"
B	23 mm	29/32"
T	59 mm	2-15/16"
C	137 mm	5-3/8"
D	50 mm	1-31/32"
E	21 mm	13/16"
F	80 mm	3-1/8"

ABA 5t - lifting point for welding, loadable from any direction (7900354)

Technical Information

Product number: 7900354

Technical Downloads

ABA 5t - IGES 3D CAD File Download File

ABA 5t - STEP 3D CAD File Download File

ABA 5t - DXF 2D CAD File Download File

ABA 5t - lifting point for welding, loadable from any direction Download File

Attribute	Value	Value
weight	2.26 kg	4.98 lbs
Nominal WLL	5000 kg	11000 lbs
A	51 mm	2"
B	27 mm	1-1/16"
T	72 mm	2-27/32"
C	172 mm	6-25/32"
D	60 mm	2-3/8"
E	28 mm	1-1/8"
F	99 mm	3-7/8"

ABA 10t - lifting point for welding, loadable from any direction (7900355)

Technical Information

Product number: 7900355

Technical Downloads

ABA 10t - IGES 3D CAD File Download File

ABA 10t - STEP 3D CAD File Download File

ABA 10t - DXF 2D CAD File Download File

ABA 10t - lifting point for welding, loadable from any direction Download File

Attribute	Value	Value
weight	5.37 kg	11.84 lbs
Nominal WLL	10000 kg	22000 lbs
A	70 mm	2-3/4"
B	38 mm	1-1/2"
T	95 mm	3-3/4"
C	228 mm	9"
D	80 mm	3-1/8"
E	35 mm	1-3/8"
F	130 mm	5-1/8"

ABA 20t - lifting point for welding, loadable from any direction (7902174)

Technical Information

Product number: 7902174

Technical Downloads

ABA 20t - DXF 2D CAD File Download File

ABA 20t - IGES 3D CAD File Download File

ABA 20t - STEP 3D CAD File Download File

ABA 20t - lifting point for welding, loadable from any direction Download File

Attribute	Value	Value
weight	10.72 kg	23.63 lbs
Nominal WLL	20000 kg	44000 lbs
A	90 mm	3-17/32"
B	52 mm	2-1/16"
T	135 mm	5-5/16"
C	272 mm	10-11/16"
D	115 mm	4-1/2"
E	40 mm	1-9/16"
F	175 mm	6-7/8"

ABA 31.5t - lifting point for welding, loadable from any direction (7902175)

Technical Information

Product number: 7902175

Technical Downloads

ABA 31.5t - DXF 2D CAD File Download File

ABA 31.5t - IGES 3D CAD File Download File

ABA 31.5t - STEP 3D CAD File Download File

ABA 31.5t - lifting point for welding, loadable from any direction Download File

Attribute	Value	Value
weight	18.33 kg	40.41 lbs
Nominal WLL	31500 kg	69300 lbs
A	108 mm	4-1/4"
B	64 mm	2-1/2"
T	154 mm	6-1/16"
C	320 mm	12-19/32"
D	130 mm	5-1/8"
E	50 mm	1-31/32"
F	204 mm	8-1/32"
