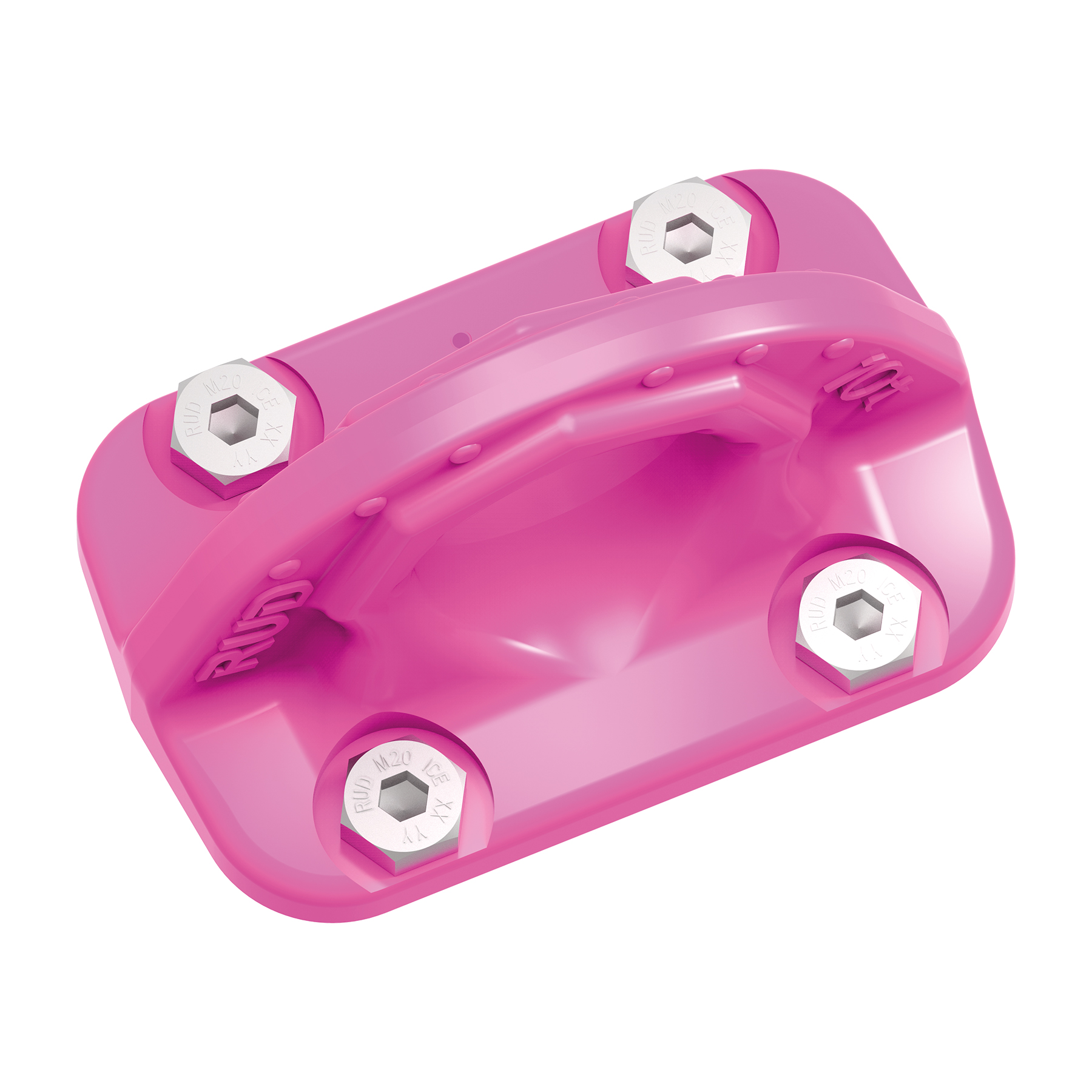

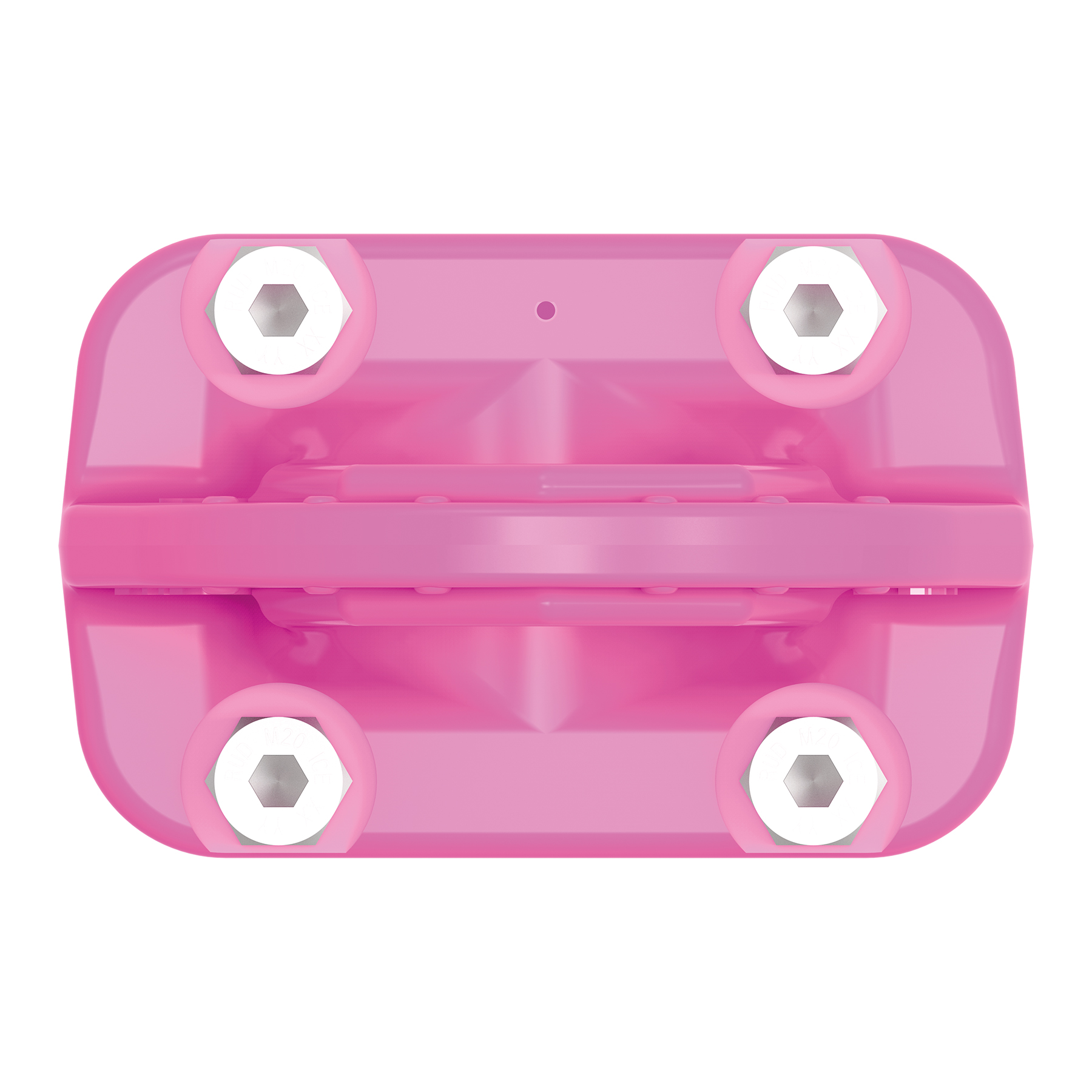

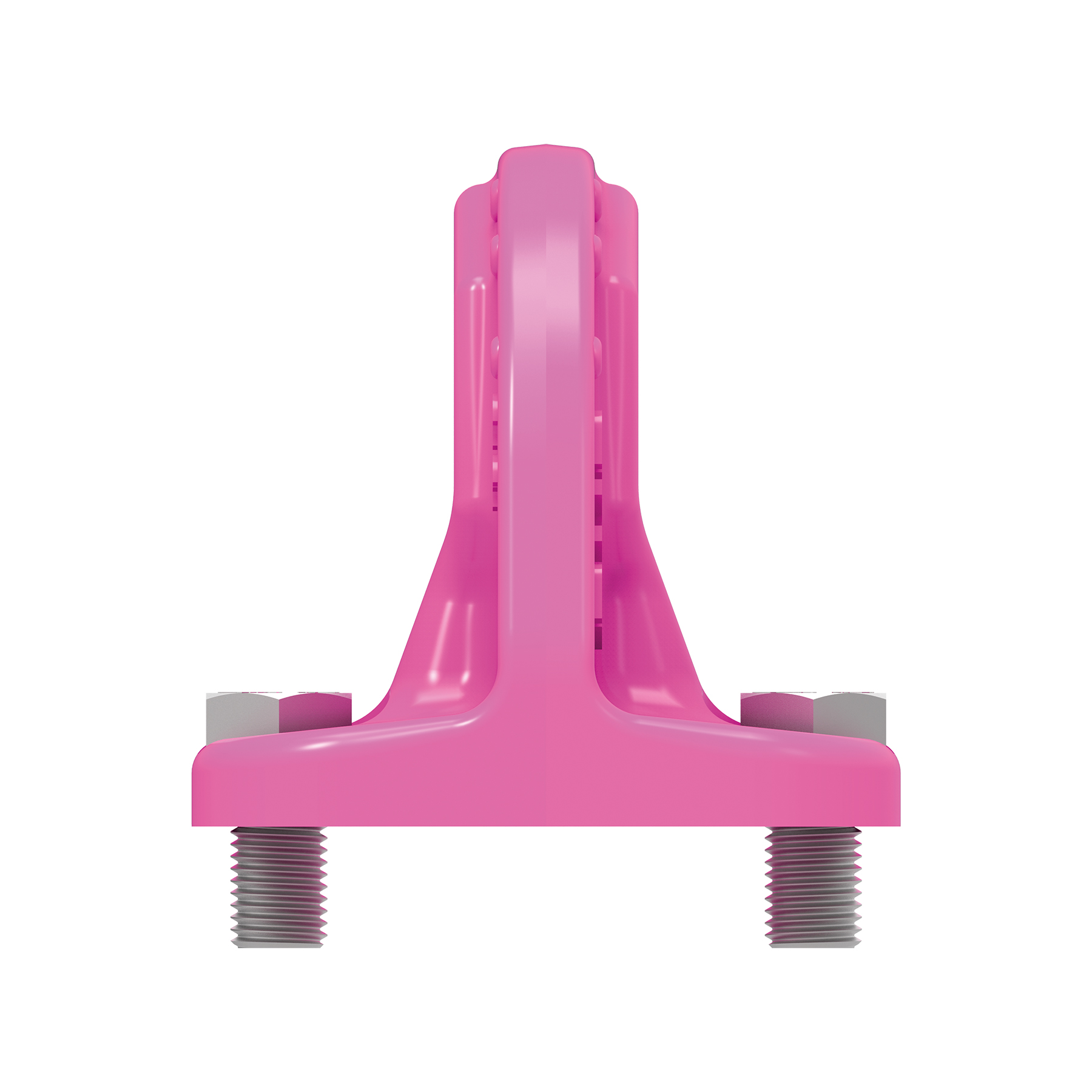

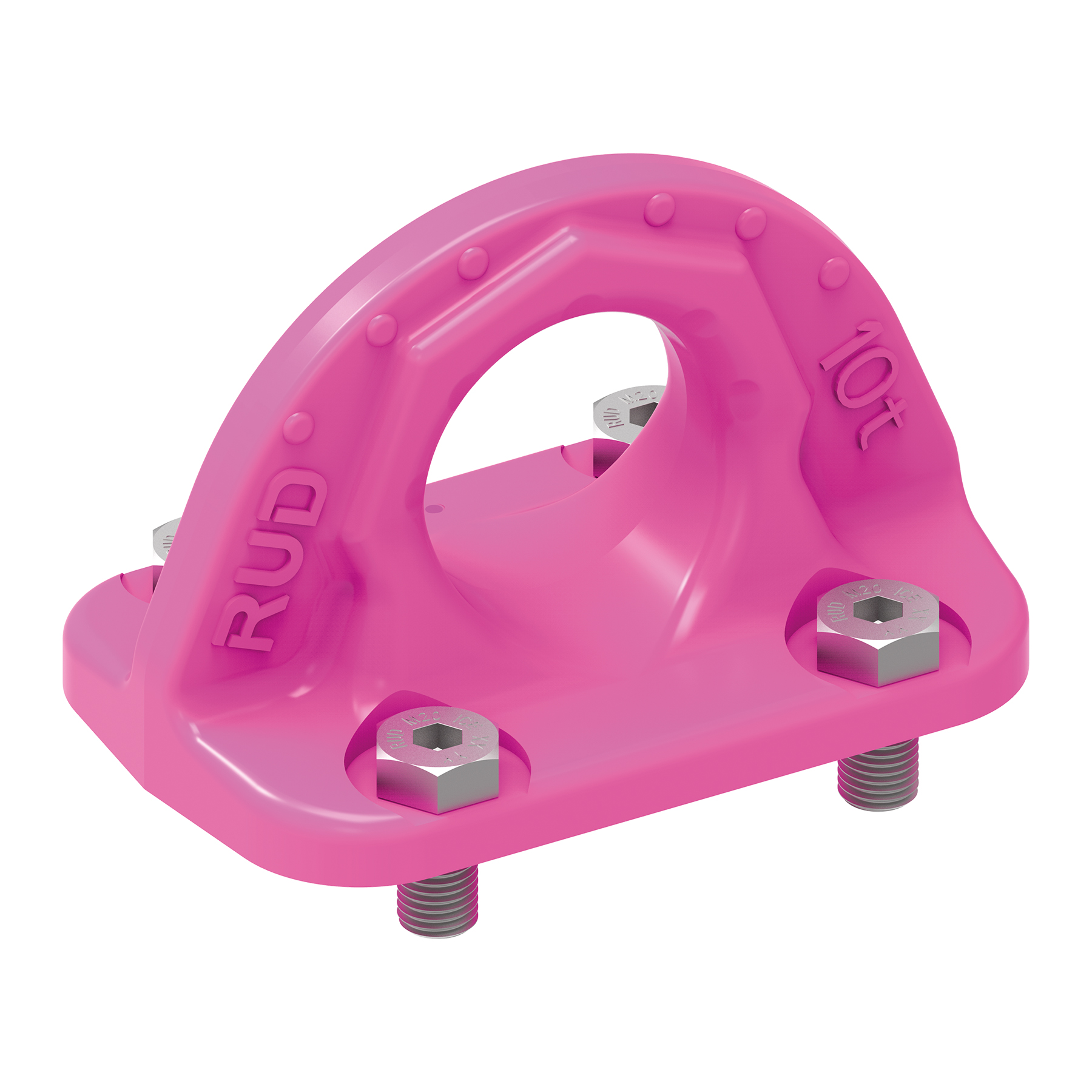

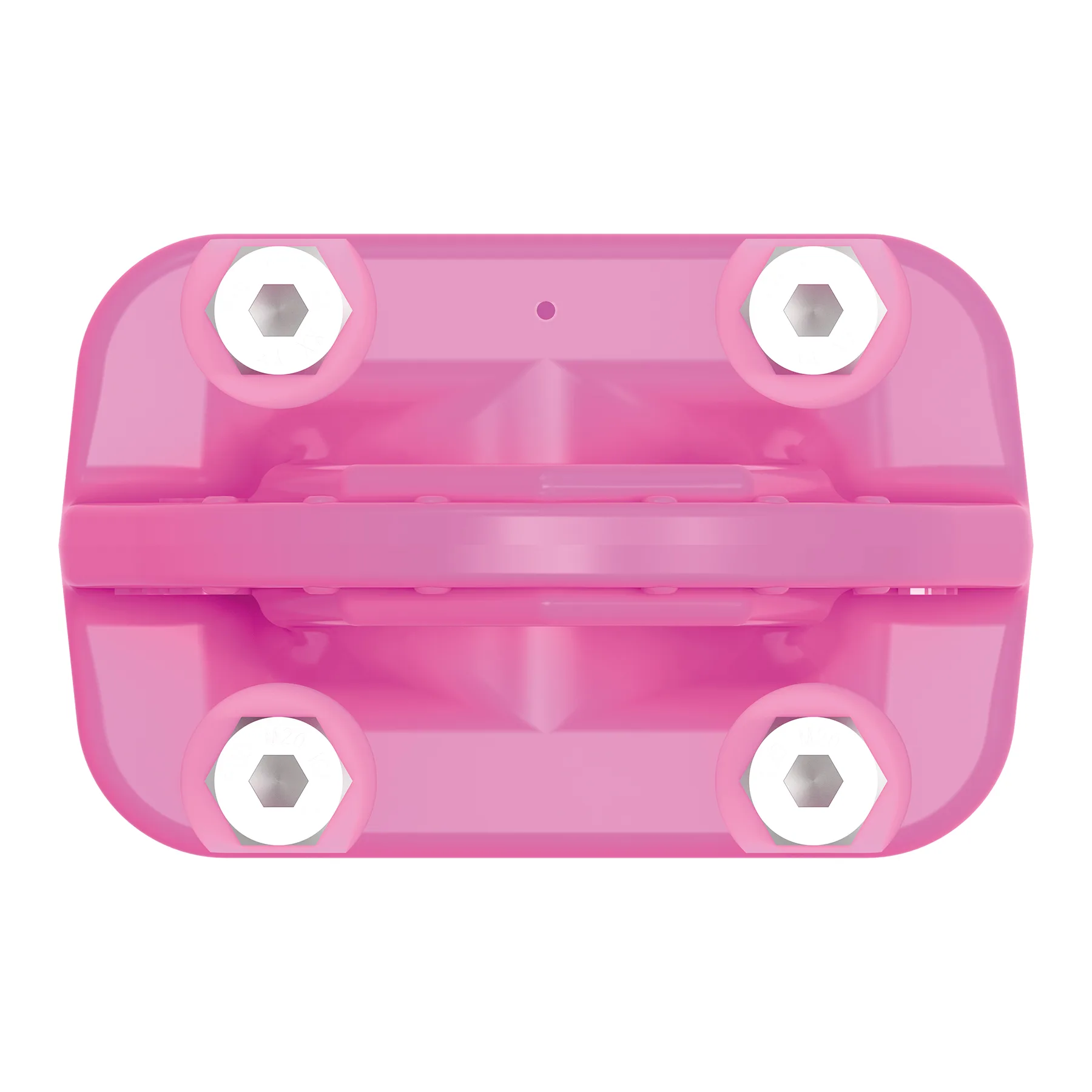

B-ABA Liftingpoint

4:1 safety factor
Patented wear markings for easy determination for withdraw of service
Tempered base body, therefore wear-resistant

Product Variants (6)

Lifting point B-ABA 1.6t - M10 (7906266)

Technical Information

Product number: 7906266

Technical Downloads

B-ABA 1.6t - DXF 2D CAD File Download File

B-ABA 1.6t - IGES 3D CAD File Download File

B-ABA 1.6t - STEP 3D CAD File Download File

Lifting point B-ABA 1.6t - M10 Download File

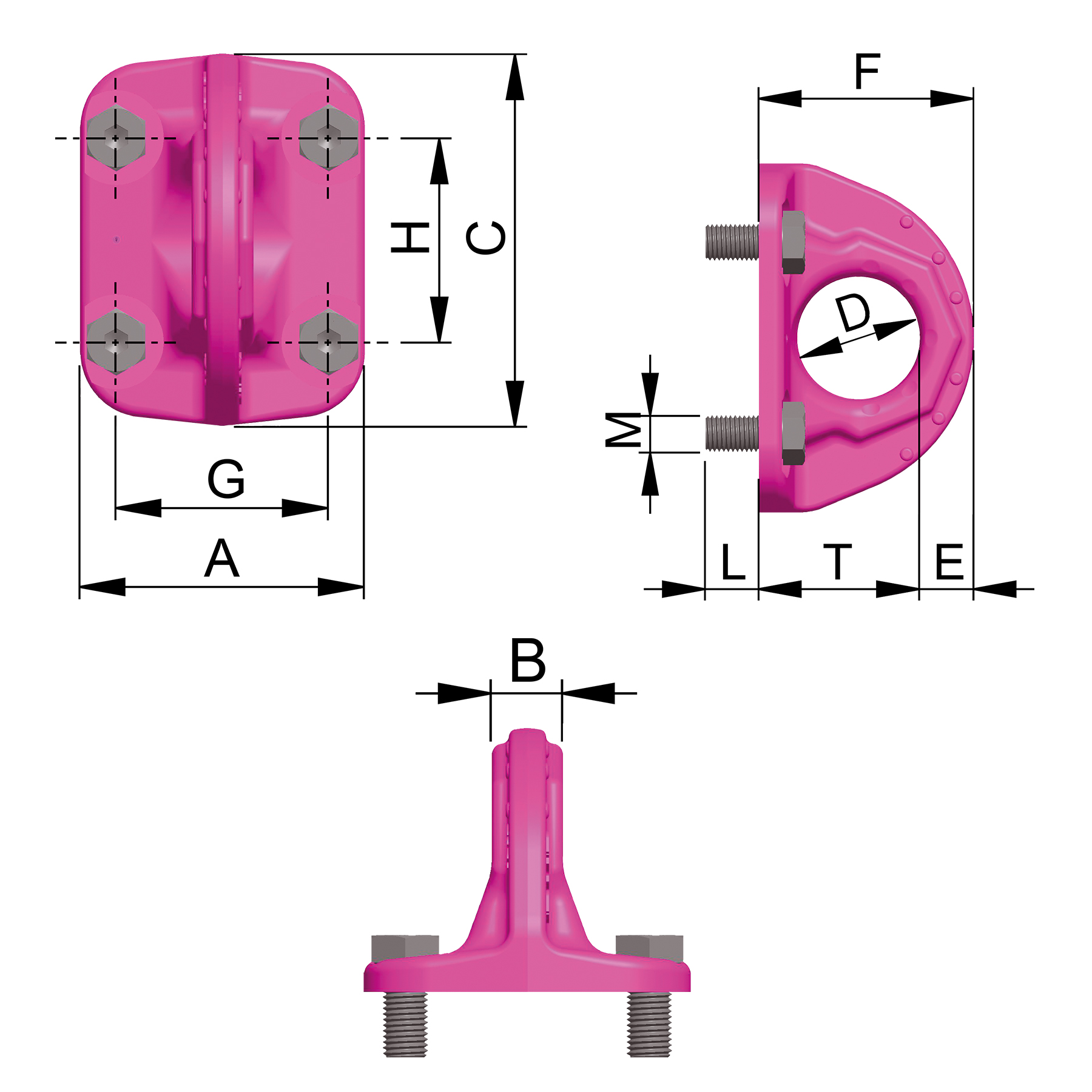

Attribute	Value	Value
weight	0.88 kg	1.94 lbs
Nominal WLL	1600 kg	3520 lbs
T	47 mm	1-7/8"
A	75 mm	2-15/16"
B	16 mm	5/8"
C	100 mm	3-15/16"
D	35 mm	1-3/8"
E	16 mm	5/8"
F	62.5 mm
G	55 mm	2-5/32"
H	55 mm	2-5/32"
L	13 mm	1/2"
M	M10 mm	M10

Lifting point B-ABA 3.2t - M12 (7906267)

Technical Information

Product number: 7906267

Technical Downloads

B-ABA 3.2t - DXF 2D CAD File Download File

B-ABA 3.2t - IGES 3D CAD File Download File

B-ABA 5t - STEP 3D CAD File Download File

Lifting point B-ABA 3.2t - M12 Download File

Attribute	Value	Value
weight	2.01 kg	4.43 lbs
Nominal WLL	3200 kg	7050 lbs
T	65 mm	2-9/16"
A	92 mm	3-5/8"
B	23 mm	29/32"
C	137 mm	5-3/8"
D	50 mm	1-31/32"
E	21 mm	13/16"
F	86 mm	3-3/8"
G	70 mm	2-3/4"
H	75 mm	2-15/16"
L	16 mm	5/8"
M	M12 mm	M12

Lifting point B-ABA 5t - M16 (7906268)

Technical Information

Product number: 7906268

Technical Downloads

B-ABA 5t - DXF 2D CAD File Download File

B-ABA 5t - IGES 3D CAD File Download File

B-ABA 5t - STEP 3D CAD File Download File

Lifting point B-ABA 5t - M16 Download File

Attribute	Value	Value
weight	4.07 kg	8.97 lbs
Nominal WLL	5000 kg	11000 lbs
T	80 mm	3-1/8"
A	113 mm	4-7/16"
B	27 mm	1-1/16"
C	172 mm	6-25/32"
D	60 mm	2-3/8"
E	28 mm	1-1/8"
F	108 mm	4-1/4"
G	84 mm	3-5/16"
H	95 mm	3-3/4"
L	24 mm	15/16"
M	M16 mm	M16

Lifting point B-ABA 10t - M20 (7906269)

Technical Information

Product number: 7906269

Technical Downloads

B-ABA 10t - DXF 2D CAD File Download File

B-ABA 10t - IGES 3D CAD File Download File

B-ABA 10t - STEP 3D CAD File Download File

Lifting point B-ABA 10t - M20 Download File

Attribute	Value	Value
weight	9.31 kg	20.53 lbs
Nominal WLL	10000 kg	22000 lbs
T	105 mm	4-1/8"
A	146 mm	5-3/4"
B	38 mm	1-1/2"
C	228 mm	9"
D	80 mm	3-1/8"
E	36 mm	1-27/64"
F	141 mm	5-9/16"
G	110 mm	4-11/32"
H	125 mm	4-15/16"
L	25 mm	63/64"
M	M20 mm	M20

Lifting point B-ABA 20t - M24 (7906270)

Technical Information

Product number: 7906270

Technical Downloads

B-ABA_20t - IGES 3D CAD File Download File

B-ABA_20t - STEP 3D CAD File Download File

B-ABA 20t - DXF 2D CAD File Download File

Lifting point B-ABA 20t - M24 Download File

Attribute	Value	Value
weight	18.77 kg	41.38 lbs
Nominal WLL	20000 kg	44000 lbs
T	148 mm	5-13/16"
A	200 mm	7-7/8"
B	52 mm	2-1/16"
C	272 mm	10-11/16"
D	115 mm	4-1/2"
E	40 mm	1-9/16"
F	188 mm	7-13/32"
G	150 mm	5-7/8"
H	75 mm	2-15/16"
L	30 mm	1-3/16"
M	M24 mm	M24

Lifting point B-ABA 31.5t - M30 (7906271)

Technical Information

Product number: 7906271

Technical Downloads

B-ABA 31.5t - IGES 3D CAD File Download File

B-ABA 31.5t - STEP 3D CAD File Download File

B-ABA 31.5t - DXF 2D CAD File Download File

Lifting point B-ABA 31.5t - M30 Download File

Attribute	Value	Value
weight	29.50 kg	79.37 lbs
Nominal WLL	31500 kg	69300 lbs
T	170 mm	6-11/16"
A	230 mm	9-1/16"
B	64 mm	2-1/2"
C	320 mm	12-19/32"
D	130 mm	5-1/8"
E	50 mm	1-31/32"
F	220 mm	8-11/16"
G	175 mm	6-7/8"
H	87.5 mm	6-7/8"
L	40 mm	1-9/16"
M	M30 mm	M30
