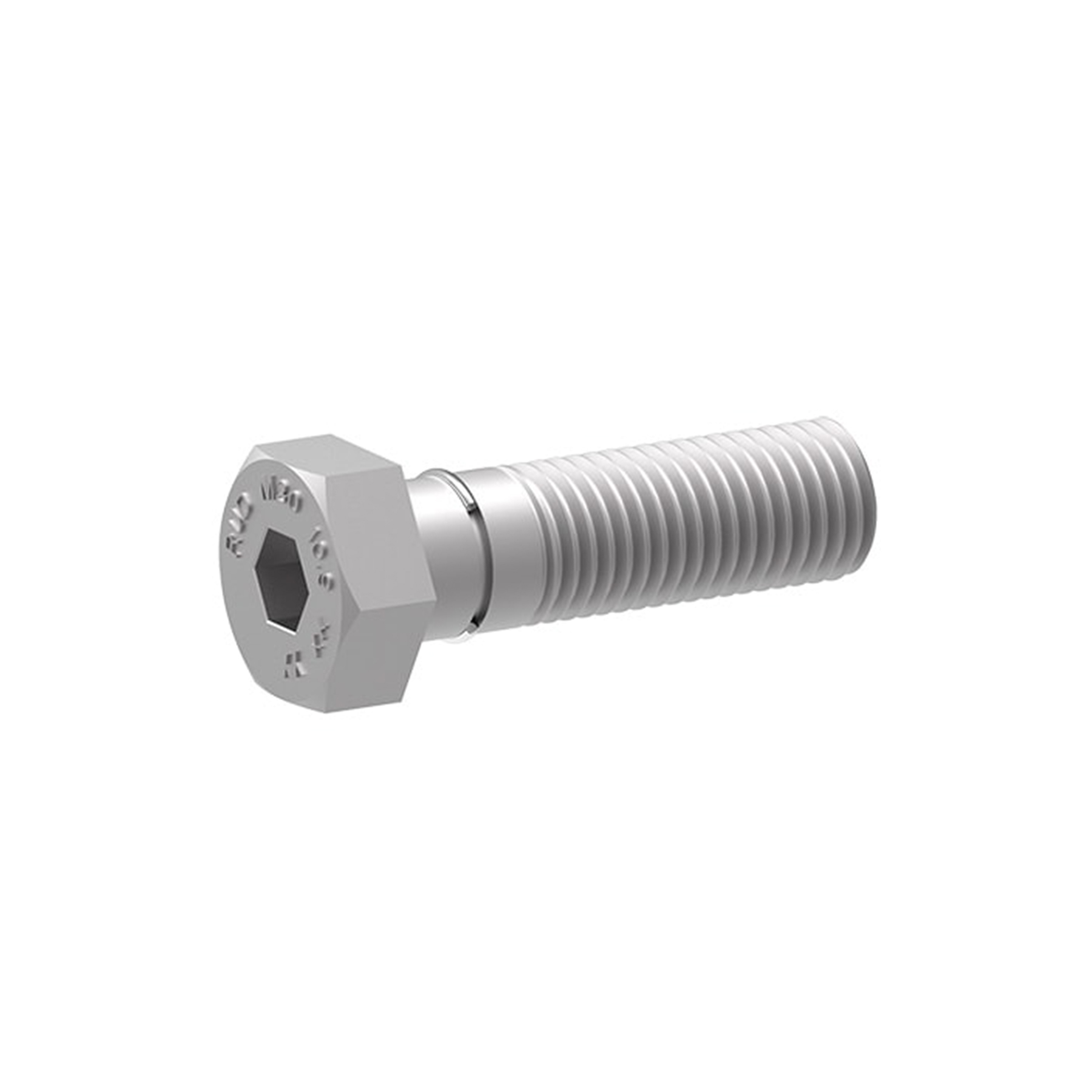

VLBG-PLUS Bolts - Magnetically Crack Tested
- 100% crack detected hexagon head and socket bolt for the assembly of VLBG and VLBG-PLUS
- The hexagon socket bolt is with a snap ring so that it can be captively mounted with the VLBG
Product Variants (4)
4 pieces Bolt M30x110- 10.9 magnetically crack tested (8501481)

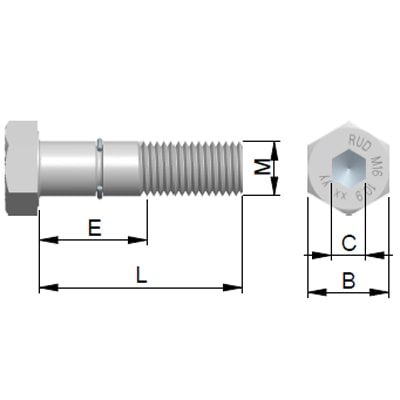

| Attribute | Value | Value |
|---|
| weight | 3.30 kg | 7.28 lbs |
| B | 46 mm | 1-13/16" |
| C | 17 mm | 43/64" |
| E | 44 mm | 1-3/4" |
| H | 49 mm | 1-15/16" |
| L | 110 mm | 4-11/32" |
| M | M30 mm | M30 |
Bolt M36x140- 10.9 magnetically crack tested (7988047)
| Attribute | Value | Value |
|---|
| weight | 1.40 kg | 3.09 lbs |
| B | 55 mm | 2-5/32" |
| C | 22 mm | 7/8" |
| E | 75 mm | 2-15/16" |
| H | 63 mm | 2-15/32" |
| L | 140 mm | 5-1/2" |
| M | M36 mm | M36 |
Bolt M42x150- 10.9 magnetically crack tested (7988048)
| Attribute | Value | Value |
|---|
| weight | 2.12 kg | 4.67 lbs |
| B | 65 mm | 2-9/16" |
| C | 24 mm | 15/16" |
| E | 67 mm | 2-5/8" |
| H | 73 mm | 2-7/8" |
| L | 150 mm | 5-7/8" |
| M | M42 mm | M42 |
Bolt M48x160- 10.9 magnetically crack tested (7988049)
| Attribute | Value | Value |
|---|
| weight | 3.06 kg | 6.75 lbs |
| B | 70 mm | 2-3/4" |
| C | 27 mm | 1-1/16" |
| E | 85 mm | 3-11/32" |
| H | 73 mm | 2-7/8" |
| L | 160 mm | 6-13/32" |
| M | M48 mm | M48 |
