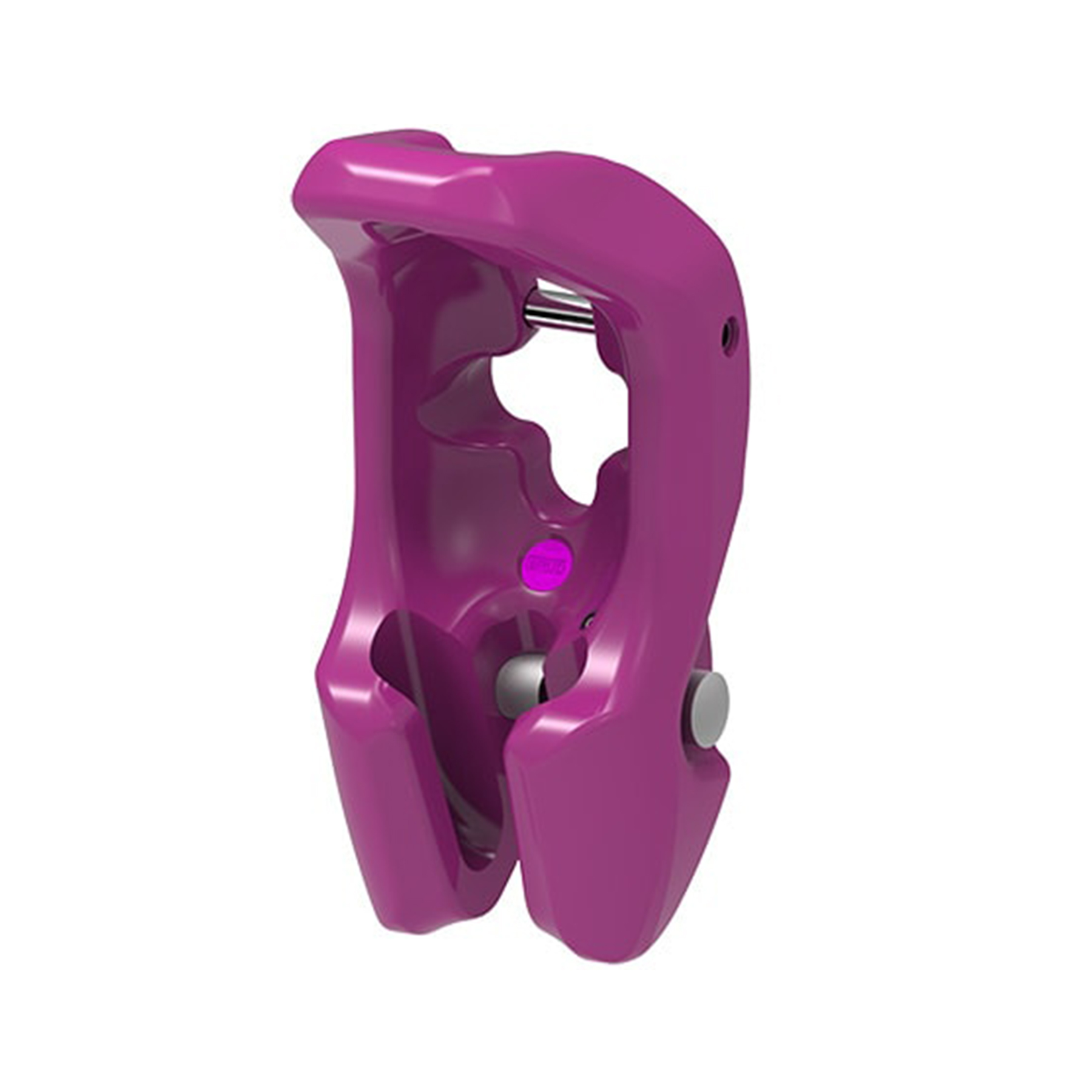

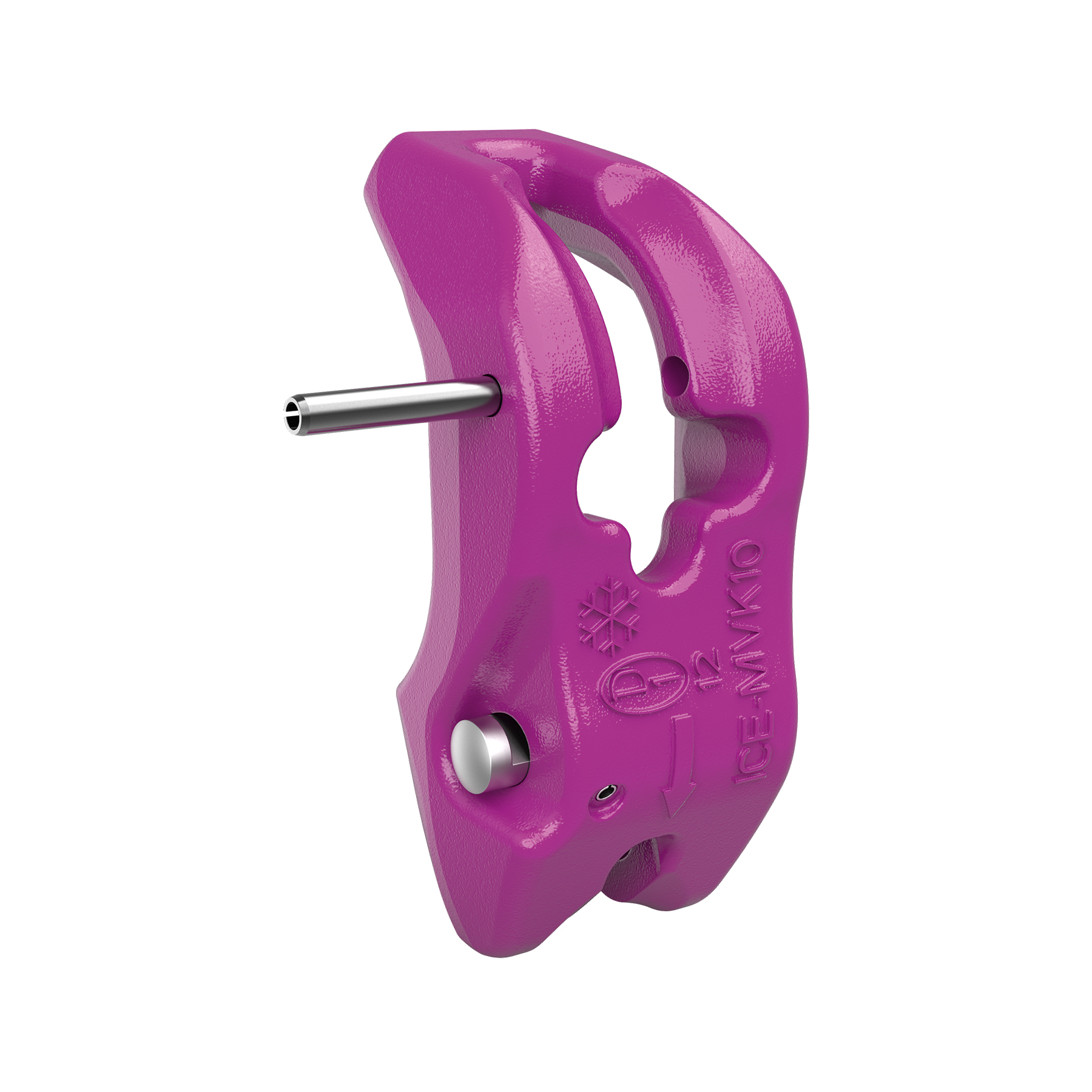

IMVK ICE Shortening Claw
- Successor to the popular VIP-Multi-Shortening Claw
- Manufactured in compliance with DIN 5692
- Can be closely fitted along the chain leg
- No additional chain and coupling components are required
- Can be moved to any position along the chain leg
- Link-shaped chain pocket provides an optimal fitting for the chain thus no reduction of the WLL
- A safety bolt with a spring prevents accidental loosening of the fitted chain when loaded or unloaded
Product Variants (5)
ICE-Multi-Shortening claw IMVK 6 (7900985)

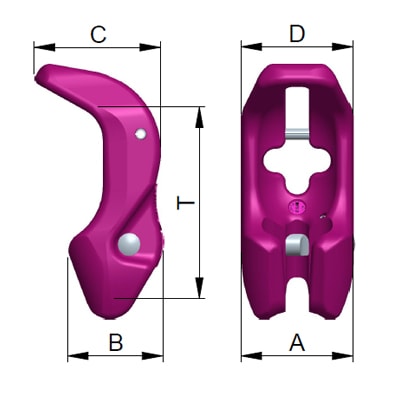

| Attribute | Value | Value |
|---|
| weight | 0.28 kg | 0.62 lbs |
| Nominal WLL | 1800 kg | 3960 lbs |
| A | 38 mm | 1-1/2" |
| B | 32 mm | 1-1/4" |
| T | 66 mm | 2-5/8" |
| C | 41 mm | 1-5/8" |
| D | 37 mm | 1-7/16" |
ICE-Multi-Shortening claw IMVK 8 (7900981)
| Attribute | Value | Value |
|---|
| weight | 0.61 kg | 1.34 lbs |
| Nominal WLL | 3000 kg | 6600 lbs |
| A | 47 mm | 1-7/8" |
| B | 40 mm | 1-9/16" |
| T | 88 mm | 3-15/32" |
| C | 54 mm | 2-1/8" |
| D | 47 mm | 1-7/8" |
ICE-Multi-Shortening claw IMVK 10 (7900983)
| Attribute | Value | Value |
|---|
| weight | 1.61 kg | 3.55 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 60 mm | 2-3/8" |
| B | 51 mm | 2" |
| T | 110 mm | 4-11/32" |
| C | 67 mm | 2-5/8" |
| D | 60 mm | 2-3/8" |
ICE-Multi-Shortening claw IMVK 13 (7900984)
| Attribute | Value | Value |
|---|
| weight | 2.60 kg | 5.73 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 77 mm | 3"-1/32" |
| B | 65 mm | 2-9/16" |
| T | 143 mm | 5-5/8" |
| C | 87 mm | 3-7/16" |
| D | 77 mm | 3"-1/32" |
ICE-Multi-Shortening claw IMVK 16 (7900986)
| Attribute | Value | Value |
|---|
| weight | 4.85 kg | 10.69 lbs |
| Nominal WLL | 12500 kg | 27500 lbs |
| A | 95 mm | 3-3/4" |
| B | 81 mm | 3-3/16" |
| T | 176 mm | 6-15/16" |
| C | 110 mm | 4-11/32" |
| D | 95 mm | 3-3/4" |
