INOX-STAR®, metric thread

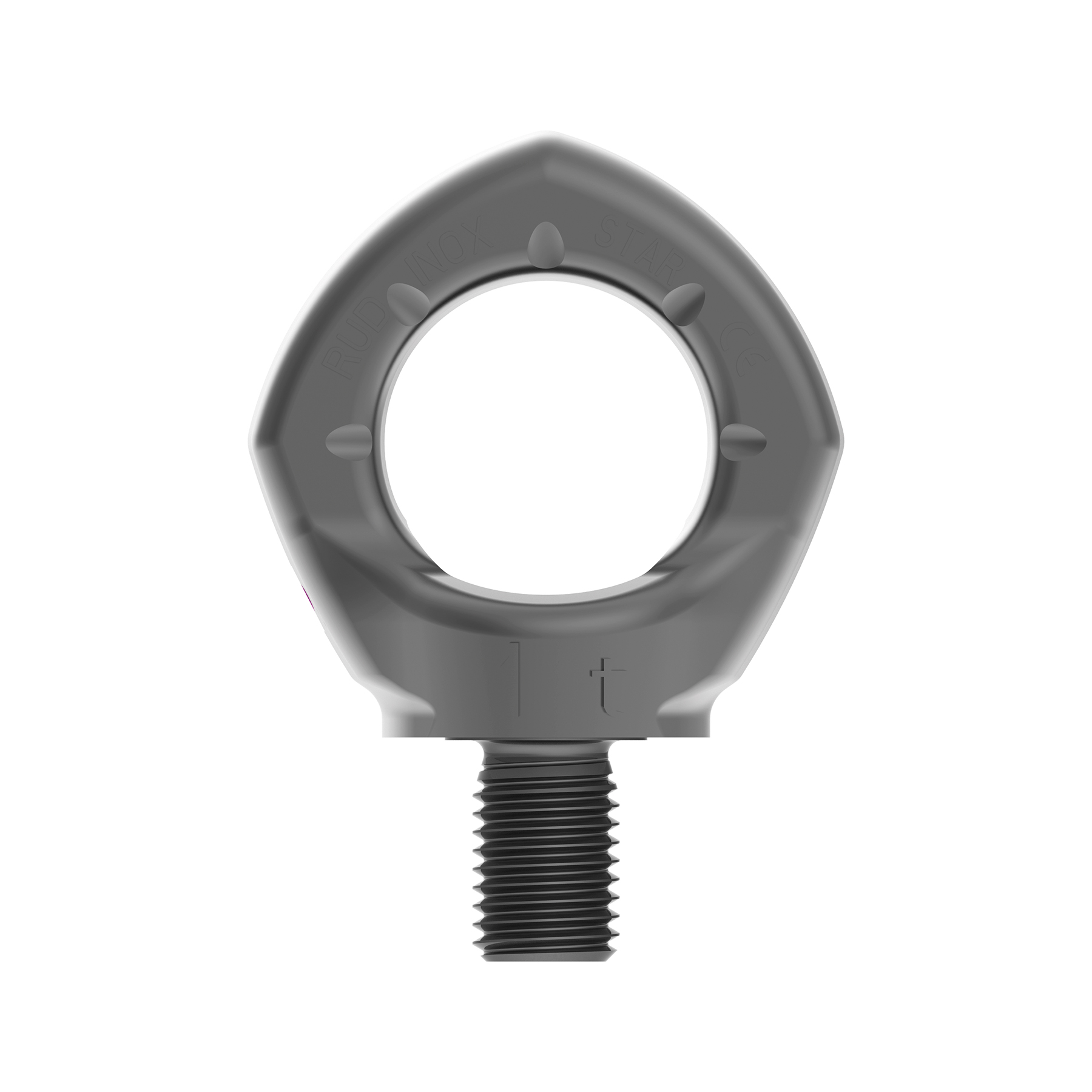

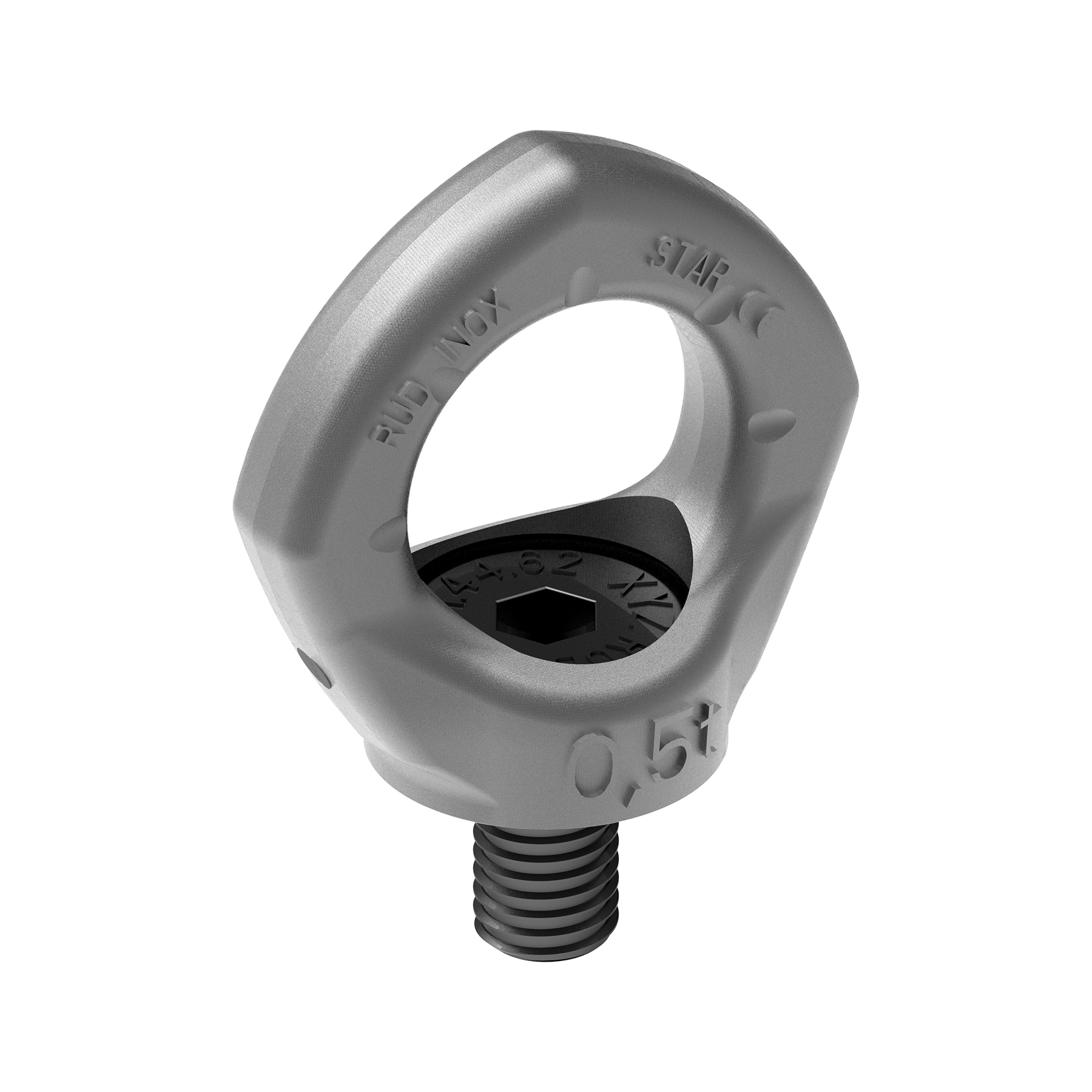

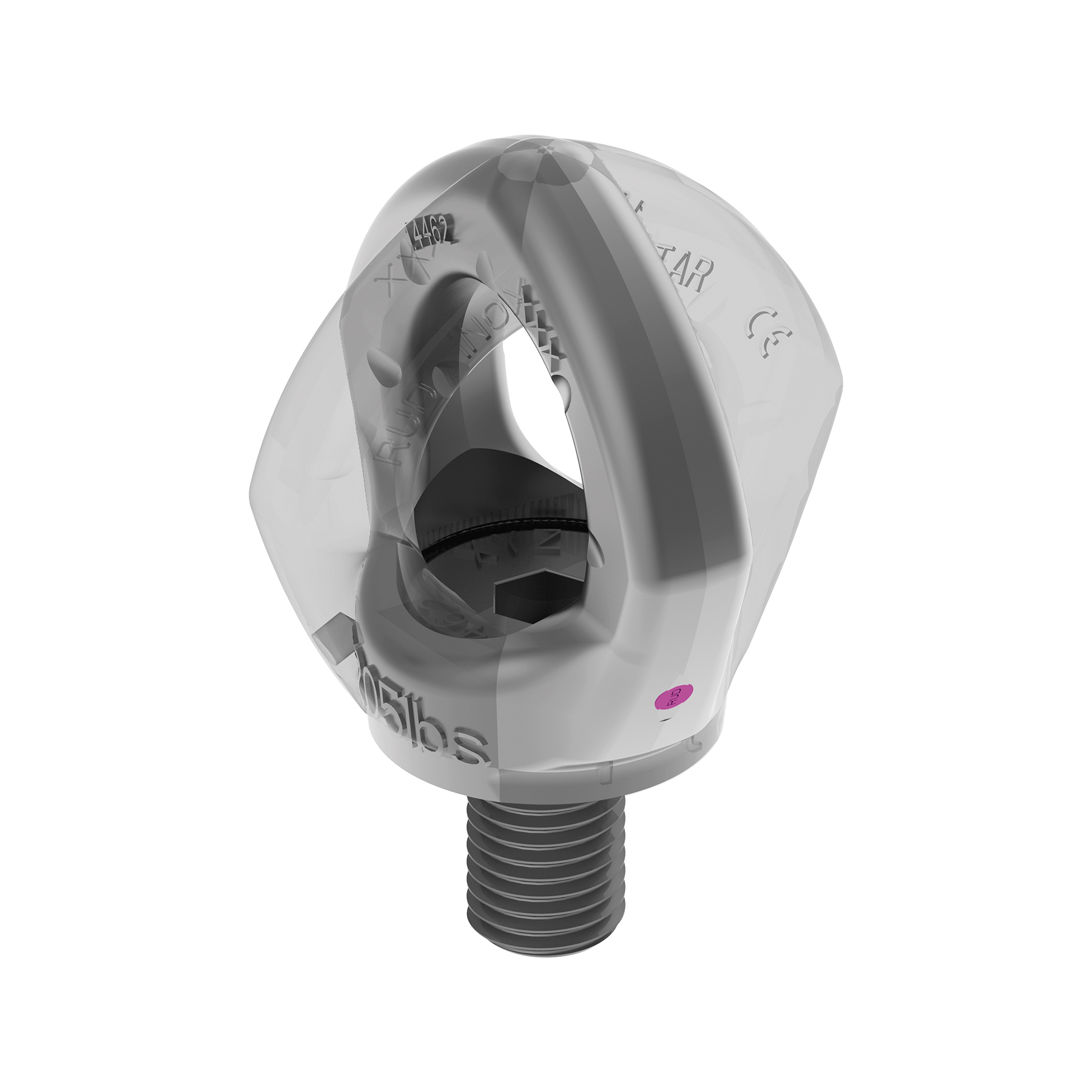

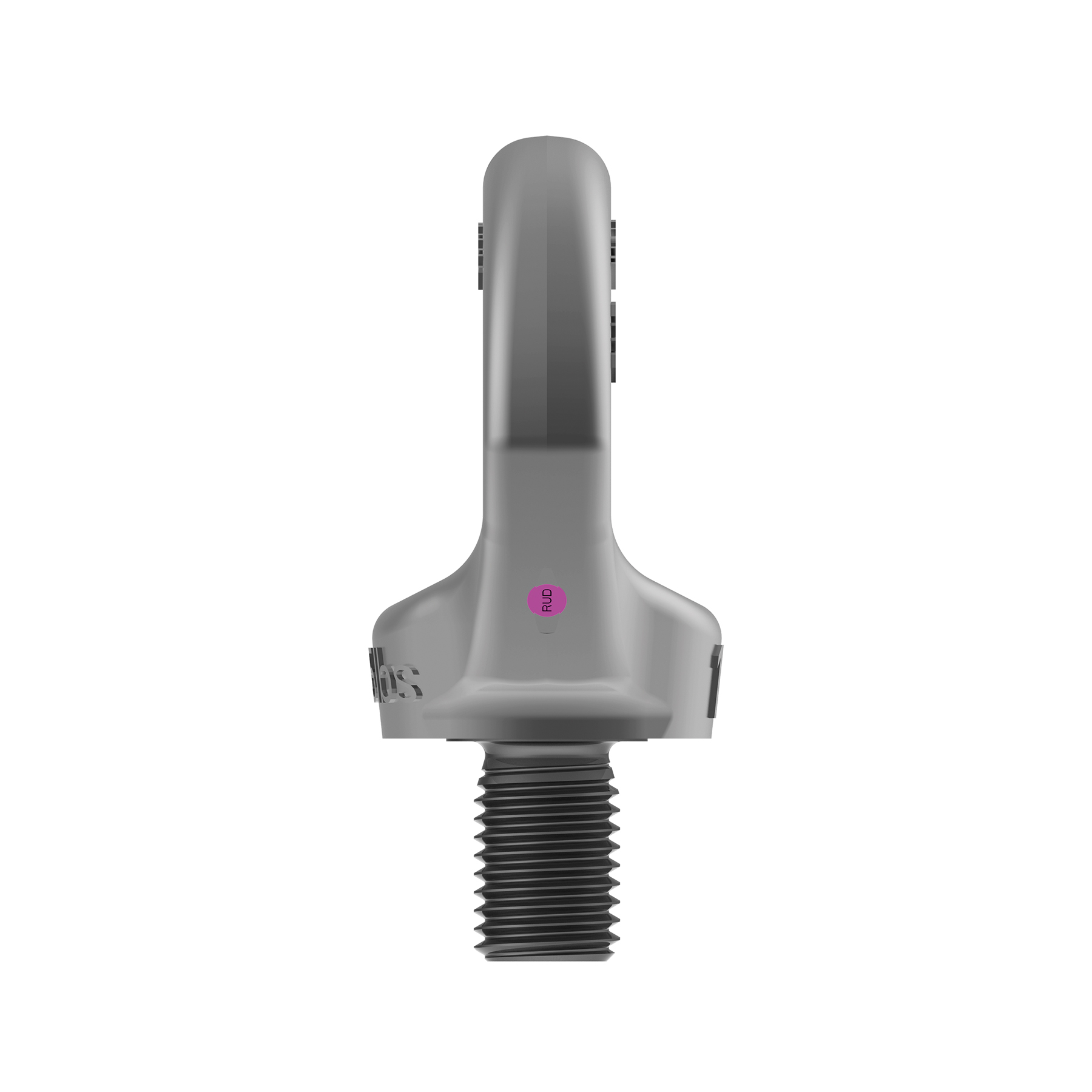

INOX-STAR®-Eyebolt M12 (7993835)

Technical Information

Product number: 7993835

Technical Downloads

INOX-STAR - Picture Download File

INOX-STAR - Picture Download File

INOX-STAR-M12 - DXF 2D CAD File Download File

INOX-STAR-M12 - IGES 3D CAD File Download File

INOX-STAR-M12 - STEP 3D CAD File Download File

INOX-STAR®-Eyebolt M12 Download File

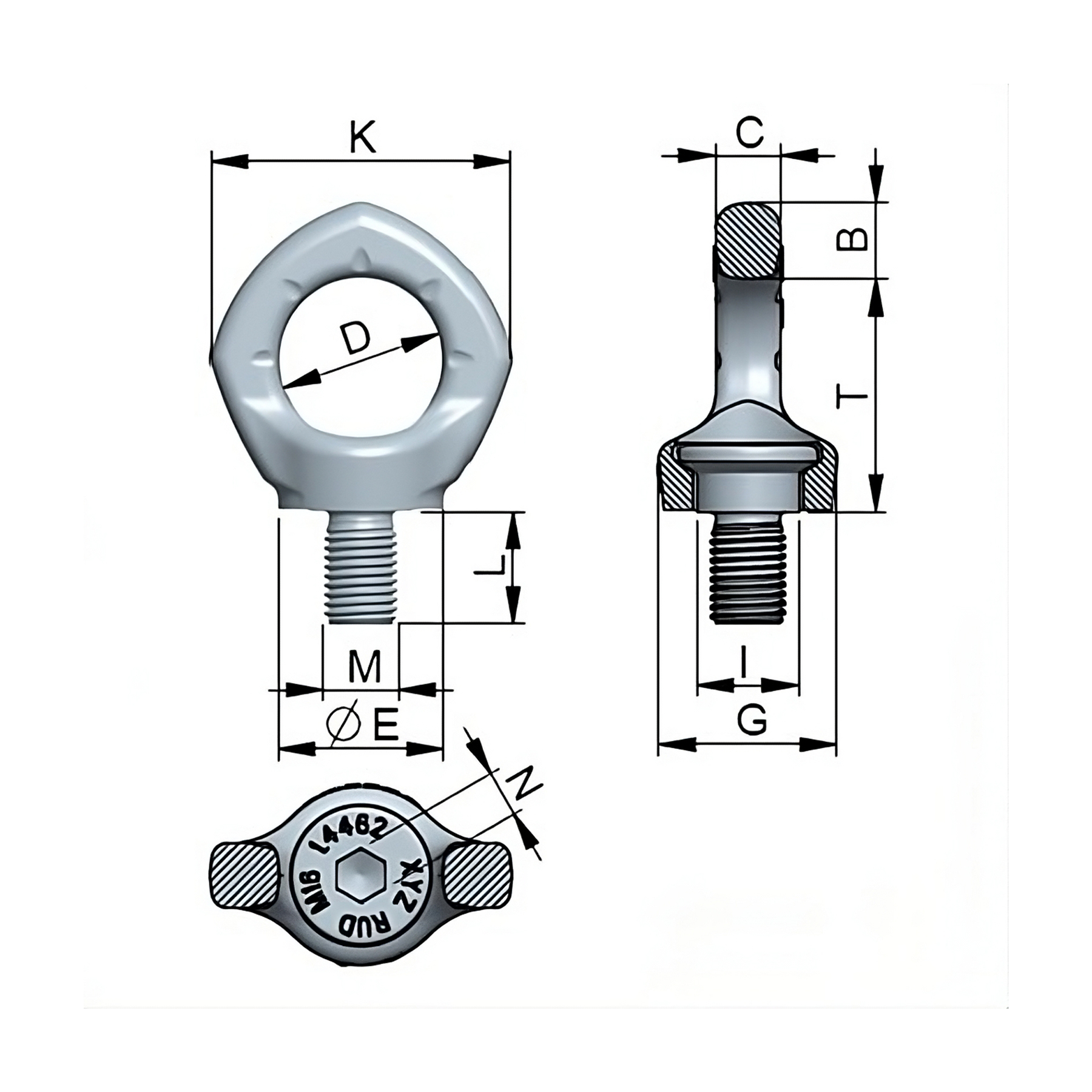

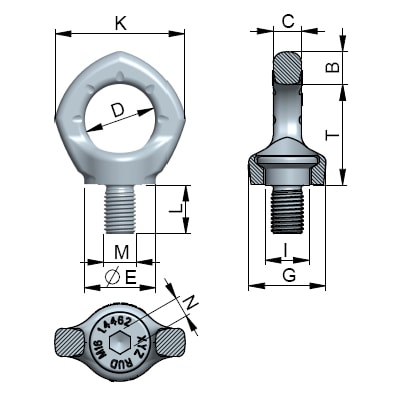

Attribute	Value	Value
weight	0.19 kg	0.42 lbs
Nominal WLL	500 kg	1100 lbs
T	43 mm	1-11/16"
B	14 mm	9/16"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	32 mm	1-1/4"
I	20 mm	3/4"
K	56 mm	2-3/16"
L	18 mm	23/32"
M	M12 mm	M12
N	8 mm	5/16"

INOX-STAR®-Eyebolt M16 (7993836)

Technical Information

Product number: 7993836

Technical Downloads

INOX-STAR - Picture Download File

INOX-STAR - Picture Download File

INOX-STAR-M16 - DXF 2D CAD File Download File

INOX-STAR-M16 - IGES 3D CAD File Download File

INOX-STAR-M16 - STEP 3D CAD File Download File

INOX-STAR®-Eyebolt M16 Download File

Attribute	Value	Value
weight	0.31 kg	0.68 lbs
Nominal WLL	1000 kg	2200 lbs
T	50 mm	1-31/32"
B	16 mm	5/8"
C	14 mm	9/16"
D	35 mm	1-3/8"
E	36 mm	1-27/64"
G	38 mm	1-1/2"
I	23.5 mm	59/64"
K	65 mm	2-9/16"
L	24 mm	15/16"
M	M16 mm	M16
N	10 mm	3/8"

INOX-STAR®-Eyebolt M20 (7993837)

Technical Information

Product number: 7993837

Technical Downloads

INOX-STAR - Picture Download File

INOX-STAR - Picture Download File

INOX-STAR-M20 - DXF 2D CAD File Download File

INOX-STAR-M20 - IGES 3D CAD File Download File

INOX-STAR-M20 - STEP 3D CAD File Download File

INOX-STAR®-Eyebolt M20 Download File

Attribute	Value	Value
weight	0.53 kg	1.17 lbs
Nominal WLL	2000 kg	4400 lbs
T	57 mm	2-1/4"
B	19 mm	3/4"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	42 mm	1-21/32"
G	47 mm	1-7/8"
I	29 mm	1-5/32"
K	74 mm	2-29/32"
L	30 mm	1-3/16"
M	M20 mm	M20
N	12 mm	15/32"

INOX-STAR®-Eyebolt M24 (7993838)

Technical Information

Product number: 7993838

Technical Downloads

INOX-STAR - Picture Download File

INOX-STAR - Picture Download File

INOX-STAR-M24 - DXF 2D CAD File Download File

INOX-STAR-M24 - IGES 3D CAD File Download File

INOX-STAR-M24 - STEP 3D CAD File Download File

INOX-STAR®-Eyebolt M24 Download File

Attribute	Value	Value
weight	0.92 kg	2.03 lbs
Nominal WLL	2500 kg	5500 lbs
T	69 mm	2-23/32"
B	24 mm	15/16"
C	19 mm	3/4"
D	48 mm	1-7/8"
E	50 mm	1-31/32"
G	56 mm	2-3/16"
I	35 mm	1-3/8"
K	92 mm	3-5/8"
L	36 mm	1-27/64"
M	M24 mm	M24
N	14 mm	9/16"

INOX-STAR®-Eyebolt M12 - L=50 (7997822)

Technical Information

Product number: 7997822

Technical Downloads

INOX-STAR - Picture Download File

INOX-STAR - Picture Download File

INOX-STAR®-Eyebolt M12 - L=50 Download File

Attribute	Value	Value
weight	0.22 kg	0.49 lbs
Nominal WLL	500 kg	1100 lbs
T	43 mm	1-11/16"
B	14 mm	9/16"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
G	32 mm	1-1/4"
I	20 mm	3/4"
K	56 mm	2-3/16"
L	50 mm	1-31/32"
M	M12 mm	M12
N	8 mm	5/16"

INOX-STAR®-Eyebolt M20 - L=60 (7998714)

Technical Information

Product number: 7998714

Technical Downloads

INOX-STAR - Picture Download File

INOX-STAR - Picture Download File

Instruction handbook INOX-STAR Download File

INOX-STAR®-Eyebolt M20 - L=60 Download File

Attribute	Value	Value
weight	0.60 kg	1.32 lbs
Nominal WLL	2000 kg	4400 lbs
T	57 mm	2-1/4"
B	19 mm	3/4"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	42 mm	1-21/32"
G	47 mm	1-7/8"
I	29 mm	1-5/32"
K	74 mm	2-29/32"
L	60 mm	2-3/8"
M	M20 mm	M20
N	12 mm	15/32"
