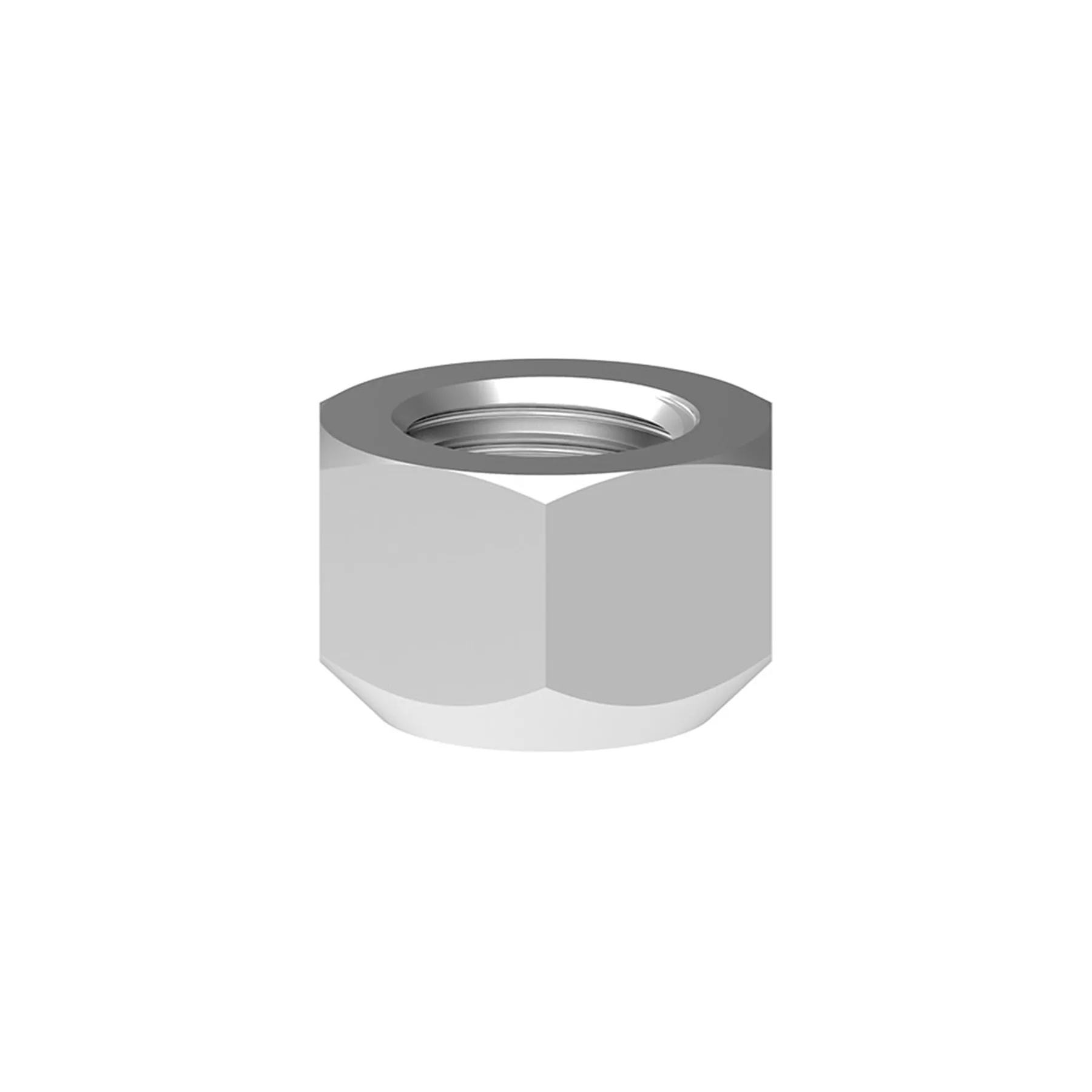

Locknuts ISO 7042 (DIN 980-V)
- 100% crack tested
- Prevailing torque hexagon nut type complied to DIN 980
- V (all-metal design) with a zinc plated surface
- Comes with a plain washer assembly of lifting points with long threaded bolts
Product Variants (16)
Nut DIN 980-V M8 crack detected (7990532)

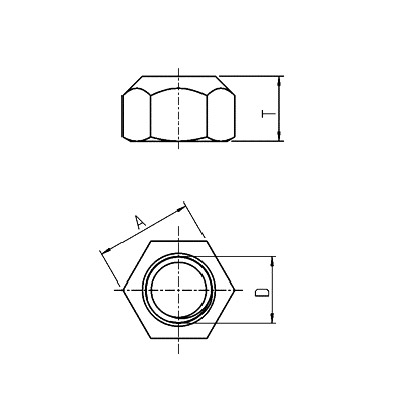

| Attribute | Value | Value |
|---|
| weight | 0.01 kg | 0.02 lbs |
| A | 13 mm | 1/2" |
| T | 8 mm | 5/16" |
| D | M8 mm | M8 |
Nut DIN 980-V M10 crack detected (7990533)
| Attribute | Value | Value |
|---|
| weight | 0.01 kg | 0.02 lbs |
| A | 17.0 mm | 43/64" |
| T | 10.0 mm | 25/64" |
| D | M10 mm | M10 |
Nut DIN 980-V M12 crack detected (7990534)
| Attribute | Value | Value |
|---|
| weight | 0.02 kg | 0.04 lbs |
| A | 19.0 mm | 3/4" |
| T | 12.0 mm | 15/32" |
| D | M12 mm | M12 |
Nut DIN 980-V M14 crack detected (7993785)
| Attribute | Value | Value |
|---|
| weight | 0.03 kg | 0.06 lbs |
| A | 22.0 mm | 7/8" |
| T | 14.0 mm | 9/16" |
| D | 14 mm | M14 |
Nut DIN 980-V M16 crack detected (7990535)
| Attribute | Value | Value |
|---|
| weight | 0.04 kg | 0.09 lbs |
| A | 24.0 mm | 15/16" |
| T | 16.0 mm | 5/8" |
| D | M16 mm | M16 |
Nut DIN 980-V M18 crack detected (7993786)
| Attribute | Value | Value |
|---|
| weight | 0.05 kg | 0.11 lbs |
| A | 27.0 mm | 1-1/16" |
| T | 18.0 mm | 23/32" |
| D | 18 mm | M18 |
Nut DIN 980-V M20 crack detected (7990536)
| Attribute | Value | Value |
|---|
| weight | 0.06 kg | 0.14 lbs |
| A | 30.0 mm | 1-3/16" |
| T | 20.0 mm | 25/32" |
| D | M20 mm | M20 |
Nut DIN 980-V M22 crack detected (7998943)
| Attribute | Value | Value |
|---|
| weight | 0.07 kg | 0.15 lbs |
| A | 32 mm | 1-1/4" |
| T | 22.0 mm | 7/8" |
| D | M22 mm | M22 |
Nut DIN 980-V M27 crack detected (7995736)
| Attribute | Value | Value |
|---|
| weight | 0.17 kg | 0.37 lbs |
| A | 41 mm | 1-5/8" |
| T | 27 mm | |
| D | M27 mm | M27 |
Nut DIN 980-V M30 crack detected (7990538)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.52 lbs |
| A | 46.0 mm | 1-13/16" |
| T | 30.0 mm | 1-3/16" |
| D | M30 mm | M30 |
Nut DIN 980-V M24 crack detected (7990537)
| Attribute | Value | Value |
|---|
| weight | 0.12 kg | 0.26 lbs |
| A | 36.0 mm | 1-27/64" |
| T | 24.0 mm | 15/16" |
| D | M24 mm | M24 |
Nut DIN 980-V M33 crack detected (7993787)
| Attribute | Value | Value |
|---|
| weight | 0.29 kg | 0.64 lbs |
| A | 50 mm | 1-31/32" |
| T | 33 mm | 1-5/16" |
| D | M33 mm | M33 |
Nut DIN 980-V M36 crack detected (7990539)
| Attribute | Value | Value |
|---|
| weight | 0.4 kg | 0.88 lbs |
| A | 55.0 mm | 2-5/32" |
| T | 36.0 mm | 1-27/64" |
| D | M36 mm | M36 |
Nut DIN 980-V M42 crack detected (7990540)
| Attribute | Value | Value |
|---|
| weight | 0.64 kg | 1.41 lbs |
| A | 65.0 mm | 2-9/16" |
| T | 42.0 mm | 1-21/32" |
| D | M42 mm | M42 |
Nut DIN 980-V M48 crack detected (7990541)
| Attribute | Value | Value |
|---|
| weight | 0.96 kg | 2.1 lbs |
| A | 75.0 mm | 2-61/64" |
| T | 48.0 mm | 1-7/8" |
| D | M48 mm | M48 |
Nut DIN 980-V M56 crack detected (7995776)
| Attribute | Value | Value |
|---|
| weight | 1.00 kg | 2.20 lbs |
| A | 85 mm | 3-11/32" |
| T | 56 mm | 2-3/16" |
| D | 56 mm | 2-3/16" |
