RS Eye bolt, UNC/UN thread

Higher WLL in comparison to DIN 580
Clear marking of the minimum WLL
Comprehensive range of threads

Product Variants (20)

Eye bolt RS-1/4"-20UNC (0056887)

Technical Information

Product number: 0056887

Technical Downloads

RS-1/4"-20UNC DXF 2D CAD File Download File

RS-1/4"-20UNC IGES 3D CAD File Download File

RS-1/4"-20UNC STEP 3D CAD File Download File

Eye bolt RS-1/4"-20UNC Download File

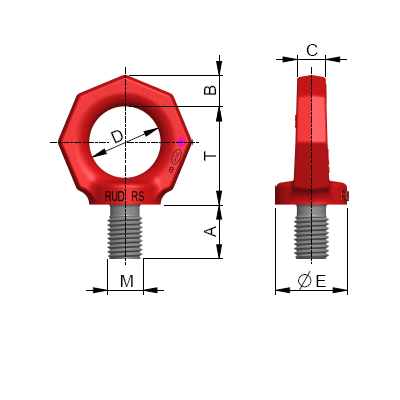

Attribute	Value	Value
weight	0.10 kg	0.22 lbs
Nominal WLL	100 kg	220 lbs
A	12 mm	15/32"
B	11 mm	7/16"
T	34 mm	1-11/32"
C	10 mm	3/8"
D	25 mm	63/64"
E	25 mm	63/64"
M	1/4"-20UNC mm	1/4"-20UNC

Eye bolt RS-5/16"-18UNC (0056885)

Technical Information

Product number: 0056885

Technical Downloads

Eye bolt RS-5/16"-18UNC Download File

Attribute	Value	Value
weight	0.10 kg	0.22 lbs
Nominal WLL	200 kg	440 lbs
A	12 mm	15/32"
B	11 mm	7/16"
T	34 mm	1-11/32"
C	10 mm	3/8"
D	25 mm	63/64"
E	25 mm	63/64"
M	5/16"-18UNC mm	5/16"-18UNC

Eye bolt RS-3/8"-16UNC (0056879)

Technical Information

Product number: 0056879

Technical Downloads

RS-3/8"-16UNC DXF 2D CAD File Download File

RS-3/8"-16UNC IGES 3D CAD File Download File

Eye bolt RS-3/8"-16UNC Download File

Attribute	Value	Value
weight	0.10 kg	0.22 lbs
Nominal WLL	250 kg	550 lbs
A	15 mm	19/32"
B	11 mm	7/16"
T	34 mm	1-11/32"
C	10 mm	3/8"
D	25 mm	63/64"
E	25 mm	63/64"
M	3/8"-16UNC mm	3/8"-16UNC

Eye bolt RS-7/16"-14UNC (0056870)

Technical Information

Product number: 0056870

Technical Downloads

Eye bolt RS-7/16"-14UNC Download File

Attribute	Value	Value
weight	0.18 kg	0.40 lbs
Nominal WLL	400 kg	880 lbs
A	18 mm	23/32"
B	13 mm	1/2"
T	41 mm	1-5/8"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
M	7/16"-14UNC mm	7/16"-14UNC

Eye bolt RS-1/2"-13UNC (0056871)

Technical Information

Product number: 0056871

Technical Downloads

RS-1/2"-13UNC DXF 2D CAD File Download File

RS-1/2"-13UNC IGES 3D CAD File Download File

RS-1/2"-13UNC STEP 3D CAD File Download File

Eye bolt RS-1/2"-13UNC Download File

Attribute	Value	Value
weight	0.18 kg	0.40 lbs
Nominal WLL	400 kg	880 lbs
A	18 mm	23/32"
B	13 mm	1/2"
T	41 mm	1-5/8"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
M	1/2"-13UNC mm	1/2"-13UNC

Eye bolt RS-9/16"-12UNC (0057120)

Technical Information

Product number: 0057120

Technical Downloads

Eye bolt RS-9/16"-12UNC Download File

Attribute	Value	Value
weight	0.30 kg	0.66 lbs
Nominal WLL	750 kg	1650 lbs
A	22 mm	7/8"
B	15 mm	19/32"
T	48 mm	1-7/8"
C	14 mm	9/16"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
M	9/16"-12UNC mm	9/16"-12UNC

Eye bolt RS-5/8"-11UNC (0057198)

Technical Information

Product number: 0057198

Technical Downloads

RS-5/8"-11UNC DXF 2D CAD File Download File

RS-5/8"-11UNC IGES 3D CAD File Download File

RS-5/8"-11UNC STEP 3D CAD File Download File

Eye bolt RS-5/8"-11UNC Download File

Attribute	Value	Value
weight	0.30 kg	0.66 lbs
Nominal WLL	1000 kg	2200 lbs
A	24 mm	15/16"
B	15 mm	19/32"
T	48 mm	1-7/8"
C	14 mm	9/16"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
M	5/8"-11UNC mm	5/8"-11UNC

Eye bolt RS-3/4"-10UNC (0057205)

Technical Information

Product number: 0057205

Technical Downloads

RS-3/4"-10UNC DXF 2D CAD File Download File

RS-3/4"-10UNC IGES 3D CAD File Download File

RS-3/4"-10UNC STEP 3D CAD File Download File

Eye bolt RS-3/4"-10UNC Download File

Attribute	Value	Value
weight	0.47 kg	1.04 lbs
Nominal WLL	1200 kg	2640 lbs
A	30 mm	1-3/16"
B	17 mm	43/64"
T	55 mm	2-5/32"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	40 mm	1-9/16"
M	3/4"-10UNC mm	3/4"-10UNC

Eye bolt RS-7/8"-9UNC (0057212)

Technical Information

Product number: 0057212

Technical Downloads

RS-7/8"-9UNC - DXF 2D CAD File Download File

RS-7/8"-9UNC IGES 3D CAD File Download File

Eye bolt RS-7/8"-9UNC Download File

Attribute	Value	Value
weight	0.80 kg	1.76 lbs
Nominal WLL	1500 kg	3300 lbs
A	34 mm	1-11/32"
B	21 mm	13/16"
T	70 mm	2-3/4"
C	20 mm	3/4"
D	50 mm	1-31/32"
E	50 mm	1-31/32"
M	7/8"-9UNC mm	7/8"-9UNC

Eye bolt RS-1"-8UNC (0057213)

Technical Information

Product number: 0057213

Technical Downloads

RS-1"-8UNC - DXF 2D CAD File Download File

RS-1"-8UNC - IGES 3D CAD File Download File

RS-1"-8UNC - STEP 3D CAD File Download File

Eye bolt RS-1"-8UNC Download File

Attribute	Value	Value
weight	0.85 kg	1.87 lbs
Nominal WLL	2000 kg	4400 lbs
A	36 mm	1-27/64"
B	21 mm	13/16"
T	70 mm	2-3/4"
C	20 mm	3/4"
D	50 mm	1-31/32"
E	50 mm	1-31/32"
M	1"-8UNC mm	1"-8UNC

Eye bolt RS-1 1/8"-7UNC (0057471)

Technical Information

Product number: 0057471

Technical Downloads

Eye bolt RS-1 1/8"-7UNC Download File

Attribute	Value	Value
weight	1.60 kg	3.53 lbs
Nominal WLL	2500 kg	5500 lbs
A	45 mm	1-25/32"
B	26 mm	1"
T	85 mm	3-11/32"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	1 1/8"-7UNC mm	1 1/8"-7UNC

Eye bolt RS-1 1/8"-8UN (7985010)

Technical Information

Product number: 7985010

Technical Downloads

Eye bolt RS-1 1/8"-8UN Download File

Attribute	Value	Value
weight	1.60 kg	3.53 lbs
Nominal WLL	2500 kg	5500 lbs
A	45 mm	1-25/32"
B	26 mm	1"
T	85 mm	3-11/32"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	1 1/8"-8UN mm	1 1/8"-8UN

Eye bolt RS-1 1/4"-7UNC (0057685)

Technical Information

Product number: 0057685

Technical Downloads

RS-1 1/4"-7UNC - DXF 2D CAD File Download File

RS-1 1/4"-7UNC - IGES 3D CAD File Download File

Eye bolt RS-1 1/4"-7UNC Download File

Attribute	Value	Value
weight	1.60 kg	3.53 lbs
Nominal WLL	3000 kg	6600 lbs
A	46 mm	1-13/16"
B	26 mm	1"
T	85 mm	3-11/32"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	1 1/4"-7UNC mm	1 1/4"-7UNC

Eye bolt RS-1 1/4"-8UN (57686)

Technical Information

Product number: 57686

Technical Downloads

Eye bolt RS-1 1/4"-8UN Download File

Attribute	Value	Value
weight	1.60 kg	3.53 lbs
Nominal WLL	3000 kg	6600 lbs
A	45 mm	1-25/32"
B	26 mm	1"
T	85 mm	3-11/32"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	1 1/4"-8UN mm	1 1/4"-8UN

Eye bolt RS-1 3/8"-6UNC (0058599)

Technical Information

Product number: 0058599

Technical Downloads

Eye bolt RS-1 3/8"-6UNC Download File

Attribute	Value	Value
weight	6.10 kg	13.45 lbs
Nominal WLL	3000 kg	6600 lbs
A	55 mm	2-5/32"
B	43 mm	1-11/16"
T	130 mm	5-1/8"
C	38 mm	1-1/2"
D	90 mm	3-17/32"
E	100 mm	3-15/16"
M	1 3/8"-6UNC mm	1 3/8"-6UNC

Eye bolt RS-1 1/2"-6UNC (0058615)

Technical Information

Product number: 0058615

Technical Downloads

Eye bolt RS-1 1/2"-6UNC Download File

Attribute	Value	Value
weight	6.20 kg	13.67 lbs
Nominal WLL	4000 kg	8800 lbs
A	58 mm	2-9/32"
B	43 mm	1-11/16"
T	130 mm	5-1/8"
C	38 mm	1-1/2"
D	90 mm	3-17/32"
E	100 mm	3-15/16"
M	1 1/2"-6UNC mm	1 1/2"-6UNC

Eye bolt RS-1 1/2"-8UN (7990453)

Technical Information

Product number: 7990453

Technical Downloads

Eye bolt RS-1 1/2"-8UN Download File

Attribute	Value	Value
weight	6.50 kg	14.33 lbs
Nominal WLL	4000 kg	8800 lbs
A	58 mm	2-9/32"
B	43 mm	1-11/16"
T	130 mm	5-1/8"
C	38 mm	1-1/2"
D	90 mm	3-17/32"
E	100 mm	3-15/16"
F	1 1/2"-8UN mm	1 1/2"-8UN

Eye bolt RS-1 3/4"-5UNC (0058616)

Technical Information

Product number: 0058616

Technical Downloads

Eye bolt RS-1 3/4"-5UNC Download File

Attribute	Value	Value
weight	6.30 kg	13.89 lbs
Nominal WLL	6000 kg	13200 lbs
A	67 mm	2-5/8"
B	43 mm	1-11/16"
T	130 mm	5-1/8"
C	38 mm	1-1/2"
D	90 mm	3-17/32"
E	100 mm	3-15/16"
M	1 3/4"-5UNC mm	1 3/4"-5UNC

Eye bolt RS-1 3/4"-8UN (7990186)

Technical Information

Product number: 7990186

Technical Downloads

Eye bolt RS-1 3/4"-8UN Download File

Attribute	Value	Value
weight	6.50 kg	14.33 lbs
Nominal WLL	6000 kg	13200 lbs
A	67 mm	2-5/8"
B	43 mm	1-11/16"
T	130 mm	5-1/8"
C	38 mm	1-1/2"
D	90 mm	3-17/32"
E	100 mm	3-15/16"
F	1 3/4"-8UN mm	1 3/4"-8UN

Eye bolt RS-2"-4.5UNC (0058658)

Technical Information

Product number: 0058658

Technical Downloads

Eye bolt RS-2"-4.5UNC Download File

Attribute	Value	Value
weight	6.50 kg	14.33 lbs
Nominal WLL	8000 kg	17600 lbs
A	67 mm	2-5/8"
B	43 mm	1-11/16"
T	130 mm	5-1/8"
C	38 mm	1-1/2"
D	90 mm	3-17/32"
E	100 mm	3-15/16"
M	2"-4.5UNC mm	2"-4.5UNC
