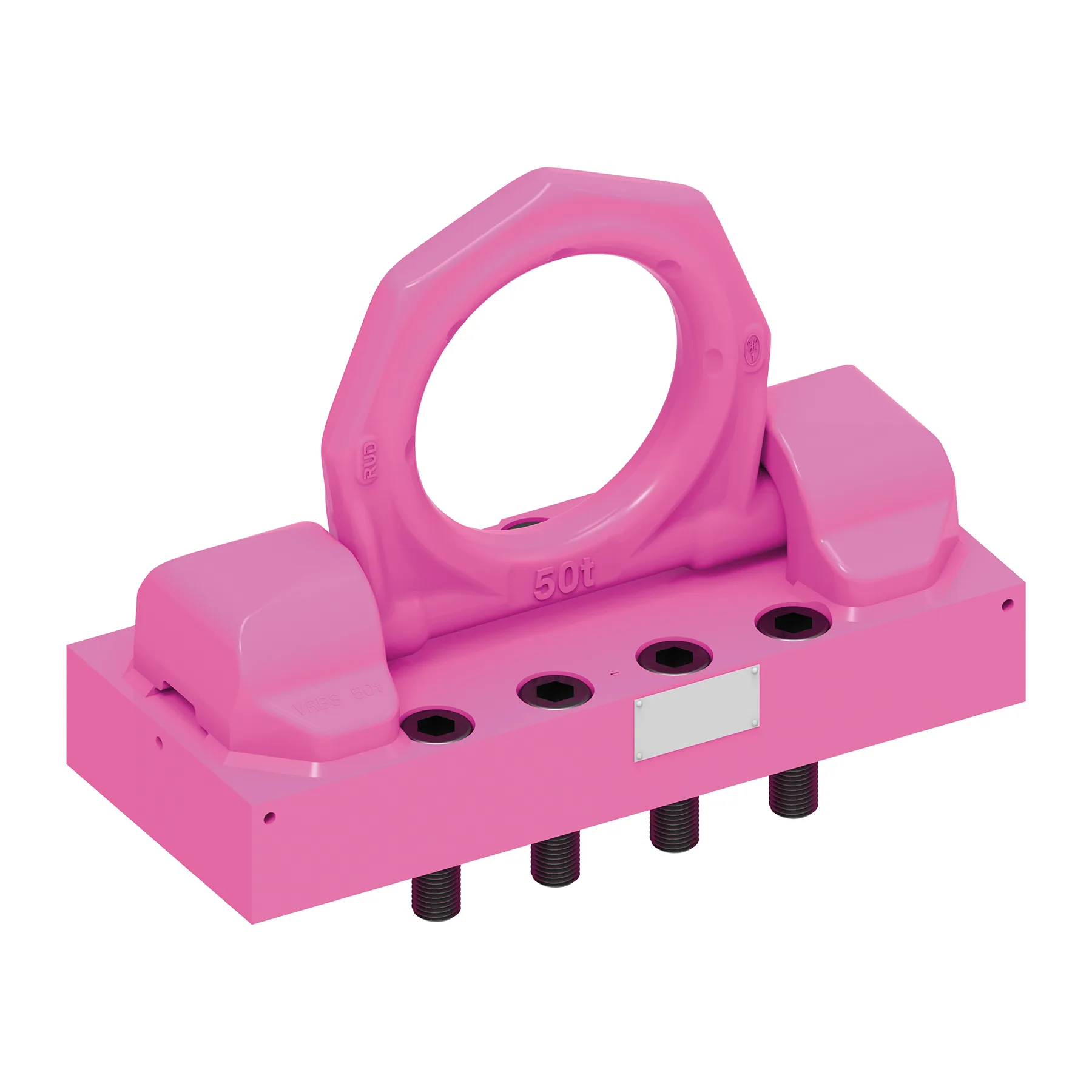

VRBG 31.5 & 50 - Load Ring on Plate for Bolting
Force application made easy
- Full load in 90° of ring plane
- Includes VRBS load ring welded on a boltable plate
- Smaller bolt diameter offers uniform distribution of load forces
- Working Load Limit up to 50t
- RUD 4:1 safety factor
Product Variants (2)
Load Ring VRBS welded on boltable plate VRBG-31.5t (7985866)

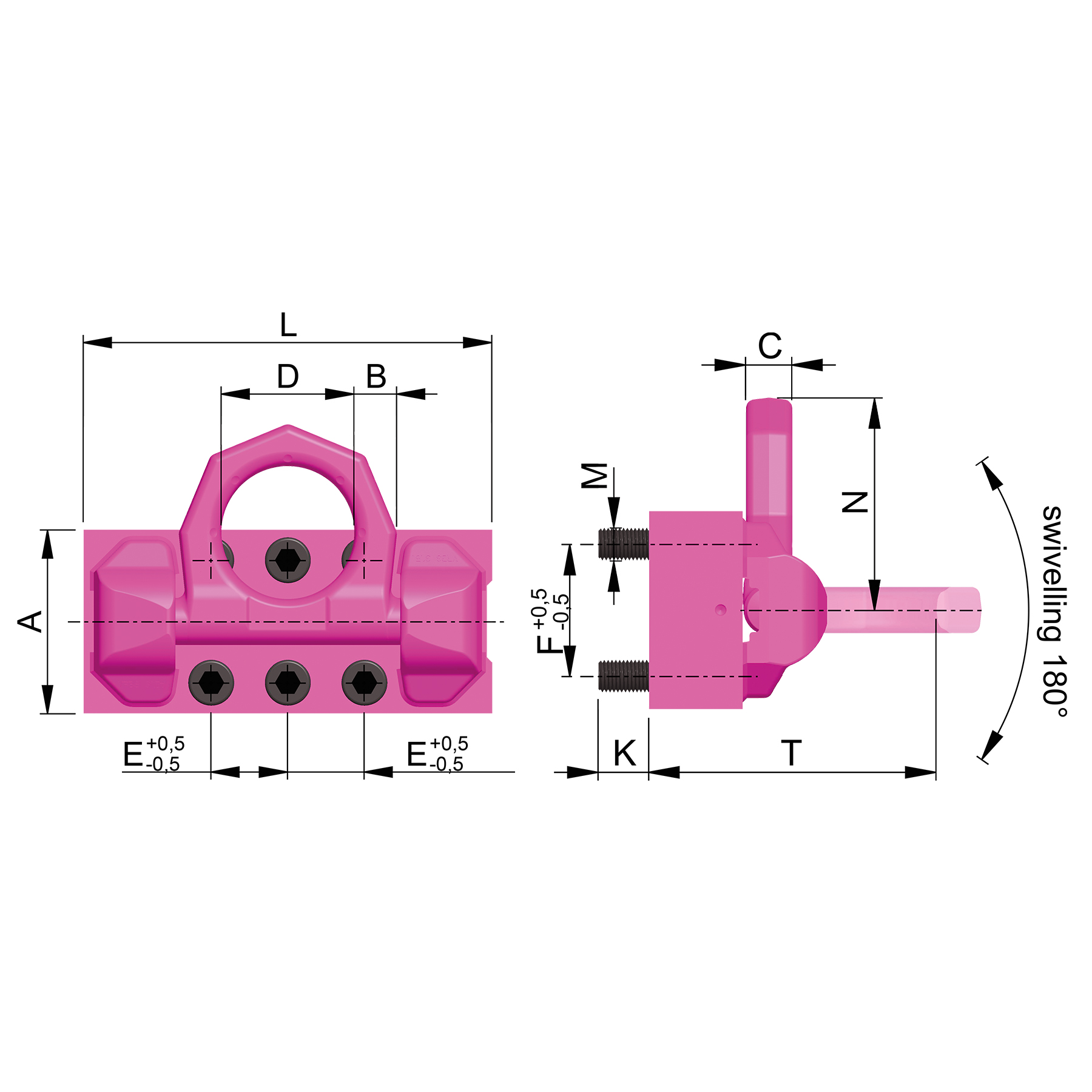

| Attribute | Value | Value |
|---|
| weight | 67.50 kg | 148.81 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| T | 265 mm | 10-7/16" |
| A | 180 mm | 7-1/16" |
| B | 42 mm | 1-21/32" |
| C | 42 mm | 1-21/32" |
| D | 130 mm | 5-1/8" |
| E | 75 mm | 2-15/16" |
| F | 120 mm | 4-3/4" |
| K | 46 mm | 1-13/16" |
| L | 400 mm | 15-3/4" |
| M | M30 mm | M30 |
| N | 195 mm | 7-11/16" |
Load Ring VRBS-FIX welded on boltable plate VRBG-50t (7909951)
| Attribute | Value | Value |
|---|
| weight | 204.00 kg | 449.74 lbs |
| Nominal WLL | 50000 kg | 110000 lbs |
| T | 430 mm | 16-15/16" |
| A | 270 mm | 10-5/8" |
| B | 70 mm | 2-3/4" |
| C | 55 mm | 2-5/32" |
| D | 230 mm | 9-1/16" |
| E | 100 mm | 3-15/16" |
| F | 200 mm | 7-7/8" |
| K | 60 mm | 2-3/8" |
| L | 650 mm | 25-5/8" |
| M | M36 mm | M36 |
| N | 335 mm | 13-3/16" |
