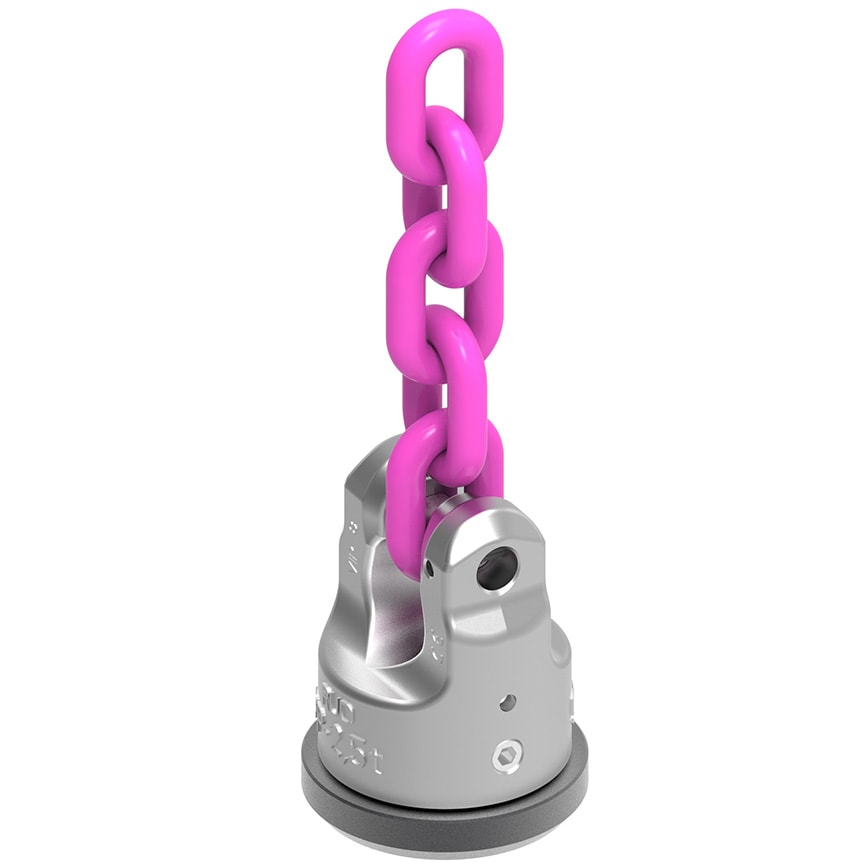

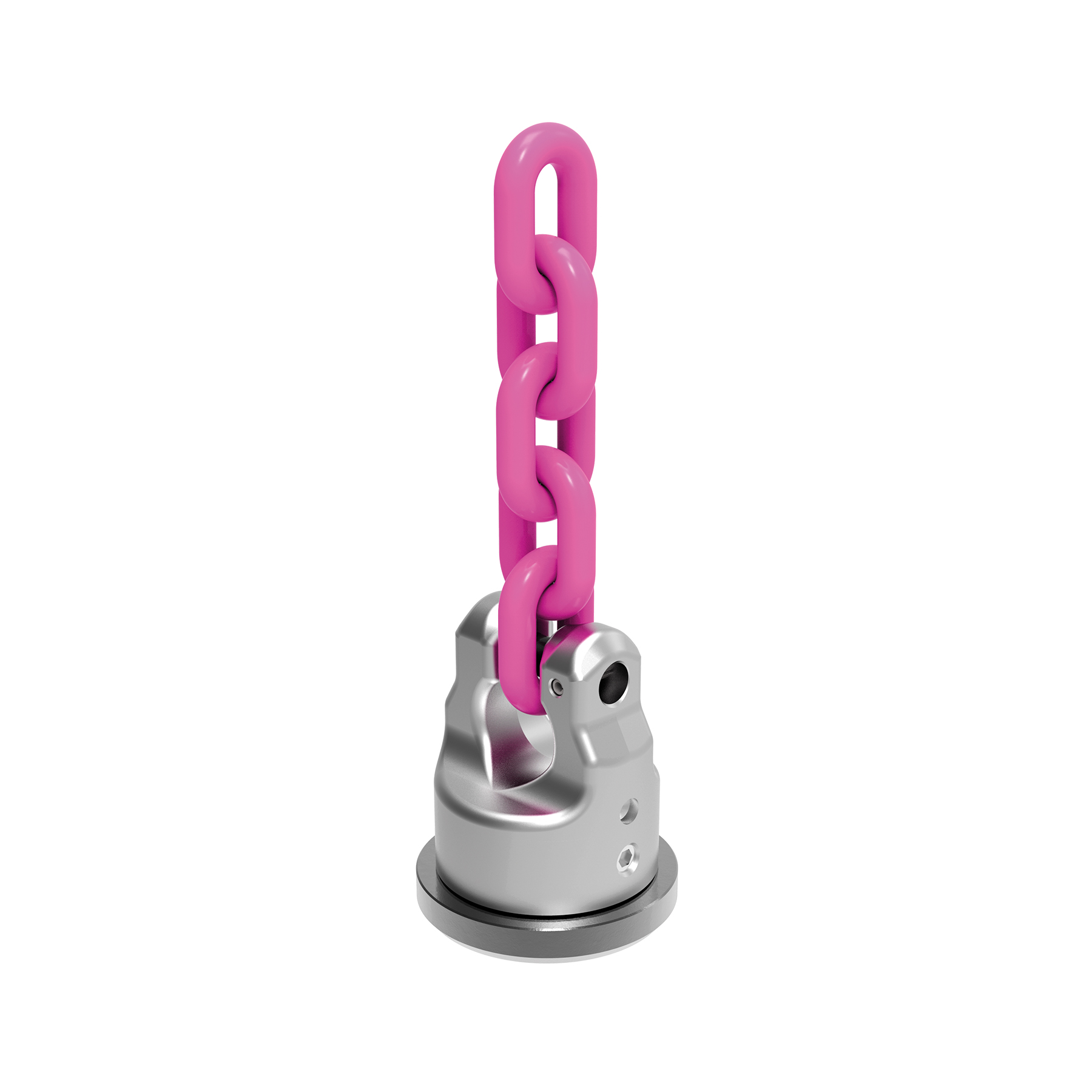

WPP-VIP PowerPoint® - Direct VIP Chain Connection
Universal connection with many attachment options

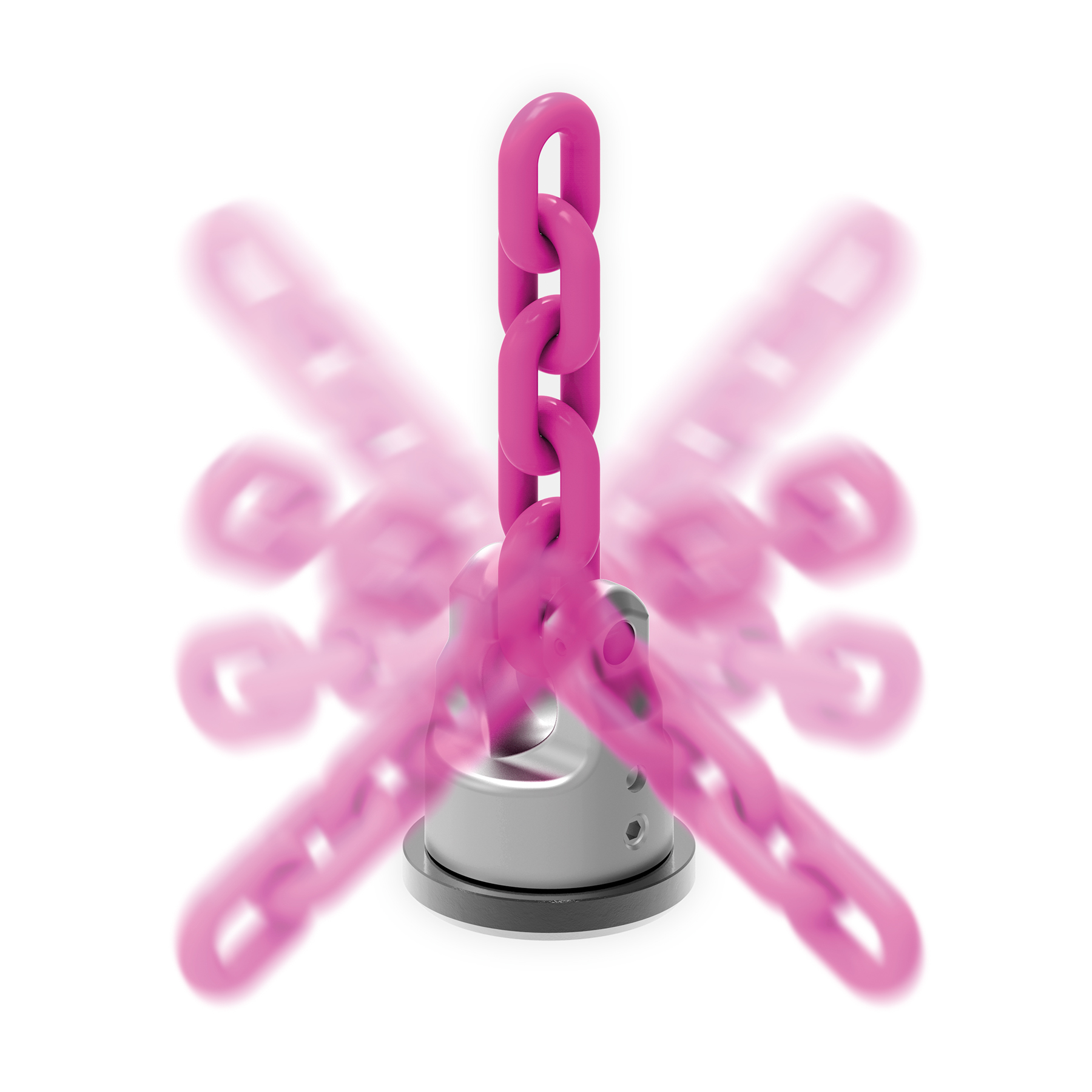

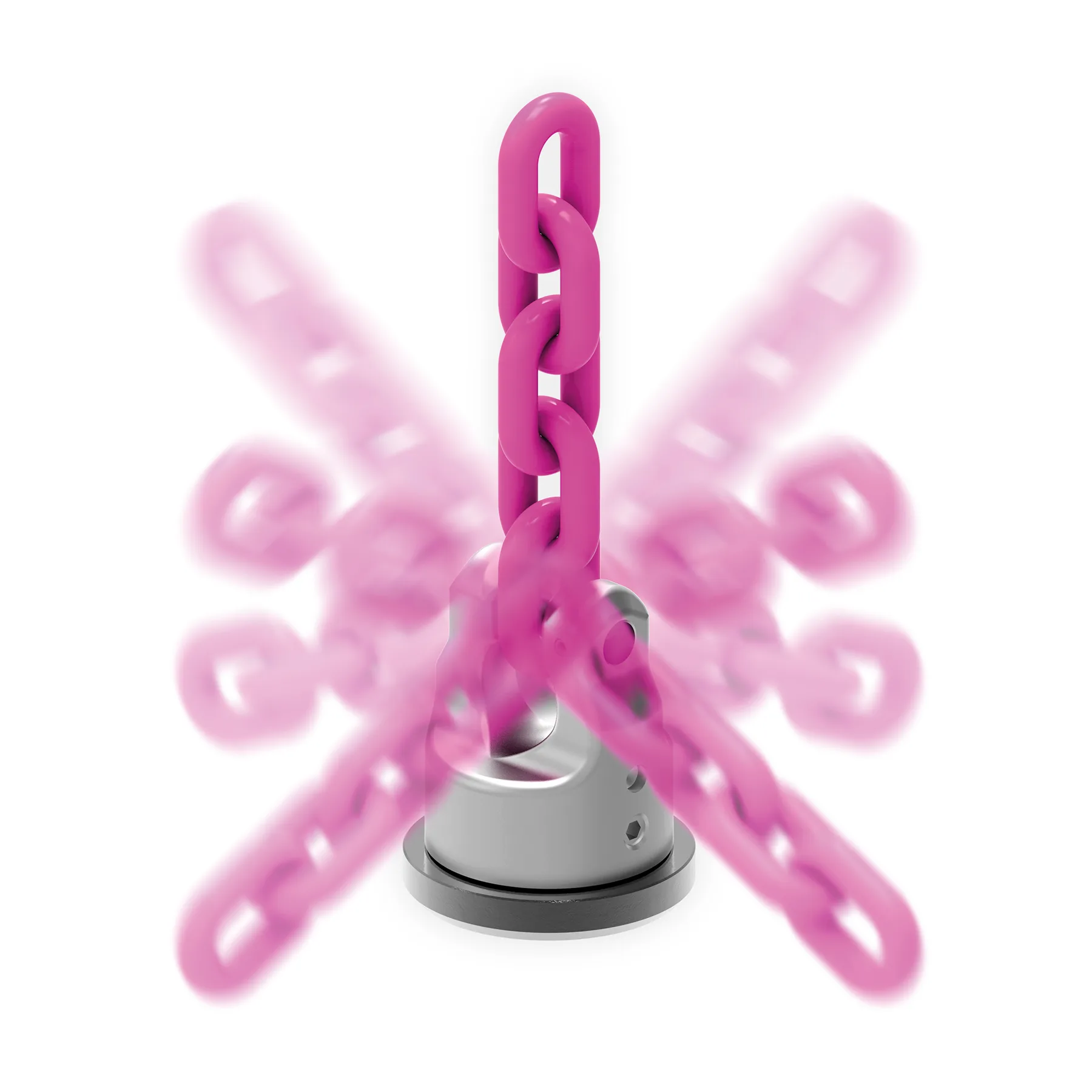

- Rotates 360° and pivots 230°
- Universal VIP connection for chain, hook and eye
- Double ball bearing for rotating and turning actions
- RUD 4:1 safety factor
Product Variants (7)
PowerPoint WPP-VIP4-0.63t (7989960)
| Attribute | Value | Value |
|---|
| weight | 0.24 kg | 0.53 lbs |
| Nominal WLL | 630 kg | 1385 lbs |

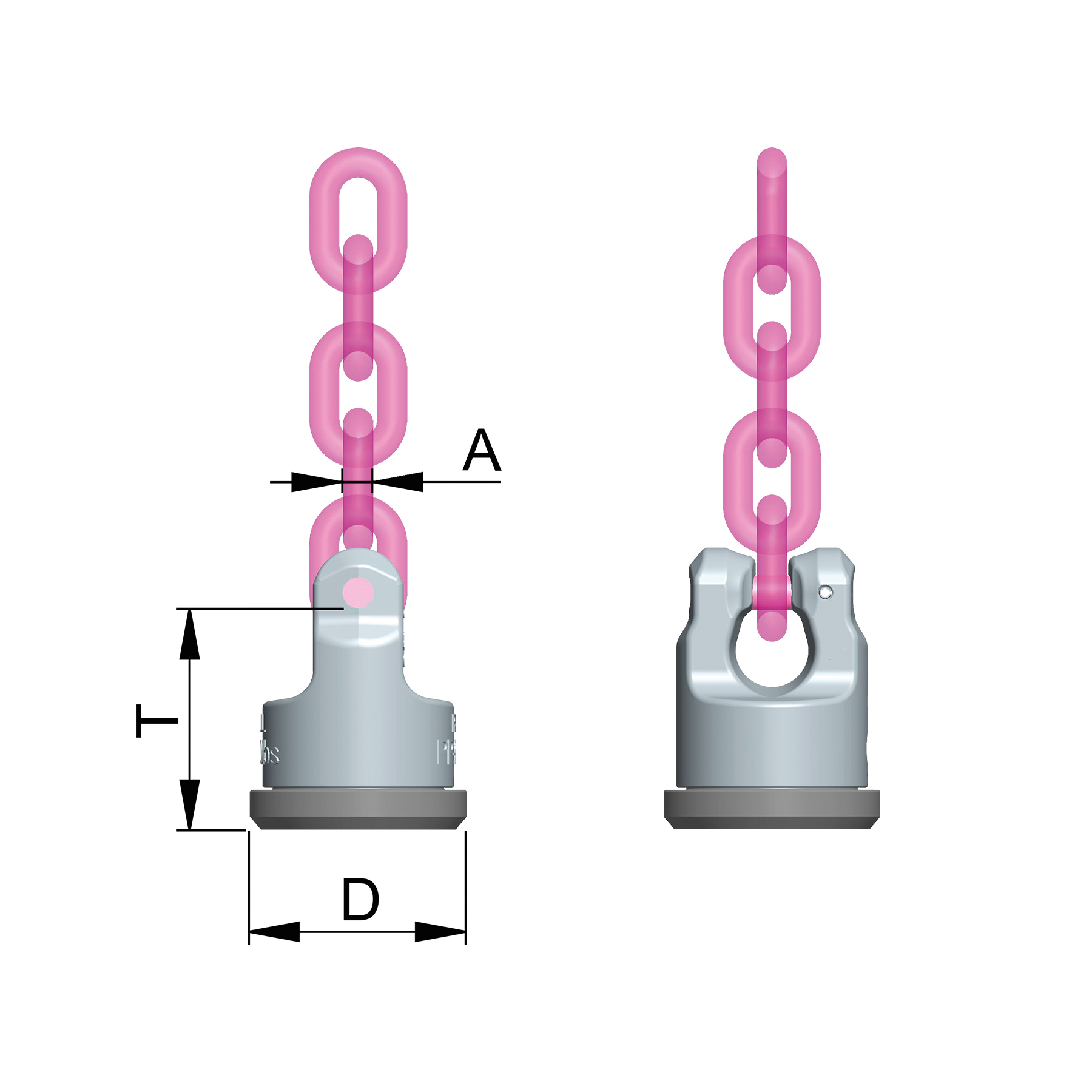

| A | 4 mm | 5/32" |
| T | 41 mm | 1-5/8"
|
| D | 40 mm | 1-9/16" |
PowerPoint WPP-VIP6-1.5t (7989961)
| Attribute | Value | Value |
|---|
| weight | 0.39 kg | 0.86 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 6 mm | 15/64" |
| T | 50 mm | 1-31/32"
|
| D | 46 mm | 1-13/16" |
PowerPoint WPP-VIP8-2.5t (7989962)
| Attribute | Value | Value |
|---|
| weight | 0.85 kg | 1.87 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 8 mm | 5/16" |
| T | 61.0 mm | 2-13/32"
|
| D | 61 mm | 2-13/32" |
PowerPoint WPP-VIP10-4t (7989963)
| Attribute | Value | Value |
|---|
| weight | 2.1 kg | 4.63 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 10 mm | 3/8" |
| T | 77.0 mm | 3"-1/32"
|
| D | 78 mm | 3-1/16" |
PowerPoint WPP-VIP13-5t (7989964)
| Attribute | Value | Value |
|---|
| weight | 3.4 kg | 7.50 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 13 mm | 1/2" |
| T | 93.0 mm | 3-21/32"
|
| D | 95 mm | 3-3/4" |
PowerPoint WPP-VIP16-8t (7989965)
| Attribute | Value | Value |
|---|
| weight | 4.5 kg | 9.92 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 16 mm | 5/8" |
| T | 102.0 mm | 4"
|
| D | 100 mm | 3-15/16" |

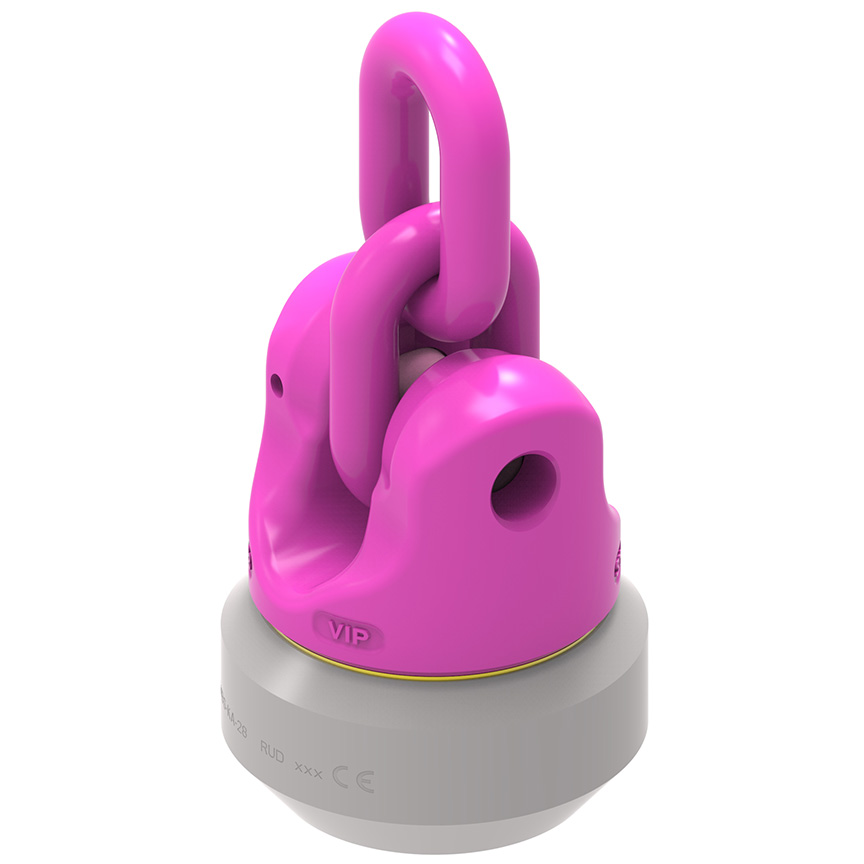

VWBS-KA-28-31.5t VIP (7903440)
| Attribute | Value | Value |
|---|
| weight | 24.00 kg | 52.91 lbs |
| Nominal WLL | 31500 kg | 69300 lbs |
| A | 28 mm | 1-1/8" |
| T | 146 mm | 5-3/4"
|
| D | 170 mm | 6-11/16" |
