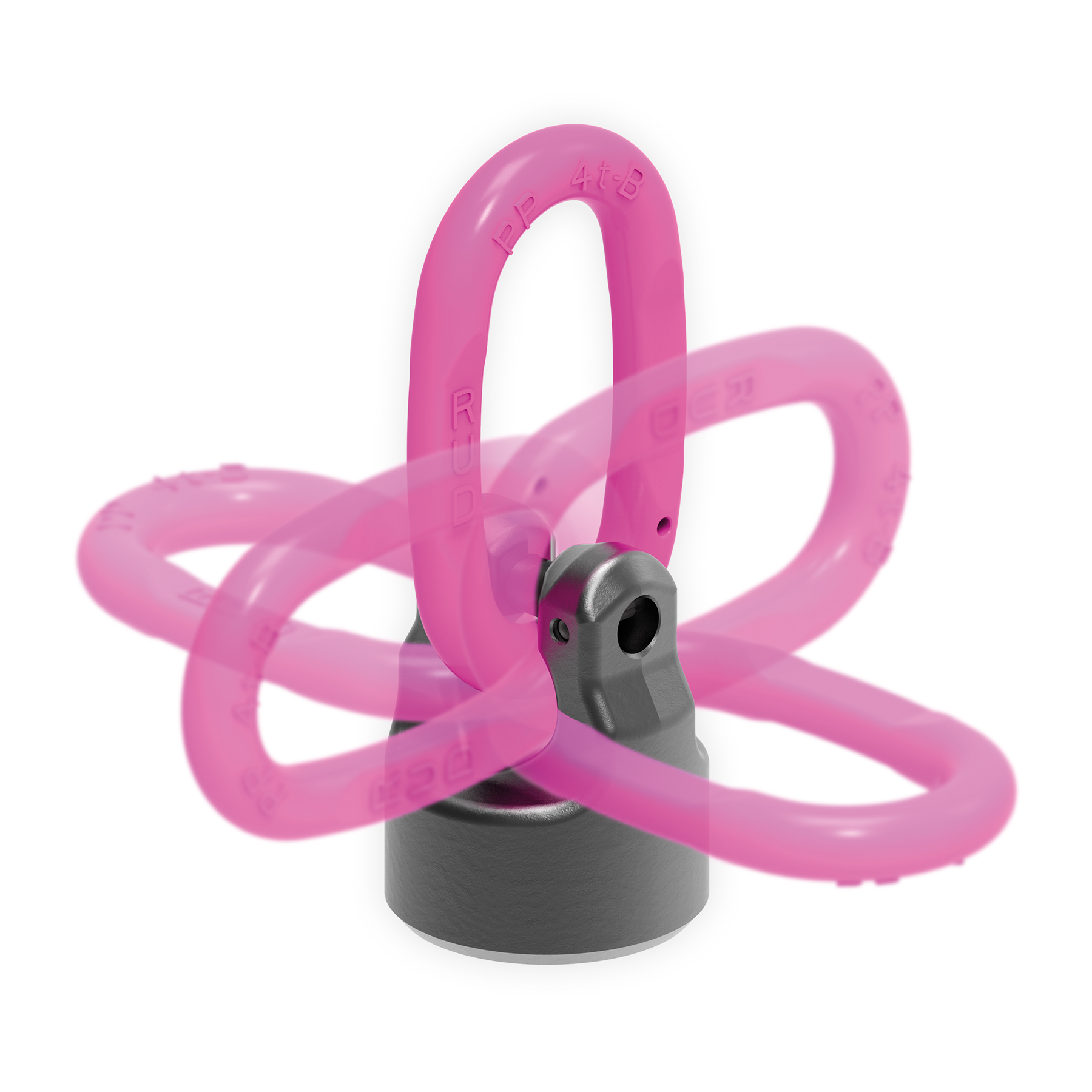

WPPH-B PowerPoint® - Ring Connection
- Ideal connection link for crossbars construction
- Clear marking of the minimum WLL
- Compact design
- RUD 4:1 safety factor
Product Variants (6)
PowerPoint WPPH-B-0.63t (7989976)

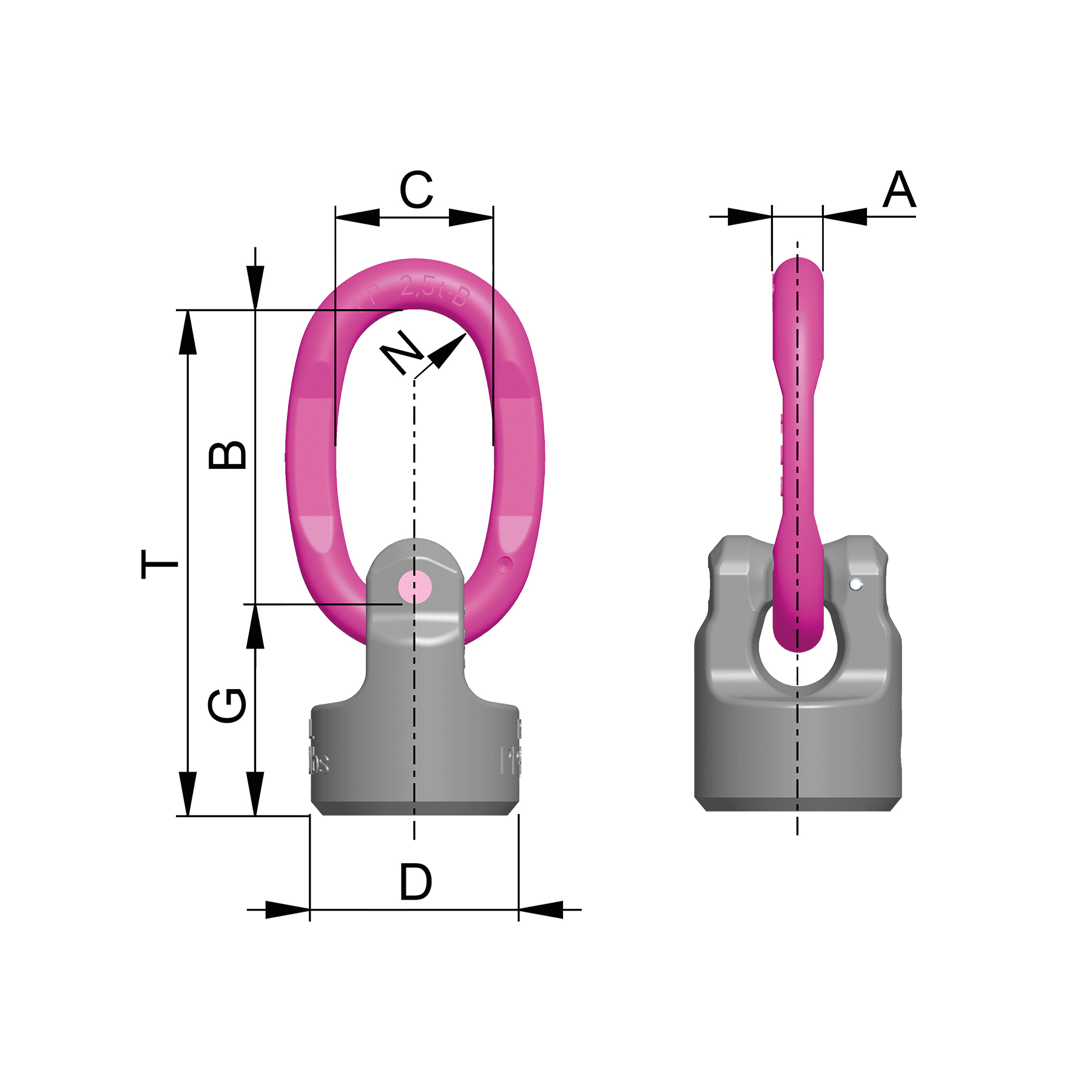

| Attribute | Value | Value |
|---|
| weight | 0.15 kg | 0.33 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 9 mm | 11/32" |
| B | 65 mm | 2-9/16" |
| T | 99 mm | 3-7/8"
|
| C | 35 mm | 1-3/8" |
| D | 34 mm | 1-11/32" |
| G | 34 mm | 1-11/32" |
| N | 15 mm | 19/32" |
PowerPoint WPPH-B-1.5t (7989977)
| Attribute | Value | Value |
|---|
| weight | 0.30 kg | 0.66 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 11 mm | 7/16" |
| B | 65 mm | 2-9/16" |
| T | 109 mm | 4-5/16"
|
| C | 35 mm | 1-3/8" |
| D | 40 mm | 1-9/16" |
| G | 44 mm | 1-3/4" |
| N | 15 mm | 19/32" |
PowerPoint WPPH-B-2.5t (7989978)
| Attribute | Value | Value |
|---|
| weight | 0.90 kg | 1.98 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 13 mm | 1/2" |
| B | 74 mm | 2-29/32" |
| T | 127 mm | 5"
|
| C | 40 mm | 1-9/16" |
| D | 53 mm | 2-3/32" |
| G | 53 mm | 2-3/32" |
| N | 18 mm | 23/32" |
PowerPoint WPPH-B-4t (7989979)
| Attribute | Value | Value |
|---|
| weight | 1.80 kg | 3.97 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 16 mm | 5/8" |
| B | 95 mm | 3-3/4" |
| T | 161 mm | 6-11/32"
|
| C | 45 mm | 1-25/32" |
| D | 68 mm | 2-11/16" |
| G | 66 mm | 2-5/8" |
| N | 20 mm | 3/4" |
PowerPoint WPPH-B-5t (7989980)
| Attribute | Value | Value |
|---|
| weight | 3.70 kg | 8.16 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 21 mm | 13/16" |
| B | 130 mm | 5-1/8" |
| T | 209 mm | 8-1/4"
|
| C | 60 mm | 2-3/8" |
| D | 83 mm | 3-1/4" |
| G | 79 mm | 3-1/8" |
| N | 25 mm | 63/64" |
PowerPoint WPPH-B-8t (7989981)
| Attribute | Value | Value |
|---|
| weight | 4.40 kg | 9.70 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 24 mm | 15/16" |
| B | 140 mm | 5-1/2" |
| T | 228 mm | 9"
|
| C | 65 mm | 2-9/16" |
| D | 88 mm | 3-15/32" |
| G | 88 mm | 3-15/32" |
| N | 28 mm | 1-1/8" |
