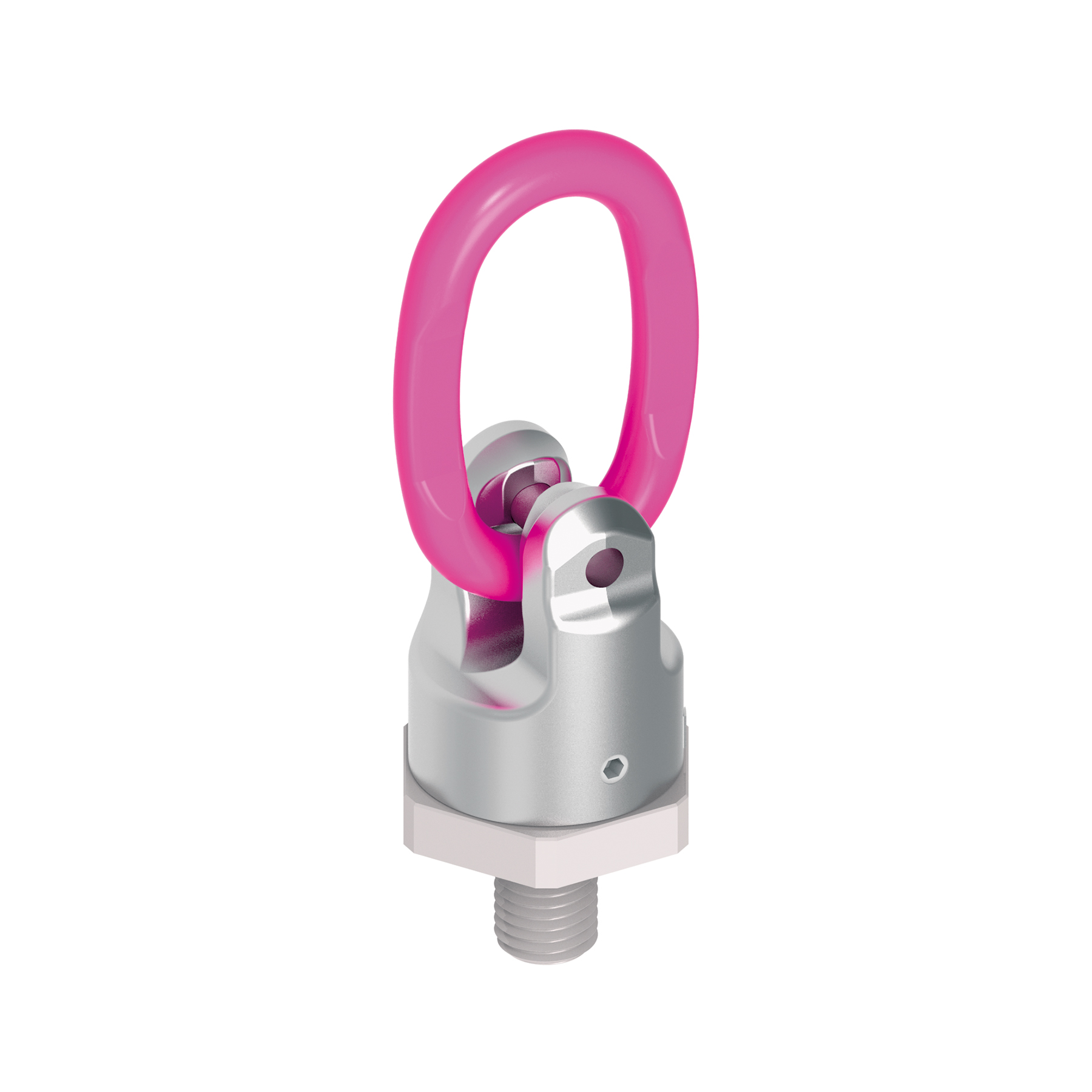

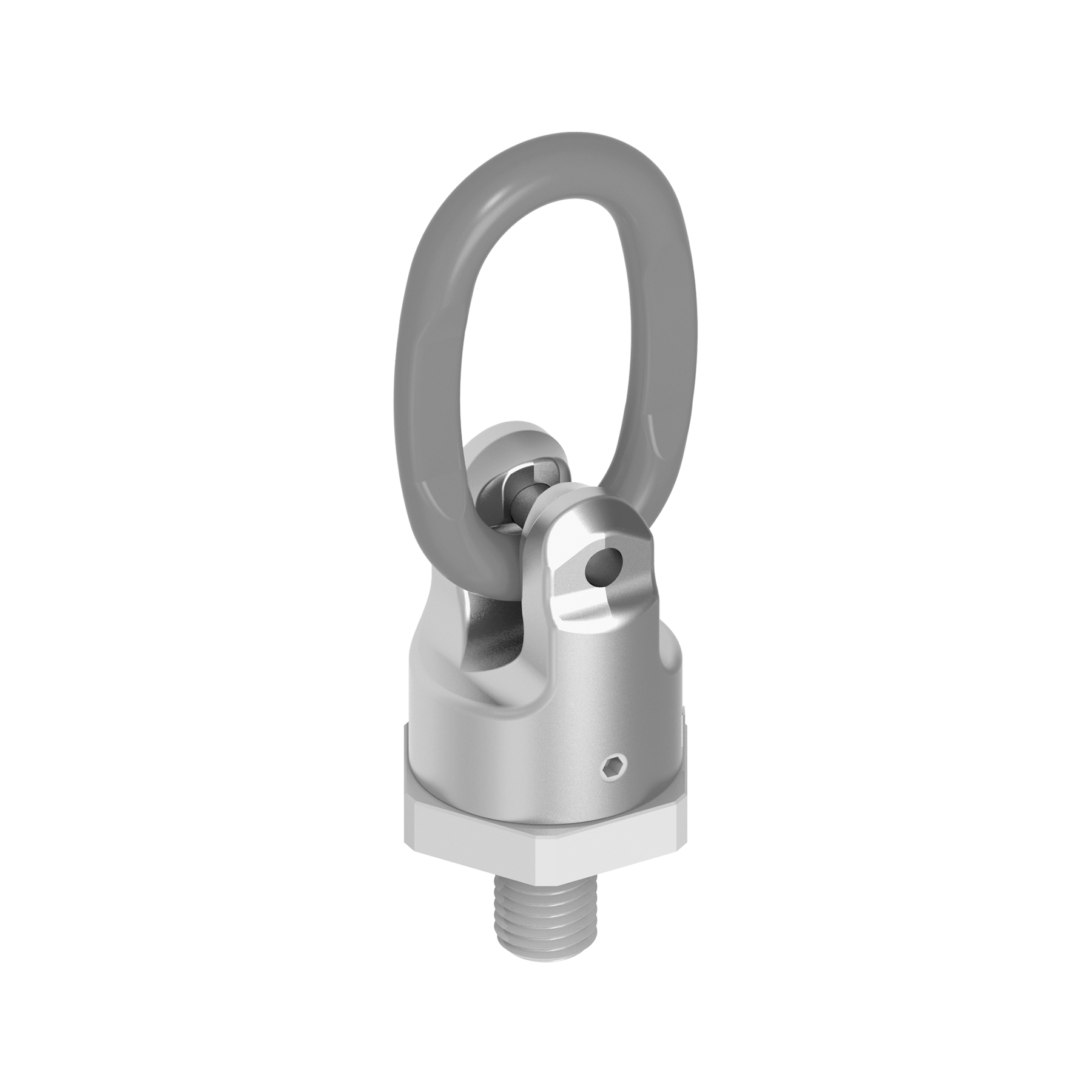

PP-B PowerPoint® - Ring Connection - BSW Thread

PowerPoint PP-B-0.63t-1/2"-12BSW (8600591)

Technical Information

Product number: 8600591

Technical Downloads

PowerPoint PP-B-0.63t-1/2"-12BSW Download File

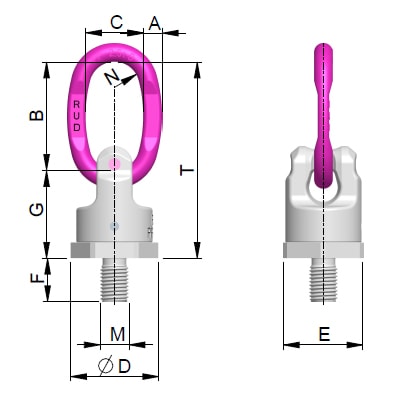

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	630 kg	1385 lbs
A	9 mm	11/32"
B	65 mm	2-9/16"
T	106 mm	4-3/16"
C	35 mm	1-3/8"
D	40 mm	1-9/16"
E	36 mm	1-27/64"
F	18 mm	23/32"
G	41 mm	1-5/8"
M	1/2"-12BSW mm	1/2"-12BSW
N	15 mm	19/32"

PowerPoint PP-B-8t-1 1/2"-6BSW (8600566)

Technical Information

Product number: 8600566

Technical Downloads

PowerPoint PP-B-8t-1 1/2"-6BSW Download File

Attribute	Value	Value
weight	6.30 kg	13.89 lbs
Nominal WLL	8000 kg	17600 lbs
A	24 mm	15/16"
B	140 mm	5-1/2"
T	242 mm	9-7/32"
C	65 mm	2-9/16"
D	100 mm	3-15/16"
E	90 mm	3-17/32"
F	54 mm	2-1/8"
G	102 mm	4"
M	1 1/2"-6BSW mm	1 1/2"-6BSW
N	28 mm	1-1/8"

PowerPoint PP-B-4t-1"-8BSW (8600594)

Technical Information

Product number: 8600594

Technical Downloads

PowerPoint PP-B-4t-1"-8BSW Download File

Attribute	Value	Value
weight	2.40 kg	5.29 lbs
Nominal WLL	4000 kg	8800 lbs
A	16 mm	5/8"
B	95 mm	3-3/4"
T	172 mm	6-25/32"
C	45 mm	1-25/32"
D	78 mm	3-1/16"
E	70 mm	2-3/4"
F	36 mm	1-27/64"
G	77 mm	3"-1/32"
M	1"-8BSW mm	1"-8BSW
N	20 mm	3/4"

PowerPoint PP-B-2.5t-3/4"-10BSW (8600593)

Technical Information

Product number: 8600593

Technical Downloads

PowerPoint PP-B-2.5t-3/4"-10BSW Download File

Attribute	Value	Value
weight	1.10 kg	2.43 lbs
Nominal WLL	2500 kg	5500 lbs
A	13 mm	1/2"
B	75 mm	2-15/16"
T	135 mm	5-5/16"
C	40 mm	1-9/16"
D	61 mm	2-13/32"
E	55 mm	2-5/32"
F	30 mm	1-3/16"
G	61 mm	2-13/32"
M	3/4"-10BSW mm	3/4"-10BSW
N	18 mm	23/32"
