Lifting and Lashing Points

Eye nut RM - 3/8"-16UNC (7101103)

Technical Information

Product number: 7101103

Technical Downloads

RM-3/8"-16UNC - DXF 2D CAD File Download File

RM-3/8"-16UNC - IGES 3D CAD File Download File

RM-3/8"-16UNC - STEP 3D CAD File Download File

Eye nut RM - 3/8"-16UNC Download File

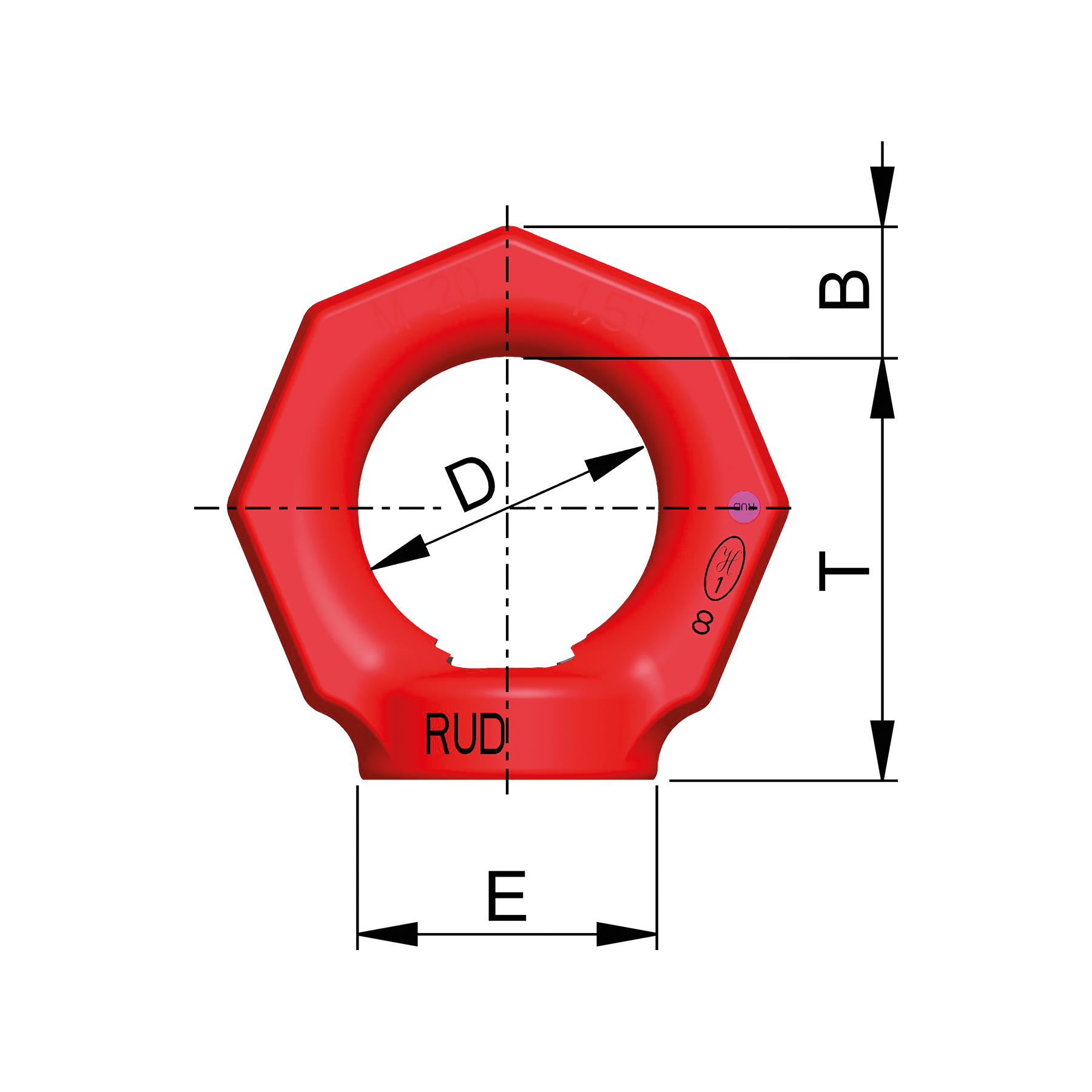

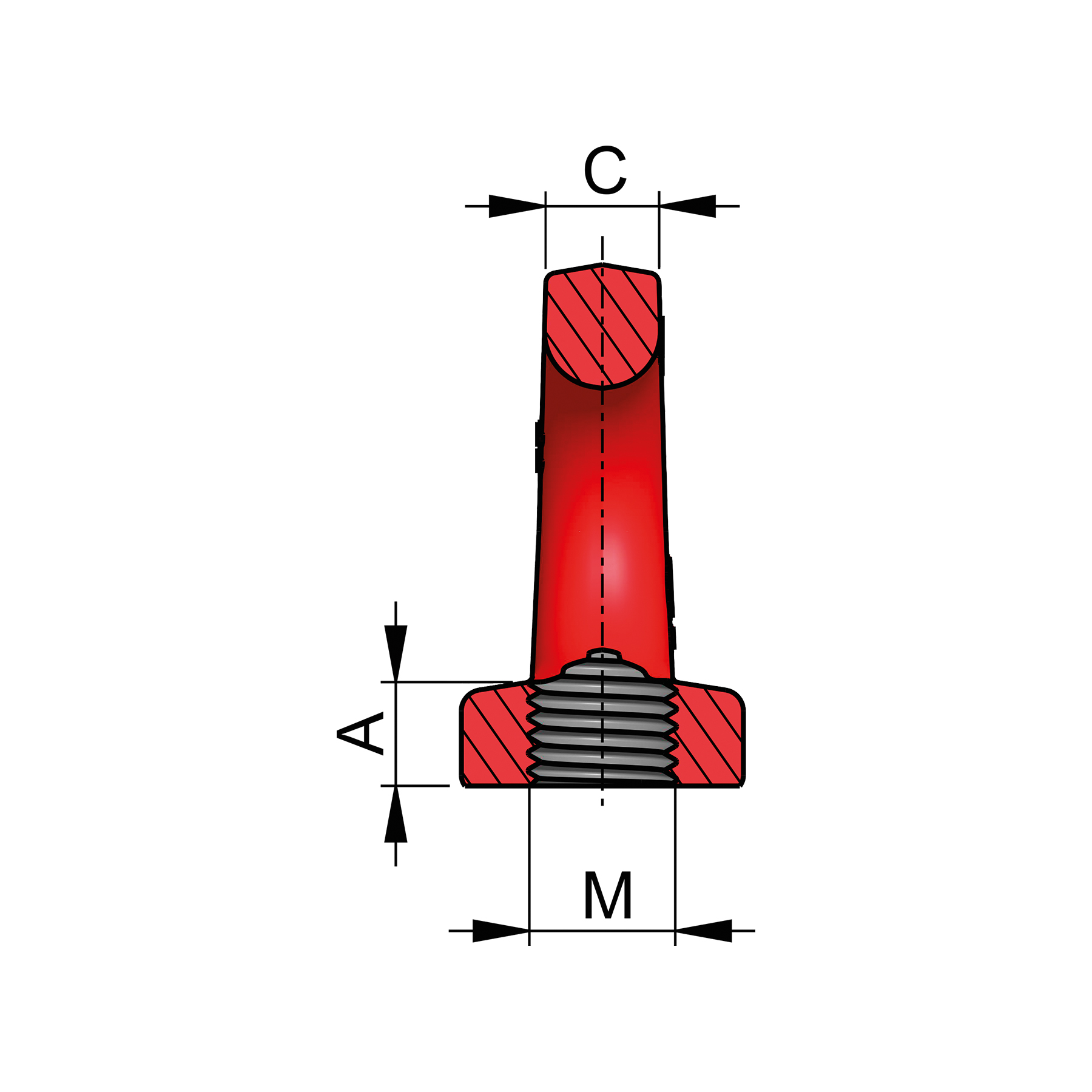

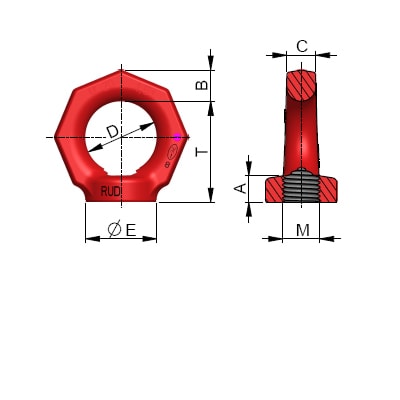

Attribute	Value	Value
weight	0.10 kg	0.22 lbs
Nominal WLL	200 kg	440 lbs
T	34 mm	1-11/32"
A	12 mm	15/32"
B	11 mm	7/16"
C	10 mm	3/8"
D	25 mm	63/64"
E	25 mm	63/64"
M	3/8"-16UNC mm	3/8"-16UNC

Eye nut RM - 1/2"-13UNC (7101104)

Technical Information

Product number: 7101104

Technical Downloads

RM-1/2"-13UNC - DXF 2D CAD File Download File

RM-1/2"-13UNC - IGES 3D CAD File Download File

RM-1/2"-13UNC - STEP 3D CAD File Download File

Eye nut RM - 1/2"-13UNC Download File

Attribute	Value	Value
weight	0.17 kg	0.37 lbs
Nominal WLL	350 kg	770 lbs
T	41 mm	1-5/8"
A	14 mm	9/16"
B	13 mm	1/2"
C	12 mm	15/32"
D	30 mm	1-3/16"
E	30 mm	1-3/16"
M	1/2"-13UNC mm	1/2"-13UNC

Eye nut RM - 5/8"-11UNC (7101105)

Technical Information

Product number: 7101105

Technical Downloads

RM-5/8"-11UNC - DXF 2D CAD File Download File

RM-5/8"-11UNC - IGES 3D CAD File Download File

RM-5/8"-11UNC - STEP 3D CAD File Download File

Eye nut RM - 5/8"-11UNC Download File

Attribute	Value	Value
weight	0.29 kg	0.64 lbs
Nominal WLL	750 kg	1650 lbs
T	48 mm	1-7/8"
A	16 mm	5/8"
B	15 mm	19/32"
C	14 mm	9/16"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
M	5/8"-11UNC mm	5/8"-11UNC

Eye nut RM - 3/4"-10UNC (7101106)

Technical Information

Product number: 7101106

Technical Downloads

RM-3/4"-10UNC - DXF 2D CAD File Download File

RM-3/4"-10UNC - IGES 3D CAD File Download File

RM-3/4"-10UNC - STEP 3D CAD File Download File

Eye nut RM - 3/4"-10UNC Download File

Attribute	Value	Value
weight	0.39 kg	0.86 lbs
Nominal WLL	1200 kg	2640 lbs
T	55 mm	2-5/32"
A	18 mm	23/32"
B	17 mm	43/64"
C	16 mm	5/8"
D	40 mm	1-9/16"
E	40 mm	1-9/16"
M	3/4"-10UNC mm	3/4"-10UNC

Eye nut RM - 7/8"-9UNC (7101107)

Technical Information

Product number: 7101107

Technical Downloads

RM-7/8"-9UNC - DXF 2D CAD File Download File

RM-7/8"-9UNC - IGES 3D CAD File Download File

RM-7/8"-9UNC - STEP 3D CAD File Download File

Eye nut RM - 7/8"-9UNC Download File

Attribute	Value	Value
weight	0.70 kg	1.54 lbs
Nominal WLL	1500 kg	3300 lbs
T	70 mm	2-3/4"
A	22 mm	7/8"
B	21 mm	13/16"
C	20 mm	3/4"
D	50 mm	1-31/32"
E	50 mm	1-31/32"
M	7/8"-9UNC mm	7/8"-9UNC

Eye nut RM - 1"-8UNC (7101108)

Technical Information

Product number: 7101108

Technical Downloads

RM-1"-8UNC - DXF 2D CAD File Download File

RM-1"-8UNC - IGES 3D CAD File Download File

RM-1"-8UNC - STEP 3D CAD File Download File

Eye nut RM - 1"-8UNC Download File

Attribute	Value	Value
weight	1.40 kg	3.09 lbs
Nominal WLL	2000 kg	4400 lbs
T	85 mm	3-11/32"
A	28 mm	1-1/8"
B	26 mm	1"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	1"-8UNC mm	1"-8UNC

Eye nut RM - 1 1/4"-7UNC (7982594)

Technical Information

Product number: 7982594

Technical Downloads

RM-1 1/4"-7UNC - DXF 2D CAD File Download File

RM-1 1/4"-7UNC - IGES 3D CAD File Download File

RM-1 1/4"-7UNC - STEP 3D CAD File Download File

Eye nut RM - 1 1/4"-7UNC Download File

Attribute	Value	Value
weight	1.35 kg	2.98 lbs
Nominal WLL	3000 kg	6600 lbs
T	85 mm	3-11/32"
A	28 mm	1-1/8"
B	26 mm	1"
C	24 mm	15/16"
D	60 mm	2-3/8"
E	60 mm	2-3/8"
M	1 1/4"-7UNC mm	1 1/4"-7UNC
