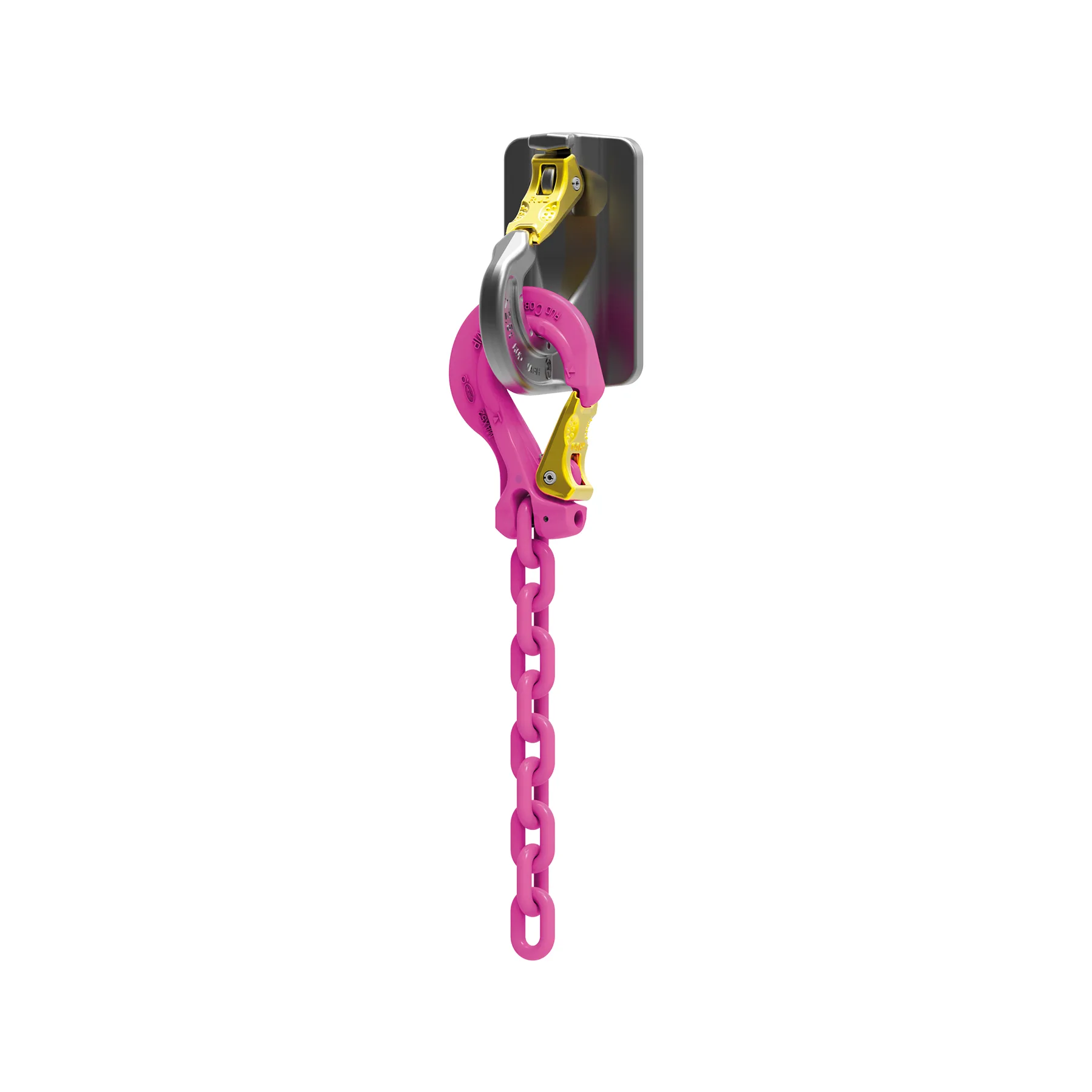

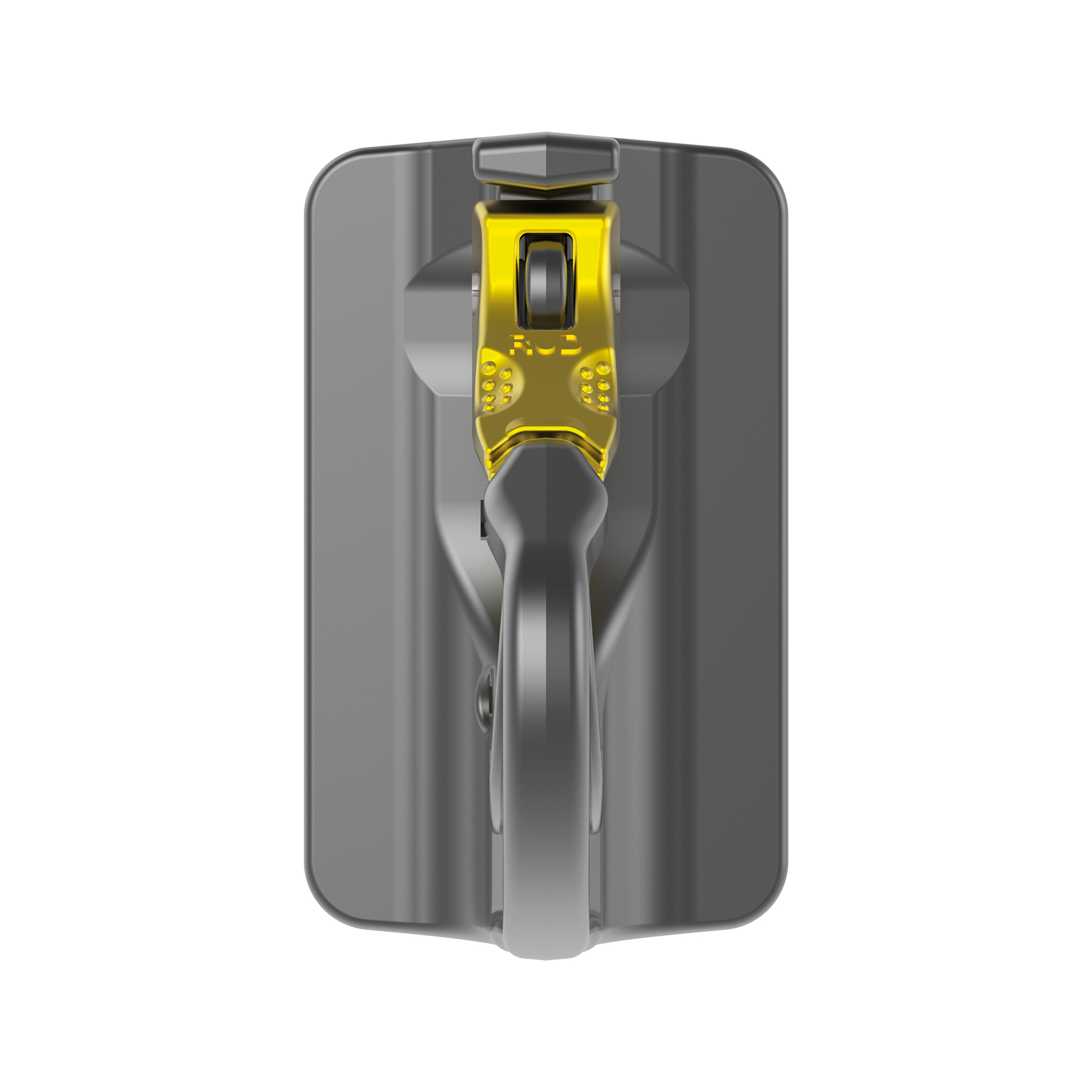

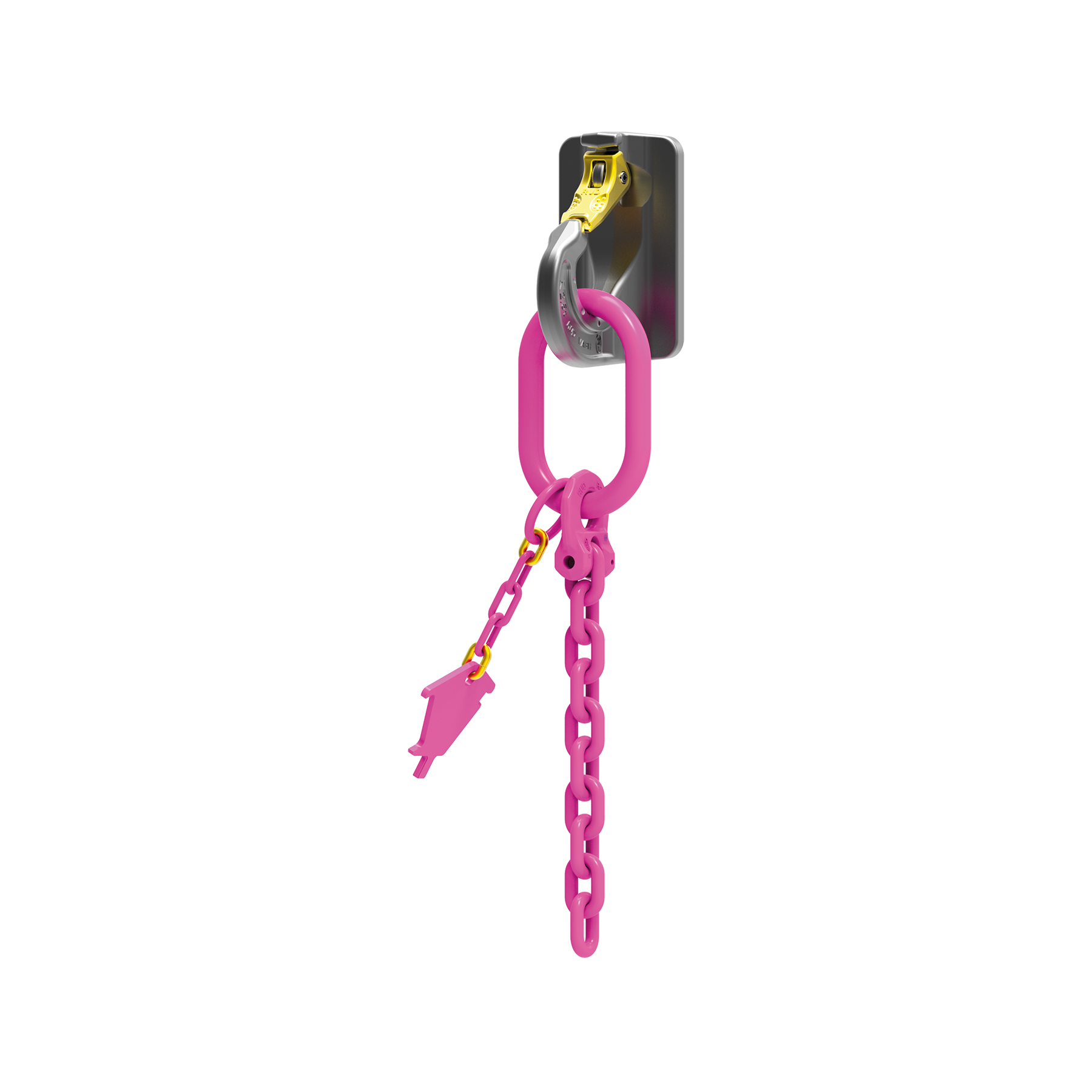

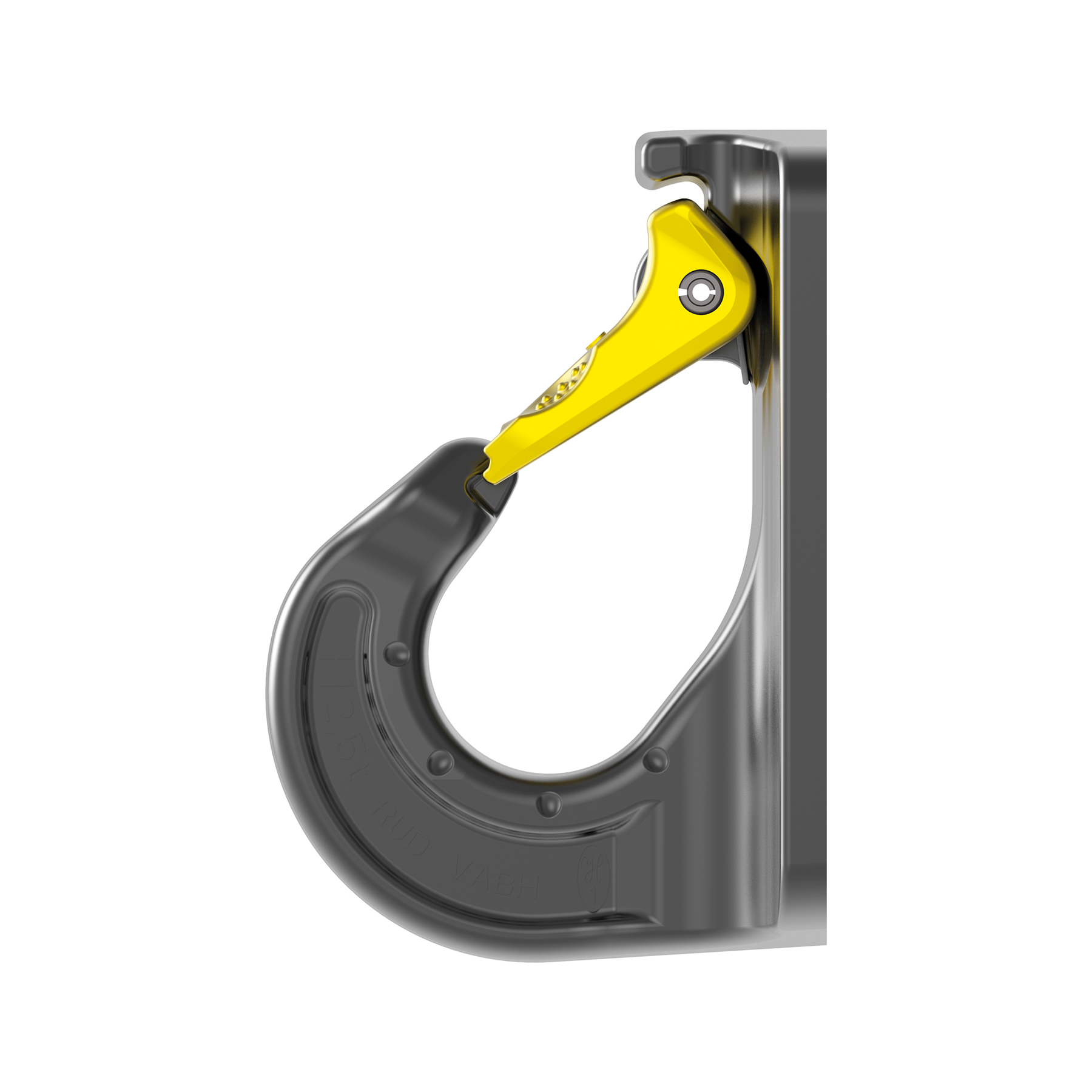

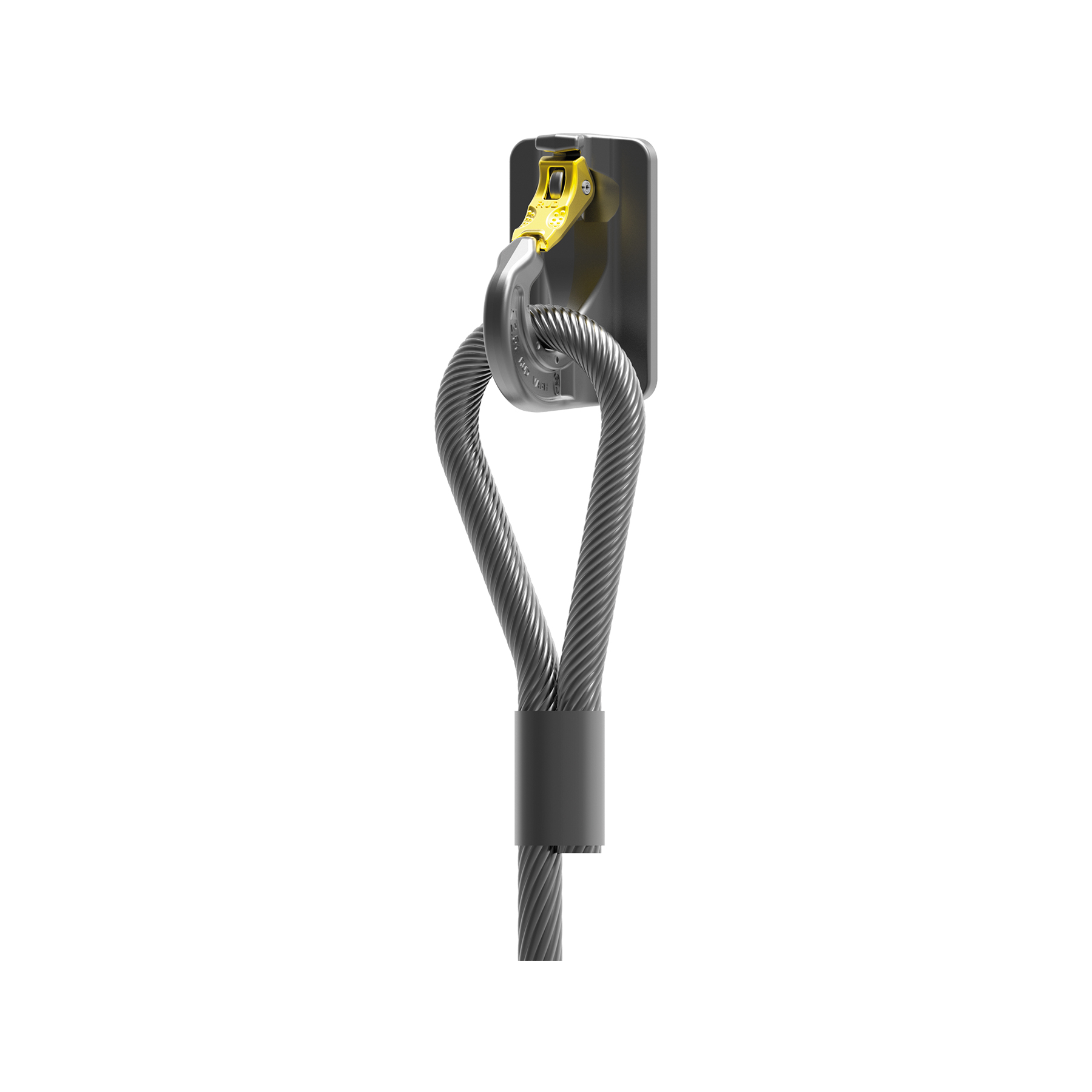

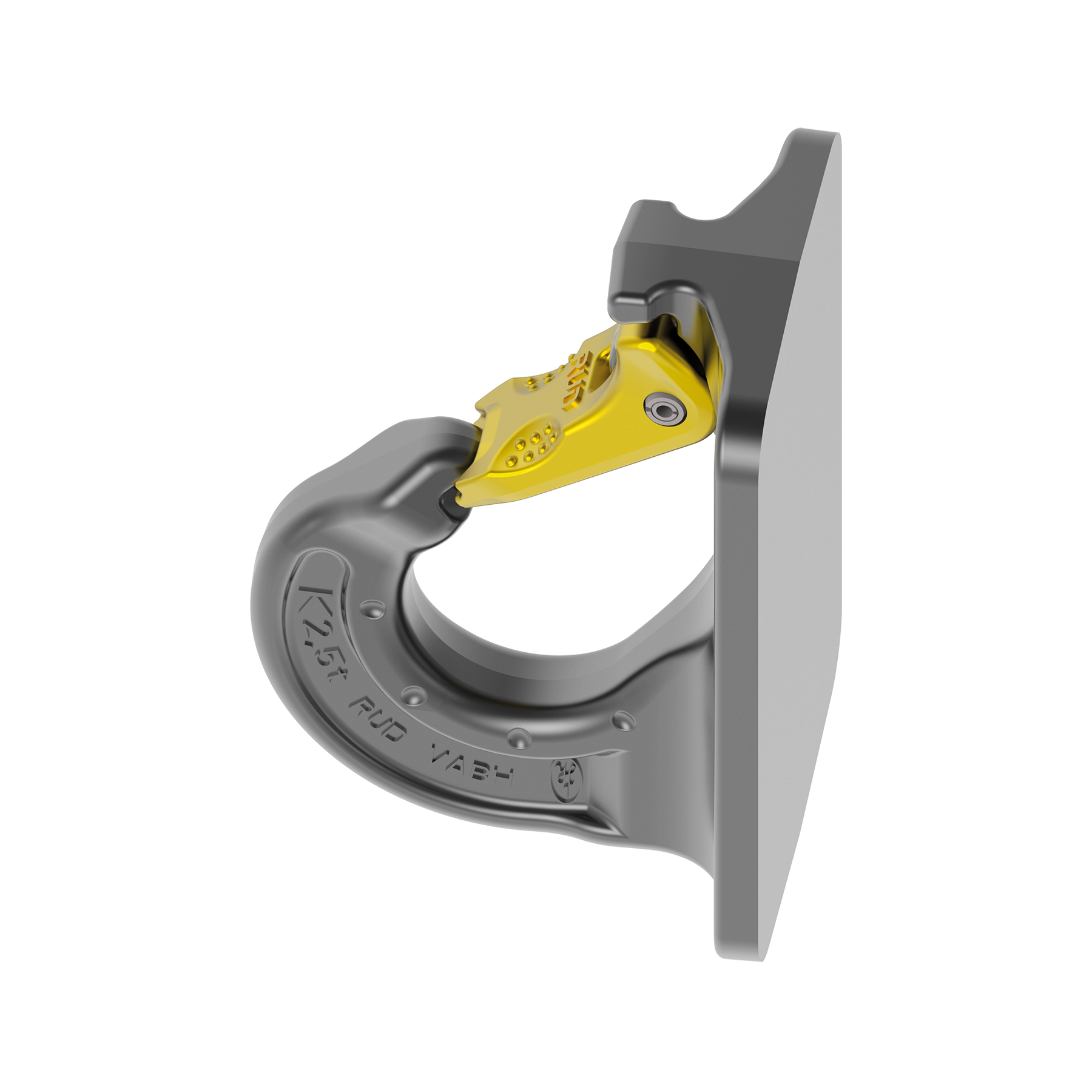

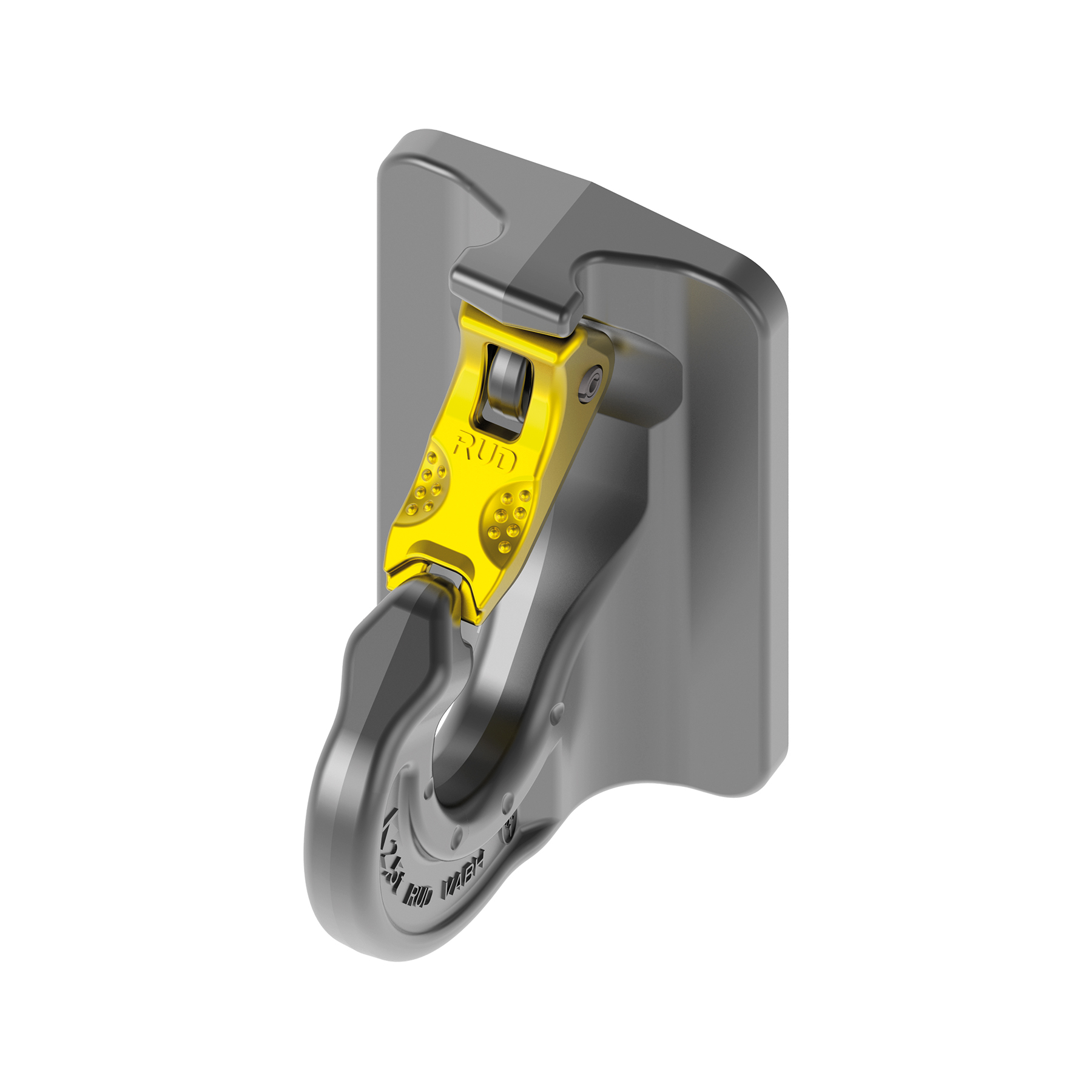

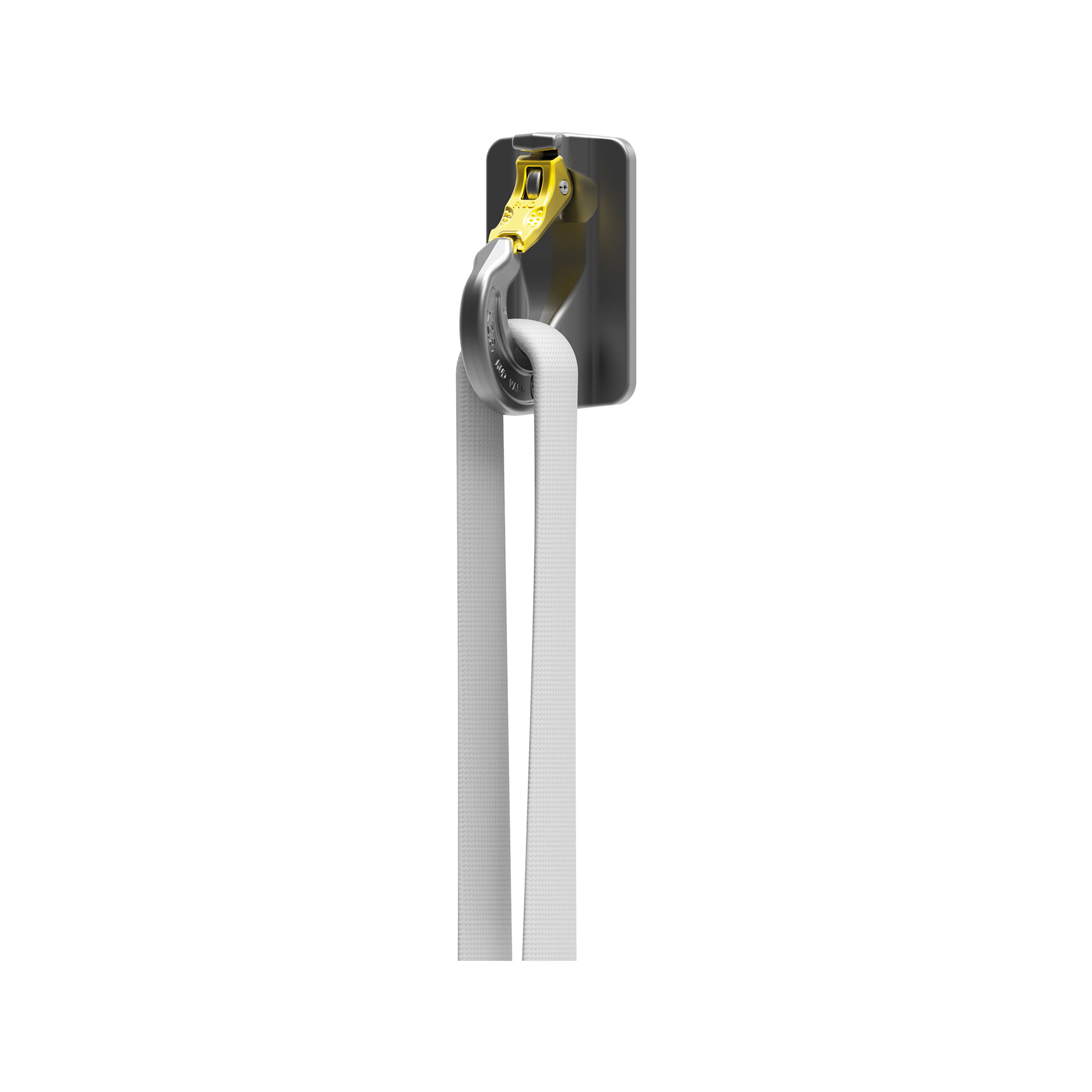

VABH-W Excavator hook, ready for welding

Excavator hook welded VABH-W 1.5t (7991208)

Technical Information

Product number: 7991208

Technical Downloads

VABH-W 1.5t - DXF 2D CAD File Download File

VABH-W 1.5t - IGES 3D CAD File Download File

VABH-W 1.5t - STEP 3D CAD File Download File

Excavator hook welded VABH-W 1.5t Download File

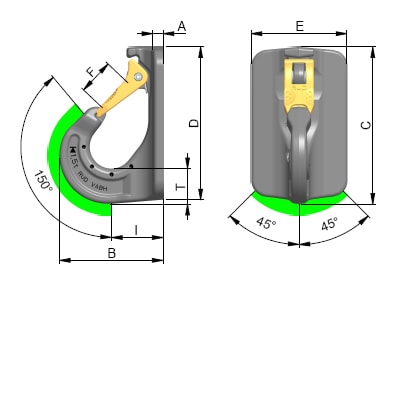

Attribute	Value	Value
weight	0.80 kg	1.76 lbs
Nominal WLL	1500 kg	3300 lbs
A	7.5 mm	11/32"
B	78 mm	3-1/16"
T	20 mm	3/4"
C	117 mm	4-5/8"
D	111 mm	4-13/32"
E	70 mm	2-3/4"
F	25 mm	63/64"
I	38 mm	1-1/2"

Excavator hook welded VABH-W 2.5t (7991209)

Technical Information

Product number: 7991209

Technical Downloads

VABH-W 2.5t - DXF 2D CAD File Download File

VABH-W 2.5t - IGES 3D CAD File Download File

VABH-W 2.5t - STEP 3D CAD File Download File

Excavator hook welded VABH-W 2.5t Download File

Attribute	Value	Value
weight	1.80 kg	3.97 lbs
Nominal WLL	2500 kg	5500 lbs
A	8.5mm	11/32"
B	101 mm	3-31/32"
T	28 mm	1-1/8"
C	148 mm	5-13/16"
D	143 mm	5-5/8"
E	85 mm	3-11/32"
F	30 mm	1-3/16"
I	49 mm	1-15/16"

Excavator hook welded VABH-W 4t (7991210)

Technical Information

Product number: 7991210

Technical Downloads

VABH-W 4t - DXF 2D CAD File Download File

VABH-W 4t - IGES 3D CAD File Download File

VABH-W 4t - STEP 3D CAD File Download File

Excavator hook welded VABH-W 4t Download File

Attribute	Value	Value
weight	3.12 kg	6.88 lbs
Nominal WLL	4000 kg	8800 lbs
A	11 mm	7/16"
B	122 mm	4-13/16"
T	36 mm	1-27/64"
C	171 mm	6-3/4"
D	164 mm	6-15/32"
E	104 mm	4-3/32"
F	35 mm	1-3/8"
I	59 mm	2-15/16"

Excavator hook welded VABH-W 6.7t (8502239)

Technical Information

Product number: 8502239

Technical Downloads

VABH-W 6.7t - DXF 2D CAD File Download File

VABH-W 6.7t - IGES 3D CAD File Download File

VABH-W 6.7t - STEP 3D CAD File Download File

Excavator hook welded VABH-W 6.7t Download File

Attribute	Value	Value
weight	5.89 kg	12.99 lbs
Nominal WLL	6700 kg	15000 lbs
A	13 mm	1/2"
B	156 mm	6-5/32"
T	40 mm	1-9/16"
C	208 mm	8-3/16"
D	200 mm	7-7/8"
E	120 mm	4-3/4"
F	40 mm	1-9/16"
I	70 mm	2-3/4"
