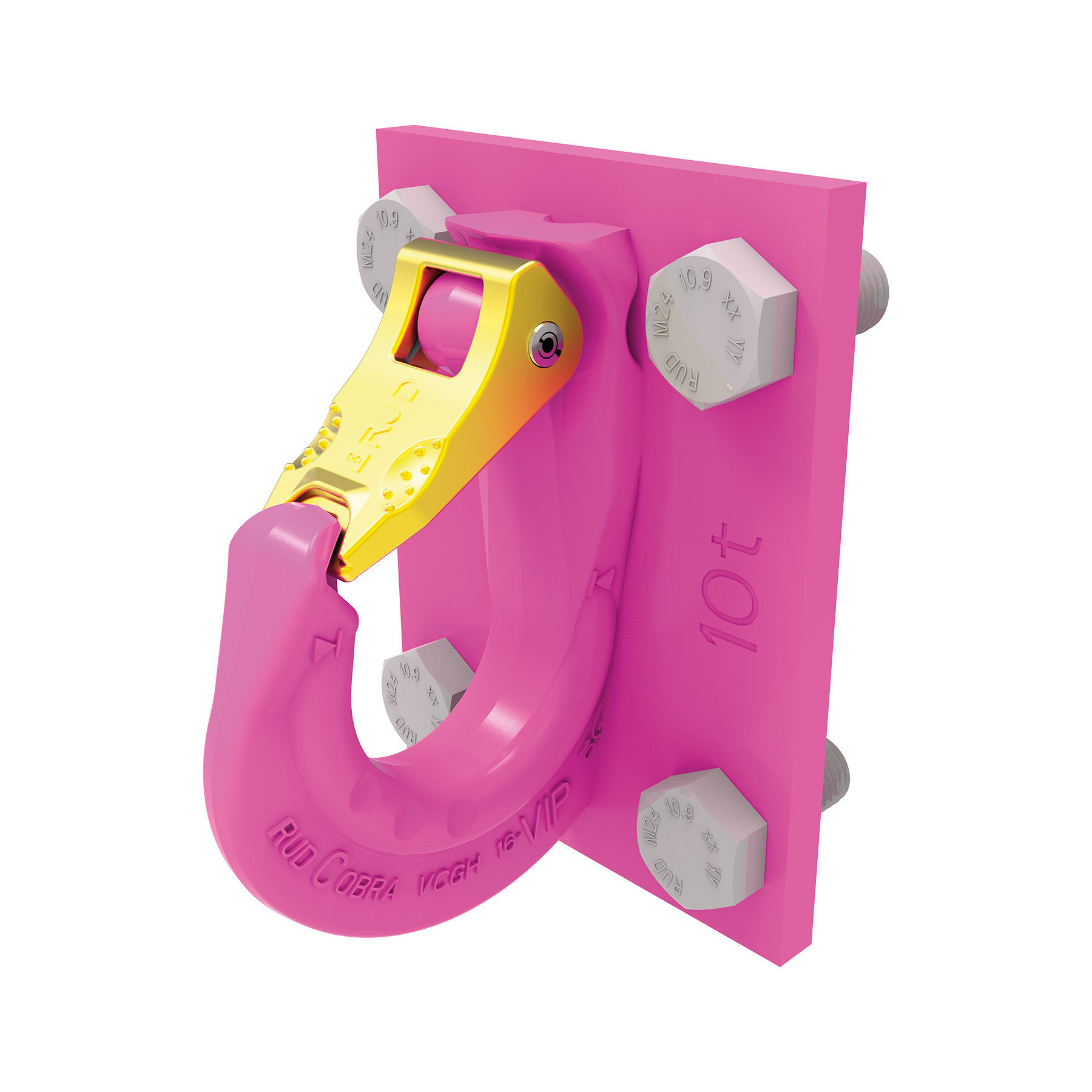

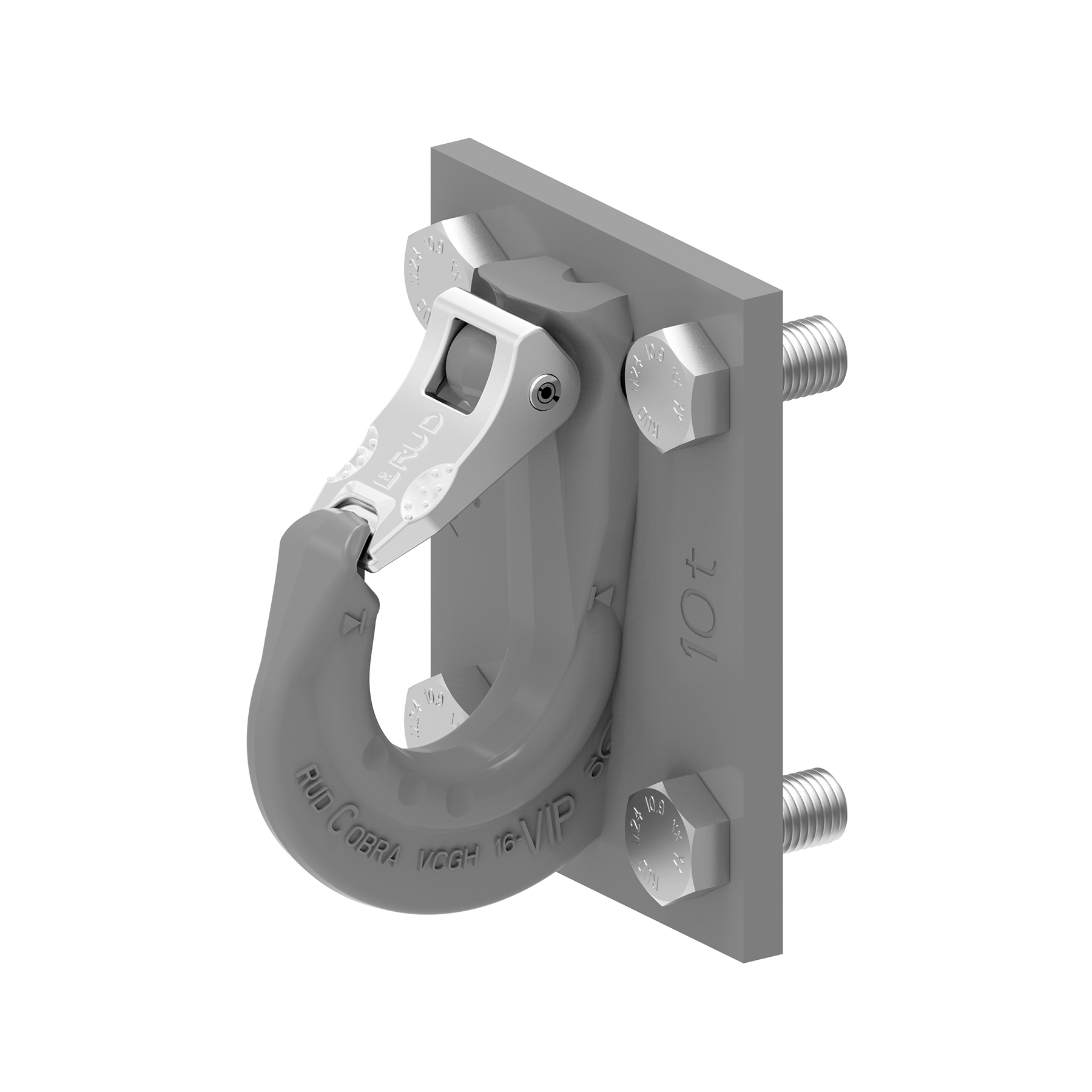

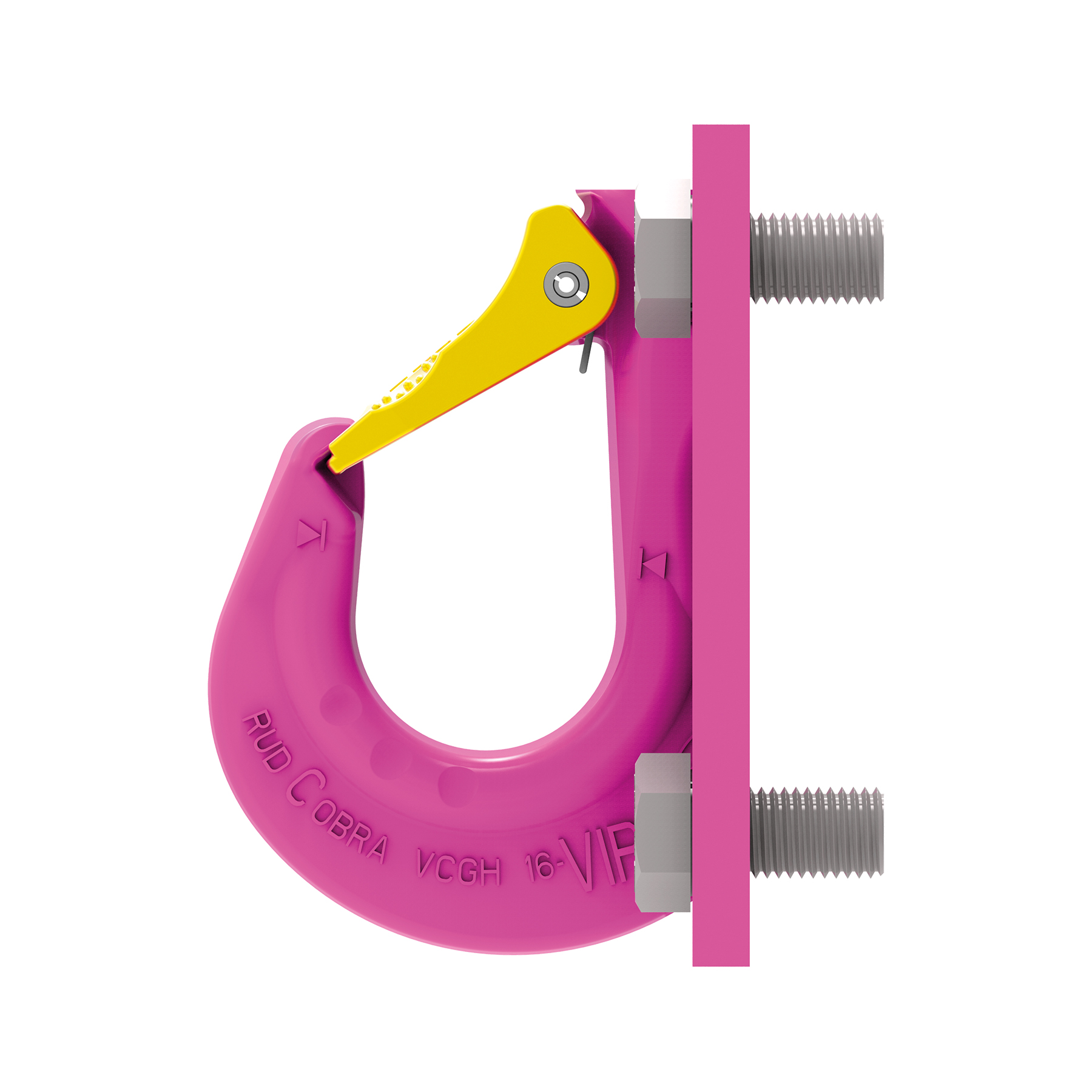

VCGH-G Bolt on Hooks

Suitable for lifting points on cross bars and beams
For wire rope slings and round slings
Suitable for lifting means with loop or oval suspension ring

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (3)

Excavator hook VCGH-G 16 (7984048)

Technical Information

Product number: 7984048

Technical Downloads

VCGH-G 16 - DXF 2D CAD File Download File

VCGH-G 16 - IGES 3D CAD File Download File

VCGH-G 16 - STEP 3D CAD File Download File

Excavator hook VCGH-G 16 Download File

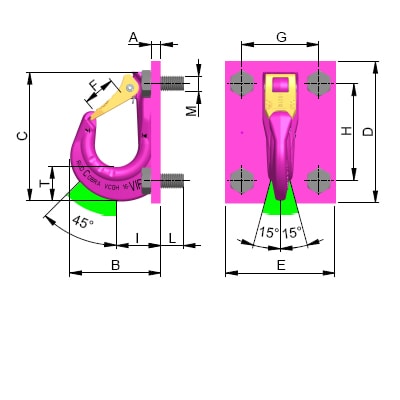

Attribute	Value	Value
weight	8.49 kg	18.72 lbs
Nominal WLL	10000 kg	22000 lbs
T	49 mm	1-15/16"
A	15 mm	19/32"
B	141 mm	5-9/16"
C	200 mm	7-7/8"
D	220 mm	8-11/16"
E	170 mm	6-11/16"
F	48 mm	1-7/8"
G	120 mm	4-3/4"
H	150 mm	5-7/8"
I	70 mm	2-3/4"
L	35 mm	1-3/8"
M	M24 mm	M24
N	16 mm

Excavator hook VCGH-G 20 (7984311)

Technical Information

Product number: 7984311

Technical Downloads

VCGH-G 20 - IGES 3D CAD File Download File

VCGH-G 20 - STEP 3D CAD File Download File

Excavator hook VCGH-G 20 Download File

Attribute	Value	Value
weight	18.00 kg	39.68 lbs
Nominal WLL	16000 kg	35300 lbs
T	69 mm	2-23/32"
A	20 mm	3/4"
B	187 mm	7-3/8"
C	272 mm	10-11/16"
D	288 mm	11-11/32"
E	210 mm	8-1/4"
F	63 mm	2-15/32"
G	150 mm	5-7/8"
H	110 mm	4-11/32"
I	87 mm	3-7/16"
L	30 mm	1-3/16"
M	M24 mm	M24
N	20 mm

Excavator hook VCGH-G 22 (7984313)

Technical Information

Product number: 7984313

Technical Downloads

VCGH-G 22 - DXF 2D CAD File Download File

VCGH-G 22 - IGES 3D CAD File Download File

VCGH-G 22 - STEP 3D CAD File Download File

Excavator hook VCGH-G 22 Download File

Attribute	Value	Value
weight	18.90 kg	41.67 lbs
Nominal WLL	20000 kg	44000 lbs
T	74 mm	2-29/32"
A	20 mm	3/4"
B	196 mm	7-23/32"
C	276 mm	10-7/8"
D	292 mm	11-1/2"
E	240 mm	9-1/2"
F	63 mm	2-15/32"
G	150 mm	5-7/8"
H	110 mm	4-11/32"
I	92 mm	3-5/8"
L	30 mm	1-3/16"
M	M24 mm	M24
N	22 mm
