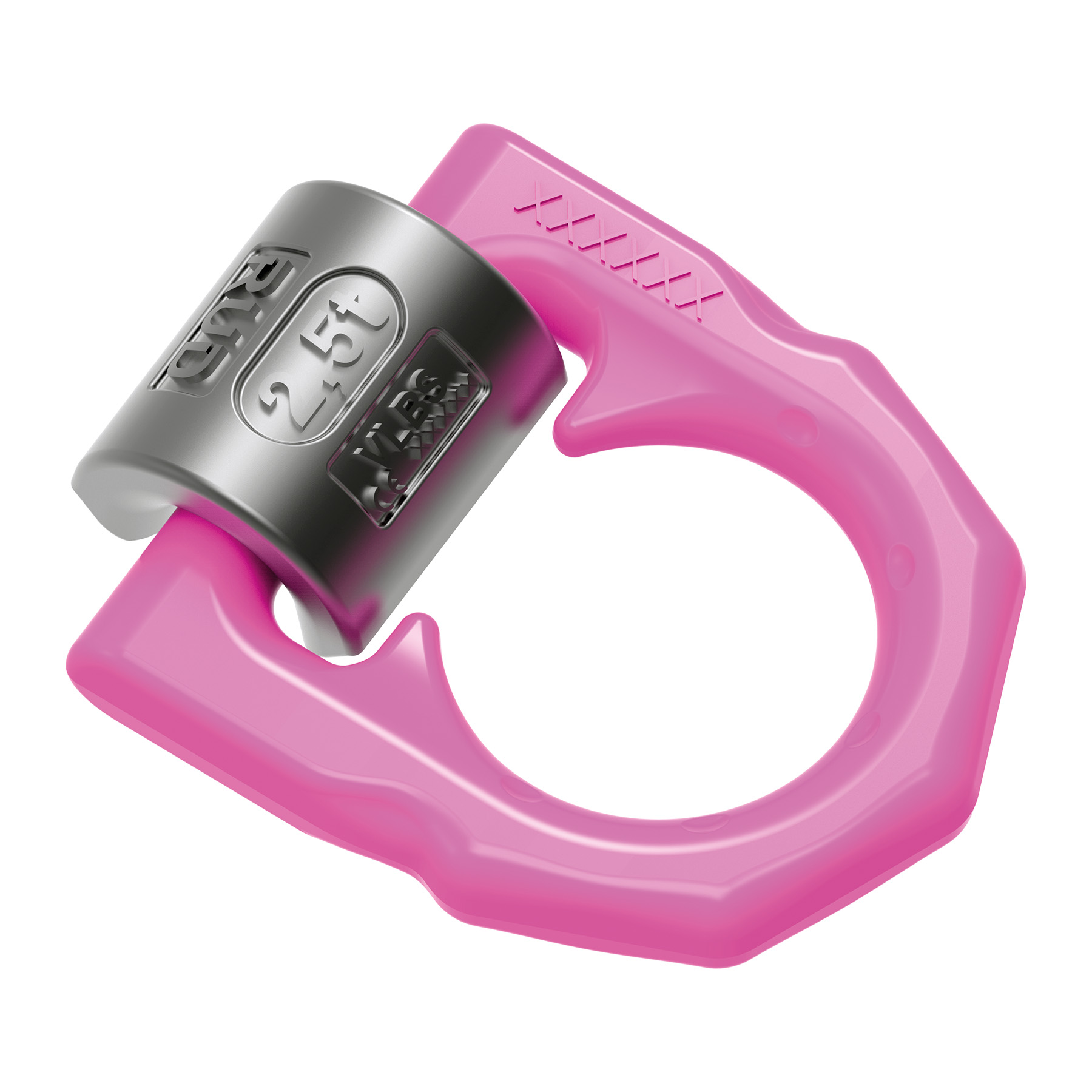

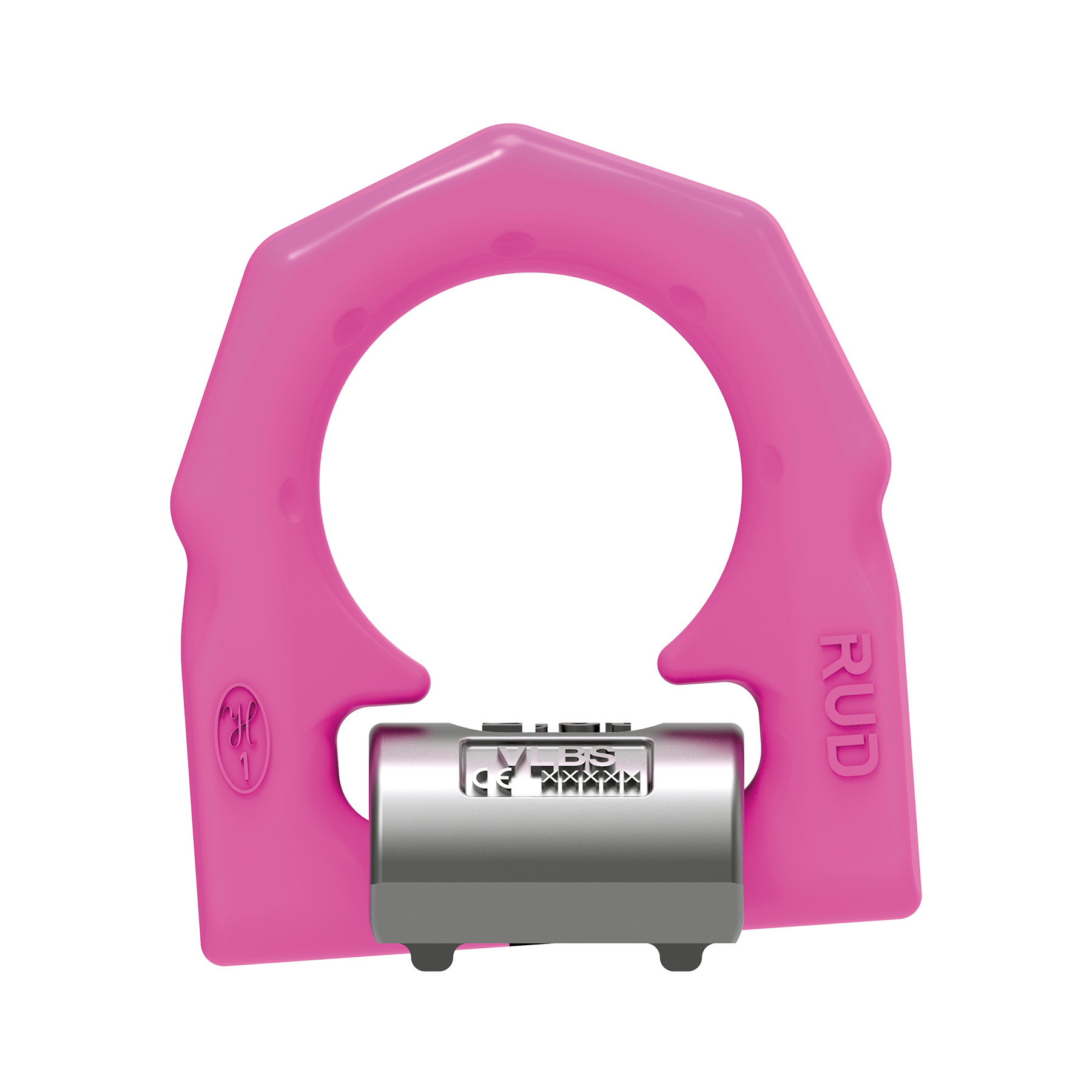

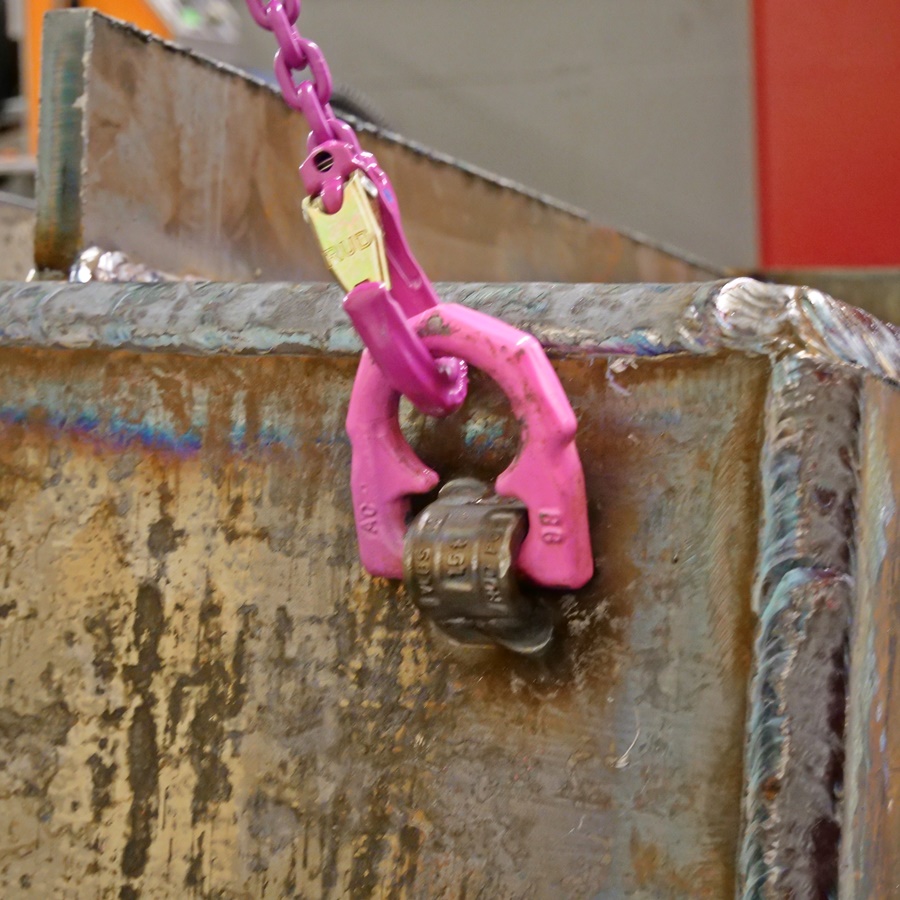

VLBS – Load ring for welding

Suspension ring pivots 180°

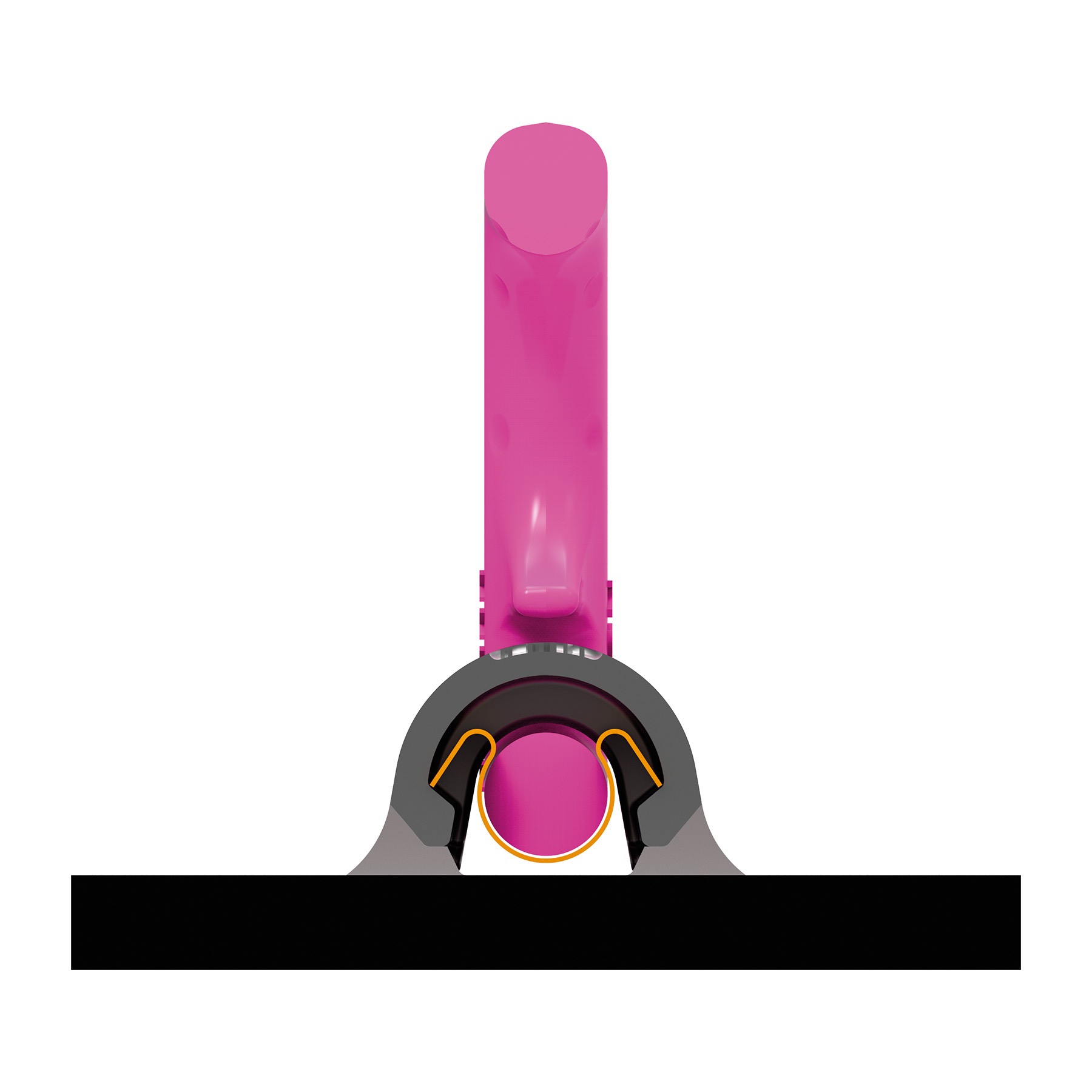

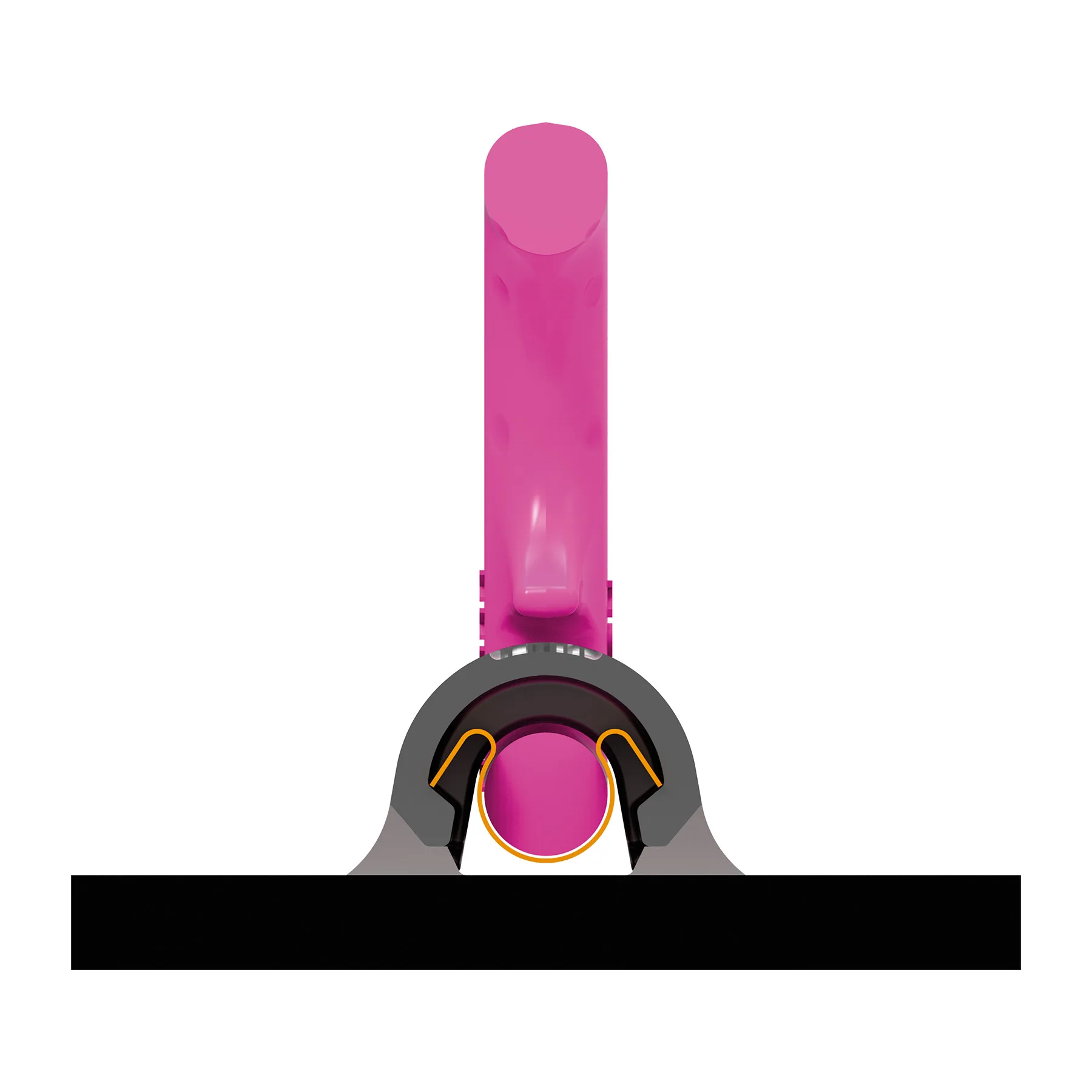

Suspension ring & weld-on-block of the VLBS-U are undetachable
Suspension ring can be angled into position (VLBS-U)

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (12)

Load Ring VLBS-U-1.5t with spring (7993035)

Technical Information

Product number: 7993035

Technical Downloads

VLBS-U-1.5 - DXF 2D CAD File Download File

VLBS-U-1.5 - IGES 3D CAD File Download File

VLBS-U-1.5 - STEP 3D CAD File Download File

Load Ring VLBS-U-1.5t with spring Download File

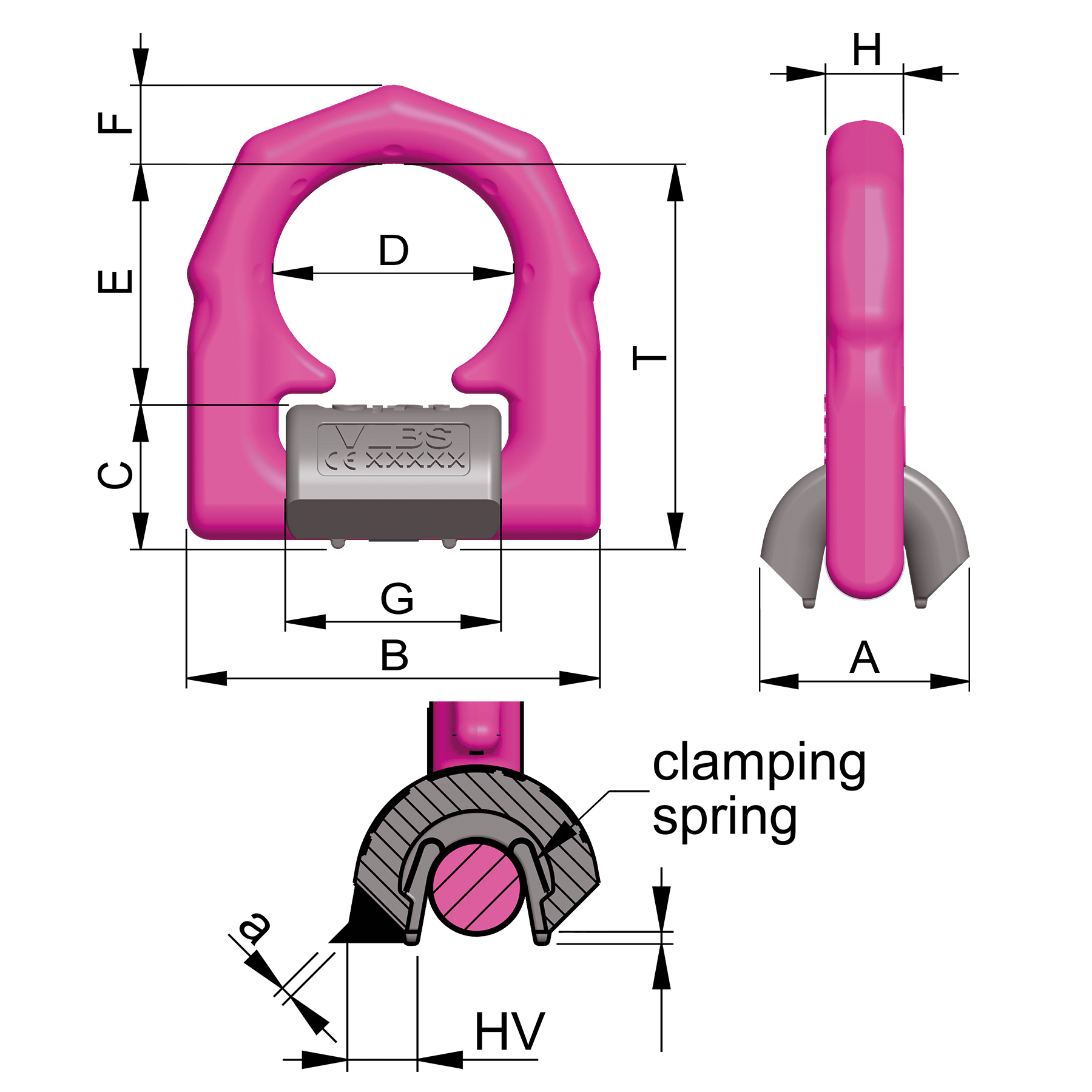

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	1500 kg	3300 lbs
A	33 mm	1-5/16"
B	66 mm	2-5/8"
T	65 mm	2-9/16"
C	25 mm	63/64"
D	38 mm	1-1/2"
E	40 mm	1-9/16"
F	14 mm	9/16"
G	33 mm	1-5/16"
H	14 mm	9/16"

Load Ring VLBS-U-2.5t with spring (7994830)

Technical Information

Product number: 7994830

Technical Downloads

VLBS-U-2.5 - DXF 2D CAD File Download File

VLBS-U-2.5 - IGES 3D CAD File Download File

VLBS-U-2.5 - STEP 3D CAD File Download File

Load Ring VLBS-U-2.5t with spring Download File

Attribute	Value	Value
weight	0.48 kg	1.06 lbs
Nominal WLL	2500 kg	5500 lbs
A	36 mm	1-27/64"
B	77 mm	3"-1/32"
T	75 mm	2-15/16"
C	27 mm	1-1/16"
D	45 mm	1-25/32"
E	48 mm	1-7/8"
F	16 mm	5/8"
G	40 mm	1-9/16"
H	14 mm	9/16"

Load Ring VLBS-U-4t with spring (7993036)

Technical Information

Product number: 7993036

Technical Downloads

VLBS-U-4 - DXF 2D CAD File Download File

VLBS-U-4 - IGES 3D CAD File Download File

VLBS-U-4 - STEP 3D CAD File Download File

Load Ring VLBS-U-4t with spring Download File

Attribute	Value	Value
weight	0.76 kg	1.68 lbs
Nominal WLL	4000 kg	8800 lbs
A	42 mm	1-21/32"
B	87 mm	3-7/16"
T	83 mm	3-1/4"
C	31 mm	1-7/32"
D	51 mm	2"
E	52 mm	2-1/16"
F	18 mm	23/32"
G	46 mm	1-13/16"
H	16 mm	5/8"

Load Ring VLBS-U-6.7t with spring (7993037)

Technical Information

Product number: 7993037

Technical Downloads

VLBS-U-6.7 - DXF 2D CAD File Download File

VLBS-U-6.7 - IGES 3D CAD File Download File

VLBS-U-6.7 - STEP 3D CAD File Download File

Load Ring VLBS-U-6.7t with spring Download File

Attribute	Value	Value
weight	1.90 kg	4.19 lbs
Nominal WLL	6700 kg	15000 lbs
A	61 mm	2-13/32"
B	115 mm	4-1/2"
T	117 mm	4-5/8"
C	44 mm	1-3/4"
D	67 mm	2-5/8"
E	73 mm	2-7/8"
F	24 mm	15/16"
G	60 mm	2-3/8"
H	22 mm	7/8"

Load Ring VLBS-U-10t with spring (7993040)

Technical Information

Product number: 7993040

Technical Downloads

VLBS-U-10 DXF 2D CAD File Download File

VLBS-U-10 IGES 3D CAD File Download File

VLBS-U-10 STEP 3D CAD File Download File

Load Ring VLBS-U-10t with spring Download File

Attribute	Value	Value
weight	2.90 kg	6.39 lbs
Nominal WLL	10000 kg	22000 lbs
A	75 mm	2-15/16"
B	129 mm	5-1/16"
T	126 mm	5"
C	55 mm	2-5/32"
D	67 mm	2-5/8"
E	71 mm	2-13/16"
F	26.5 mm	1-3/64"
G	60 mm	2-3/8"
H	26.5 mm	1-3/64"

Load Ring VLBS 1.5t without spring (7993115)

Technical Information

Product number: 7993115

Technical Downloads

VLBS-1.5 - DXF 2D CAD File Download File

VLBS-1.5 - IGES 3D CAD File Download File

VLBS-1.5 - STEP 3D CAD File Download File

Load Ring VLBS 1.5t without spring Download File

Attribute	Value	Value
weight	0.35 kg	0.77 lbs
Nominal WLL	1500 kg	3300 lbs
A	33 mm	1-5/16"
B	66 mm	2-5/8"
T	65 mm	2-9/16"
C	25 mm	63/64"
D	38 mm	1-1/2"
E	40 mm	1-9/16"
F	14 mm	9/16"
G	33 mm	1-5/16"
H	14 mm	9/16"

Load Ring VLBS 2.5t without spring (7995346)

Technical Information

Product number: 7995346

Technical Downloads

VLBS-2.5 - DXF 2D CAD File Download File

VLBS-2.5 - IGES 3D CAD File Download File

VLBS-2.5 - STEP 3D CAD File Download File

Load Ring VLBS 2.5t without spring Download File

Attribute	Value	Value
weight	0.48 kg	1.06 lbs
Nominal WLL	2500 kg	5500 lbs
A	36 mm	1-27/64"
B	77 mm	3"-1/32"
T	75 mm	2-15/16"
C	27 mm	1-1/16"
D	45 mm	1-25/32"
E	48 mm	1-7/8"
F	16 mm	5/8"
G	40 mm	1-9/16"
H	14 mm	9/16"

Load Ring VLBS-U-16t with spring (7906640)

Technical Information

Product number: 7906640

Technical Downloads

VLBS-U-16t - DXF 2D CAD File Download File

VLBS-U-16t - IGES 3D CAD File Download File

VLBS-U-16t - STEP 3D CAD File Download File

Attribute	Value	Value
weight	7.12 kg	15.70 lbs
Nominal WLL	16000 kg	35300 lbs
T	176 mm	6-15/16"
A	96 mm	3-25/32"
B	192 mm	7-9/16"
C	70 mm	2-3/4"
D	100 mm	3-15/16"
E	106 mm	4-3/16"
F	40 mm	1-9/16"
G	90 mm	3-17/32"
H	26 mm	1"

Load Ring VLBS 4t without spring (7993116)

Technical Information

Product number: 7993116

Technical Downloads

VLBS-4 - DXF 2D CAD File Download File

VLBS-4 - IGES 3D CAD File Download File

VLBS-4 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	0.72 kg	1.59 lbs
Nominal WLL	4000 kg	8800 lbs
T	83 mm	3-1/4"
A	42 mm	1-21/32"
B	87 mm	3-7/16"
C	31 mm	1-7/32"
D	51 mm	2"
E	52 mm	2-1/16"
F	18 mm	23/32"
G	46 mm	1-13/16"
H	16 mm	5/8"

Load Ring VLBS 6.7t without spring (7993117)

Technical Information

Product number: 7993117

Technical Downloads

VLBS-6.7 - DXF 2D CAD File Download File

VLBS-6.7 - IGES 3D CAD File Download File

VLBS-6.7 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	1.89 kg	4.17 lbs
Nominal WLL	6700 kg	15000 lbs
T	117 mm	4-5/8"
A	61 mm	2-13/32"
B	115 mm	4-1/2"
C	44 mm	1-3/4"
D	67 mm	2-5/8"
E	73 mm	2-7/8"
F	24 mm	15/16"
G	60 mm	2-3/8"
H	22.5 mm	7/8"

Load Ring VLBS 10t without spring (7993118)

Technical Information

Product number: 7993118

Technical Downloads

VLBS-10 - DXF 2D CAD File Download File

VLBS-10 - IGES 3D CAD File Download File

VLBS-10 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	2.90 kg	6.39 lbs
Nominal WLL	10000 kg	22000 lbs
T	126 mm	5"
A	75 mm	2-15/16"
B	129 mm	5-1/16"
C	55 mm	2-5/32"
D	67 mm	2-5/8"
E	71 mm	2-13/16"
F	27 mm	1-1/16"
G	60 mm	2-3/8"
H	26 mm	1"

Load Ring VLBS 16t without spring (7993041)

Technical Information

Product number: 7993041

Technical Downloads

VLBS-16 - DXF 2D CAD File Download File

VLBS-16 - IGES 3D CAD File Download File

VLBS-16 - STEP 3D CAD File Download File

Attribute	Value	Value
weight	7.10 kg	15.65 lbs
Nominal WLL	16000 kg	35300 lbs
T	176 mm	6-15/16"
A	96 mm	3-25/32"
B	192 mm	7-9/16"
C	70 mm	2-3/4"
D	100 mm	3-15/16"
E	106 mm	4-3/16"
F	40 mm	1-9/16"
G	90 mm	3-17/32"
H	26 mm	1"
