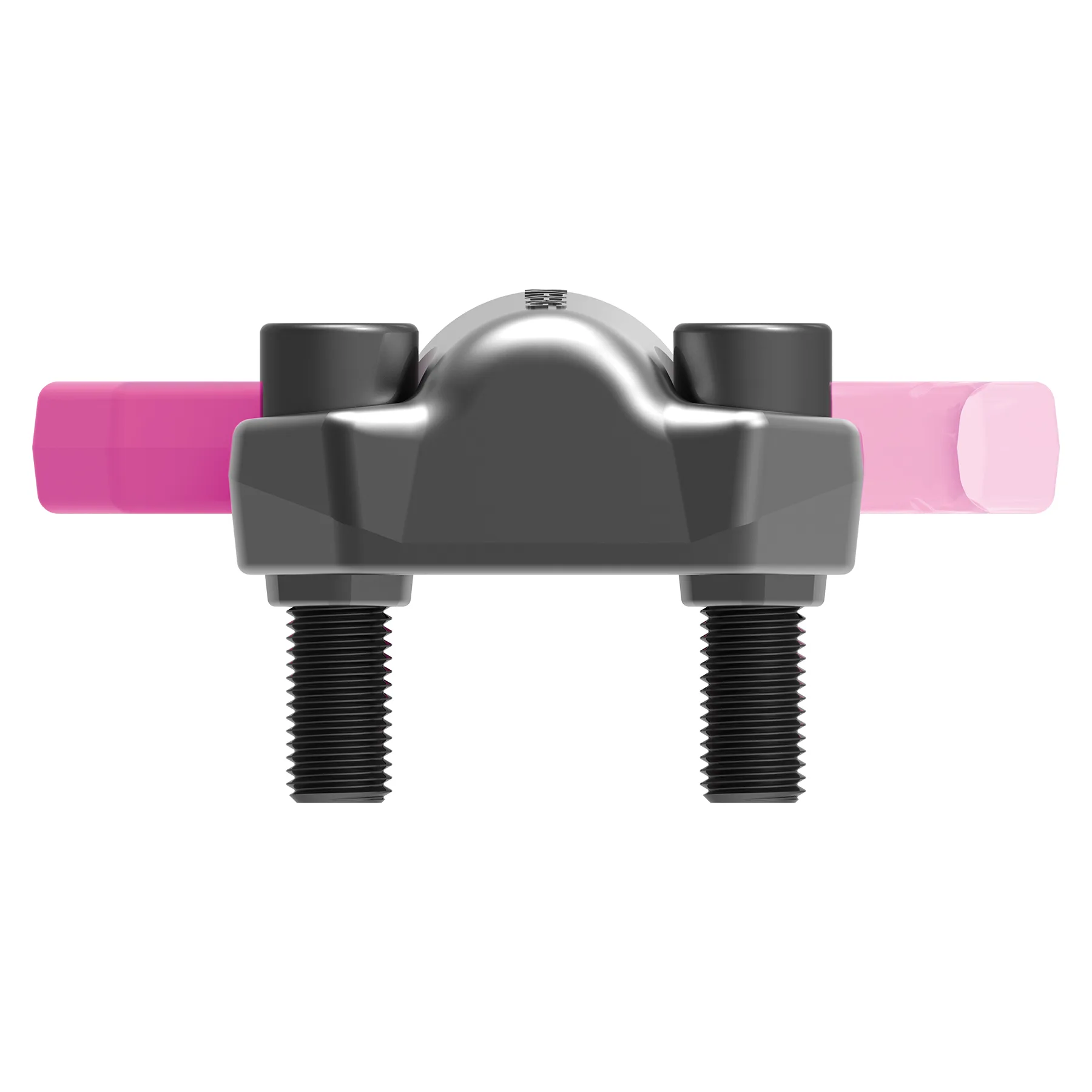

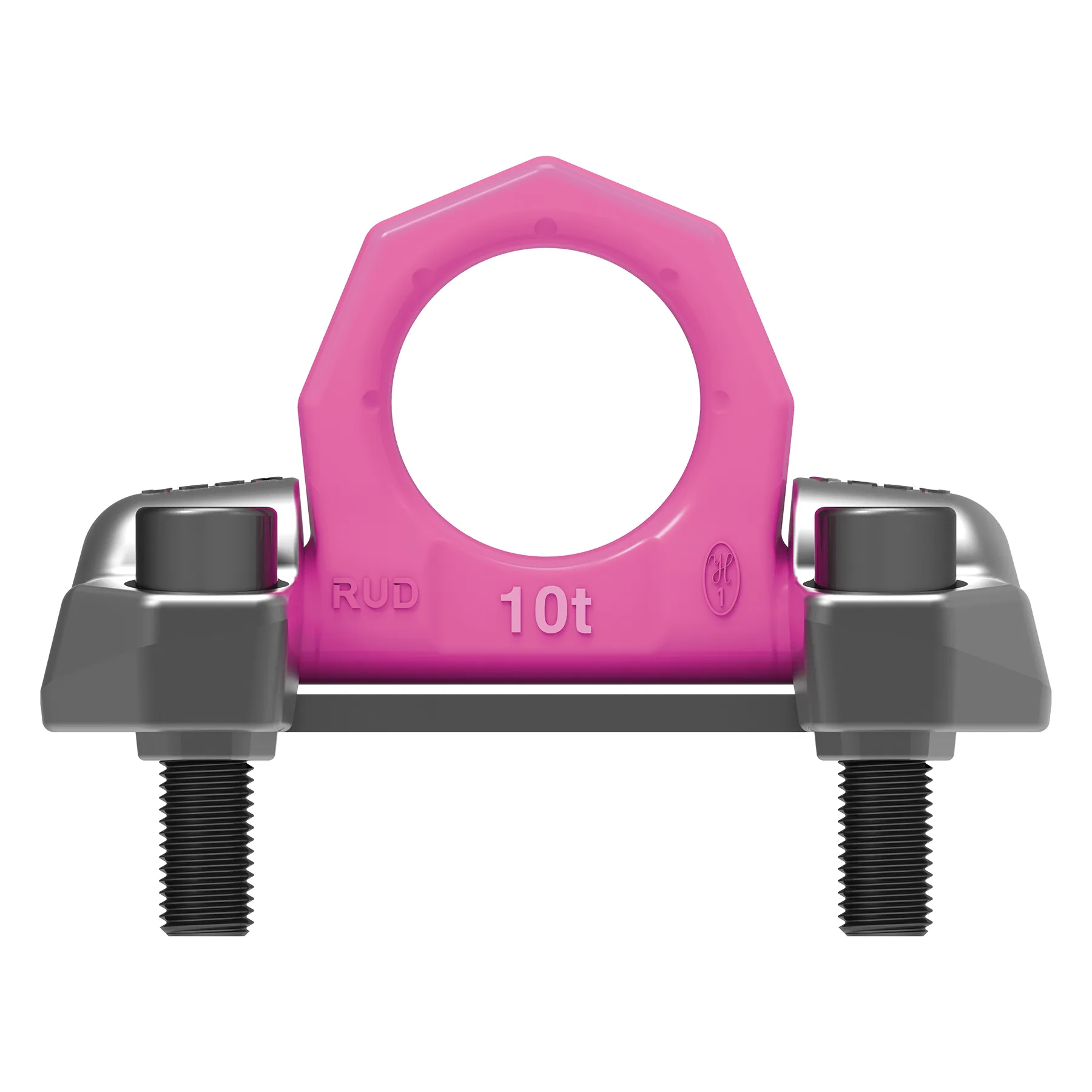

VRBG 10 & 16 - Load Ring for Bolting
Force application made easy
- Full load in 90° in line with the ring plane
- The patented relief lugs (DBP3123175) protect the securing bolt against bending and shearing loads
- Can be stowed with smaller bolts and thus low profile
- Part-protecting application of force through several fixtures
- Working Load Limit up to 16t
- RUD 4:1 safety factor
Product Variants (2)

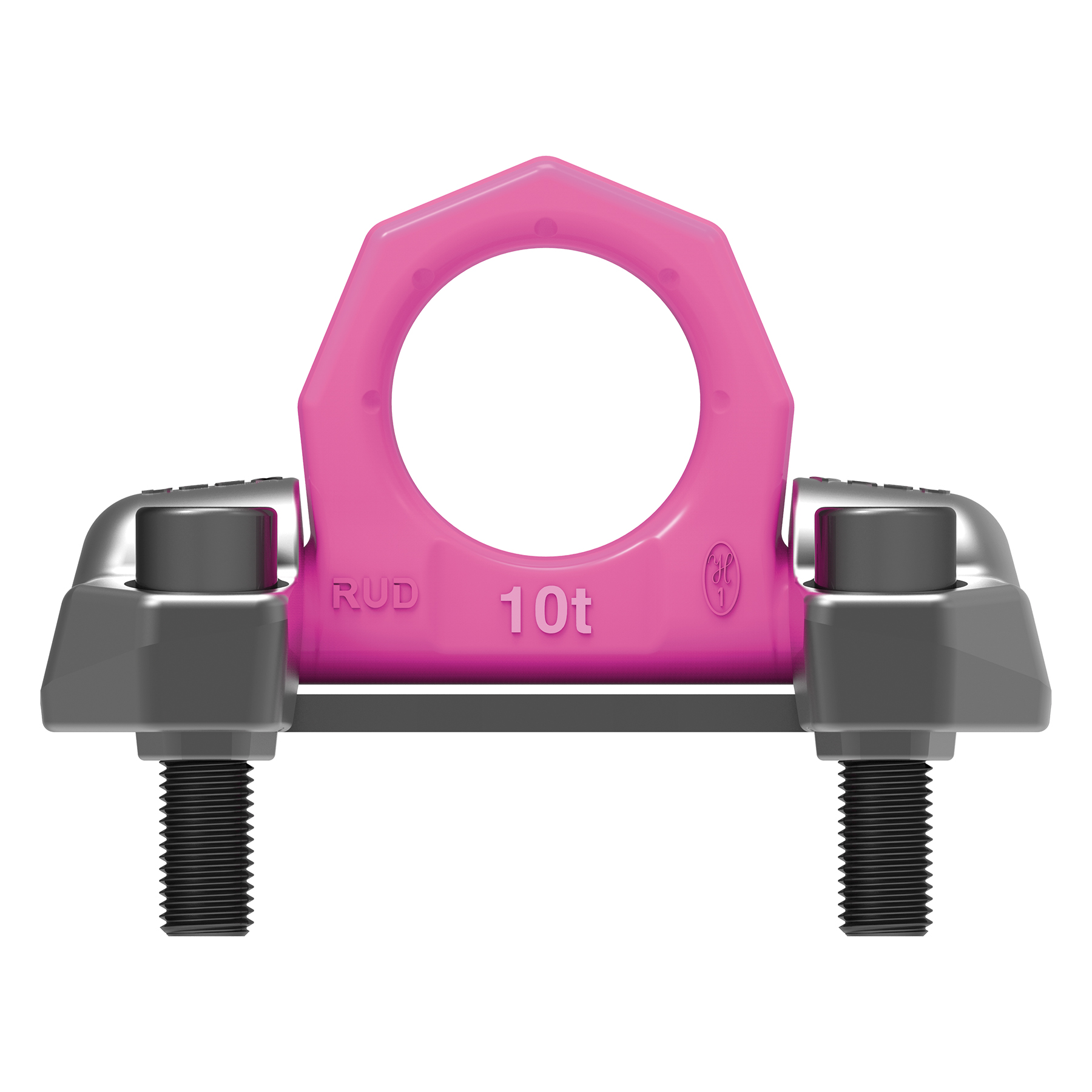

Eye Plate-threaded VRBG-10t (7994537)

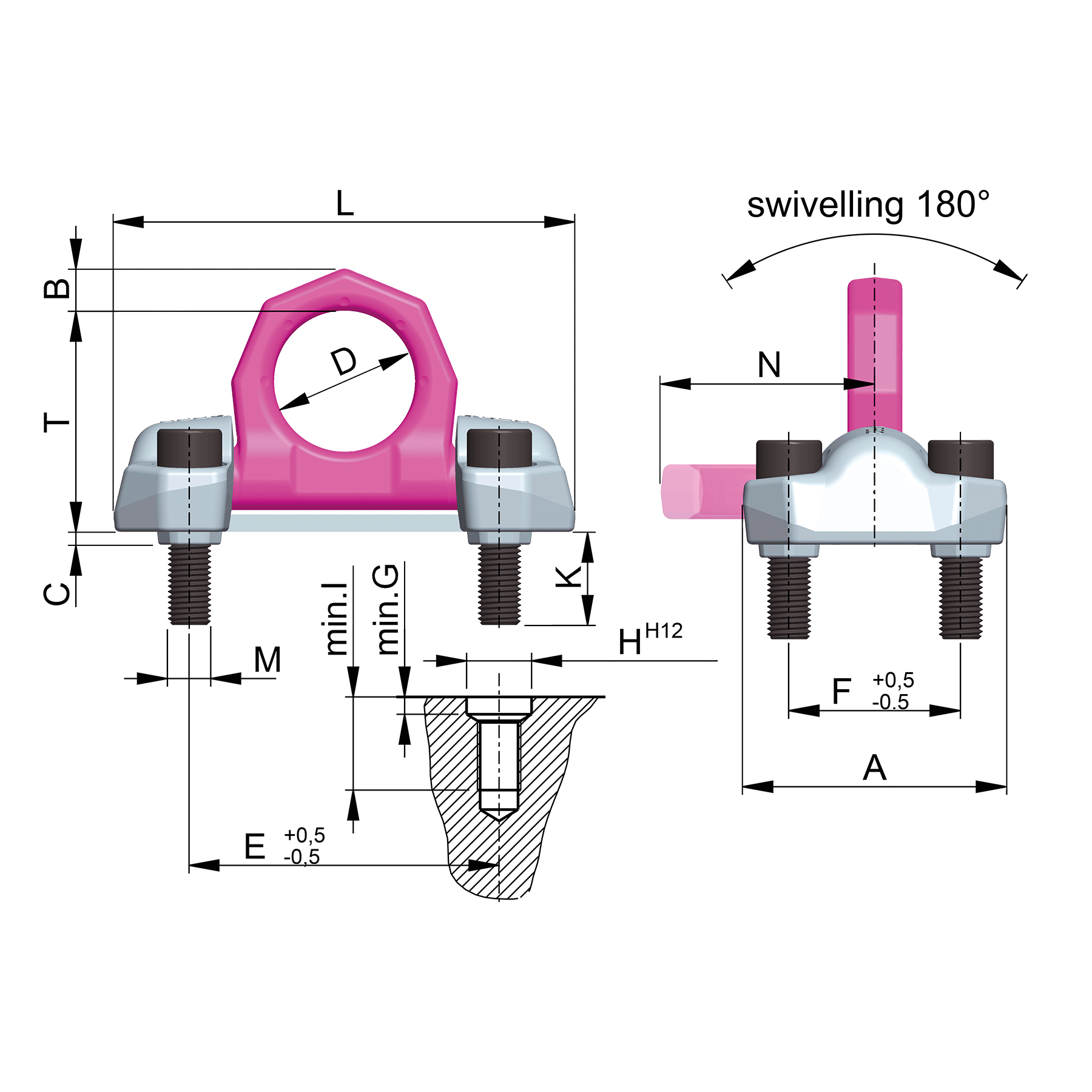

Attribute | Value | Value |
---|
weight | 5.43 kg | 11.97 lbs |
Nominal WLL | 10000 kg | 22000 lbs |
T | 103 mm | 4-1/16" |
A | 125 mm | 4-15/16" |
B | 22 mm | 7/8" |
C | 6 mm | 15/64" |
D | 65 mm | 2-9/16" |
E | 143 mm | 5-5/8" |
F | 78 mm | 3-1/16" |
G | 8 mm | 5/16" |
H | 30 mm | 1-3/16" |
I | 50 mm | 1-31/32" |
K | 43 mm | 1-11/16" |
L | 213 mm | 8-3/8" |
M | M20 mm | M20 |
N | 100 mm | 3-15/16" |
Eye Plate-threaded VRBG-16t (7993255)
Attribute | Value | Value |
---|
weight | 11.37 kg | 25.07 lbs |
Nominal WLL | 16000 kg | 35300 lbs |
T | 131 mm | 5-3/16" |
A | 170 mm | 6-11/16" |
B | 30 mm | 1-3/16" |
C | 8 mm | 5/16" |
D | 90 mm | 3-17/32" |
E | 198 mm | 7-7/8" |
F | 104 mm | 4-3/32" |
G | 10 mm | 3/8" |
H | 46 mm | 1-13/16" |
I | 70 mm | 2-3/4" |
K | 63 mm | 2-15/32" |
L | 270 mm | 10-5/8" |
M | M30 mm | M30 |
N | 134 mm | 5-9/32" |
