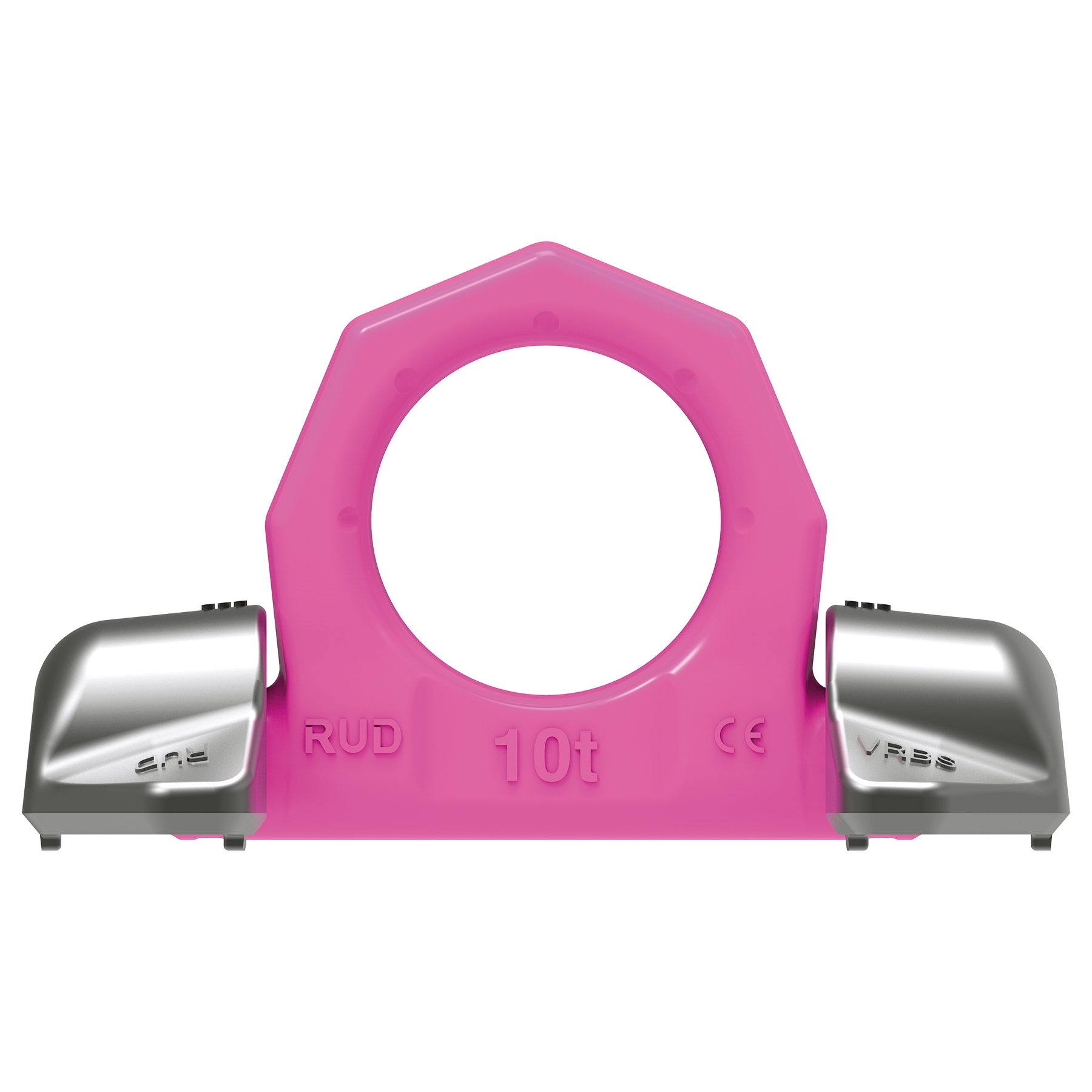

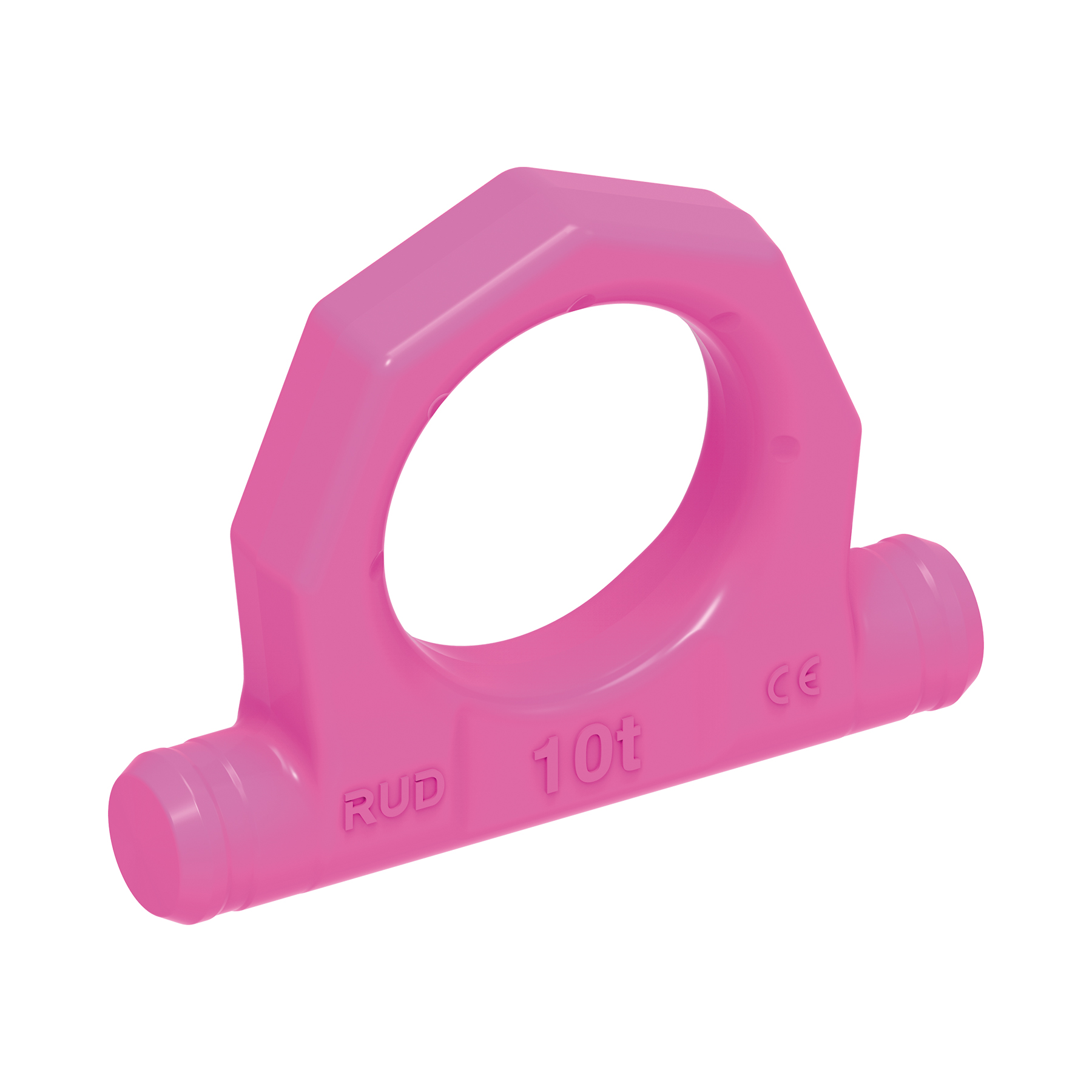

VRBS – Load ring for welding

Split force introduction
Suspension ring pivots 180°
Clear marking of the minimum WLL

ENQUIRE ABOUT THIS PRODUCT

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Email
This field is for validation purposes and should be left unchanged.

Product Variants (5)

Eye Plate, ready for welding VRBS-4t (7992488)

Technical Information

Product number: 7992488

Technical Downloads

VRBS-4 - DXF 2D CAD File Download File

VRBS-4 - IGES 3D CAD File Download File

VRBS-4 - STEP 3D CAD File Download File

VRBS-rund - Picture Download File

Eye Plate, ready for welding VRBS-4t Download File

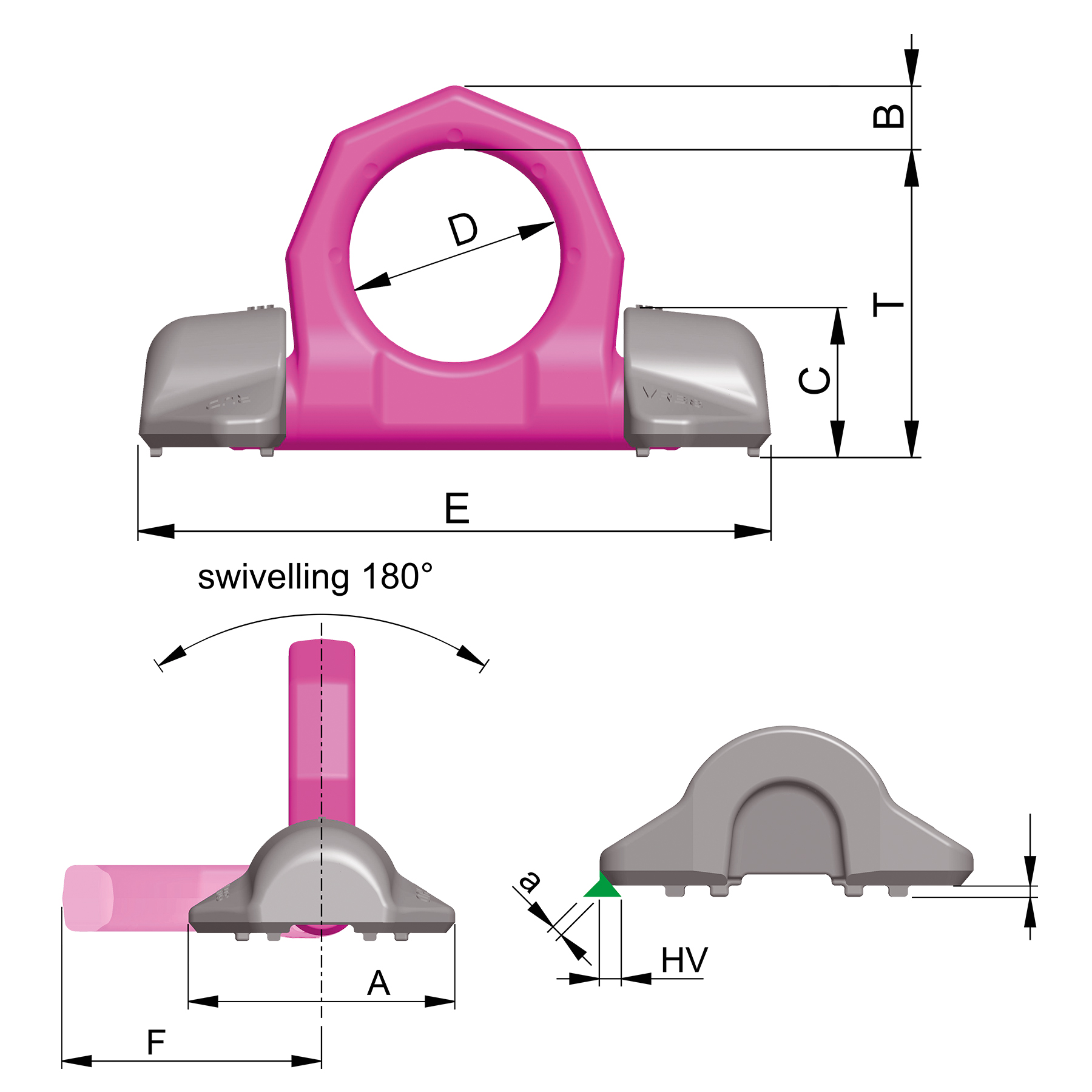

Attribute	Value	Value
weight	0.8 kg	1.76 lbs
Nominal WLL	4000 kg	8800 lbs
A	62.0 mm	2-7/16"
B	14 mm	9/16"
T	65.0 mm	2-9/16"
C	28 mm	1-1/8"
D	48 mm	1-7/8"
E	135 mm	5-5/16"
F	71 mm	2-13/16"

Eye Plate, ready for welding VRBS-6.7t (7992489)

Technical Information

Product number: 7992489

Technical Downloads

VRBS-6.7 - DXF 2D CAD File Download File

VRBS-6.7 - IGES 3D CAD File Download File

VRBS-6.7 - STEP 3D CAD File Download File

VRBS-rund - Picture Download File

Eye Plate, ready for welding VRBS-6.7t Download File

Attribute	Value	Value
weight	1.6 kg	3.53 lbs
Nominal WLL	6700 kg	15000 lbs
A	88.0 mm	3-15/32"
B	20.0 mm	3/4"
T	84.0 mm	3-5/16"
C	39 mm	1-9/16"
D	60 mm	2-3/8"
E	170 mm	6-11/16"
F	92 mm	3-5/8"

Eye Plate, ready for welding VRBS-10t (7992490)

Technical Information

Product number: 7992490

Technical Downloads

VRBS-10 - DXF 2D CAD File Download File

VRBS-10 - IGES 3D CAD File Download File

VRBS-10 - STEP 3D CAD File Download File

VRBS-rund - Picture Download File

Eye Plate, ready for welding VRBS-10t Download File

Attribute	Value	Value
weight	3.0 kg	6.61 lbs
Nominal WLL	10000 kg	22000 lbs
A	100.0 mm	3-15/16"
B	22.0 mm	7/8"
T	95.0 mm	3-3/4"
C	46 mm	1-13/16"
D	65 mm	2-9/16"
E	195 mm	7-11/16"
F	100 mm	3-15/16"

Eye Plate, ready for welding VRBS-16t (7992491)

Technical Information

Product number: 7992491

Technical Downloads

VRBS-16 - DXF 2D CAD File Download File

VRBS-16 - IGES 3D CAD File Download File

VRBS-16 - STEP 3D CAD File Download File

VRBS-rund - Picture Download File

Eye Plate, ready for welding VRBS-16t Download File

Attribute	Value	Value
weight	6.6 kg	14.55 lbs
Nominal WLL	16000 kg	35300 lbs
A	130.0 mm	5-1/8"
B	30.0 mm	1-3/16"
T	127.0 mm	5"
C	57 mm	2-1/4"
D	90 mm	3-17/32"
E	263 mm	10-3/8"
F	134 mm	5-9/32"

Eye Plate, ready for welding VRBS-31.5t (60267)

Technical Information

Product number: 60267

Technical Downloads

VRBS-30 - DXF 2D CAD File Download File

VRBS-30 - IGES 3D CAD File Download File

VRBS-30 - STEP 3D CAD File Download File

VRBS-rund - Picture Download File

Eye Plate, ready for welding VRBS-31.5t Download File

Attribute	Value	Value
weight	15.60 kg	34.39 lbs
Nominal WLL	31500 kg	69300 lbs
A	160 mm	6-13/32"
B	42 mm	1-21/32"
T	178 mm	7"
C	78 mm	3-1/16"
D	130 mm	5-1/8"
E	373 mm	14-11/16"
F	195 mm	7-11/16"
