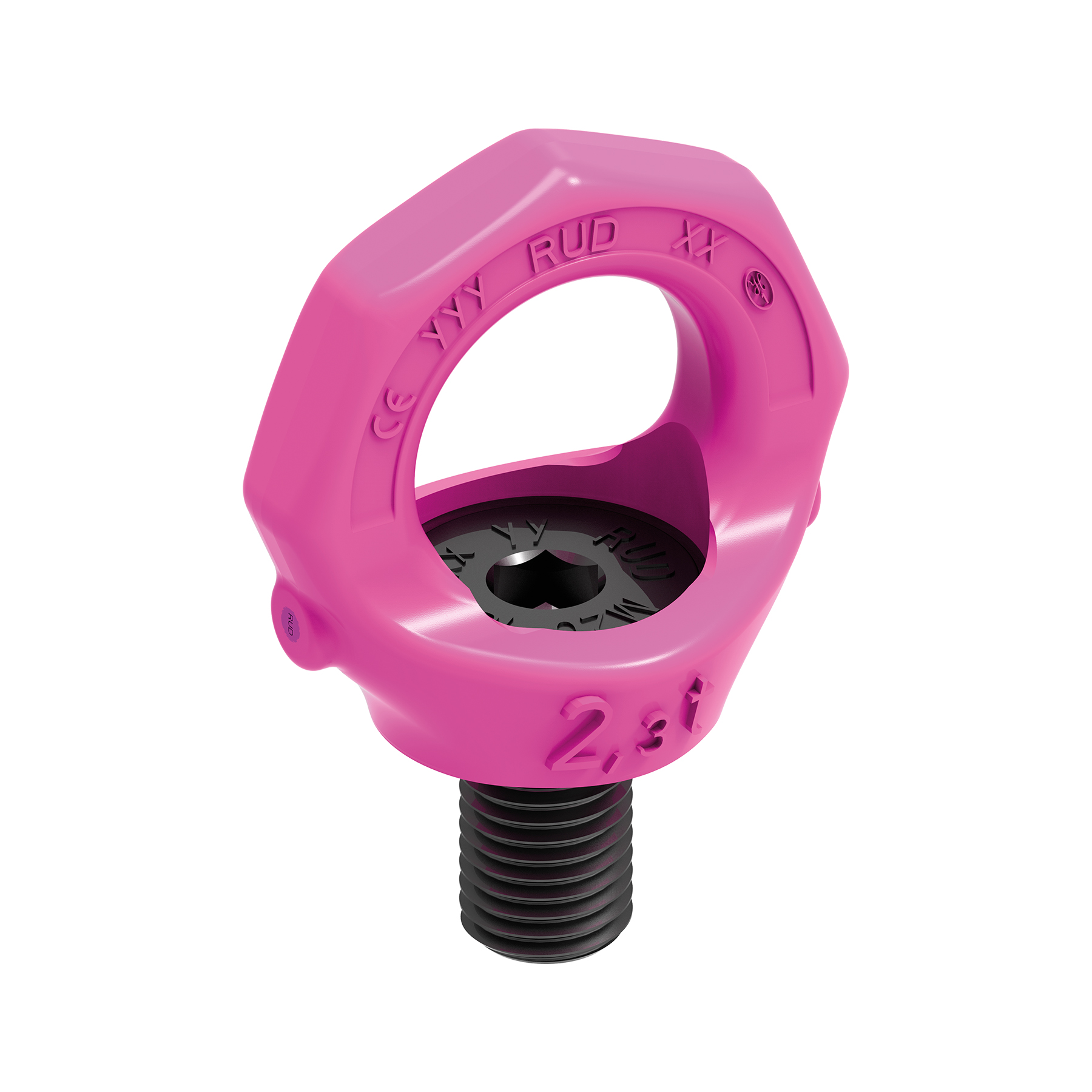

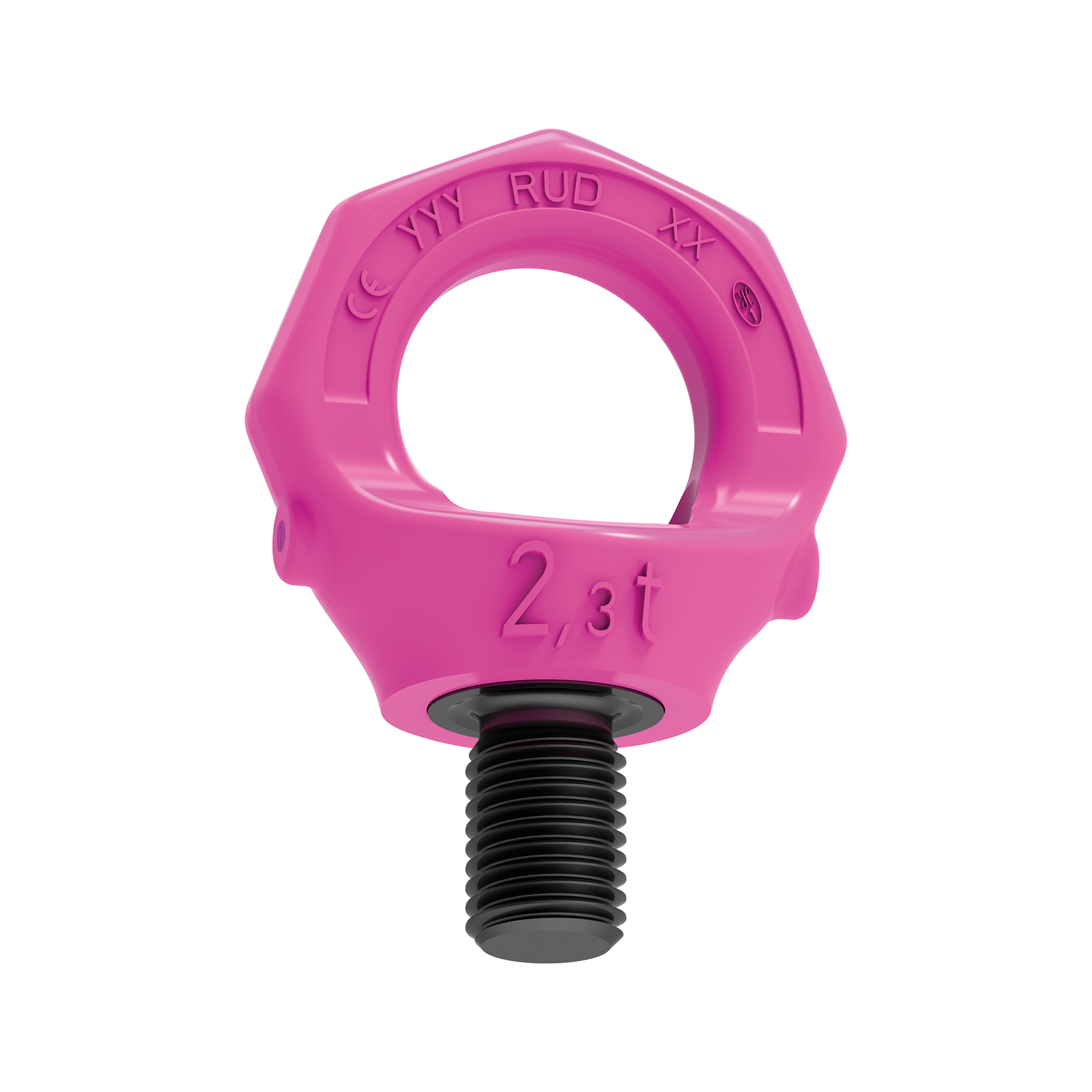

VRS STARPOINT, metric thread

VRS STARPOINT, UNF thread

360° adjustable in force direction
Higher WLL than the DIN 580 eye bolt
Easy-Fit-Key for easy assembly and disassembly available, (see VRS-F)

ENQUIRE ABOUT THIS PRODUCT USER INSTRUCTIONS

Enquire About This Product

Name*
First Last
Company**
Country
State **
Your Phone*
Email Address*
Message*
Comments
This field is for validation purposes and should be left unchanged.

Product Variants (1)

STARPOINT VRS - 3/4"-16UNF - 1.5t (7997676)

Technical Information

Product number: 7997676

Technical Downloads

STARPOINT VRS - 3/4"-16UNF - 1.5t Download File

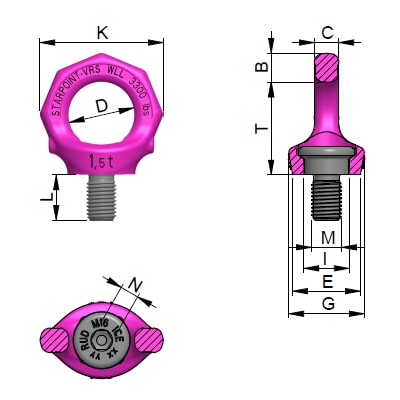

Attribute	Value	Value
weight	0.50 kg	1.10 lbs
Nominal WLL	1500 kg	3300 lbs
B	15 mm	19/32"
T	49 mm	1-15/16"
C	14 mm	9/16"
D	35 mm	1-3/8"
E	35 mm	1-3/8"
G	41 mm	1-5/8"
I	23.5 mm	59/64"
K	65 mm	2-9/16"
L	30 mm	1-3/16"
M	3/4"-16UNF mm	3/4"-16UNF
N	3/8" mm	3/8"
