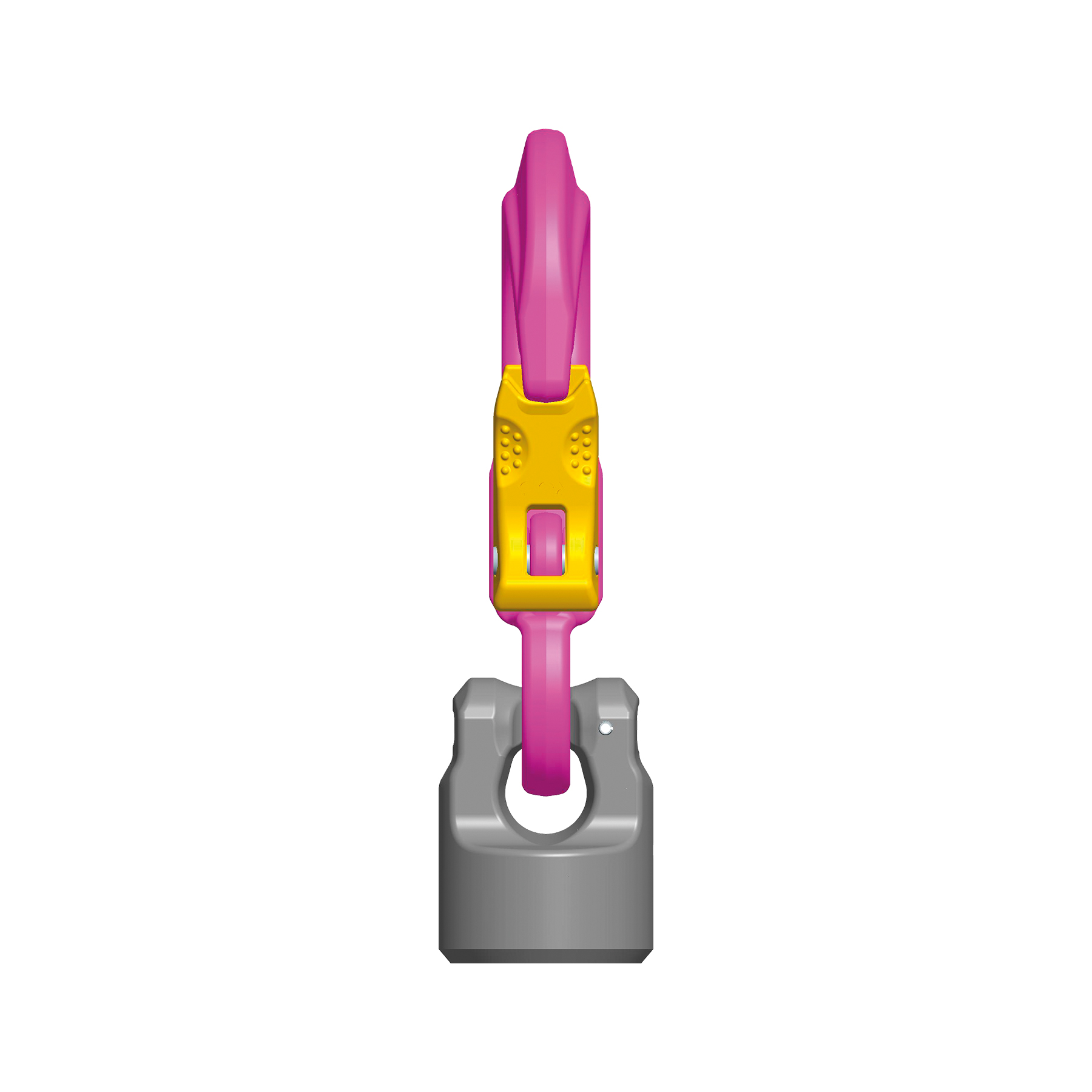

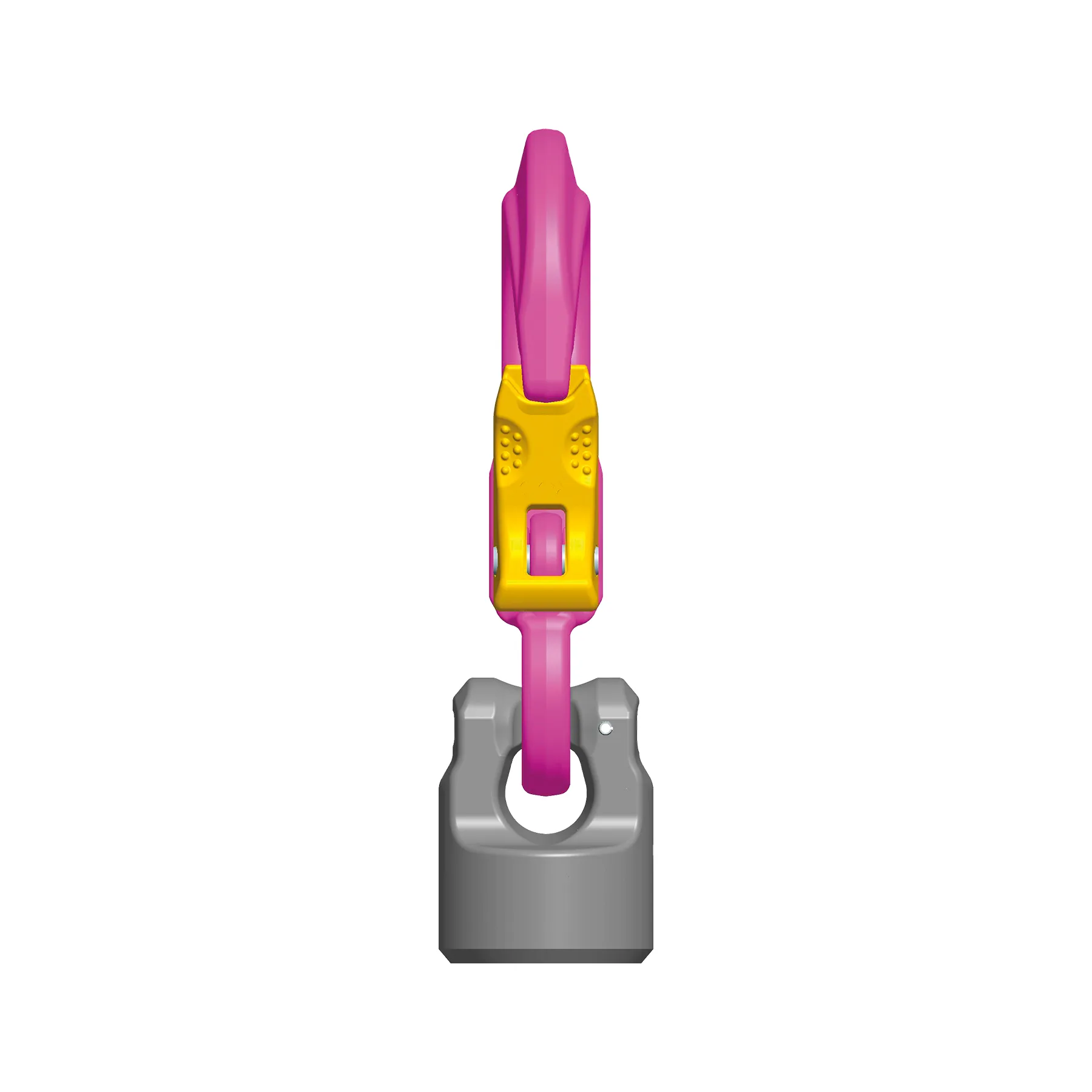

WPPH-S PowerPoint® - Universal Connection

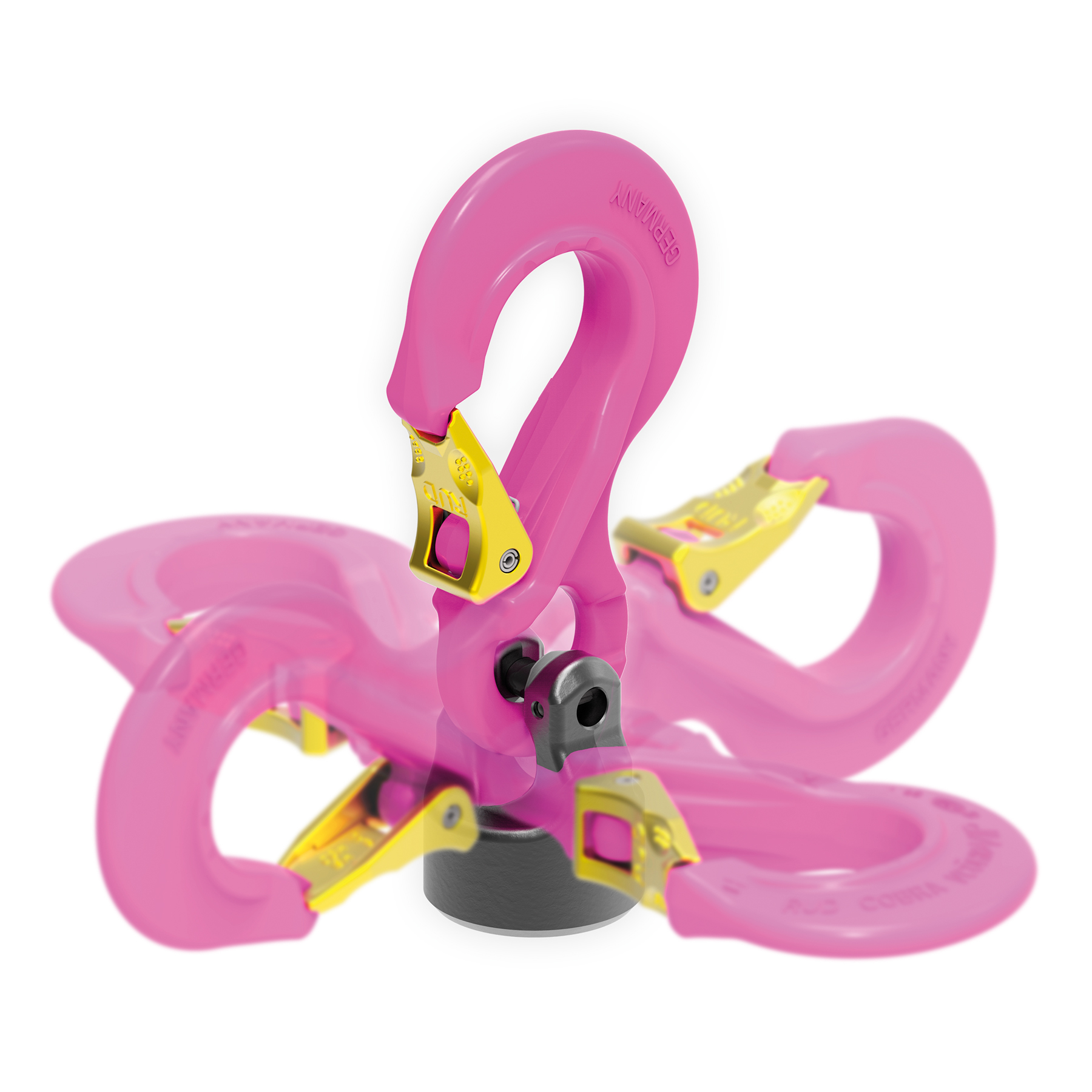

Universal connection with many attachment options
- Can be combined with most commercial lifting means
- Ideal connection link for crossbars construction
- Clear marking of the minimum WLL
- RUD 4:1 safety factor
Product Variants (6)
PowerPoint WPPH-S-0.63t (7990722)

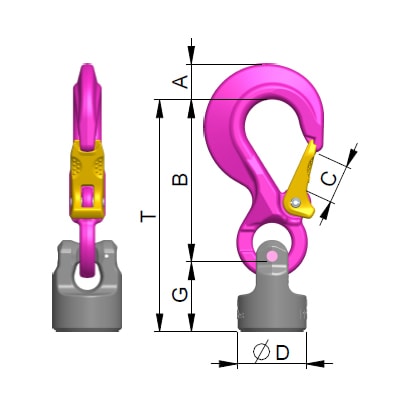

| Attribute | Value | Value |
|---|
| weight | 0.30 kg | 0.66 lbs |
| Nominal WLL | 630 kg | 1385 lbs |
| A | 13 mm | 1/2" |
| B | 75 mm | 2-15/16" |
| T | 109 mm | 4-5/16"
|
| C | 18 mm | 23/32" |
| D | 34 mm | 1-11/32" |
| G | 34 mm | 1-11/32" |
PowerPoint WPPH-S-1.5t (7989966)
| Attribute | Value | Value |
|---|
| weight | 0.90 kg | 1.98 lbs |
| Nominal WLL | 1500 kg | 3300 lbs |
| A | 20 mm | 3/4" |
| B | 97 mm | 3-13/16" |
| T | 141 mm | 5-9/16"
|
| C | 25 mm | 63/64" |
| D | 40 mm | 1-9/16" |
| G | 44 mm | 1-3/4" |
PowerPoint WPPH-S-2.5t (7989967)
| Attribute | Value | Value |
|---|
| weight | 1.4 kg | 3.1 lbs |
| Nominal WLL | 2500 kg | 5500 lbs |
| A | 28.0 mm | 1-1/8" |
| B | 126.0 mm | 4-31/32" |
| T | 179.0 mm | 7-1/32"
|
| C | 30 mm | 1-3/16" |
| D | 53 mm | 2-5/64" |
| G | 53 mm | 2-5/64" |
PowerPoint WPPH-S-4t (7989968)
| Attribute | Value | Value |
|---|
| weight | 3.2 kg | 7.1 lbs |
| Nominal WLL | 4000 kg | 8800 lbs |
| A | 36.0 mm | 1-13/32" |
| B | 150.0 mm | 5-29/32" |
| T | 217.0 mm | 8-9/16"
|
| C | 35 mm | 1-3/8" |
| D | 68 mm | 2-21/32" |
| G | 66 mm | 2-19/32" |
PowerPoint WPPH-S-5t (7989969)
| Attribute | Value | Value |
|---|
| weight | 7.0 kg | 15.3 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| A | 37.0 mm | 1-15/32" |
| B | 174.0 mm | 6-7/8" |
| T | 253.0 mm | 9-31/32"
|
| C | 40 mm | 1-9/16" |
| D | 83 mm | 3-1/4" |
| G | 79 mm | 3-1/8" |
PowerPoint WPPH-S-8t (7989970)
| Attribute | Value | Value |
|---|
| weight | 8.0 kg | 17.6 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| A | 49.0 mm | 1-15/16" |
| B | 208.0 mm | 8-3/16" |
| T | 296.0 mm | 11-21/32"
|
| C | 48 mm | 1-7/8" |
| D | 88 mm | 3-15/32" |
| G | 88 mm | 3-15/32" |
